Oil Catch Can Filter Kit for Mitsubishi Pajero 3.2L D-ID 2006-2015

PRODUCT OVERVIEW

This premium oil catch can filter kit is designed for Mitsubishi Pajero 3.2L D-ID NM/NX 4M41 models from 2006–2015. It improves crankcase ventilation efficiency, reduces oil vapour entering the intake, and helps protect the turbocharger and downstream components.

KEY FEATURES

• Premium universal oil catch can with strong, lightweight plastic construction
• Same paper/cotton filter media as the original design
• Cotton filter element is easily serviceable without disconnecting hoses
• Low pressure loss design, no electrical power required
• 25 mm inlet and outlet ports for crankcase ventilation
• Additional 12.5 mm oil return to allow clean oil to drain back to sump

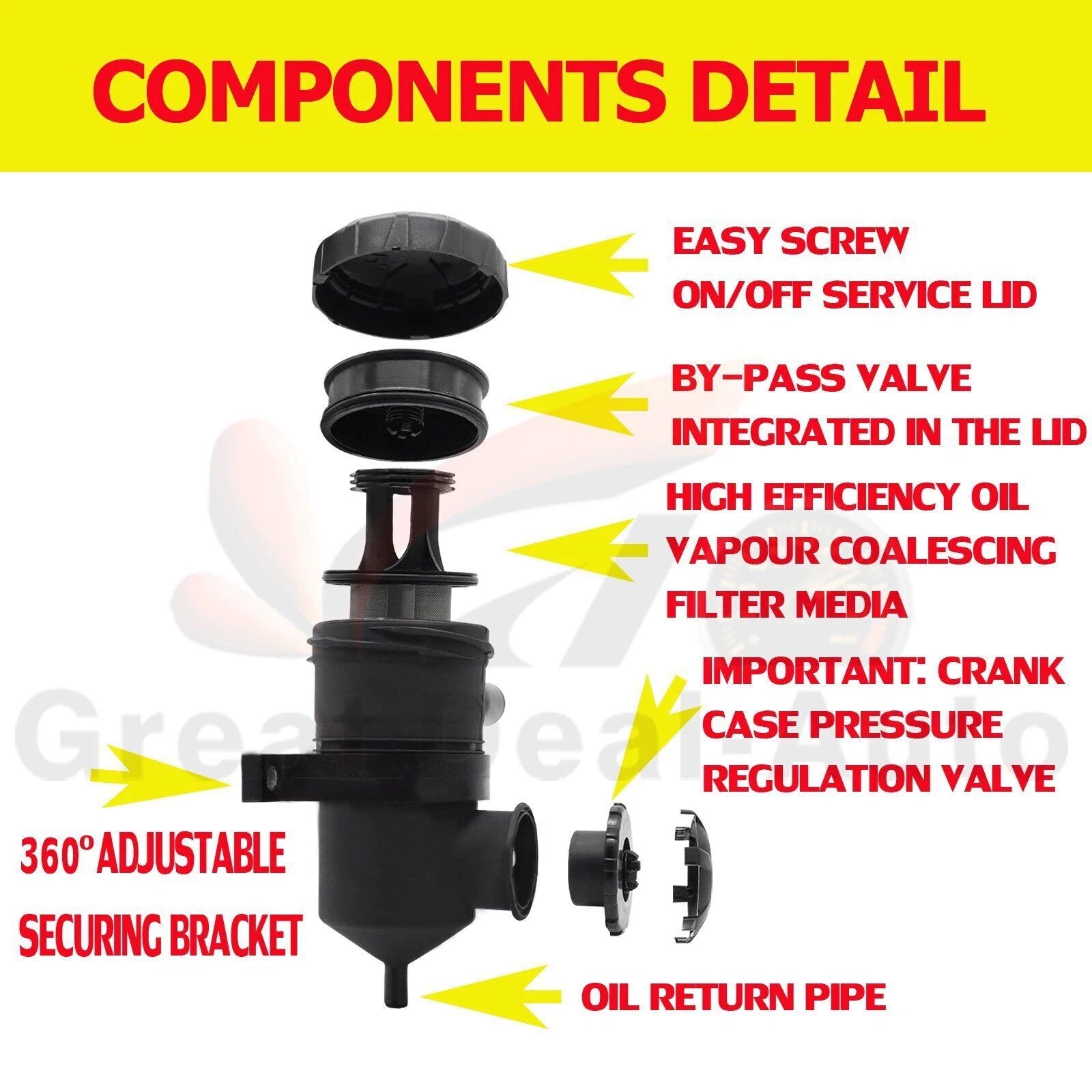

• Bypass valve and crankcase pressure regulation valve integrated in the lid
• Pressure vent in cap to prevent over-pressure in the crankcase
• Specifically engineered for modern turbocharged diesel engines

FUNCTION & BENEFITS

• Separates air and oil vapour by flinging heavier oil and water particles to the can walls
• Vacuum limiting valve regulates vacuum level inside the catch can
• Highly adjustable mounting bracket can swivel 180° for flexible installation
• Filters crankcase gases and prevents harmful oil vapour from entering the inlet system
• Helps stop oil contamination of the turbocharger and keeps intake tract cleaner
• Highly efficient oil separation in both closed and open systems
• Reduces engine oil consumption compared with less efficient separators
• Top cap access for element maintenance without removing fittings or hoses

VEHICLE COMPATIBILITY

• Mitsubishi Pajero 3.2L D-ID NM/NX 4M41
• Model years: 2006–2015
• Note: This kit will not fit vehicles fitted with a TJM/Airtech snorkel
• Compatible with vehicles fitted with a Safari snorkel
• Catch can itself is universal and suitable for crankcase ventilation applications up to 250 kW (installation may require custom routing)

INSTALLATION NOTES

• Allows flexible mounting locations on the engine or within the engine bay
• Ensure correct hose routing to and from crankcase ventilation points
• Check clearance if aftermarket accessories (such as snorkels) are installed
• Professional installation is recommended for optimal performance and reliability

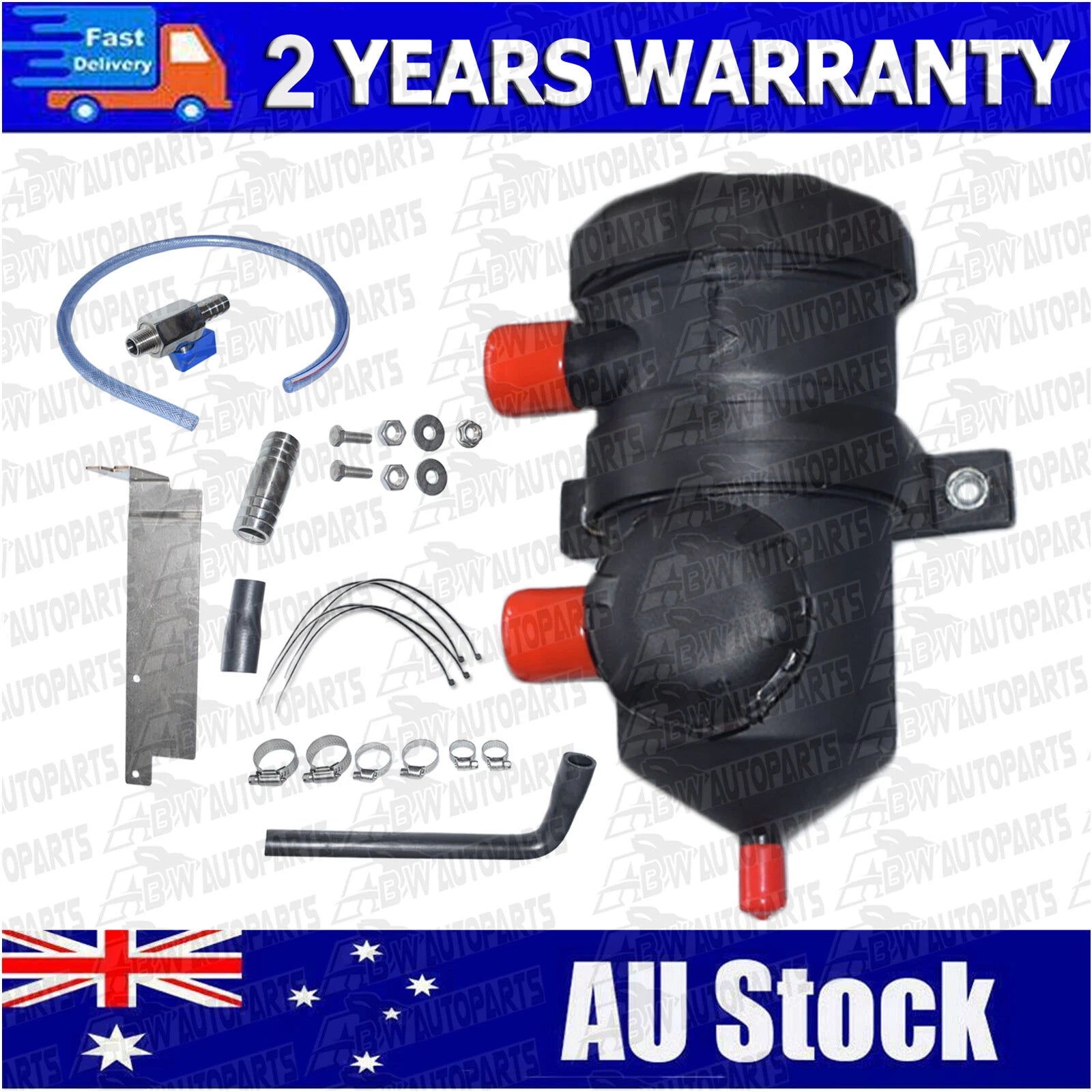

PACKAGE CONTENTS

• 1 × oil catch can assembly
• 1 × cotton filter element (pre-installed)
• Mounting bracket and associated fittings (as supplied)
