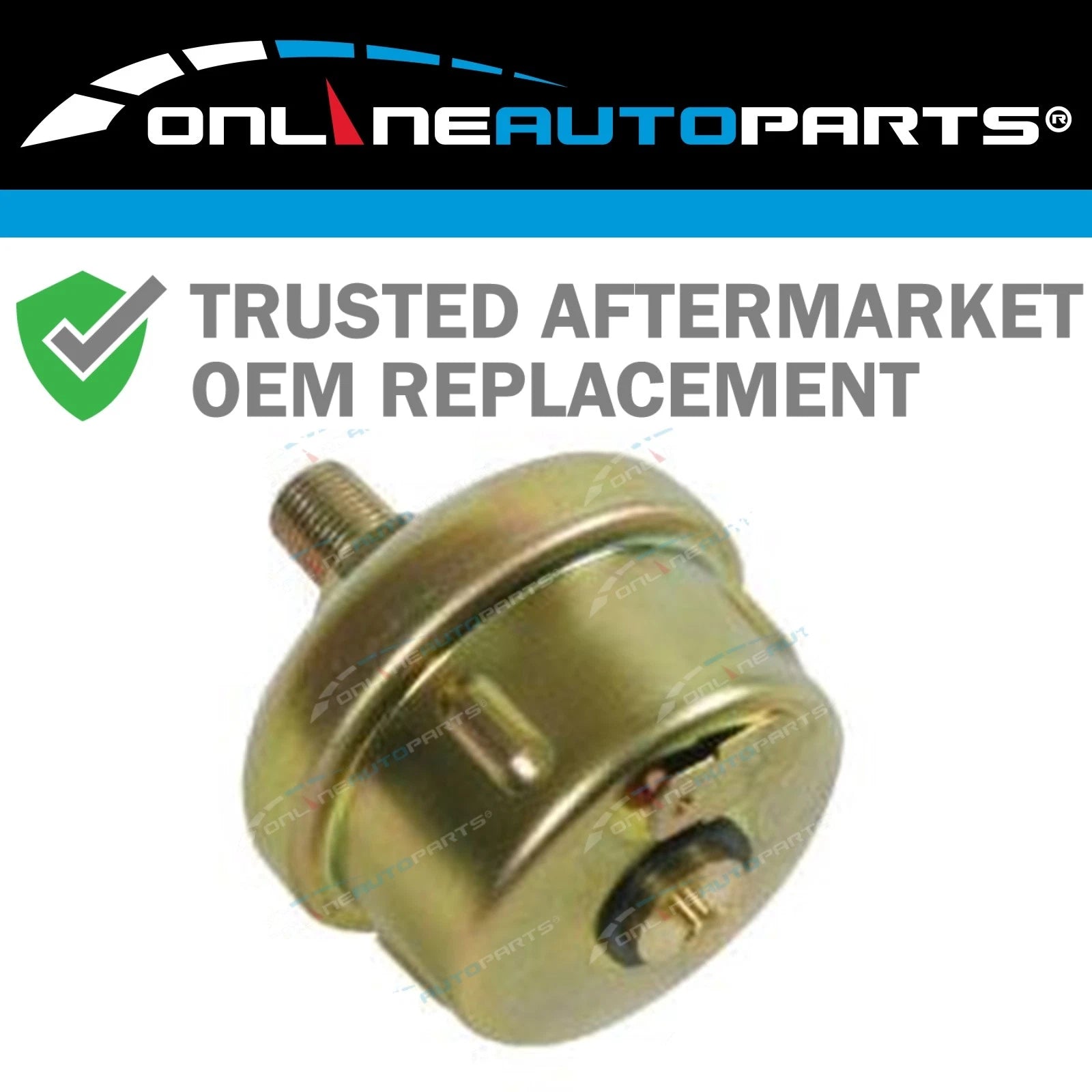

Oil Pressure Gauge Sender 12V for Toyota LandCruiser 40/60/70/80 Series

PRODUCT OVERVIEW

12 Volt oil pressure gauge sender designed for Toyota LandCruiser models equipped with a factory oil pressure indicator gauge (not for simple oil warning lights). This unit provides an accurate signal to the dashboard gauge for real-time monitoring of engine oil pressure.

COMPATIBILITY

Suitable for selected Toyota LandCruiser 4WD vehicles approximately 1983–1999, including:

• 80 Series: 1HZ, 1HD-T (HZJ80, HDJ80, HJ80, HZJ80R, HDJ80R)
• 80 Series: 1FZ-FE, 3F, 3F-E (FZJ80, FJ80, FZJ80R)
• 70 Series: 1HZ (PZJ70, PZJ73, PZJ75, HZJ70, HZJ73, HZJ75)
• 70 Series: 2H, 3F (HJ75, FJ70, FJ75)
• 70 Series: 1FZ-E, 3F-E (FZJ70, FZJ75)
• 70 Series: 13B-T, 22R, 2L-T (RJ70, BJ74, LJ70)
• 60 Series: 2H (HJ60, HJ61, FJ60, FJ62)
• 40 Series: 3B, 2F, 2H (BJ42, FJ40, HJ47)

Only suits vehicles with an oil pressure indicator gauge as original equipment. This is not suitable for systems that use an on/off oil warning light sender only.

SPECIFICATIONS

• Voltage: 12V
• Function: Oil pressure gauge sender

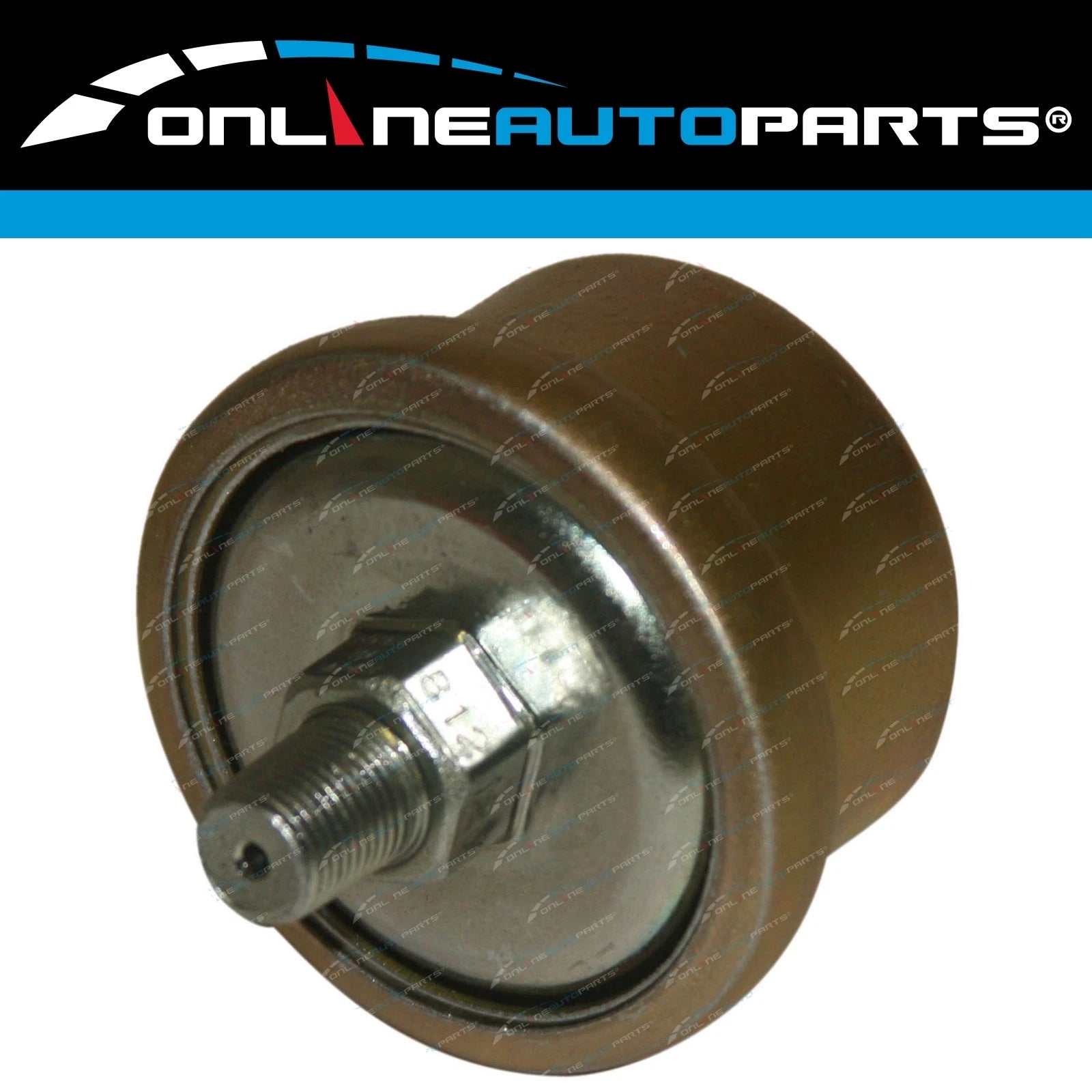

• Thread: 1/8 GAS
• Hex size (spanner): 14 mm
• Reference part numbers: 83520-60010, ZPN-01248
• Type: Aftermarket OEM-equivalent replacement

FUNCTION

The oil pressure sender converts engine oil pressure into an electrical signal for the dashboard gauge. This allows the driver to monitor engine oil pressure during operation and helps detect lubrication issues early, reducing the risk of engine damage.

NOTES

• Verify thread size and electrical connection before installation.
• Confirm that your vehicle is equipped with an oil pressure gauge, not just a warning light.
• Professional installation is recommended to ensure correct sealing and gauge calibration.
