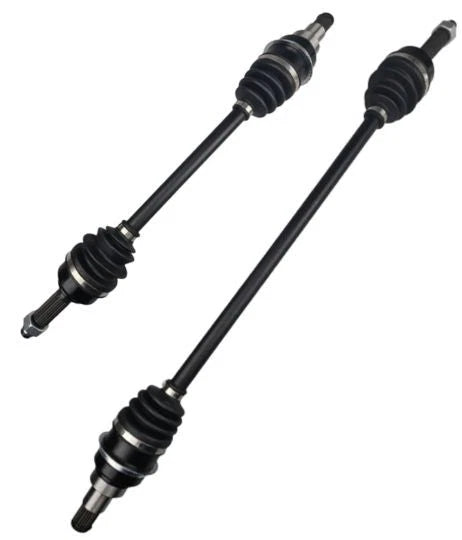

Pair CV Drive Shafts for Daihatsu Cuore, Sirion & YRV FWD 580/797mm

PRODUCT OVERVIEW

Pair of front CV axle drive shafts (left and right hand side) for FWD Daihatsu applications, suitable for automatic and manual transmissions. Built to OEM specifications with heat-treated chrome steel for durability and long service life.

Important: Confirm compressed lengths of 580 mm and 797 mm before purchase. If measurements differ, refer to part numbers CVA1213 and CVA1233.

KEY FEATURES

• Manufactured to OEM standards using heat-treated chrome steel
• High-quality neoprene dust boots to protect joints from contamination
• Stainless steel clamps for secure, corrosion-resistant sealing
• Filled with moly grease for smooth operation at varying angles and speeds
• Designed for front-wheel drive (FWD) applications, left and right side

VEHICLE COMPATIBILITY

This CV drive shaft pair is designed to suit the following vehicles (verify specs and measurements against your existing parts):

• Daihatsu Cuore L701S (07/2000 – 09/2003) 1.0L Petrol EJDE
• Daihatsu Sirion M100S (07/1998 – 02/2005) 1.0L Petrol EJDE
• Daihatsu Sirion GTvi M101S (09/2000 – 02/2005) 1.3L Petrol K3VE
• Daihatsu YRV M200G (08/2000 – 12/2002) 1.0L Petrol EJVE

Always check spline counts and compressed lengths against your original shafts before ordering.

SIZING & SPECIFICATIONS

Left Hand Side (LHS) Shaft:

• Compressed length: 580 mm
• Spline count – outer/wheel side: 24T
• Spline count – inner/diff side: 23T

Right Hand Side (RHS) Shaft:

• Compressed length: 797 mm
• Spline count – outer/wheel side: 24T
• Spline count – inner/diff side: 23T

WHAT'S INCLUDED

• 1 x Front left CV drive shaft (580 mm)
• 1 x Front right CV drive shaft (797 mm)

WARRANTY

• 12 month / 20,000 km warranty on CV drive shafts
• CV boots warranted for 3 months from date of purchase

Warranty applies to manufacturing defects under normal operating conditions. Installation by a qualified technician and correct application are recommended.
