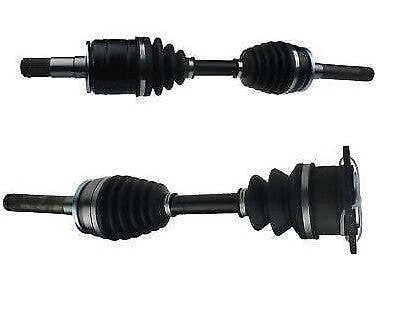

Pair Front CV Drive Shafts 28T for Mitsubishi Triton MK Pajero Challenger
A$323.46
PRODUCT OVERVIEW Pair of front left and right CV axle drive shafts with 28T inner and outer splines, suitable for automatic and manual 4WD applications. Features bolt-on inner joint type...
Guaranteed Fitment
Fast Shipping
Product Details
PRODUCT OVERVIEW
Pair of front left and right CV axle drive shafts with 28T inner and outer splines, suitable for automatic and manual 4WD applications. Features bolt-on inner joint type and is engineered to meet OEM performance and durability standards.
KEY FEATURES
- 28 spline inner and outer joints for secure fitment
- Bolt-on inner joint type for straightforward installation
- Heat-treated chrome steel construction for strength and longevity
- High-quality neoprene dust boots with stainless steel clamps to resist contamination
- Molybdenum grease for smooth operation at varying angles, speeds and high RPM
VEHICLE COMPATIBILITY
Important: Vehicles with 4M40 & 4M40T engines up to 08/2003 have two options for the left shaft: 25 spline (CVA1099) and 28 spline (CVA1068). Confirm your inner joint spline count before ordering.
- Mitsubishi Triton MK 2.8L Diesel 4M40 & 4M40T 06/1996–08/2006 (check inner joint spline count) – GLX, GLXR, GLS
- Mitsubishi Triton MK 3.0L Petrol 6G72 06/1996–08/2006 – GLX, GLXR, GLS
- Mitsubishi Challenger PA K96 3.0L 6G72 4WD MT/AT 12/1997–03/2007 – GLX, GLXR, GLS
- Mitsubishi Pajero NJ NK NL 3.5L V6 Petrol 6G74 07/1993–06/2000 – GL, GLX, GLS
- Mitsubishi Pajero NH NJ 3.0L V6 Petrol 6G72 01/1991–05/1996 – GL, GLX, GLS
- Mitsubishi Pajero 2.8L Diesel 4M40T 09/1995–06/2000 (check inner joint spline count) – GL, GLX, GLS
- Mitsubishi Delica 2.8L Diesel 4M40T 05/1994–12/2006 (check inner joint spline count)
- Mitsubishi Delica 3.0L V6 Petrol 6G72 05/1994–12/2006
SIZING & SPECIFICATIONS
Left CV Shaft
- Compressed length: 609 mm
- Spline count outer/wheel side: 28T
- Spline count inner/diff side: 28T
- Inboard joint type: Tripod
- Outboard joint type: Ball
Right CV Shaft
- Compressed length: 537 mm
- Spline count outer/wheel side: 28T
- PCD mounting bolt holes: 110.46 mm
- Mounting bolt centre to centre: 78 mm
- Mounting bolt hole diameter: 10.5 mm
- Inner joint type: Bolt-on
- Outboard joint type: Ball
WHAT'S INCLUDED
- 2 x complete front CV drive shafts (left and right)
QUALITY & WARRANTY
This range of constant velocity drive shafts is engineered for the driveline aftermarket and covers a wide variety of passenger and 4WD applications on Australian roads. All CV drive shafts are backed by a 12 month / 20,000 km warranty.
Note: CV boots are warranted for 3 months from date of purchase.
Vehicle Compatibility
| Make | Model | Year | Submodel | Variant | Engine | Notes |
|---|---|---|---|---|---|---|
| Mitsubishi | Challenger | 2007 | K96W SUV 3.0 V6 (K96W) | AWD Petrol 3.0L 6cyl 136kW 6G72 (DOHC 24V) | 2972cc 136kW (Petrol) | |
| Mitsubishi | Challenger | 2006 | K96W SUV 3.0 V6 (K96W) | AWD Petrol 3.0L 6cyl 136kW 6G72 (DOHC 24V) | 2972cc 136kW (Petrol) | |
| Mitsubishi | Starwagon | 2006 | WA Bus 2.8 D 4WD (PD8W, PE8W, PF8W) | AWD Diesel 2.8L 4cyl 92kW 4M40-T | 2835cc 92kW (Diesel) | |
| Mitsubishi | Starwagon | 2006 | WA Bus 3.0 (PD6W) | AWD Petrol 3.0L 6cyl 136kW 6G72 (SOHC 24V) | 2972cc 136kW (Petrol) | |
| Mitsubishi | Triton | 2006 | K77T Platform/Chassis 2.8 TD 4WD (K77T) | AWD Diesel 2.8L 4cyl 92kW 4M40-T | 2835cc 92kW (Diesel) | |
| Mitsubishi | Triton | 2006 | MK Ute 2.8 TD 4WD (K77T) | AWD Diesel 2.8L 4cyl 92kW 4M40-T | 2835cc 92kW (Diesel) | |
| Mitsubishi | Challenger | 2005 | K96W SUV 3.0 V6 (K96W) | AWD Petrol 3.0L 6cyl 136kW 6G72 (DOHC 24V) | 2972cc 136kW (Petrol) | |
| Mitsubishi | Starwagon | 2005 | WA Bus 2.8 D 4WD (PD8W, PE8W, PF8W) | AWD Diesel 2.8L 4cyl 92kW 4M40-T | 2835cc 92kW (Diesel) | |
| Mitsubishi | Starwagon | 2005 | WA Bus 3.0 (PD6W) | AWD Petrol 3.0L 6cyl 136kW 6G72 (SOHC 24V) | 2972cc 136kW (Petrol) | |
| Mitsubishi | Triton | 2005 | K77T Platform/Chassis 2.8 TD 4WD (K77T) | AWD Diesel 2.8L 4cyl 92kW 4M40-T | 2835cc 92kW (Diesel) | |
| Mitsubishi | Triton | 2005 | MK Ute 2.8 TD 4WD (K77T) | AWD Diesel 2.8L 4cyl 92kW 4M40-T | 2835cc 92kW (Diesel) | |
| Mitsubishi | Challenger | 2004 | K96W SUV 3.0 V6 (K96W) | AWD Petrol 3.0L 6cyl 136kW 6G72 (DOHC 24V) | 2972cc 136kW (Petrol) | |
| Mitsubishi | Starwagon | 2004 | WA Bus 2.8 D 4WD (PD8W, PE8W, PF8W) | AWD Diesel 2.8L 4cyl 92kW 4M40-T | 2835cc 92kW (Diesel) | |
| Mitsubishi | Starwagon | 2004 | WA Bus 3.0 (PD6W) | AWD Petrol 3.0L 6cyl 136kW 6G72 (SOHC 24V) | 2972cc 136kW (Petrol) | |
| Mitsubishi | Triton | 2004 | K77T Platform/Chassis 2.8 TD 4WD (K77T) | AWD Diesel 2.8L 4cyl 92kW 4M40-T | 2835cc 92kW (Diesel) | |
| Mitsubishi | Triton | 2004 | MK Ute 2.8 TD 4WD (K77T) | AWD Diesel 2.8L 4cyl 92kW 4M40-T | 2835cc 92kW (Diesel) | |
| Mitsubishi | Challenger | 2003 | K96W SUV 3.0 V6 (K96W) | AWD Petrol 3.0L 6cyl 136kW 6G72 (DOHC 24V) | 2972cc 136kW (Petrol) | |
| Mitsubishi | Starwagon | 2003 | WA Bus 2.8 D 4WD (PD8W, PE8W, PF8W) | AWD Diesel 2.8L 4cyl 92kW 4M40-T | 2835cc 92kW (Diesel) | |
| Mitsubishi | Starwagon | 2003 | WA Bus 3.0 (PD6W) | AWD Petrol 3.0L 6cyl 136kW 6G72 (SOHC 24V) | 2972cc 136kW (Petrol) | |
| Mitsubishi | Triton | 2003 | K77T Platform/Chassis 2.8 D 4WD (K77T) | AWD Diesel 2.8L 4cyl 71kW 4M40-A | 2835cc 71kW (Diesel) |
PRODUCT OVERVIEW
Pair of front left and right CV axle drive shafts with 28T inner and outer splines, suitable for automatic and manual 4WD applications. Features bolt-on inner joint type and is engineered to meet OEM performance and durability standards.
KEY FEATURES
- 28 spline inner and outer joints for secure fitment
- Bolt-on inner joint type for straightforward installation
- Heat-treated chrome steel construction for strength and longevity
- High-quality neoprene dust boots with stainless steel clamps to resist contamination
- Molybdenum grease for smooth operation at varying angles, speeds and high RPM
VEHICLE COMPATIBILITY
Important: Vehicles with 4M40 & 4M40T engines up to 08/2003 have two options for the left shaft: 25 spline (CVA1099) and 28 spline (CVA1068). Confirm your inner joint spline count before ordering.
- Mitsubishi Triton MK 2.8L Diesel 4M40 & 4M40T 06/1996–08/2006 (check inner joint spline count) – GLX, GLXR, GLS
- Mitsubishi Triton MK 3.0L Petrol 6G72 06/1996–08/2006 – GLX, GLXR, GLS
- Mitsubishi Challenger PA K96 3.0L 6G72 4WD MT/AT 12/1997–03/2007 – GLX, GLXR, GLS
- Mitsubishi Pajero NJ NK NL 3.5L V6 Petrol 6G74 07/1993–06/2000 – GL, GLX, GLS
- Mitsubishi Pajero NH NJ 3.0L V6 Petrol 6G72 01/1991–05/1996 – GL, GLX, GLS
- Mitsubishi Pajero 2.8L Diesel 4M40T 09/1995–06/2000 (check inner joint spline count) – GL, GLX, GLS
- Mitsubishi Delica 2.8L Diesel 4M40T 05/1994–12/2006 (check inner joint spline count)
- Mitsubishi Delica 3.0L V6 Petrol 6G72 05/1994–12/2006
SIZING & SPECIFICATIONS
Left CV Shaft
- Compressed length: 609 mm
- Spline count outer/wheel side: 28T
- Spline count inner/diff side: 28T
- Inboard joint type: Tripod
- Outboard joint type: Ball
Right CV Shaft
- Compressed length: 537 mm
- Spline count outer/wheel side: 28T
- PCD mounting bolt holes: 110.46 mm
- Mounting bolt centre to centre: 78 mm
- Mounting bolt hole diameter: 10.5 mm
- Inner joint type: Bolt-on
- Outboard joint type: Ball
WHAT'S INCLUDED
- 2 x complete front CV drive shafts (left and right)
QUALITY & WARRANTY
This range of constant velocity drive shafts is engineered for the driveline aftermarket and covers a wide variety of passenger and 4WD applications on Australian roads. All CV drive shafts are backed by a 12 month / 20,000 km warranty.
Note: CV boots are warranted for 3 months from date of purchase.
Vehicle Compatibility
| Make | Model | Year | Submodel | Variant | Engine | Notes |
|---|---|---|---|---|---|---|
| Mitsubishi | Challenger | 2007 | K96W SUV 3.0 V6 (K96W) | AWD Petrol 3.0L 6cyl 136kW 6G72 (DOHC 24V) | 2972cc 136kW (Petrol) | |
| Mitsubishi | Challenger | 2006 | K96W SUV 3.0 V6 (K96W) | AWD Petrol 3.0L 6cyl 136kW 6G72 (DOHC 24V) | 2972cc 136kW (Petrol) | |
| Mitsubishi | Starwagon | 2006 | WA Bus 2.8 D 4WD (PD8W, PE8W, PF8W) | AWD Diesel 2.8L 4cyl 92kW 4M40-T | 2835cc 92kW (Diesel) | |
| Mitsubishi | Starwagon | 2006 | WA Bus 3.0 (PD6W) | AWD Petrol 3.0L 6cyl 136kW 6G72 (SOHC 24V) | 2972cc 136kW (Petrol) | |
| Mitsubishi | Triton | 2006 | K77T Platform/Chassis 2.8 TD 4WD (K77T) | AWD Diesel 2.8L 4cyl 92kW 4M40-T | 2835cc 92kW (Diesel) | |
| Mitsubishi | Triton | 2006 | MK Ute 2.8 TD 4WD (K77T) | AWD Diesel 2.8L 4cyl 92kW 4M40-T | 2835cc 92kW (Diesel) | |
| Mitsubishi | Challenger | 2005 | K96W SUV 3.0 V6 (K96W) | AWD Petrol 3.0L 6cyl 136kW 6G72 (DOHC 24V) | 2972cc 136kW (Petrol) | |
| Mitsubishi | Starwagon | 2005 | WA Bus 2.8 D 4WD (PD8W, PE8W, PF8W) | AWD Diesel 2.8L 4cyl 92kW 4M40-T | 2835cc 92kW (Diesel) | |
| Mitsubishi | Starwagon | 2005 | WA Bus 3.0 (PD6W) | AWD Petrol 3.0L 6cyl 136kW 6G72 (SOHC 24V) | 2972cc 136kW (Petrol) | |
| Mitsubishi | Triton | 2005 | K77T Platform/Chassis 2.8 TD 4WD (K77T) | AWD Diesel 2.8L 4cyl 92kW 4M40-T | 2835cc 92kW (Diesel) | |
| Mitsubishi | Triton | 2005 | MK Ute 2.8 TD 4WD (K77T) | AWD Diesel 2.8L 4cyl 92kW 4M40-T | 2835cc 92kW (Diesel) | |
| Mitsubishi | Challenger | 2004 | K96W SUV 3.0 V6 (K96W) | AWD Petrol 3.0L 6cyl 136kW 6G72 (DOHC 24V) | 2972cc 136kW (Petrol) | |
| Mitsubishi | Starwagon | 2004 | WA Bus 2.8 D 4WD (PD8W, PE8W, PF8W) | AWD Diesel 2.8L 4cyl 92kW 4M40-T | 2835cc 92kW (Diesel) | |
| Mitsubishi | Starwagon | 2004 | WA Bus 3.0 (PD6W) | AWD Petrol 3.0L 6cyl 136kW 6G72 (SOHC 24V) | 2972cc 136kW (Petrol) | |
| Mitsubishi | Triton | 2004 | K77T Platform/Chassis 2.8 TD 4WD (K77T) | AWD Diesel 2.8L 4cyl 92kW 4M40-T | 2835cc 92kW (Diesel) | |
| Mitsubishi | Triton | 2004 | MK Ute 2.8 TD 4WD (K77T) | AWD Diesel 2.8L 4cyl 92kW 4M40-T | 2835cc 92kW (Diesel) | |
| Mitsubishi | Challenger | 2003 | K96W SUV 3.0 V6 (K96W) | AWD Petrol 3.0L 6cyl 136kW 6G72 (DOHC 24V) | 2972cc 136kW (Petrol) | |
| Mitsubishi | Starwagon | 2003 | WA Bus 2.8 D 4WD (PD8W, PE8W, PF8W) | AWD Diesel 2.8L 4cyl 92kW 4M40-T | 2835cc 92kW (Diesel) | |
| Mitsubishi | Starwagon | 2003 | WA Bus 3.0 (PD6W) | AWD Petrol 3.0L 6cyl 136kW 6G72 (SOHC 24V) | 2972cc 136kW (Petrol) | |
| Mitsubishi | Triton | 2003 | K77T Platform/Chassis 2.8 D 4WD (K77T) | AWD Diesel 2.8L 4cyl 71kW 4M40-A | 2835cc 71kW (Diesel) |
