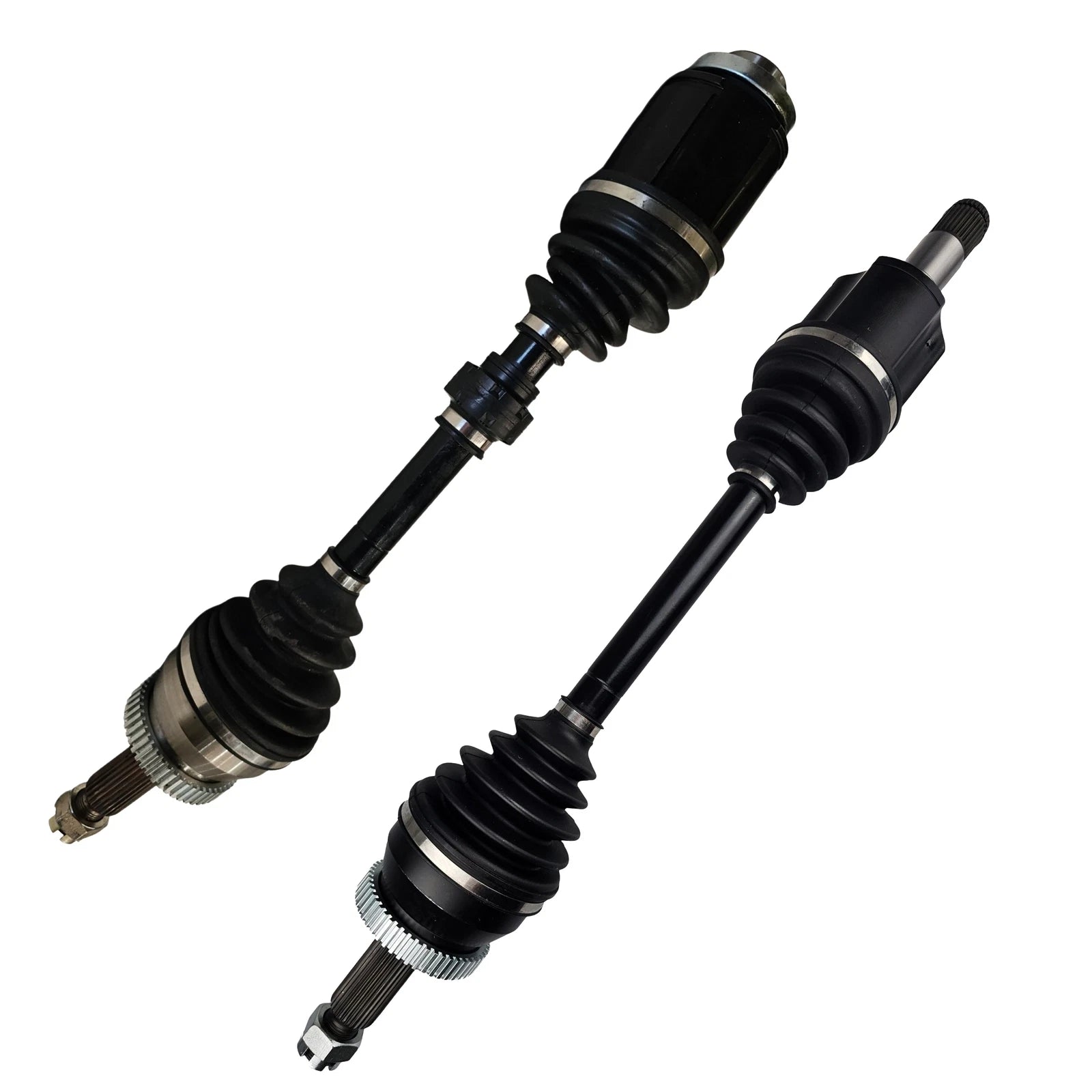

Pair Front CV Axle Drive Shafts LH RH for Hyundai Santa Fe CM 4WD FWD

PRODUCT OVERVIEW

This pair of front CV axle drive shafts replaces the left-hand and right-hand sides on selected Hyundai Santa Fe CM models. Each shaft is built to OEM specifications for reliable performance in 4WD and FWD applications.

KEY FEATURES

• Direct-fit replacement CV axle shaft pair (left and right)
• Built to OEM specifications for fitment and performance
• Heat-treated chrome steel construction for strength and durability
• High-quality neoprene dust boots with stainless steel clamps to resist contamination
• Molybdenum grease for smooth operation at varying angles and speeds
• Suitable for manual and automatic transmissions where specified

FITMENT DETAILS

Designed to fit the following Hyundai Santa Fe CM applications (verify all specs against your existing parts before purchase):

• Hyundai Santa Fe CM SH81X 2.2L D4HB 4WD MT/AT (11/2009 - 08/2012), manual only, including CRDi sub-models Elite CRDi, Highlander CRDi, SLX CRDi, Trail CRDi
• Hyundai Santa Fe CM SH81W, SG81W 2.2L D4EB 4WD (11/2006 - 10/2009), manual & automatic, including sub-models SX CRDi, SLX CRDi, Elite CRDi
• Hyundai Santa Fe CM SH81E, SG81E 3.3L G6DB (07/2007 - 11/2008), manual & automatic, including sub-models SX, SLX

Fitment notes:

• Front axle pair – left-hand side and right-hand side
• For vehicles with 4WD and applicable FWD variants as listed
• Pair kit, manual only for models 11/2009 - 08/2012 with chassis SH81X

LEFT-HAND SIDE SPECIFICATIONS

• Length (compressed): 656 mm
• Spline count – outer/wheel side: 30
• Spline count – inner/diff side: 28
• ABS ring teeth: 52

RIGHT-HAND SIDE SPECIFICATIONS

• Length (compressed): 611 mm
• Spline count – outer/wheel side: 30
• Spline count – inner/diff side (female): 26T with 2 keyway slots
• ABS ring teeth: 52
• Hub nut: M22 x 1.5

WHAT'S INCLUDED

• 1 x Front left-hand CV axle shaft
• 1 x Front right-hand CV axle shaft

QUALITY & WARRANTY

This CV driveshaft range is engineered for consistent performance across a wide variety of passenger and 4WD applications. All CV driveshafts are covered by a 12 month / 20,000 km warranty. CV boots are covered for 3 months from date of purchase.

Always compare all dimensions, spline counts and ABS ring tooth counts with your original components before installation.
