CV Axle Drive Shaft Pair LH/RH for Nissan Tiida C11 1.8L FWD Auto

PRODUCT OVERVIEW

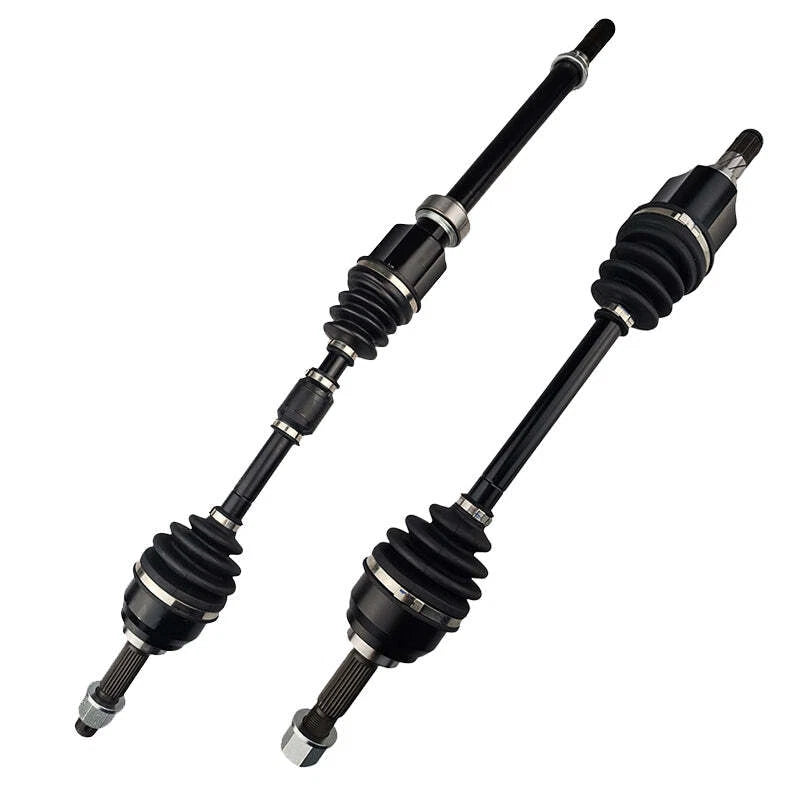

This CV axle drive shaft kit includes a matched pair of left and right front shafts for automatic front wheel drive applications. Shafts are built to OEM specifications for reliable driveline performance and long service life.

Note: Pair suits automatic transmission only. For single shafts, use part numbers CVA1517 (left) or CVA1518 (right).

KEY FEATURES

• OEM-spec construction using heat-treated chrome steel for durability
• High-quality neoprene dust boots to protect joints from contamination
• Stainless steel clamps for secure boot retention
• Molybdenum (moly) grease for smooth operation at varying angles and speeds
• Direct replacement design for straightforward installation

PART NUMBERS INCLUDED

• Left drive shaft: CVA1517
• Right drive shaft: CVA1518

FITMENT DETAILS

Suits selected Nissan Tiida C11 / FBAC11 / BBAC11 1.8L MR18DE FWD models with automatic transmission (including sub models Q, ST, ST Plus, ST-L, ST-L Plus, TI). Check all specifications and part numbers against your original components before purchase.

SPECIFICATIONS

• Left shaft compressed length: 641 mm
• Right shaft compressed length: 910 mm
• Spline count outer / wheel side (each): 25T
• Spline count inner / diff side (each): 25T
• Inboard joint type: Tripod
• Outboard joint type: Ball
• Hub nut style: M22 x 1.5
• Bearing outer diameter on extension shaft: 62 mm
• Extension shaft bearing width: 20 mm
• Extension shaft length from outside of bearing: 334 mm

WHAT'S INCLUDED

• 2 x complete CV axle shafts (left and right)

WARRANTY

• 12 month / 20,000 km warranty on CV driveshafts
• CV boots warranted for 3 months from date of purchase

Warranty is subject to correct installation and normal operating conditions.
