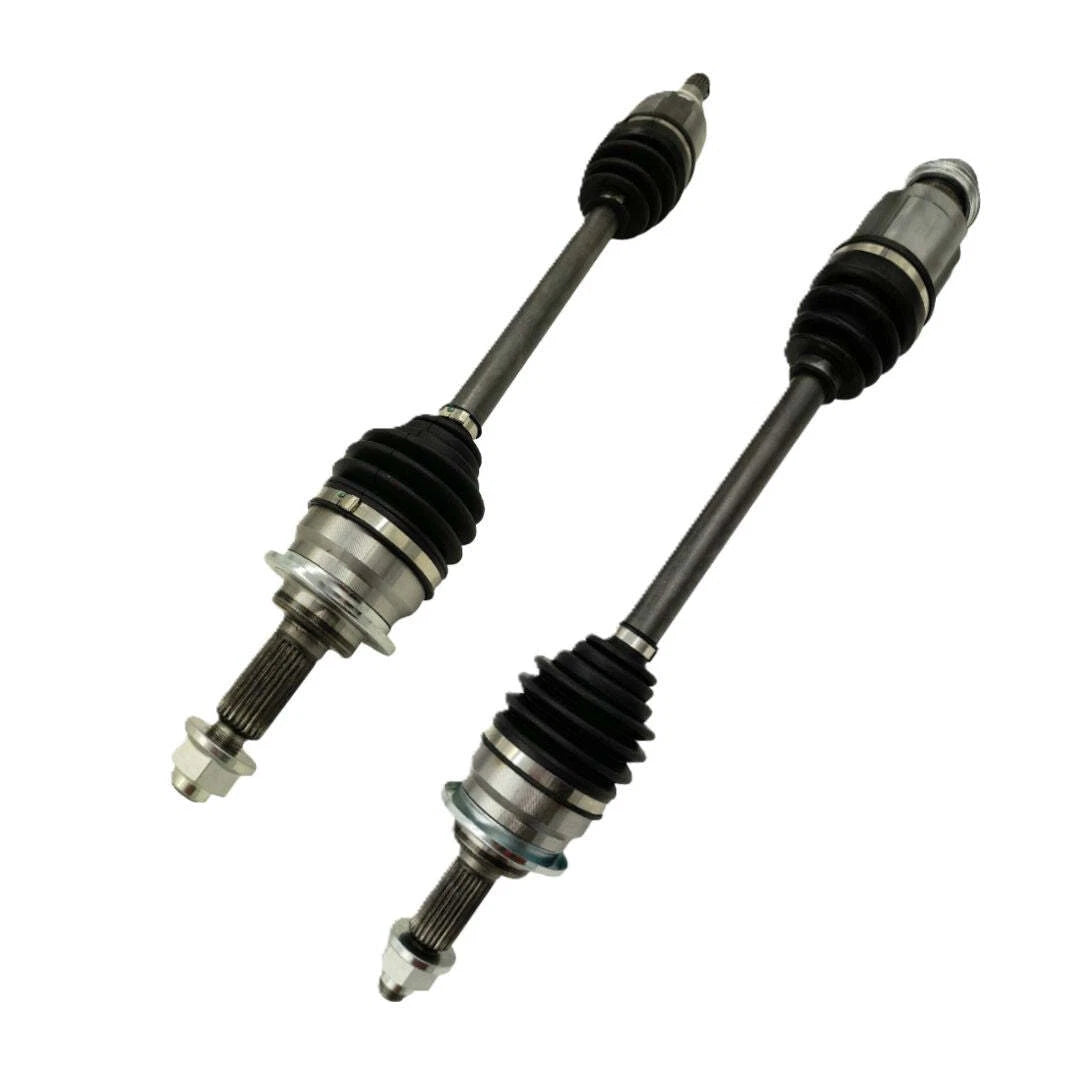

Front CV Axle Shaft Pair for Suzuki Swift FZ K14B Auto 2011-2017

PRODUCT OVERVIEW

Front CV axle drive shaft pair for automatic front wheel drive Suzuki Swift FZ with K14B engine. This kit includes both left and right shafts, engineered to meet OEM performance and durability requirements.

KEY FEATURES

• Direct-fit replacement for front left and right CV shafts
• Built to OEM specifications for fit, performance and reliability
• Heat-treated chrome steel construction for extended service life
• High-quality Neoprene dust boots with stainless steel clamps to reduce contamination
• Molybdenum grease for smooth operation at varying angles, speeds and temperatures
• Female differential joint on right-hand shaft

PART NUMBERS INCLUDED

• Left CV shaft: CVA1437
• Right CV shaft: CVA1438 (female diff joint)
• Kit contents: 2 x complete CV drive shafts

VEHICLE COMPATIBILITY

Designed for the following applications:

• Suzuki Swift FZ / ZC82S 1.4L K14B I4 16V DOHC VVT FWD (02/2011 - 06/2017)
• Automatic transmission only
• Includes sub-models: Classic, Extreme, GA, GL, GLX, RE, SE, Navi, Navigator

Note: Not suitable for manual transmission vehicles. Always confirm spline counts and lengths against existing components before purchase.

TECHNICAL SPECIFICATIONS

Left CV Shaft (CVA1437)

• Compressed length: 630 mm
• Spline count outer / wheel side: 25
• Spline count inner / diff side: 22

Right CV Shaft (CVA1438)

• Compressed length: 563 mm
• Spline count outer / wheel side: 25
• Spline count inner / diff side (female): 26

WARRANTY

• CV driveshafts covered by 12 month / 20,000 km warranty
• CV boots covered by 3 month warranty from date of purchase

Professional installation is recommended to ensure correct fitment and performance.
