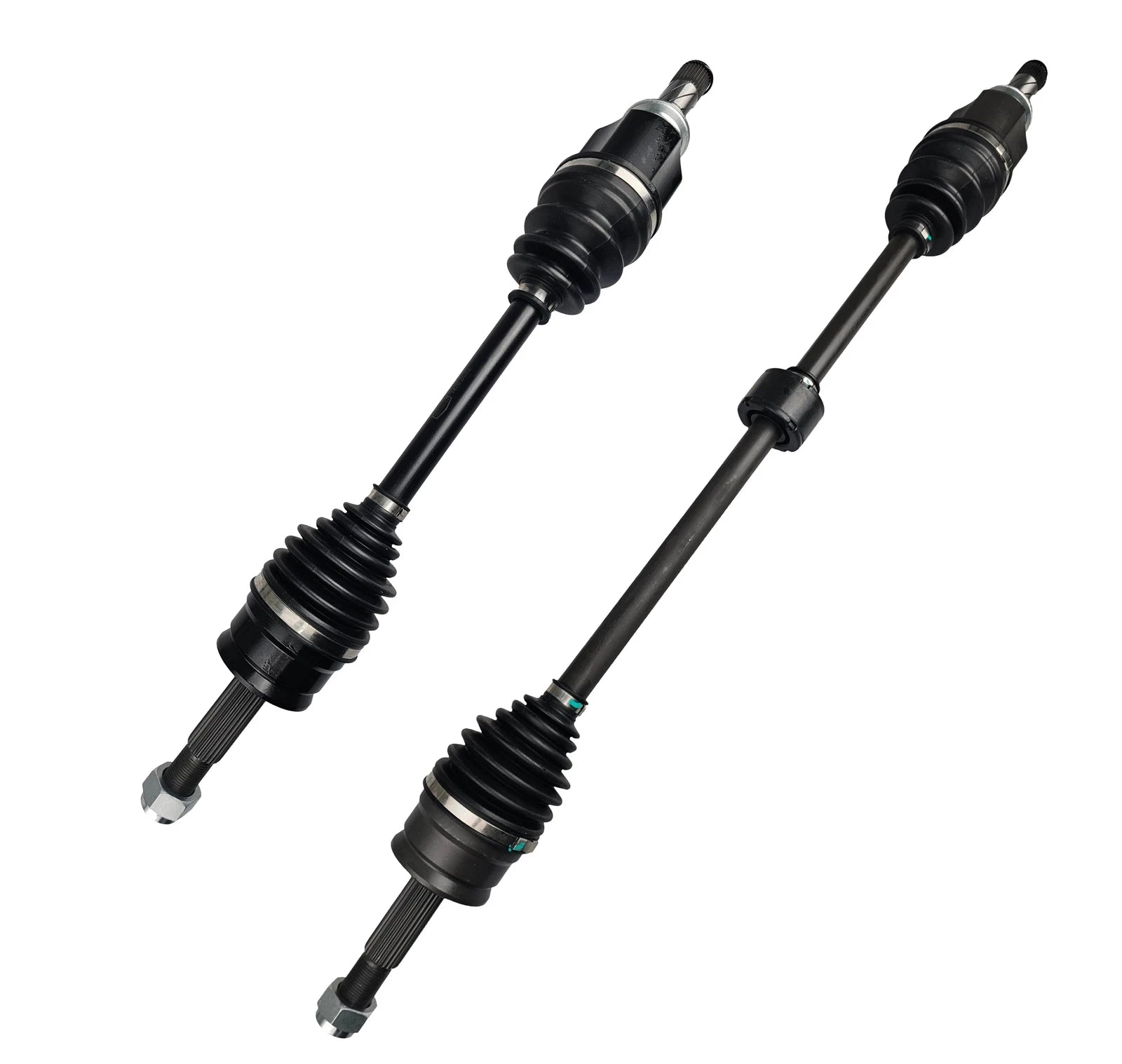

CV Drive Shaft Pair Left & Right for Mitsubishi Colt RG/RZ & Smart ForFour

PRODUCT OVERVIEW

Pair of front CV axle drive shafts (left and right hand side) for CVT or manual front-wheel drive applications. Designed to meet or exceed OEM specifications for Mitsubishi Colt RG/RZ and Smart ForFour W454 models listed in the specifications.

Manufactured from heat-treated chrome steel to maximise strength and service life. High-quality neoprene dust boots with stainless steel clamps help prevent contamination, while moly grease ensures smooth operation at varying angles, speeds and high revolutions.

Note: Inner spline count: 33 teeth. Single shafts are available as part numbers CVA1478 (left) and CVA1479 (right).

PART NUMBERS

• Left shaft: CVA1478
• Right shaft: CVA1479

KEY FEATURES

• Direct replacement CV drive shaft pair (left and right)
• Heat-treated chrome steel construction for durability
• Neoprene boots with stainless steel clamps to resist contamination
• Filled with moly grease for reduced friction at high RPM
• Engineered to OEM fit and performance standards

SPECIFICATIONS

• Applications (summary): Selected Mitsubishi Colt RG/RZ 1.5L 4A91 (10/2004–01/2013) and Smart ForFour Pulse W454 1.3L M135.930 / 1.5L M135.950 (10/2004–01/2007) where specifications match.
• Inner spline count (diff side): 33T
• Outer spline count (wheel side): 25T
• Inboard joint type: Tripod
• Outboard joint type: Ball
• Inner joint oil seal ID: 35 mm
• Hub nut thread: M22 x 1.5
• Compressed length (one shaft): 624 mm
• Compressed length (other shaft): 916 mm

Always confirm spline counts, lengths and joint types against your original shafts before purchase and installation.

WHAT'S INCLUDED

• 2 x complete CV drive shafts (left and right)

WARRANTY

• 12 month / 20,000 km warranty on CV driveshaft assemblies
• CV boots are covered for 3 months from date of purchase

FITMENT NOTICE

Vehicle compatibility can vary by engine, transmission, build date and sub-model. Use the specifications provided and compare with your existing parts, or consult a qualified technician, to confirm correct fitment before ordering.
