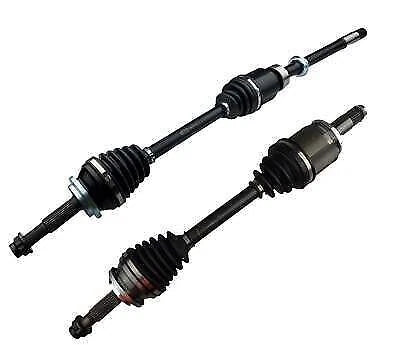

Front CV Axle Drive Shaft Pair RH LH for Toyota RAV4 ACA33 2.4L Auto 4WD

PRODUCT OVERVIEW

Front CV axle drive shaft pair (right and left) for 4WD automatic models. Built to OEM specifications using heat-treated chrome steel to maximise strength and service life.

KEY FEATURES

• OEM-style construction with heat-treated chrome steel shafts
• High-quality Neoprene dust boots with stainless steel clamps
• Molybdenum grease for smooth operation at varying angles and speeds
• Engineered for durability in passenger and 4WD applications

VEHICLE APPLICATION

Toyota RAV4 ACA33 / ACA33R 2.4L 2AZ-FE I4 16V DOHC VVT, build dates 11/2005–01/2013.

Models include ALTITUDE, CRUISER, CRUISER L, CV (where fitted with 4WD automatic driveline and matching OEM specs).

SPECIFICATIONS

Right CV Shaft (Front)

• Length (compressed): 991 mm
• Spline count outer / wheel side: 26
• Spline count inner / diff side: 24

Left CV Shaft (Front)

• Length (compressed): 646 mm
• Spline count outer / wheel side: 26
• Spline count inner / diff side: 24

WHAT'S INCLUDED

• 2 x Front CV shafts (right-hand and left-hand side)

WARRANTY

• 12 month / 20,000 km warranty on CV driveshafts
• CV boots warranted for 3 months from date of purchase

Ensure all dimensions and spline counts match the original components before installation.
