Radiator Fit BMW 3 Series E30 E36 316i 318i 320i 323i 328i 1989-2000 Auto/Manual

*Fast Delivery from AU.
*Trusted Aussie Seller. Local Warehouse Warranty.

*Local Pick up available Mon.-Fri. 9:00am to 4:00pm*

Description:

Fitment:

Specification:

Direct Replacement
Top quality Aftermarket part

Core Size(H x W x T)：438 x 440 x 32 mm

OEM:

17111469176, 17101715319, 17111469175, 17111469176, 17111719263, 17111728905, 17111728907, 17111712997, 17111723536, 17111723990, 17111728906, 1247145, 1469176, 1723990, 1728905, 1728907

Package:

1  x Radiator

Note:

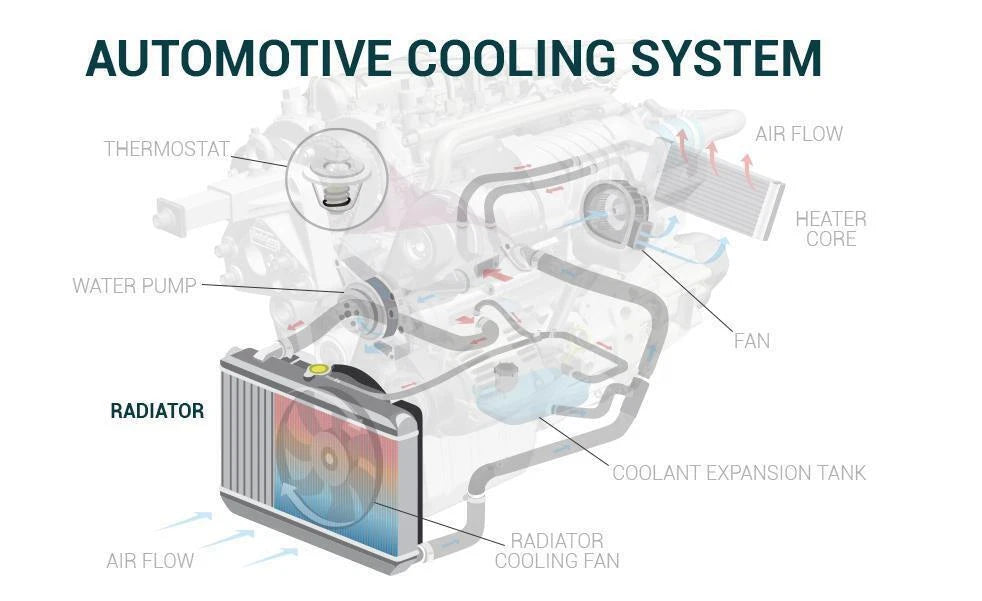

Please check the picture & diagram Before purchase!

Professional installation is recommended!

Please double check the vehicle’s original part number before purchasing this part.

How to replace a new radiator?

1. Disconnect the battery.

2. Drain the radiator fluid into a suitable container.

3. Remove the old radiator:

-Take off any plastic covers around the radiator.

-Disconnect the electrical connector to the fan, and unbolt and remove the fan assembly.

-Disconnect the radiator hoses from the radiator.

-Disconnect the transmission cooling lines from the bottom of the radiator.

-Remove any clamps, brackets, or screws holding the radiator inside its frame.

-Lift the radiator up and out of the car.

4. Install the new radiator:

-Slide the new radiator into place.

-Connect any clamps or brackets that hold the radiator in place.

-Connect the transmission cooling lines carefully.

-Connect the engine cooling hoses to the radiator.

-Replace the fan and fan shroud.

-Reconnect the fan electrical connection.

-Replace the plastic covers.

5. Fill the radiator with fluid.

6. Check your work to make sure that there are no leaks.
