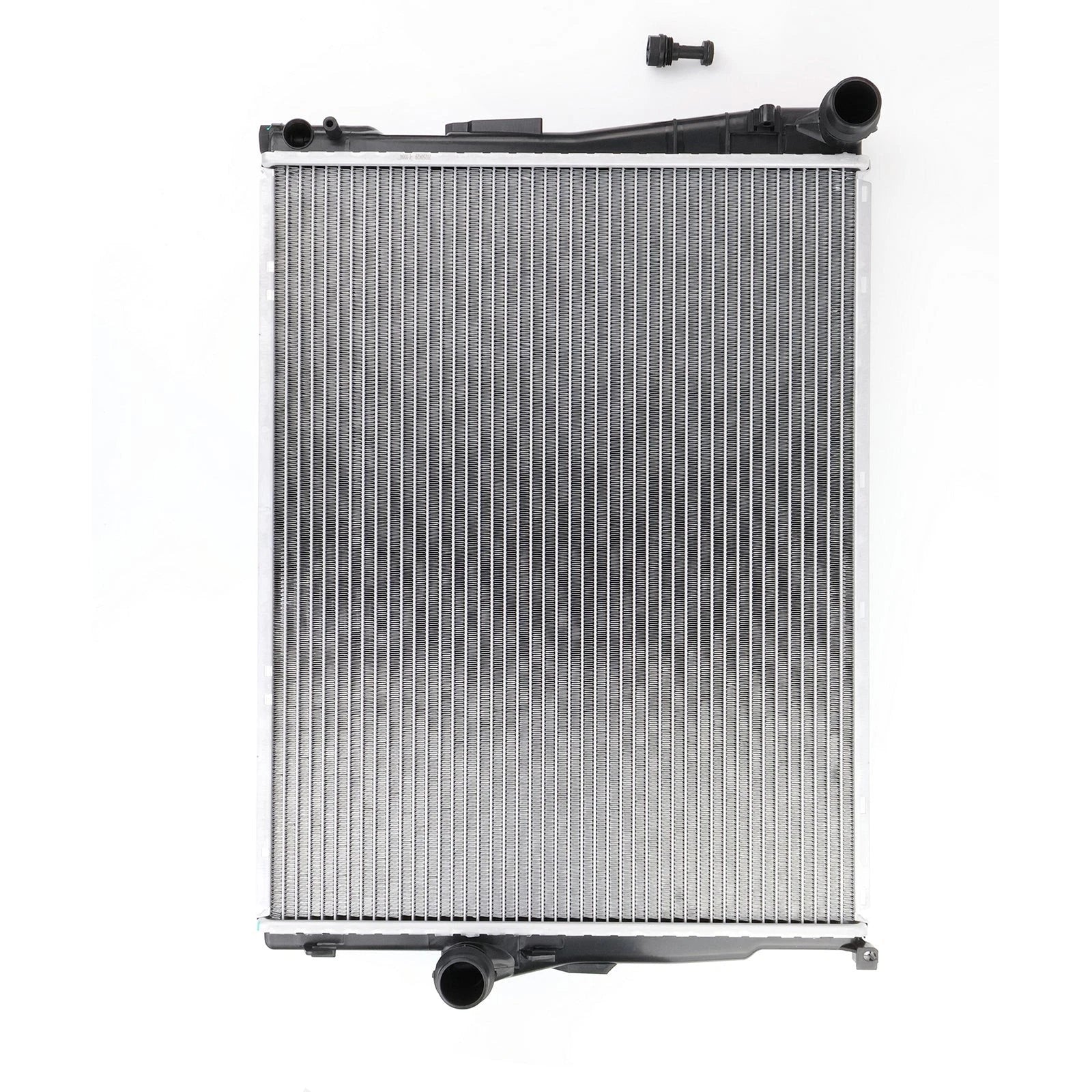

Radiator for BMW 3 Series E46 & Z4 E85 E86 with External Oil Cooler

PRODUCT OVERVIEW

Brand new replacement radiator designed for BMW 3 Series E46 and BMW Z4 E85/E86 applications. Suits vehicles equipped with an external oil cooler. A blanking cap may be used for suitable manual transmission applications.

KEY FEATURES

• Suits external oil cooler configurations
• Compatible with selected manual and automatic applications (with blanking cap as required)
• Manufactured using nitrogen protection aluminium brazing
• High-frequency welded tube construction for durability
• Engineered for efficient engine cooling and long service life

VEHICLE FITMENT SUMMARY

Suitable for a wide range of BMW 3 Series E46 and BMW Z4 E85/E86 petrol and diesel models, including selected:

• BMW 3 Series E46 316, 318, 320, 323, 325, 328, 330
• BMW M3 E46 coupe and convertible variants
• BMW Z4 E85/E86 2.0i, 2.5i, 3.0i, 3.0si and M models

Please check all specifications and existing part dimensions against your original radiator before purchase to confirm compatibility.

CORE DIMENSIONS & CONNECTIONS

• Core height: 580 mm
• Core width: 448 mm
• Core thickness: 32 mm
• Top hose inlet: 38.5 mm
• Bottom hose inlet: 38.5 mm
• Transmission cooler pipe centre-to-centre: 18.5 mm

MANUFACTURING & QUALITY

• Nitrogen protection aluminium brazing for consistent core bonding
• High-frequency welded tubes for enhanced strength and heat transfer
• ISO9001:2008 and IATF16949:2009 certified production
• Built to meet stringent global quality and performance standards

WHAT'S INCLUDED

• 1 x radiator assembly

IMPORTANT NOTES

• Suits vehicles with an external oil cooler
• A blanking cap may be used for appropriate manual transmission applications
• Always verify core size, hose diameters and cooler configuration against the original unit before installation
