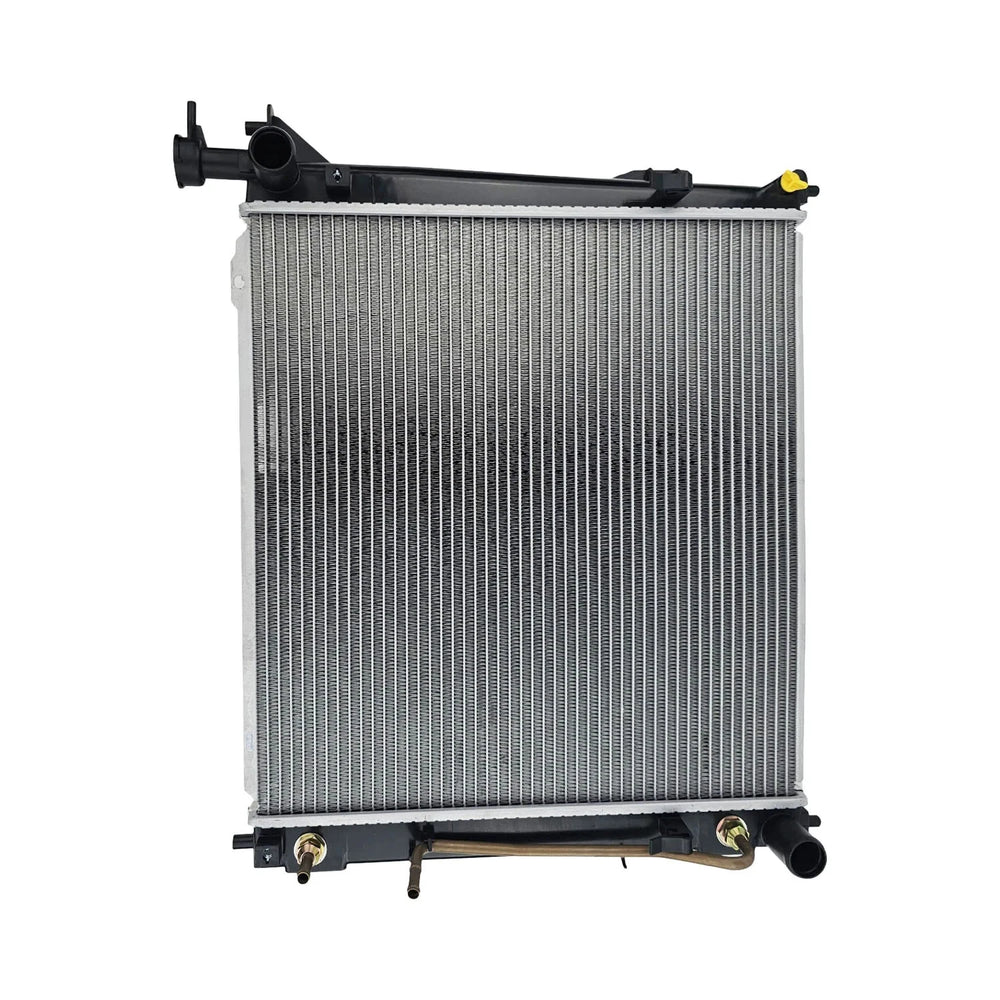

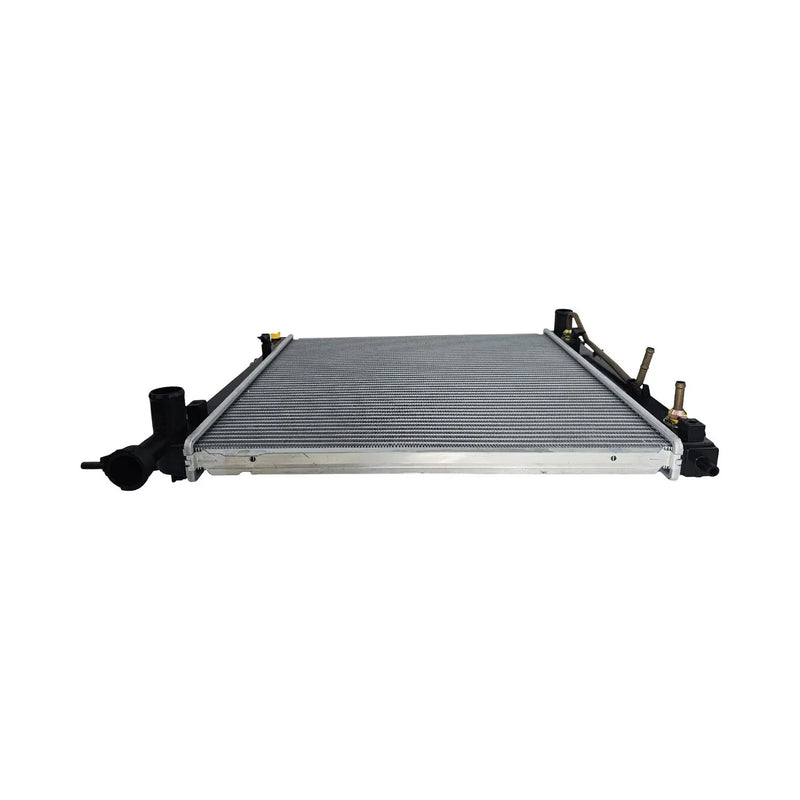

Radiator for Hyundai Santa Fe CM/DM 2.2L D4HB Auto 2009-2018 26mm
Product Details
PRODUCT OVERVIEW
Brand new replacement radiator designed for Hyundai Santa Fe CM and DM 2.2L D4HB turbo diesel automatic models. Suitable for vehicles built from 11/2009 to 11/2018. Automatic transmission models only.
This radiator is engineered to provide reliable engine cooling performance and includes an integrated automatic transmission oil cooler.
KEY FEATURES
- Direct replacement for specified Hyundai Santa Fe CM/DM 2.2L D4HB automatic models
- Integrated transmission cooler for automatic transmissions
- 26mm core thickness for efficient heat dissipation
- Manufactured using nitrogen-protected aluminium brazing
- High-frequency welded tube construction for durability
- ISO9001:2008 and IATF16949:2009 certified production
VEHICLE COMPATIBILITY
- Hyundai Santa Fe CM 2.2L D4HB turbo I/C 4WD (11/2009 - 08/2012) automatic
- Hyundai Santa Fe DM 2.2L D4HB turbo I/C AWD (09/2012 - 11/2018) automatic
- Includes variants such as CRDi, Elite CRDi, Highlander CRDi and other listed trims
Please confirm your vehicle build date, engine code (D4HB) and transmission type (automatic) before purchase.
DIMENSIONS & SPECIFICATIONS
- Core height: 478mm
- Core width: 510mm
- Core thickness: 26mm
- Top hose inlet: 35mm
- Bottom hose inlet: 35mm
- Transmission cooler pipe centre-to-centre: 370mm
CONSTRUCTION & QUALITY
- Nitrogen protection aluminium brazing for consistent core integrity
- High-frequency welded tubes for enhanced strength and longevity
- Meets global quality benchmarks: ISO9001:2008 and IATF16949:2009
WHAT'S INCLUDED
- 1 x radiator assembly (with integrated automatic transmission cooler)
WARRANTY
- 12 month / 20,000km warranty (whichever occurs first)
- Warranty subject to correct installation and normal operating conditions
Professional installation is recommended. Always flush the cooling system and check hose sizes and mounting points against the original radiator before final fitment.
Vehicle Compatibility
| Make | Model | Year | Submodel | Variant | Engine | Notes |
|---|---|---|---|---|---|---|
| Hyundai | Santa Fe | 2018 | DM,DMA SUV 2.2 CRDi 4WD | AWD Diesel 2.2L 4cyl 147kW D4HB | 2199cc 147kW (Diesel) | Automatic Models Only |
| Hyundai | Santa Fe | 2017 | DM,DMA SUV 2.2 CRDi 4WD | AWD Diesel 2.2L 4cyl 147kW D4HB | 2199cc 147kW (Diesel) | Automatic Models Only |
| Hyundai | Santa Fe | 2016 | DM,DMA SUV 2.2 CRDi 4WD | AWD Diesel 2.2L 4cyl 147kW D4HB | 2199cc 147kW (Diesel) | Automatic Models Only |
| Hyundai | Santa Fe | 2015 | DM,DMA SUV 2.2 CRDi 4WD | AWD Diesel 2.2L 4cyl 145kW D4HB | 2199cc 145kW (Diesel) | Automatic Models Only |
| Hyundai | Santa Fe | 2015 | DM,DMA SUV 2.2 CRDi 4WD | AWD Diesel 2.2L 4cyl 147kW D4HB | 2199cc 147kW (Diesel) | Automatic Models Only |
| Hyundai | Santa Fe | 2014 | DM,DMA SUV 2.2 CRDi 4WD | AWD Diesel 2.2L 4cyl 145kW D4HB | 2199cc 145kW (Diesel) | Automatic Models Only |
| Hyundai | Santa Fe | 2013 | DM,DMA SUV 2.2 CRDi 4WD | AWD Diesel 2.2L 4cyl 145kW D4HB | 2199cc 145kW (Diesel) | Automatic Models Only |
| Hyundai | Santa Fe | 2012 | CM SUV 2.2 CRDi 4x4 | AWD Diesel 2.2L 4cyl 145kW D4HB | 2199cc 145kW (Diesel) | Automatic Models Only |
| Hyundai | Santa Fe | 2012 | DM,DMA SUV 2.2 CRDi 4WD | AWD Diesel 2.2L 4cyl 145kW D4HB | 2199cc 145kW (Diesel) | Automatic Models Only |
| Hyundai | Santa Fe | 2011 | CM SUV 2.2 CRDi 4x4 | AWD Diesel 2.2L 4cyl 145kW D4HB | 2199cc 145kW (Diesel) | Automatic Models Only |
| Hyundai | Santa Fe | 2010 | CM SUV 2.2 CRDi 4x4 | AWD Diesel 2.2L 4cyl 145kW D4HB | 2199cc 145kW (Diesel) | Automatic Models Only |
| Hyundai | Santa Fe | 2009 | CM SUV 2.2 CRDi 4x4 | AWD Diesel 2.2L 4cyl 145kW D4HB | 2199cc 145kW (Diesel) | Automatic Models Only |
