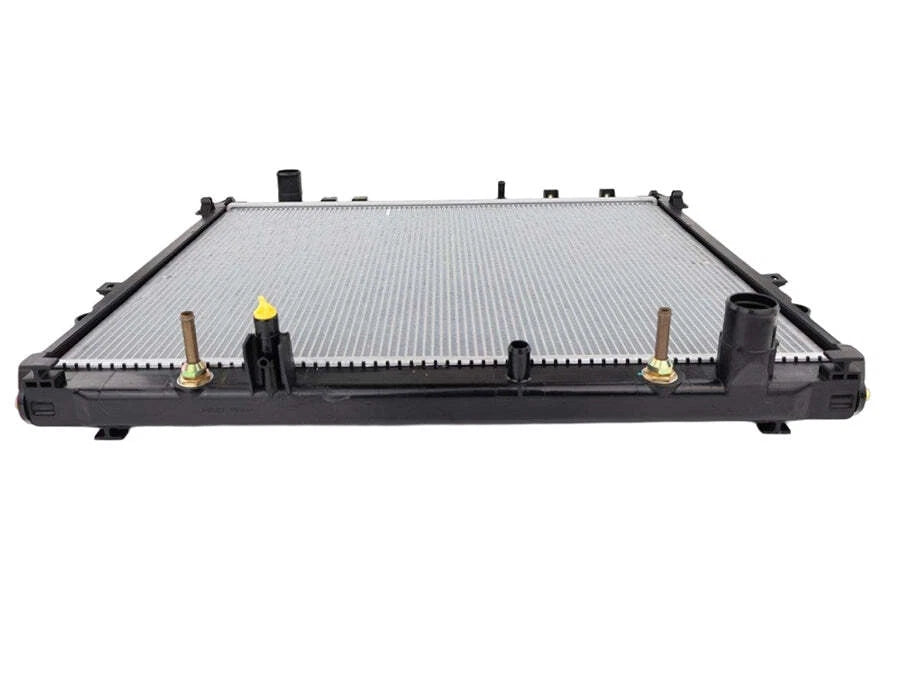

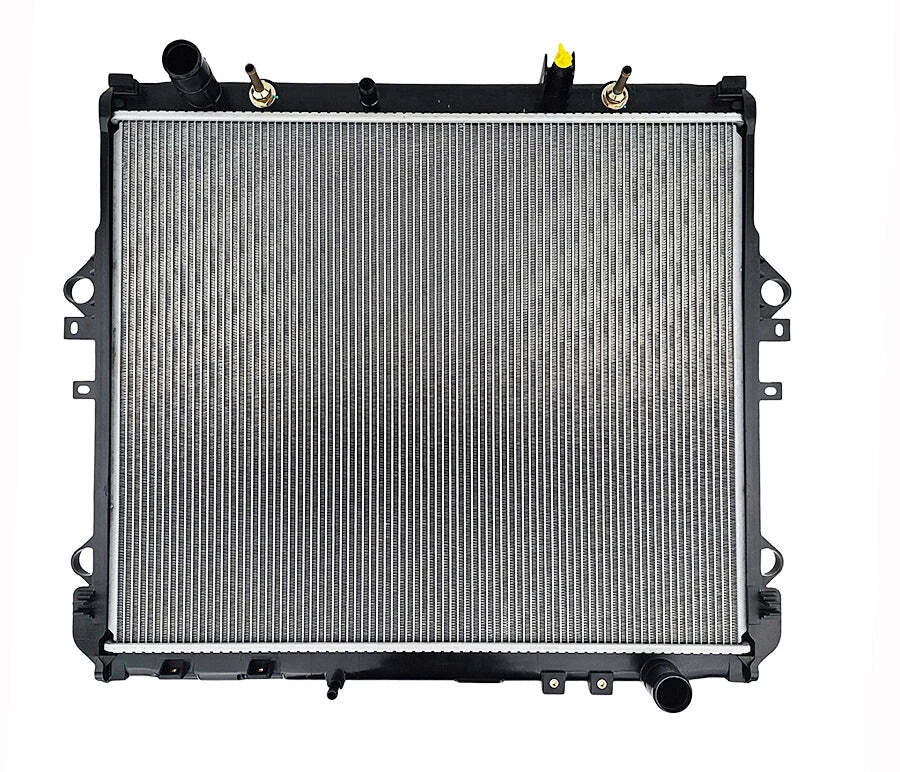

Radiator for Toyota Hilux & Fortuner GUN Series 2.4L / 2.8L Auto

PRODUCT OVERVIEW

Brand new automatic transmission radiator designed for selected Toyota Hilux and Toyota Fortuner GUN series diesel models. Engineered for reliable cooling performance and direct replacement fitment.

KEY FEATURES

• Purpose-built for automatic transmission models only
• High-efficiency aluminium core for improved heat dissipation
• Integrated transmission cooler with 375 mm pipe spacing (centre to centre)
• Manufactured using nitrogen-protected aluminium brazing and high-frequency welded tubes
• Meets global quality standards ISO9001:2008 and IATF16949:2009

VEHICLE COMPATIBILITY

Automatic transmission only. Suits the following Toyota models and engines:

• Toyota Hilux GUN126, engine 1GD-FTV 2.8L (10/2015–04/2020), including Rogue, Rugged, Rugged X, SR5, SR5+
• Toyota Hilux GUN126, engine 1GD-FTV 2.8L (05/2020–TBA), including Rogue, Rugged, Rugged X, SR5, SR5+, SR 48V, SR5 48V, SR Rogue 48V
• Toyota Hilux GUN125, engine 2GD-FTV 2.4L (10/2015–TBA), including Workmate, Workmate Extra Cab
• Toyota Fortuner GUN156, engine 1GD-FTV 2.8L (11/2015–TBA), including GXL and GXL Premium variants
• Toyota Hilux GUN136, engine 1GD-FTV 2.8L (10/2015–TBA), including SR Hi-Rider, SR5 Hi-Rider, SR Hi-Rider Extra Cab

Note: This listing is for automatic models. For manual models, use part number RAD1983.

DIMENSIONS & CONNECTIONS

• Core height: 550 mm
• Core width: 650 mm
• Core thickness: 27 mm
• Top hose inlet outside diameter: 38 mm
• Bottom hose outlet outside diameter: 38 mm
• Top tank bleed pipe: 12 mm
• Bottom tank bleed pipe: 17.5 mm
• Transmission cooler pipe spacing (centre to centre): 375 mm

WHAT'S INCLUDED

• 1 x radiator assembly (automatic type)

WARRANTY

Supplied with a 12 month / 20,000 km warranty, subject to correct installation and operating conditions.
