Rear Brake Rotors & Pads Kit for Toyota Corolla ZRE182 ZRE152R

PRODUCT OVERVIEW

Brand new rear brake kit including a matched pair of disc rotors and four brake pads for selected Toyota Corolla and Auris applications. Designed to meet OEM specifications for reliable braking performance and easy installation.

KEY FEATURES

• Left and right rear disc rotors with ABS-compatible design
• Includes 4 matching brake pads (DB1786)
• Outside diameter (OD) 259mm
• Manufactured to OEM specifications and tolerances
• Heat tempered rotors for improved thermal stability
• Engineered to reduce vibration and noise
• Geomet anti-rust coating on non-friction areas for enhanced corrosion resistance
• 12 month / 20,000 km warranty (whichever occurs first)

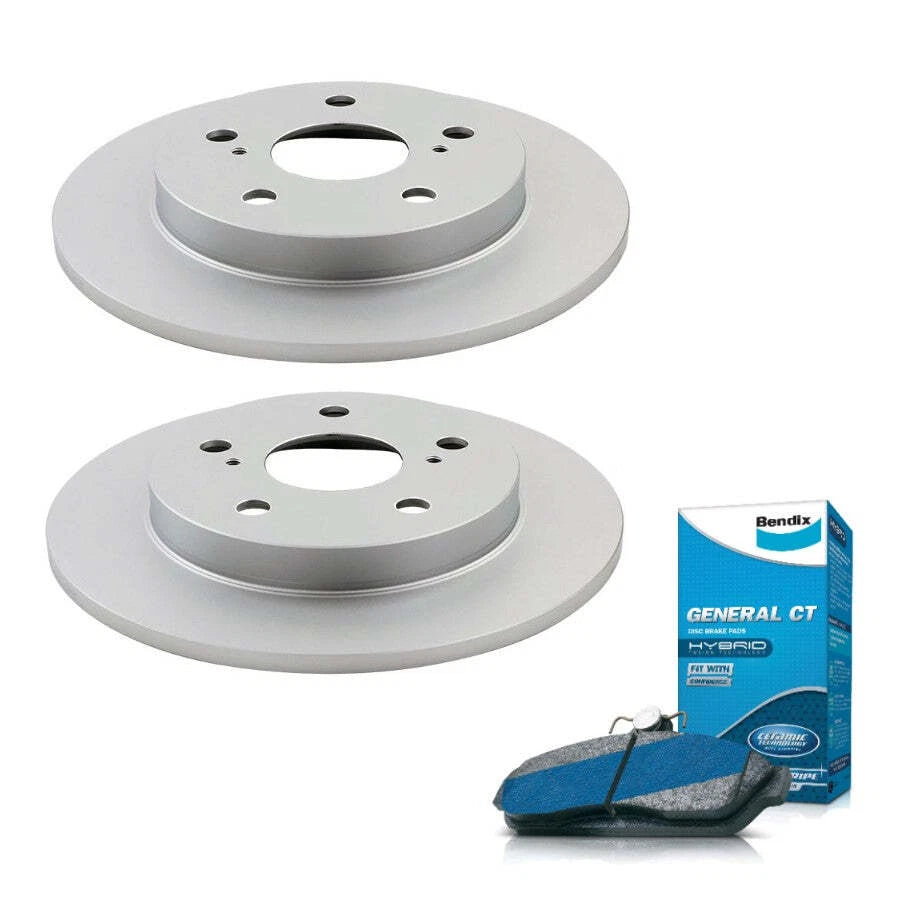

WHAT'S INCLUDED

• 2 x Rear disc brake rotors
• 4 x Rear brake pads (DB1786)

ROTOR SPECIFICATIONS

• Outside diameter (OD): 259mm
• Stud pattern & PCD: 5 x 114.3mm
• Hat height: 30.5mm
• Rotor thickness (new): 9mm
• Minimum thickness for wear: 7.5mm
• Centering hole diameter: 62mm
• Coating: Geomet anti-rust (non-braking surfaces)

BRAKE PAD SPECIFICATIONS

• Pad reference: DB1786
• Length: 98.5mm
• Height: 42mm
• Thickness: 13.7mm

COMPATIBILITY NOTES

This kit suits selected Toyota Corolla and Auris models using 259mm rear rotors and DB1786 rear pads. Variations may exist within model years, so rotor diameter and pad shape should always be checked against your existing parts.

Key applicable platforms include (where fitted with 259mm rear rotors):

• Toyota Corolla ZRE182 1.8L 2ZR-FE FWD MT/CVT (10/2012 - 08/2018) - models Ascent, Ascent Sport, Levin, RZ, ZR, SX
• Toyota Corolla ZRE172 1.8L 2ZR-FE FWD MT/CVT (12/2013 - 08/2019) - models Ascent, ZR, SX
• Toyota Auris NZE151 1.5L 1NZ-FE FWD CVT (10/2006 - 08/2012) - model 150X
• Toyota Corolla ZWE186 1.8L 2ZR-FXE FWD CVT - Hybrid

Please confirm rotor diameter, stud pattern and pad shape against your existing components before purchase to ensure correct fitment.

INSTALLATION & WARRANTY

• Direct replacement for compatible OEM rear brake rotors and pads
• Professional installation and proper bedding-in procedure recommended
• Covered by 12 month / 20,000 km warranty (conditions apply)
