Rear Brake Rotor & Ceramic Pad Kit for Holden Berlina VE 2006-2013

PRODUCT OVERVIEW

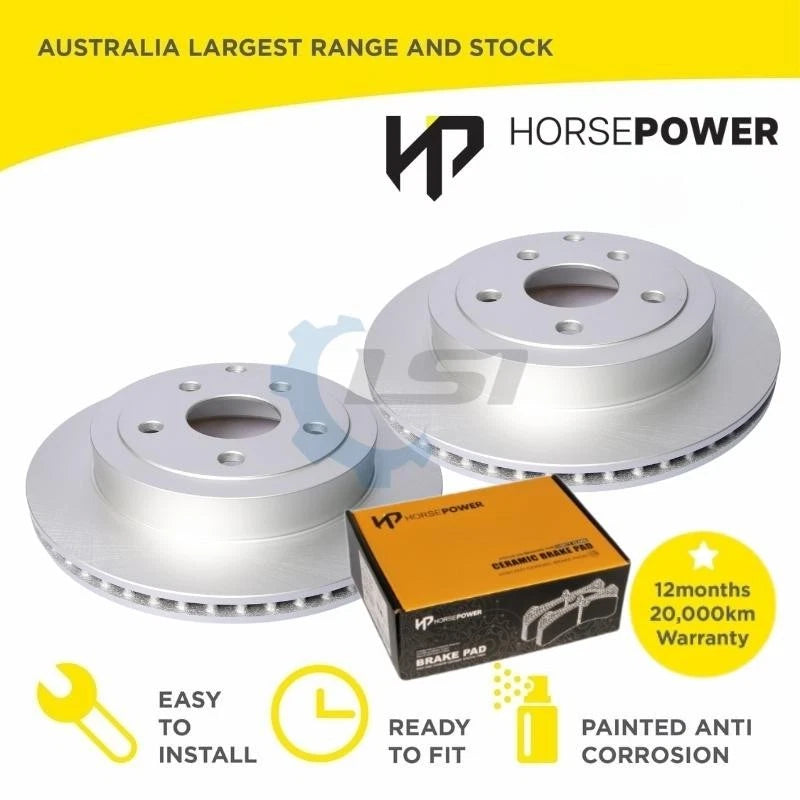

This rear brake kit includes two OE-style disc rotors and one set of ceramic brake pads, designed for Holden Berlina VE 2006-2013 rear axle (LH and RH wheels). Supplied under SKU SET_HR7902_HDB1766.

KIT CONTENTS

• 2 x rear disc rotors
• 1 x set of rear brake pads (for left and right wheels)

DISC ROTOR FEATURES

• Direct replacement with perfect match to OE design
• Optimised thermal conductivity for stable braking
• Helps prevent brake judder and vibration
• Improved damping to reduce braking noise
• High resistance to distortion and thermal cracking
• Enhanced braking safety and performance
• Maximised rotor service life
• Improved brake effectiveness with less pedal effort
• Lower operating temperature to reduce stress on brake components
• Reduced wear for longer-lasting braking system

BRAKE PAD FEATURES

• Advanced ceramic friction formula
• Engineered for Australian, Japanese and Korean vehicles
• Consistent, positive pedal feel
• Low brake noise
• Low dust formulation to help keep wheels cleaner
• Suitable for everyday driving conditions

DISC ROTOR SPECIFICATIONS (REAR)

• Diameter: 302 mm
• Height: 56 mm
• Maximum thickness: 22 mm
• Minimum thickness: 20 mm
• Centre hole: 67.4 mm
• Number of studs: 5
• Vented / solid: Vented

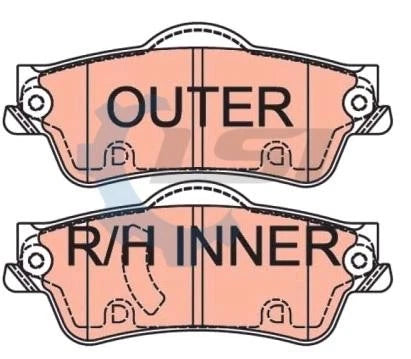

BRAKE PAD DIMENSIONS (REAR)

• Length: 122 mm
• Height: 52 mm
• Thickness: 15 mm

COMPATIBILITY NOTE

• Suits selected COMMODORE VE VF V6 models including OMEGA, SV6, BERLINA and compatible WM CALAIS, CAPRICE and STATESMAN V6.
• Check rear disc diameter (302 mm) and specifications carefully, as some V8 models use V6-size discs.
• Parts compatibility guides are for reference only. Always confirm dimensions and specifications against your existing brakes before purchase.

WARRANTY

• Supplied with 1-year parts replacement warranty (return freight and labour not included).
• Proof of purchase (tax invoice) is required for all warranty claims.
