Rear Brake Pads, Rotors & Wear Sensor Kit for BMW 328i F30 2.0L 02/12-09/15

PRODUCT OVERVIEW

This rear brake service kit includes two vented disc rotors, one set of rear brake pads for left and right wheels, and one brake wear sensor, designed as an OE-style replacement for specified BMW 328i F30 2.0L models (02/2012–09/2015, non-M) with 312 mm front rotors.

DISC ROTOR FEATURES

• OE-style design for direct fitment
• Optimal thermal conductivity to manage heat
• Helps prevent brake judder and vibration
• Reduced braking noise via improved damping characteristics
• High resistance to distortion and thermal cracking
• Enhanced braking safety and performance
• Maximized rotor service life
• Improved braking effectiveness with reduced pedal effort
• Lower operating temperatures to reduce stress on components
• Reduced wear for longer-lasting braking performance

BRAKE PAD FEATURES

• OE-quality friction material
• High durability versus typical aftermarket pads
• Consistent, firm pedal feel
• High-temperature performance for demanding use
• Shortened braking distance (approx. 7.4% improvement)
• ECE R90 compliant

DISC ROTOR SPECIFICATIONS (REAR)

• Diameter: 300 mm
• Height: 66 mm
• Maximum thickness: 20 mm
• Minimum thickness: 18.4 mm
• Centre hole: 75 mm
• Stud holes: 5
• Type: Vented

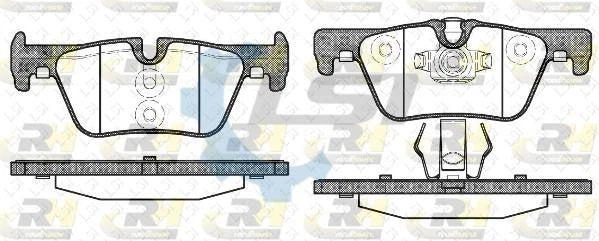

BRAKE PAD & SENSOR SPECIFICATIONS (REAR)

• Pad length: 123 mm
• Pad height: 46.9 / 45.3 mm
• Pad thickness: 17.3 mm
• Wear sensor length: 1045 mm

FITMENT NOTES

• Rear axle kit for BMW 328i F30 2.0L, 02/2012–09/2015, non-M models only.
• Suitable only for vehicles equipped with 312 mm front disc rotors.
• Always compare rotor and pad dimensions with existing components before installation.

WARRANTY

• Supplied with a 1-year parts replacement warranty (conditions apply).
• Proof of purchase is required for all warranty claims.
• Return postage and installation labour are the buyer’s responsibility.
