Rear Brake Pads & Solid Disc Rotor Kit for Ford Falcon BA BF FG C5

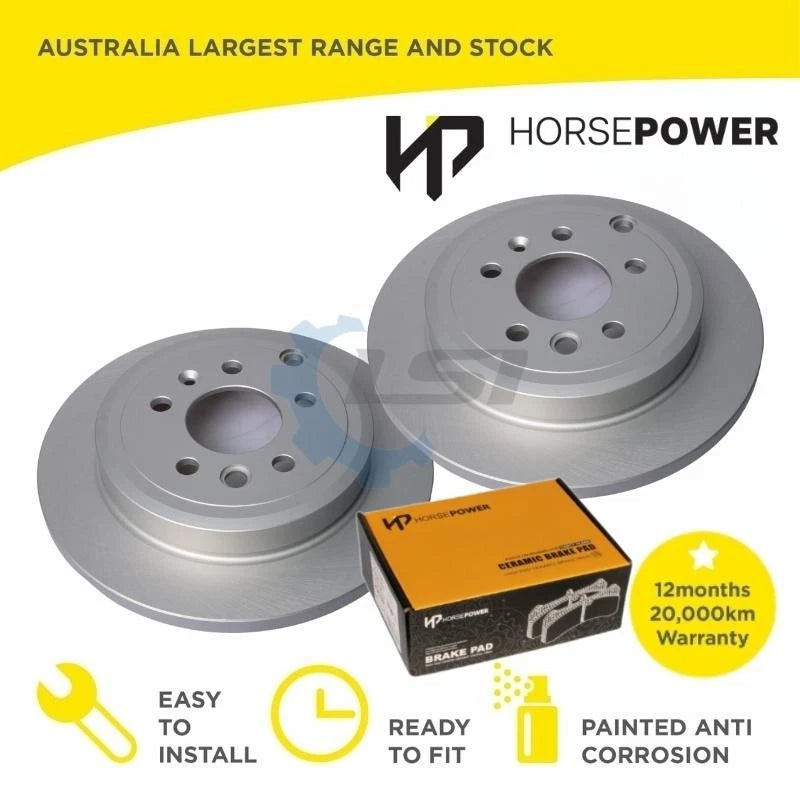

PRODUCT OVERVIEW

This rear brake kit includes two solid disc rotors and one set of ceramic brake pads for left-hand and right-hand wheels. It is designed as an OE-style replacement for selected Ford Falcon BA, BF and FG models equipped with C5 rear calipers.

KEY FEATURES – DISC ROTORS

• OE-style design for reliable fit and performance
• Optimal thermal conductivity to manage heat build-up
• Helps reduce brake judder and vibration
• Improved damping to minimise braking noise
• High resistance to distortion and thermal cracking
• Enhanced braking safety and consistent performance
• Maximised rotor service life
• Efficient braking with reduced pedal effort
• Lower operating temperatures to reduce component stress
• Reduced wear for longer-lasting braking components

KEY FEATURES – BRAKE PADS

• Advanced ceramic friction formula
• Engineered for everyday driving conditions
• Consistent, responsive pedal feel
• Low braking noise
• Low dust output to help keep wheels cleaner

DISC ROTOR SPECIFICATIONS

• Diameter: 303 mm
• Height: 50 mm
• Maximum thickness: 16 mm
• Minimum thickness: 14.5 mm
• Centre hole: 70.5 mm
• Number of studs: 5
• Type: Solid (S)

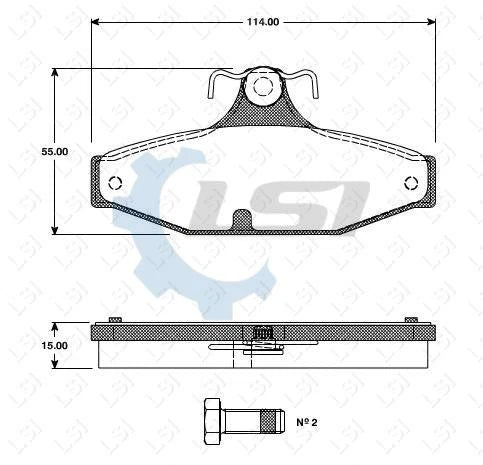

BRAKE PAD MEASUREMENTS

• Length: 114 mm
• Height: 55 mm
• Thickness: 15 mm

COMPATIBLE VEHICLES

Use the measurements and specifications above to confirm suitability for your vehicle. This kit is listed as compatible with selected:

• Ford Falcon BA 6-cyl XR6, XR6T, XR8 (09/2002–09/2005)
• Ford Falcon BA 4.0L LPG 156 kW Sedan, Wagon & Ute (09/2002–09/2005)
• Ford Falcon BA Ute all models (09/2002–09/2005)
• Ford Falcon BF 4.0L Ute (11/2005–01/2008)
• Ford Falcon BF 4.0L 156 kW LPG Sedan, Wagon & Ute, excludes XR6 (10/2005–07/2011)
• Ford Falcon BF 6-cyl XR6 non-turbo (10/2005–04/2008)
• Ford Fairlane BA & BF 6-cyl & V8 (10/2002–10/2005)
• Ford LTD BA & BF (10/2002–2005)
• Ford Falcon FG 4.0L incl. XT, G6, G6E (05/2008 onwards)
• Ford Falcon FG 4.0L LPG 156 kW Ute (05/2008–06/2011)
• Ford Falcon FG Ute incl. XT, XR6 non-turbo, G6 & G6E non-turbo (2008 onwards)

Always compare rotor and pad dimensions, stud pattern and caliper type (C5) with your existing components before purchase and installation.

PACKAGE CONTENTS

• 2 x rear solid disc rotors
• 1 x set rear ceramic brake pads (for both wheels)

WARRANTY

Supplied with a 1-year parts replacement warranty. Installation labour and return freight are not included. Retain your purchase invoice for warranty claims.
