Rear Brake Pads & Solid Disc Rotor Set for Kia Carnival VQ 2005-2011

PRODUCT OVERVIEW

This rear brake kit includes two solid disc rotors and one set of ceramic brake pads, designed for left-hand and right-hand rear wheels on Kia Carnival VQ models from 2005 to 2011. It is engineered as an OE-style replacement to help restore braking performance and reliability.

KIT CONTENTS

• 2 x rear solid disc rotors
• 1 x set of rear brake pads (for LH and RH wheels)

DISC ROTOR FEATURES

• OE-style design for accurate fit and rotor alignment
• Optimised thermal conductivity to manage heat build-up
• Helps reduce brake judder and vibration
• Improved damping characteristics to minimise braking noise
• High resistance to distortion and thermal cracking
• Enhanced braking safety and consistent performance
• Engineered for long rotor service life
• Effective braking with reduced pedal effort
• Lower operating temperatures to reduce stress on brake components
• Reduced wear for extended component life

BRAKE PAD FEATURES

• Advanced ceramic friction material
• Developed for everyday driving conditions
• Consistent, firm pedal feel
• Low brake noise characteristics
• Low dust formulation to help keep wheels cleaner

DISC ROTOR SPECIFICATIONS (REAR)

• Diameter: 324 mm
• Height: 69 mm
• Maximum thickness: 12 mm
• Minimum thickness: 10 mm
• Centre hole: 96.3 mm
• Number of studs: 6
• Vented / solid: Solid (S)

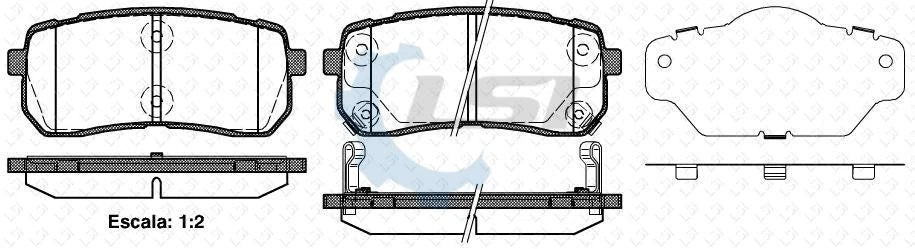

BRAKE PAD MEASUREMENTS (REAR)

• Length: 111 mm
• Height: 48 mm
• Thickness: 16 mm

FITMENT NOTICE

Vehicle compatibility can vary within the same model and year range. Use the rotor and pad dimensions provided and compare with your existing components to confirm suitability before purchase. If unsure, consult your mechanic or brake specialist.

WARRANTY

This product is supplied with a 1-year parts replacement warranty, subject to standard terms and conditions. Proof of purchase is required for all warranty claims. Return shipping and installation labour are not included.
