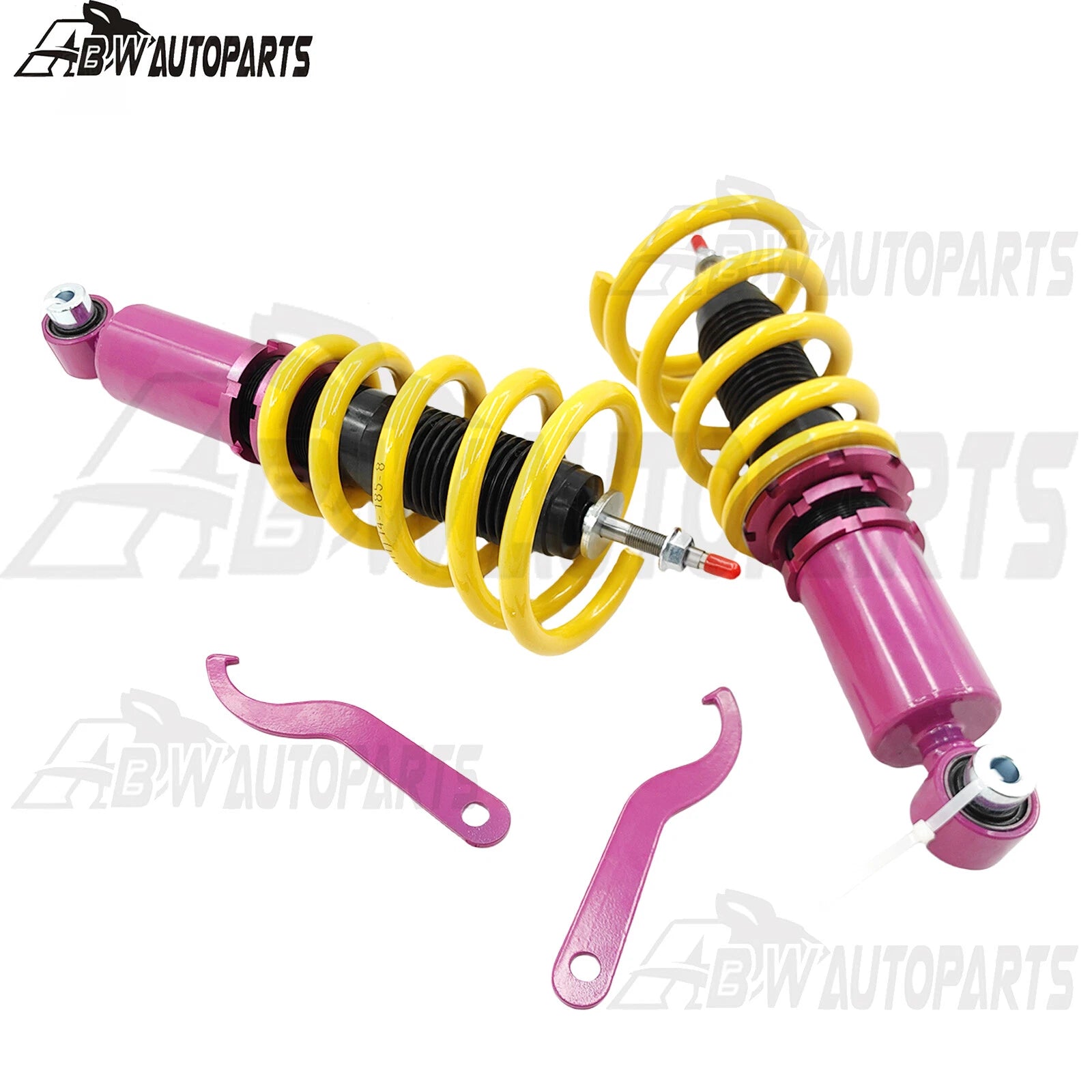

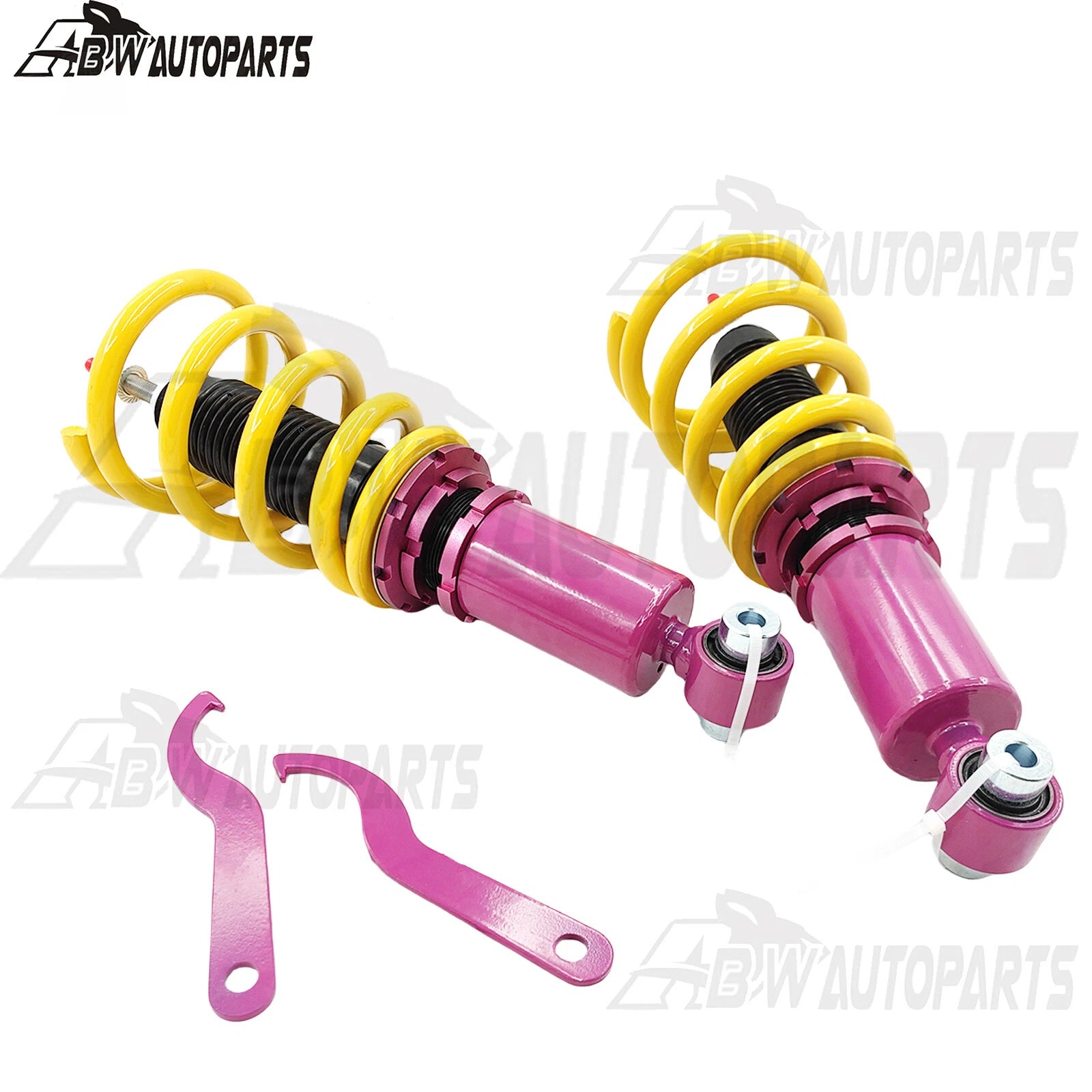

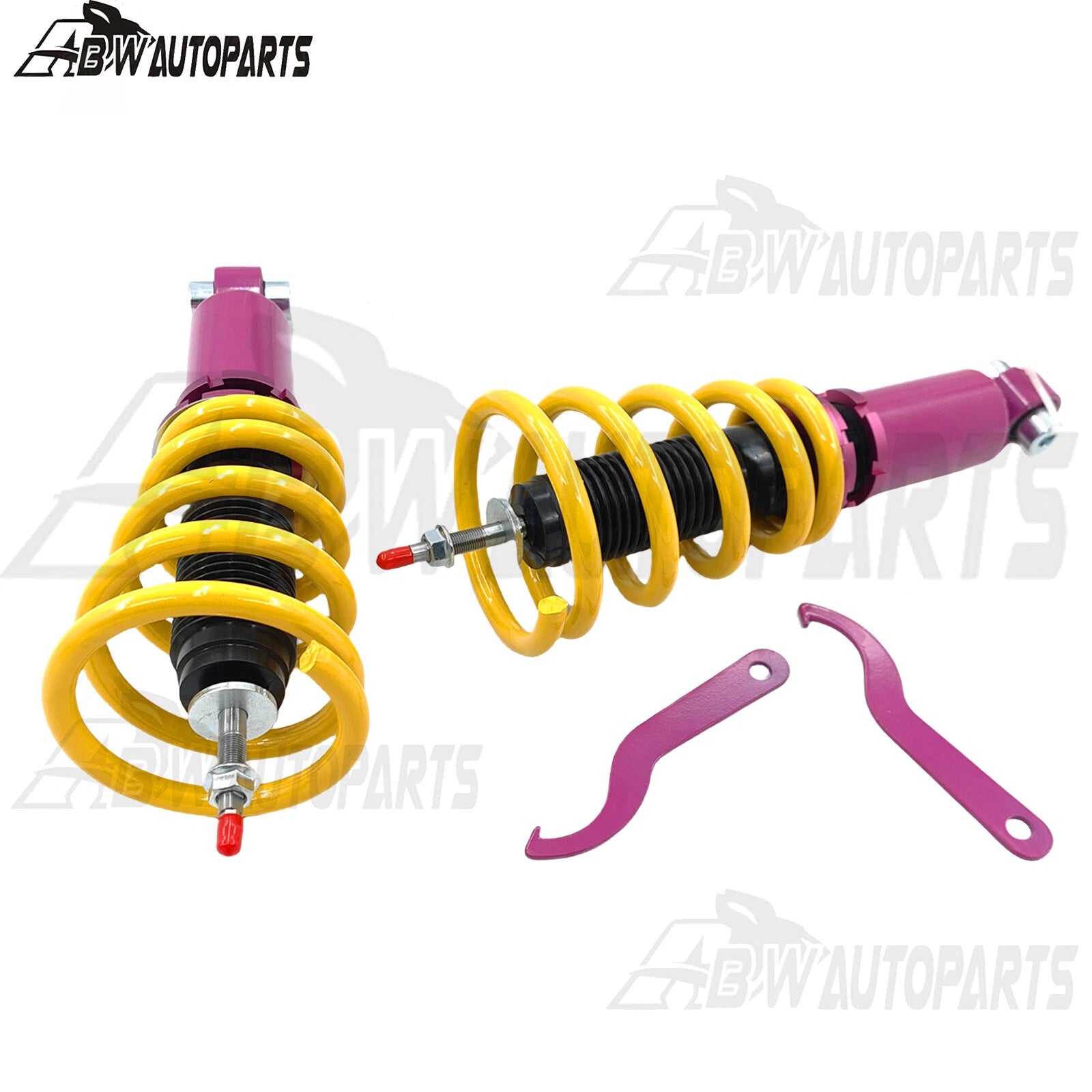

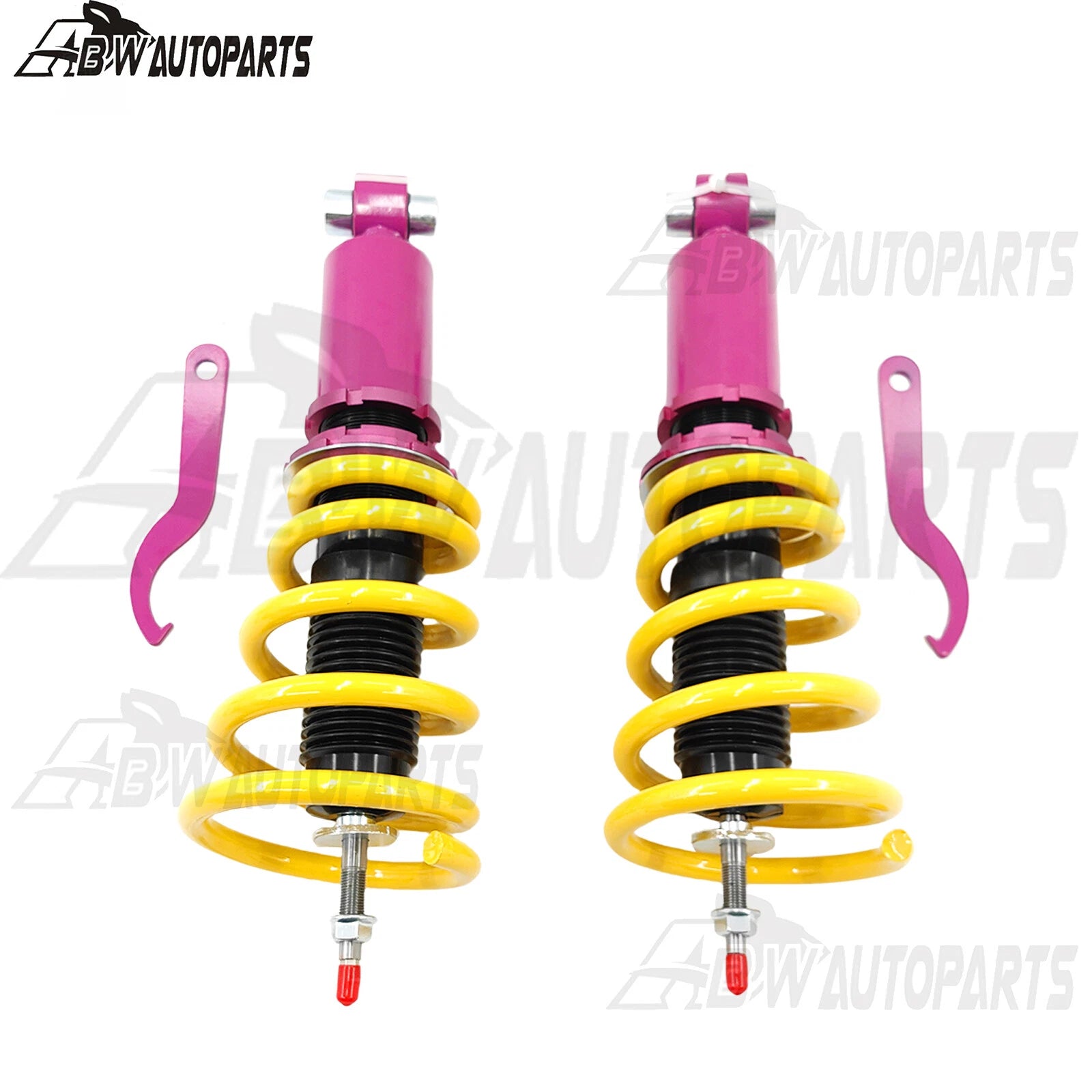

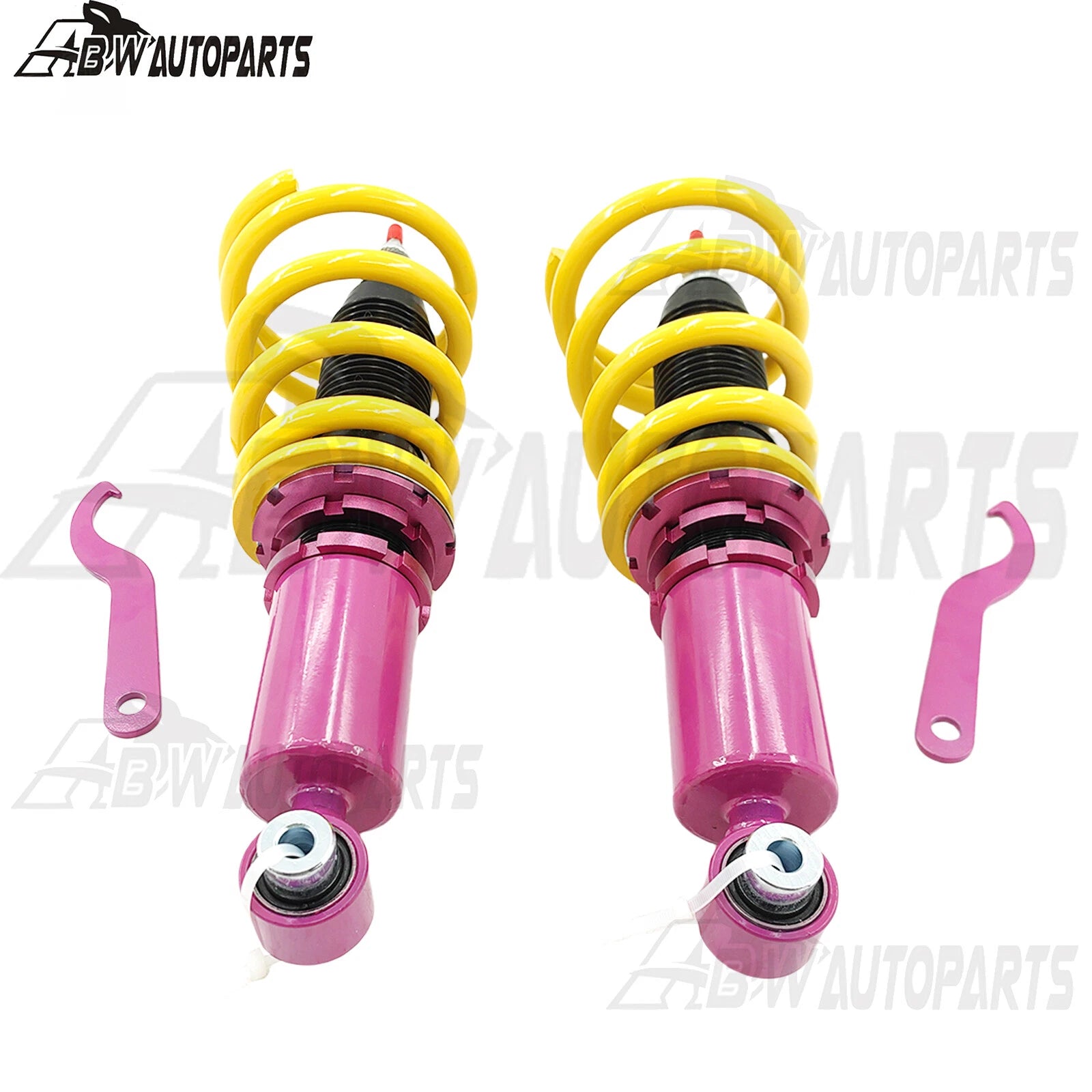

Rear Adjustable Coilover Suspension Kit for Holden Commodore VE 2006-2013

OVERVIEW

Rear adjustable coilover coil spring suspension kit designed for street use, providing a lowered stance and improved handling for Holden Commodore VE models.

VEHICLE COMPATIBILITY

• Holden Commodore VE Sedan 2006-2013
• Holden Commodore VE Wagon 2008-2013
• Holden Commodore VE Ute 2007-2013

Please confirm fitment and compare with your original parts before purchase.

KEY FEATURES

• Condition: 100% brand new shock & spring assembly
• Height adjustable: approx. 25-75 mm lowering range
• Designed for improved stance, handling and street performance
• Pre-load spring helps reduce shaking and improve stability
• CNC-machined aluminium top mounts (OE top mounts required for rear)
• Heavy-duty steel lower mounts for durability and strength
• Upgraded high-tensile springs tested over 600,000 cycles
• Rubber boots to protect dampers and extend service life
• Twin-tube shock structure for balanced comfort and control
• Anti-corrosion finish: anodised aluminium and powder-coated steel
• Fitment and quality tested, ROHS & ISO/TS16949 approved
• Warranty: 2 years (subject to installer and usage conditions)

SPECIFICATIONS

• Position: Rear, left and right
• Rear top mount: OE top mounts required (not included)
• Damping adjustment: 24 levels of rebound damping
• Camber adjustment: Not available
• Rear lowering range: 25-75 mm (approx.)
• Rear spring rate: 8 kg/mm (448 lbs/in)
• Rear spring length: 185 mm
• Rear coilover overall length: 405-445 mm
• Shock structure type: twin-tube
• Colour: purple body with yellow springs
• Package size: 73 x 27 x 21 cm
• Weight: approx. 11.32 kg

WHAT'S INCLUDED

• 1 x set of rear coilover spring kit (left and right)
• 1 x pair of adjustment wrenches for height setting

Note: Rear top mounts are not included. OE top mounts must be reused.

INSTALLATION & MAINTENANCE

• This kit is designed to lower the vehicle and will deviate from factory ride height.
• All work should be carried out by a qualified mechanic in accordance with local regulations.
• Torque all fasteners to the vehicle manufacturer's specifications and recheck after initial use.
• Do not use an impact wrench during installation to avoid damage or loosening.
• After installation, check clearance between tyres and suspension components (minimum 4 mm). Wheel spacers may be required if clearance is insufficient.
• Regular maintenance is recommended; apply a light lubricant to threads every 3-4 months to keep height adjustment free and protect against corrosion.

Professional installation is strongly recommended. Always verify the vehicle's original part numbers and specifications before purchasing.
