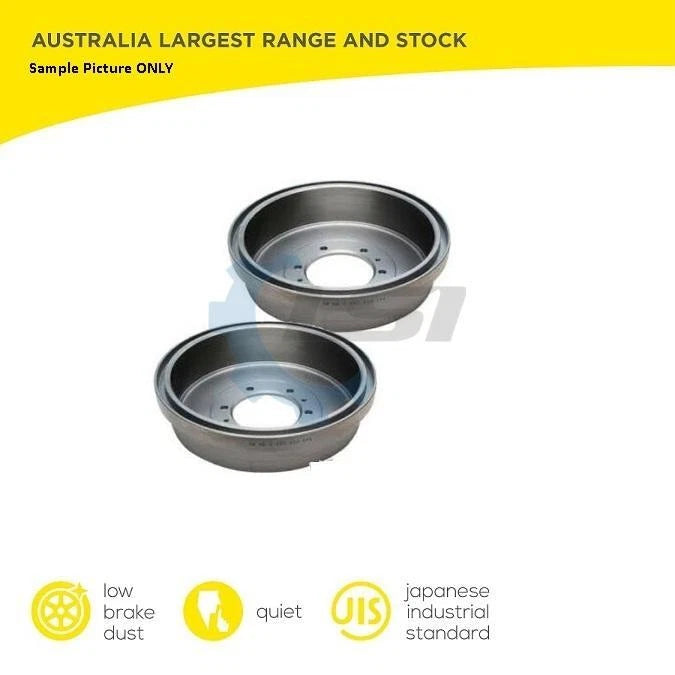

Rear Brake Drums Pair for Toyota Hiace KDH/TRH Series 4 254mm 05-09

PRODUCT OVERVIEW

Rear brake drum pair designed to match OEM performance for Toyota Hiace KDH & TRH Series 4 (2005–07/2009). Supplied as left-hand and right-hand drums, engineered for stable braking performance and long service life.

KEY FEATURES

• Supplied as a matched left and right rear brake drum pair
• Precise match to OE design for reliable fitment
• Optimised thermal conductivity for consistent braking
• Helps reduce brake judder and vibration
• Improved damping characteristics to minimise braking noise
• High resistance to distortion and thermal cracking
• Engineered for maximum drum life and durability
• Efficient braking performance with reduced pedal effort
• Lower operating temperatures to reduce stress on brake components
• Reduced wear for extended service intervals

SPECIFICATIONS

• Reference part number: HR6797
• Drum diameter: 254 mm
• Overall height: 71.8 mm
• Maximum drum thickness: 60 mm
• Centre bore: 106 mm (verify against existing drum)
• Stud count: 6 studs

Note: There is an alternative version with approximately 107 mm centre diameter. Please confirm the centre bore on your existing brake drum before ordering.

FITMENT INFORMATION

This rear brake drum pair is intended for Toyota Hiace KDH & TRH Series 4 models from 2005 to 07/2009. As model variations may use different brake components, always confirm dimensions, stud count and centre bore against the original parts on your vehicle before purchase.

WARRANTY

Supplied with a 1-year parts replacement warranty, subject to correct installation and normal use. Installation labour and return freight are not included.
