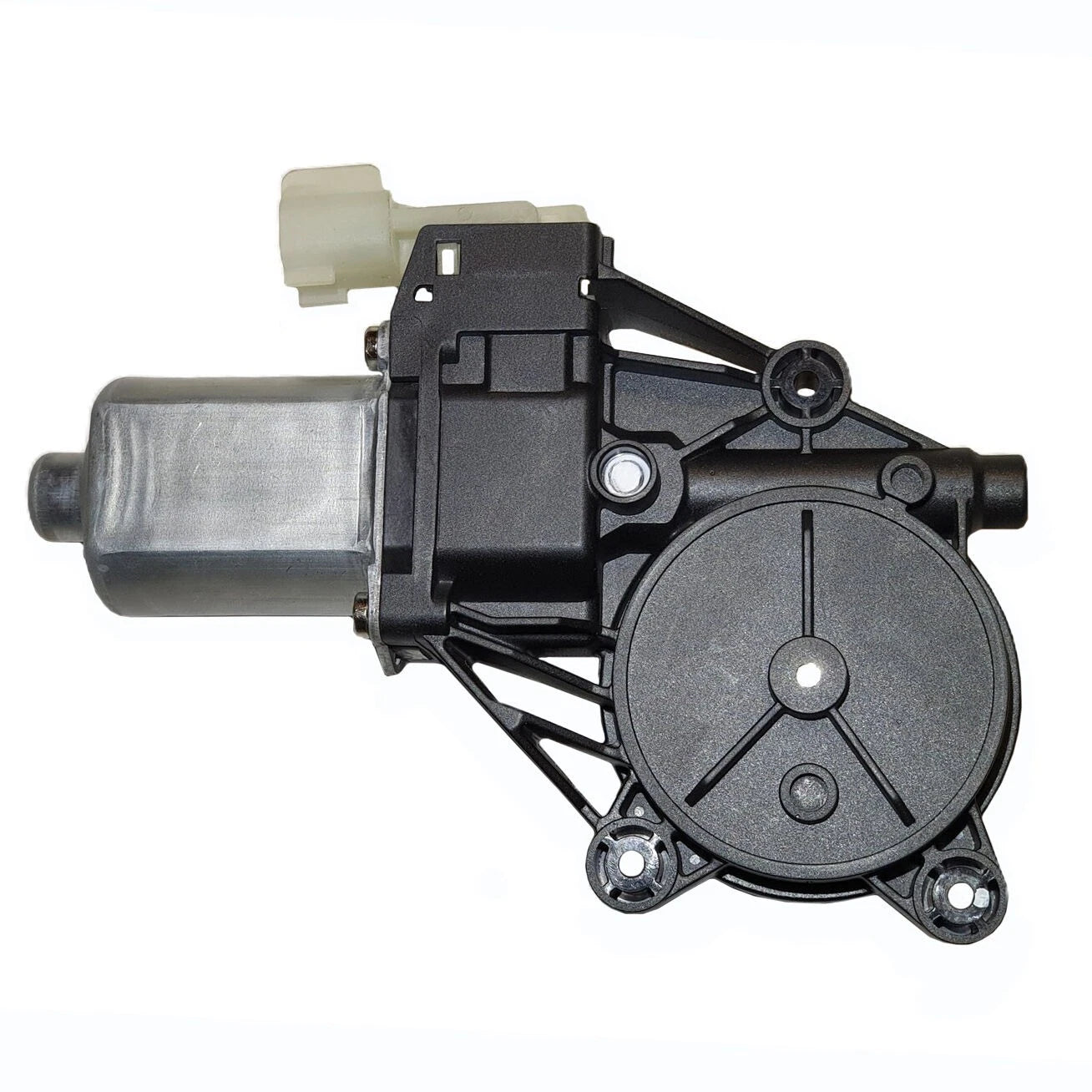

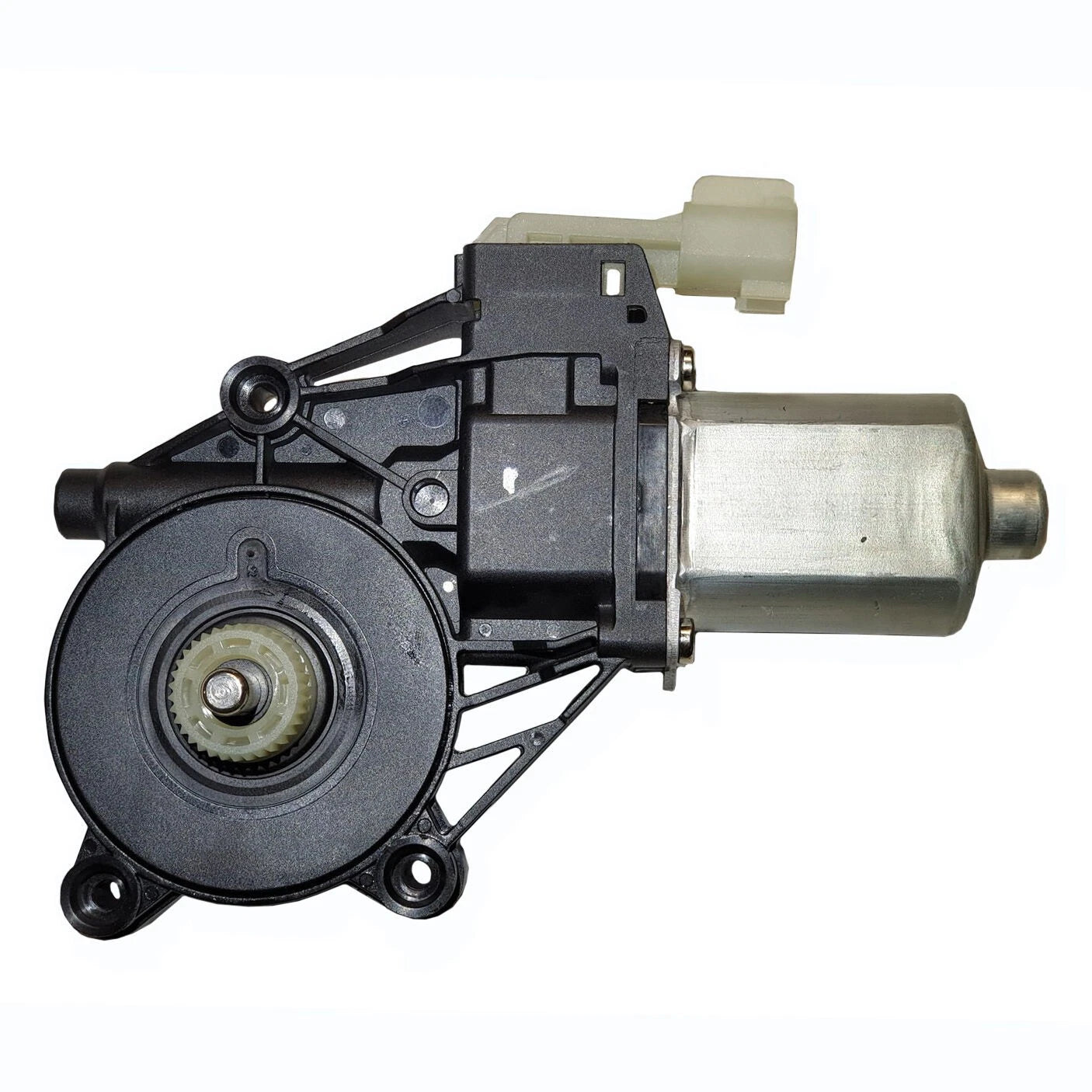

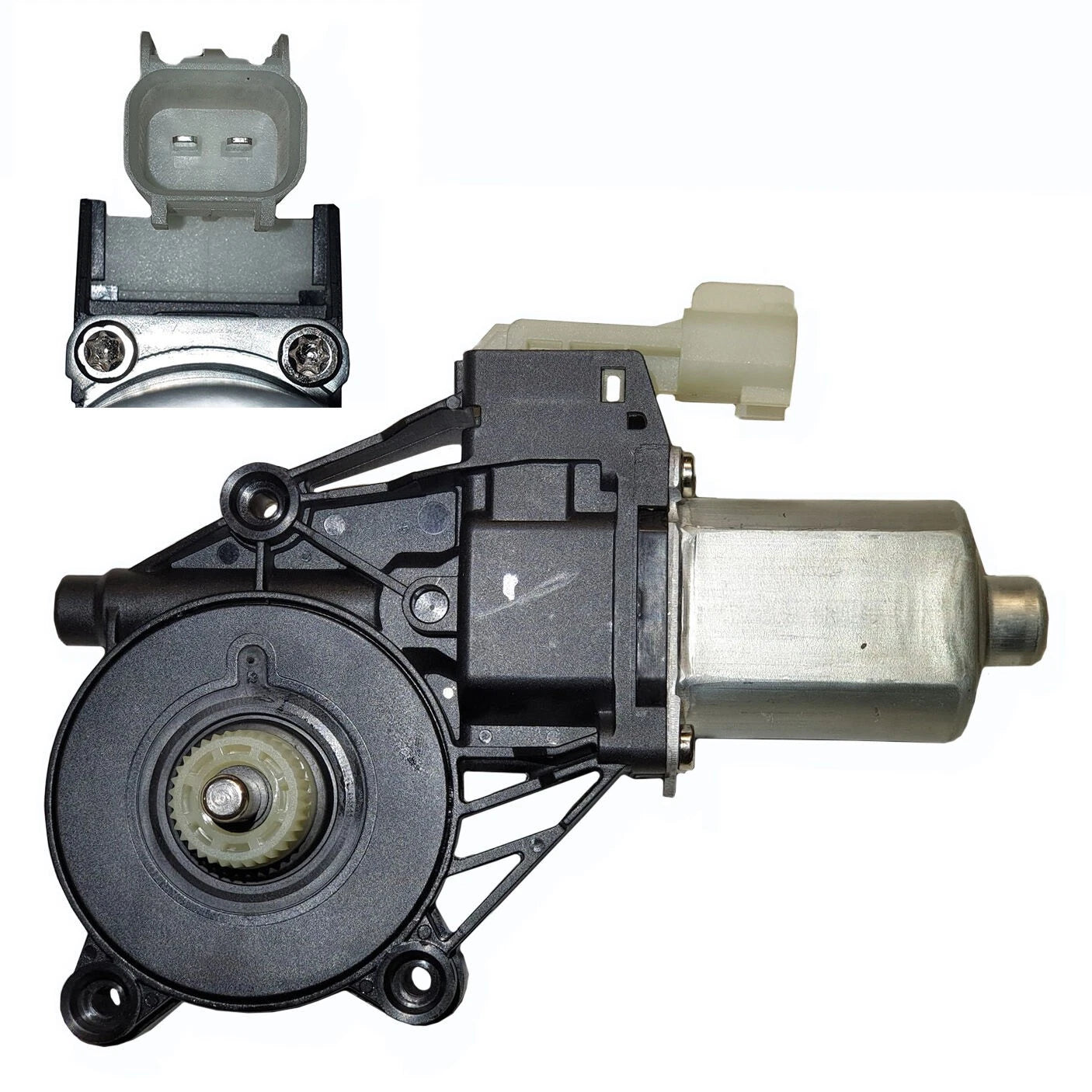

Rear Left Window Lift Motor 2-Pin for Ford Ranger PX & Mazda BT-50

PRODUCT OVERVIEW

This rear left electric window lift motor is a high-quality aftermarket replacement designed to restore reliable window operation. It is supplied as a single 2-pin motor for the rear passenger side door.

KEY FEATURES

• Application: Rear left (rear passenger side) window
• Electric 2-pin motor design
• High quality aftermarket construction
• Brand new part supplied as 1 piece
• Backed by 1-year manufacturer warranty (part only)

SPECIFICATIONS

• Product: Window lift motor
• Operating mode: Electric
• Placement on vehicle: Rear left (rear passenger side)

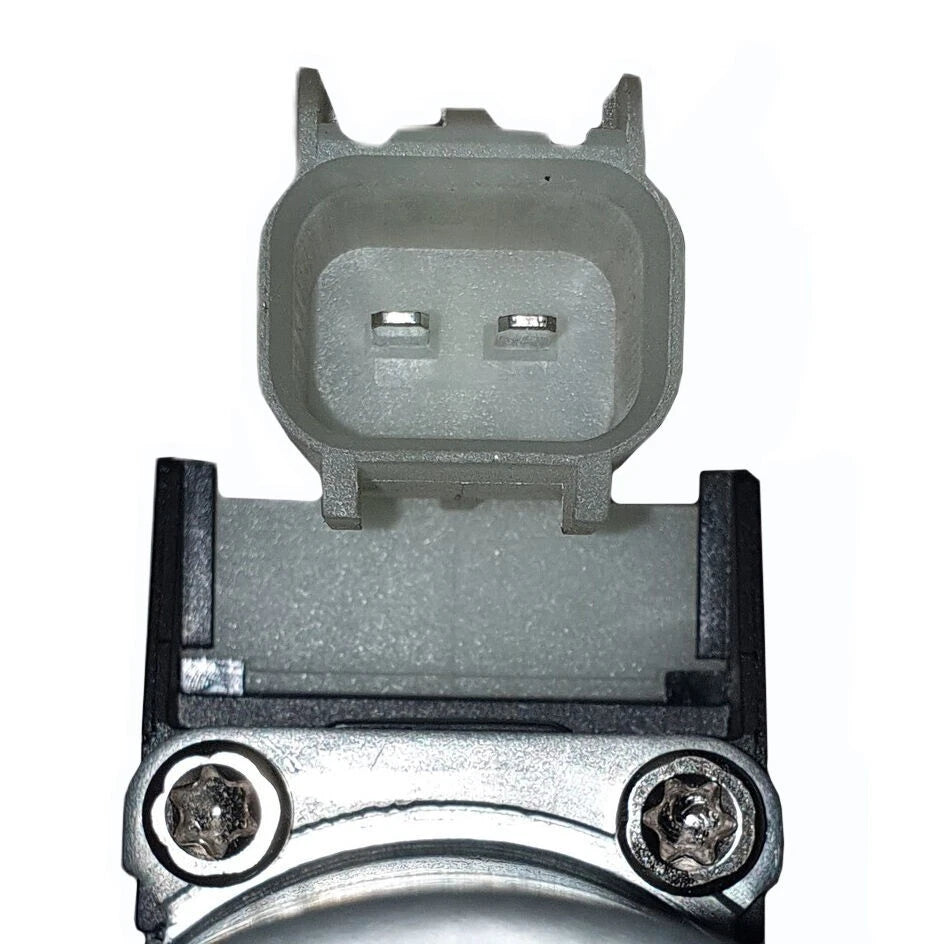

• Connector: 2-pin motor
• OE reference number: AB392627001
• Part type: High quality aftermarket
• Condition: Brand new
• MPN / Item No.: 101688MF
• Quantity supplied: 1 piece

VEHICLE COMPATIBILITY

• Ford Ranger PX 09/2011 - 03/2022
• Mazda BT-50 UP 07/2011 - 2015
• Mazda BT-50 UR 07/2015 - 07/2020

Use the OE reference and compare the product images to your original part to confirm compatibility before purchase.

ANTI-PINCH FUNCTION SETUP (WHERE APPLICABLE)

For motors with an anti-pinch function, do not test the motor before it is installed in the door, otherwise the one-touch and anti-pinch features may require resetting.

• Install the motor and connect it to the one-touch window switch.
• Pull the switch up; the window should travel fully to the top.
• If the window drops after reaching the top, perform the reset procedure below.

Reset procedure:

• Step 1: Pull the window switch briefly so the window moves slightly up to the top.
• Step 2: Hold the one-touch switch up for 3–5 seconds at the top position.
• Step 3: Press the window switch briefly so the window moves slightly down to the bottom.
• Step 4: Hold the one-touch switch down for 3–5 seconds at the bottom position.
• Step 5: Pull the one-touch switch to move the window fully up to the top.

The reset is complete if the window remains at the top. If it still drops, repeat the above steps.

WARRANTY INFORMATION

• Standard warranty: 12 months from date of invoice or delivery (part only).
• Parts must be installed by a qualified automotive mechanic to maintain warranty.
• Warranty covers replacement of the defective part only.
• Labour, installation costs, and consequential damage are not covered.
• Incorrect installation, misuse, modification, or poor storage conditions void warranty.

Customers are responsible for return postage where a replacement is issued under warranty.

IMPORTANT NOTES

• Part is intended for repair and replacement purposes.
• Colour and finish may appear slightly different due to screen and lighting variations.
• Always match the product images, mounting points, and connector type to your original part.
