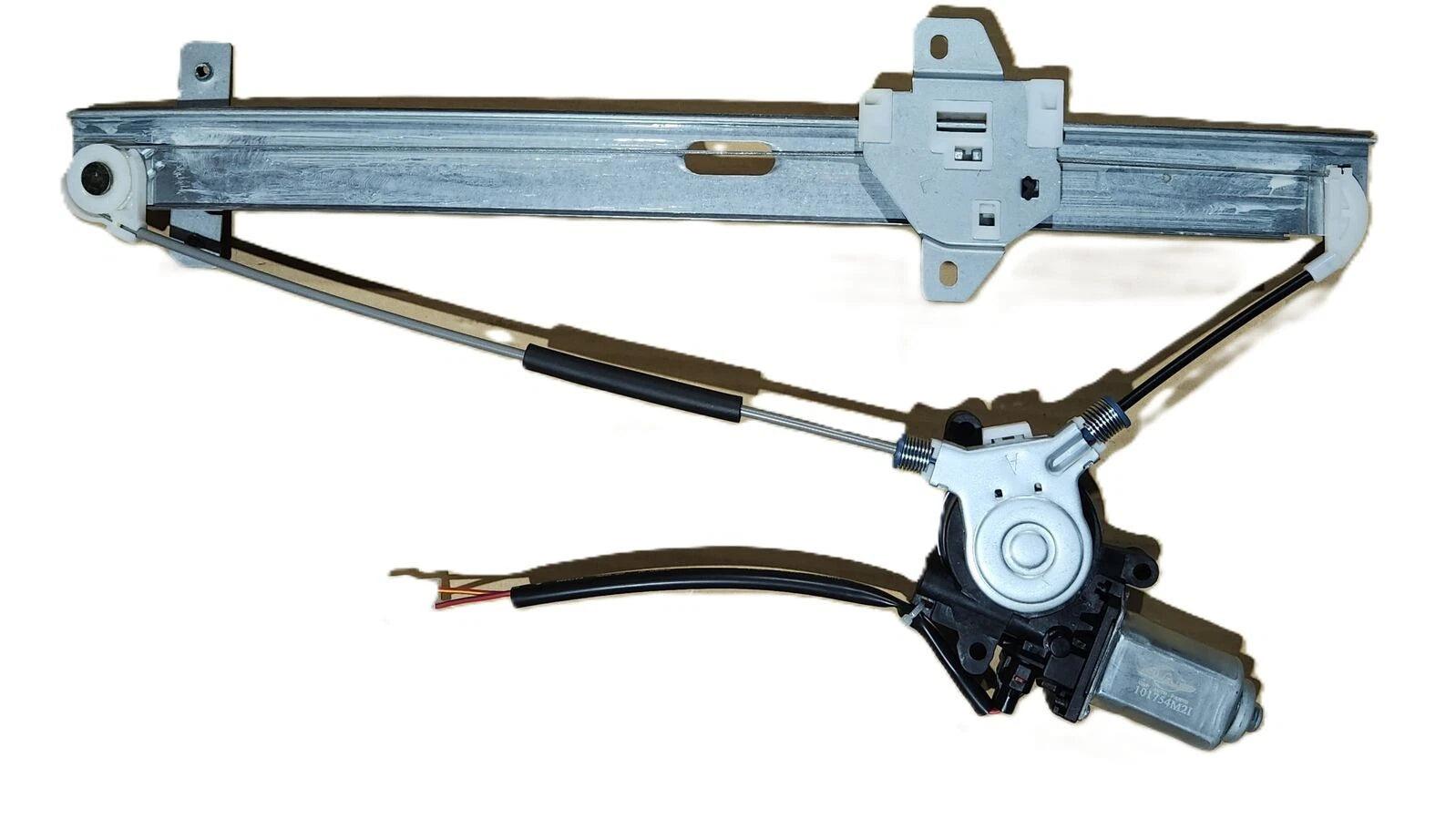

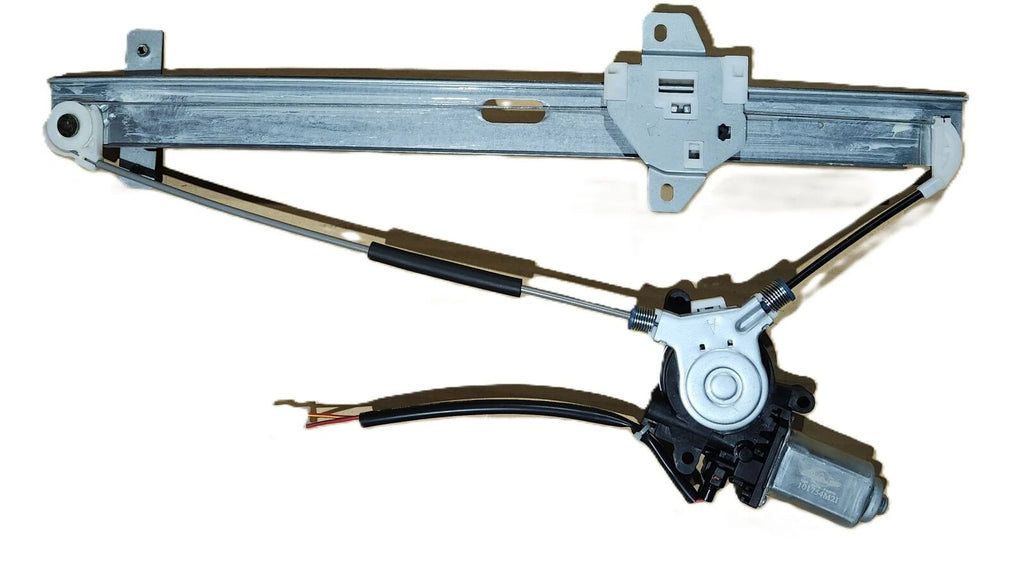

Rear Left Electric Window Regulator & 2-Pin Motor for Suzuki Vitara

Product Overview

This rear left electric window regulator with 2-pin motor is a brand-new, high-quality aftermarket replacement designed for selected Suzuki Vitara SE and SV 4-door models. Supplied as a complete assembly, it provides efficient repair and smooth, reliable window operation.

Key Features

• Complete window regulator supplied with pre-fitted electric motor
• Designed for the rear left (rear passenger side) door position

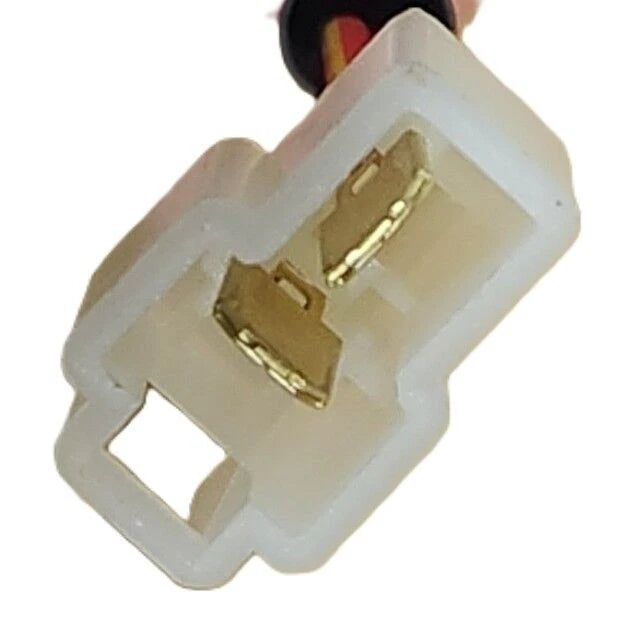

• 2-pin motor electrical connection
• Durable, high-quality aftermarket construction
• Supplied as 1 piece, brand new
• Covered by a 1-year parts warranty

Specifications

• Product type: Window regulator with motor
• Operating mode: Electric
• Placement on vehicle: Rear left (rear passenger side)
• Motor type: 2-pin connector
• Condition: Brand new
• Category: High-quality aftermarket replacement
• MPN / Item No.: 101754M2I
• Quantity supplied: 1 piece
• Warranty: 1 year (part only)

Vehicle Fitment

• Suzuki Vitara SE 08/1991–12/1998, 4-door
• Suzuki Vitara SV 04/1995–09/1998, 4-door

Always compare this part, mounting points, and 2-pin connector to your original regulator before purchase to confirm compatibility.

Anti-Pinch Function Setup (If Applicable)

If your vehicle is equipped with an anti-pinch window system, follow these guidelines when installing regulators with motors:

• Do not power-test the motor before installation in the door, as the anti-pinch function may require resetting.
• Motors are pre-tested and set before dispatch.
• After installation, connect to the one-touch window switch and check that the window travels fully to the top.
• If the window drops after reaching the top, reset the anti-pinch function using the procedure below.

Anti-Pinch Reset Procedure

• Step 1: Pull the window switch briefly to move the glass slightly up to the top position.
• Step 2: Hold the one-touch switch up for 3–5 seconds at the top.
• Step 3: Press the window switch briefly to move the glass slightly down to the bottom position.
• Step 4: Hold the one-touch switch down for 3–5 seconds at the bottom.
• Step 5: Pull the one-touch switch to move the window fully up to the top and check operation.

If the window still drops after reaching the top, repeat the reset steps until normal operation is restored.

Notes

• Images are for reference only; colour or finish may vary slightly due to screen and lighting differences.
• Intended for repair and replacement of a faulty original window regulator.
• Professional installation by a qualified automotive technician is recommended to maintain warranty coverage and ensure correct operation.
