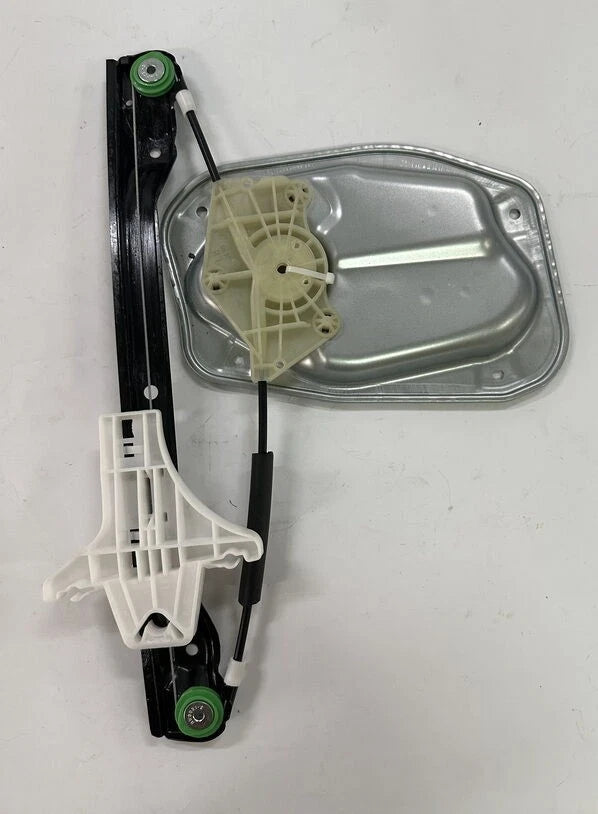

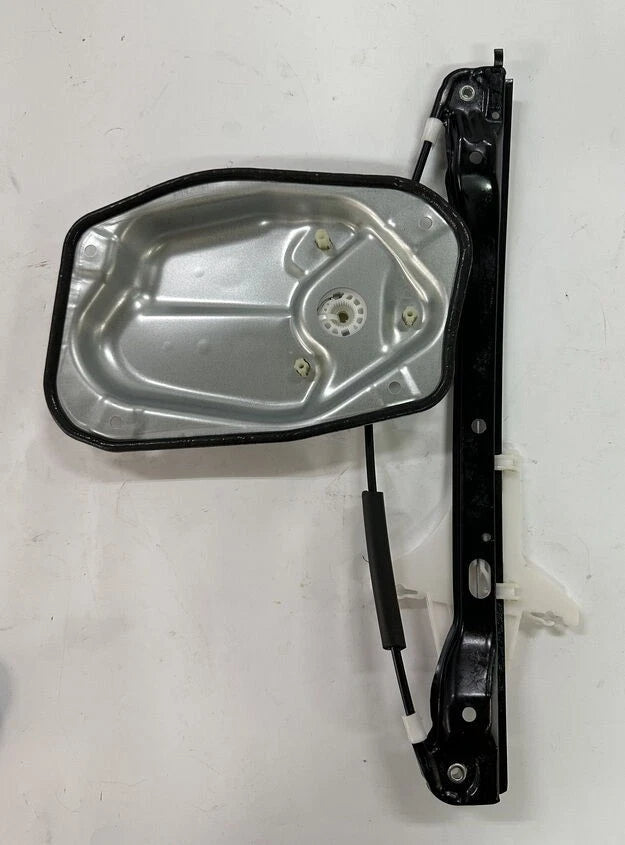

Rear Left Electric Window Regulator w/ Panel for VW Golf MK5 5-Door

PRODUCT OVERVIEW

This rear left electric window regulator with panel is a high-quality aftermarket replacement, designed to restore smooth and reliable window operation on compatible Volkswagen Golf MK5 5-door hatch models.

KEY FEATURES

• Electric window regulator assembly with carrier panel
• Position: Rear left (rear passenger side)
• Supplied without motor (reuse or replace motor separately)
• Direct-fit replacement for listed OE reference numbers
• Brand new, high-quality aftermarket construction

SPECIFICATIONS

• Product type: Window regulator
• Operating mode: Electric
• Placement on vehicle: Rear left (rear passenger side)
• Motor: Not included
• Configuration: With panel
• OE reference numbers: 1K4839461A, 1K4839461B
• MPN/Item No.: 102229LC
• Condition: Brand new
• Part specification: High quality aftermarket
• Quantity supplied: 1 piece
• Warranty: 1-year manufacturer warranty (part only)

VEHICLE COMPATIBILITY

• Volkswagen Golf MK5 5-door hatchback (01/2004 – 05/2011)

Use the OE reference numbers and product images to confirm compatibility with your vehicle before purchase.

ANTI-PINCH FUNCTION NOTE (FOR MOTORS)

If used with a window motor that has an anti-pinch function, the motor must be correctly set after installation to ensure proper one-touch operation.

• Do not test the motor before it is installed in the door, otherwise the anti-pinch function may need to be reset.
• After installation, connect the one-touch window switch and check that the window moves fully up without dropping back down.
• If the window drops after reaching the top, perform the reset procedure below.

ANTI-PINCH RESET PROCEDURE

• Step 1: Pull the window switch briefly to move the window slightly up to the top.
• Step 2: Hold the one-touch switch in the up position for 3–5 seconds at the top.
• Step 3: Press the window switch briefly to move the window slightly down to the bottom.
• Step 4: Hold the one-touch switch in the down position for 3–5 seconds at the bottom.
• Step 5: Pull the one-touch switch to move the window up to the top and verify it remains closed.

If the window drops again after reaching the top, repeat the reset steps until the anti-pinch function is correctly calibrated.

INSTALLATION & WARRANTY NOTES

• Professional installation by a qualified automotive mechanic is strongly recommended.
• Warranty applies to the replacement of the defective part only and does not cover labour, incorrect installation, misuse, or modification.
• Parts are intended for repair and replacement purposes and should be matched to the original part and OE numbers.
• Product colour/finish may vary slightly from images due to screen settings and lighting.
