Rear Left Electric Window Regulator & 6-Pin Motor for Toyota Kluger GSU40

Product Overview

This rear left electric window regulator is a direct replacement for the factory unit on selected Toyota Kluger GSU40 models. Supplied as a complete assembly with 6-pin motor, it is ready for installation for a reliable window operation restore.

Key Features

• Complete electric window regulator assembly with pre-fitted motor
• 6-pin motor connector for compatible rear left door wiring
• Designed for rear left (rear passenger side) door position
• High-quality aftermarket construction for durable performance
• Brand new part supplied as a single piece
• Backed by a 1-year replacement warranty (part only)

Specifications

• Product: Window regulator
• Operating mode: Electric
• Placement on vehicle: Rear left (rear passenger side)
• Motor connector: 6-pin
• Part type: High-quality aftermarket
• Condition: Brand new
• MPN/Item No.: 102191M6D
• Warranty: 1 year (part only)
• Quantity supplied: 1 piece

Vehicle Compatibility

• Toyota Kluger GSU40 (06/2007 - 12/2013)

Always compare the part number, connector type, mounting points, and product images with your original window regulator to confirm compatibility before purchase.

Anti-Pinch Function Setup

This regulator motor may be equipped with an anti-pinch (one-touch) safety function. Incorrect testing prior to installation can cause the function to fail and require resetting.

• Do not power or test the motor before it is installed in the door.
• Install the regulator and connect it to the one-touch window switch.
• Pull the switch to raise the window fully and check operation.
• If the window drops after reaching the top, reset the anti-pinch function.

Anti-Pinch Reset Procedure

• Step 1: Pull the window switch briefly so the window moves slightly up to the top position.
• Step 2: Hold the one-touch switch in the up position for 3–5 seconds at the top.
• Step 3: Press the window switch briefly so the window moves slightly down to the bottom.
• Step 4: Hold the one-touch switch in the down position for 3–5 seconds at the bottom.
• Step 5: Pull the one-touch switch to raise the window fully to the top and verify the glass remains in position.

The reset is complete if the window remains at the top and does not drop. If it still drops, repeat the procedure until successful.

Installation & Warranty Notice

• Installation by a qualified automotive mechanic is recommended for best results and warranty validity.
• Part is intended as a replacement/repair component only.
• Colour or finish may vary slightly due to screen settings and lighting conditions.
• Window regulators and motors may include tamper-evident seals; do not remove them before confirming correct operation.

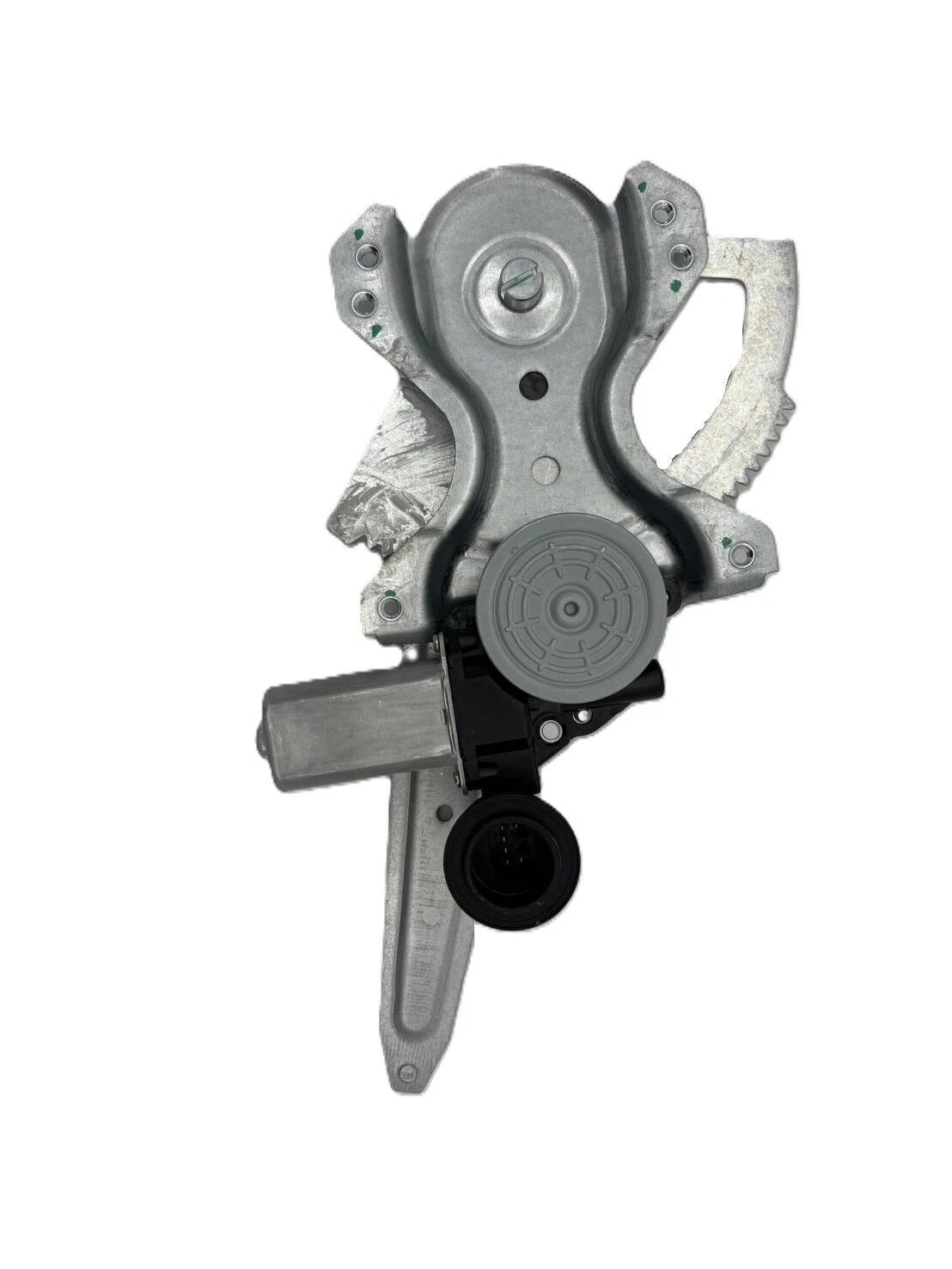

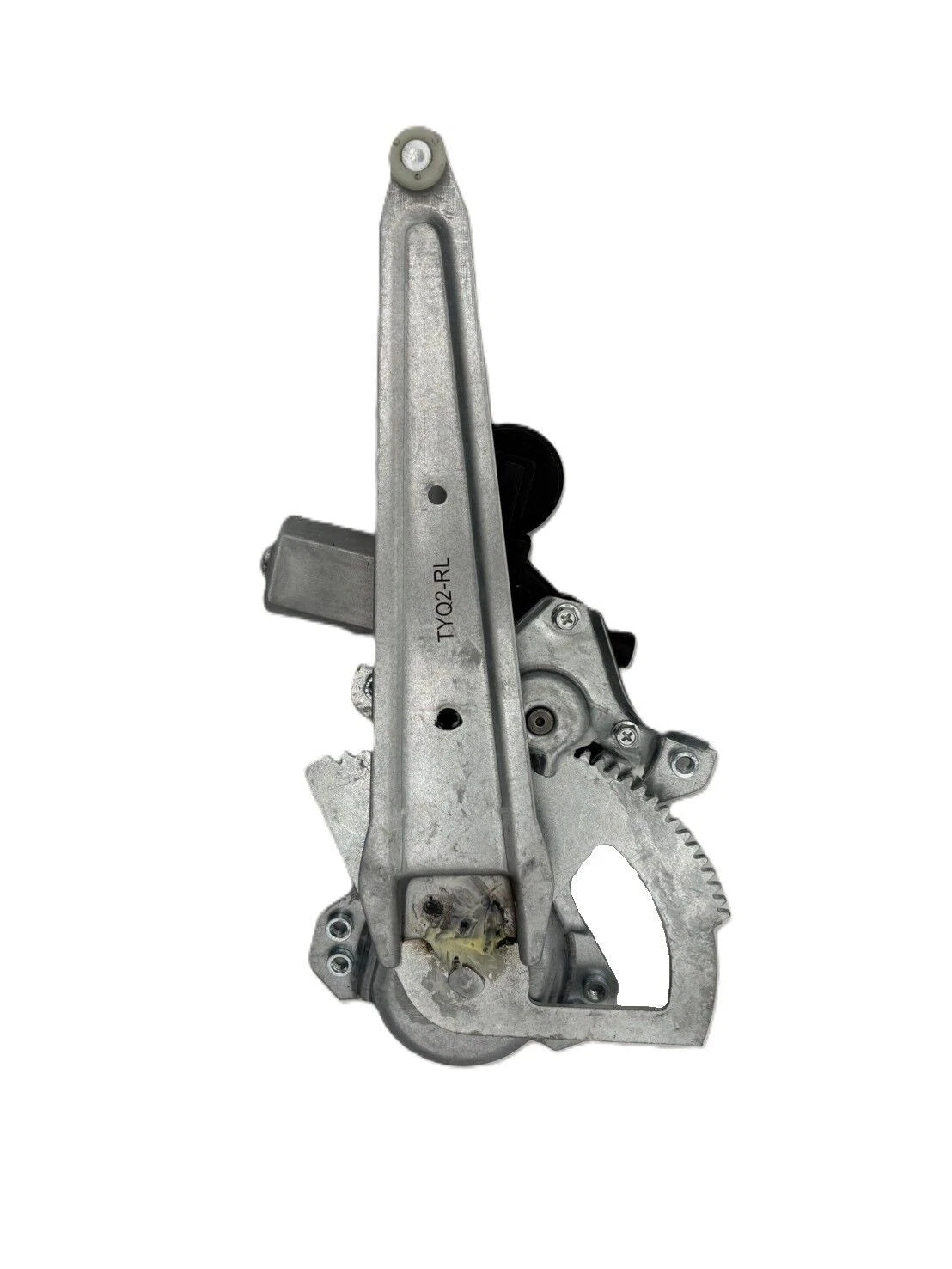

Ensure this assembly matches your original part before purchase. Images shown are of the actual product supplied.
