Rear Left Electric Window Regulator w/ Motor 2-Pin for Honda Civic FD 06-12

PRODUCT OVERVIEW

This rear left electric window regulator with integrated 2-pin motor is a high-quality aftermarket replacement for selected Honda Civic FD models. Designed for reliable operation and direct replacement of the original assembly.

KEY FEATURES

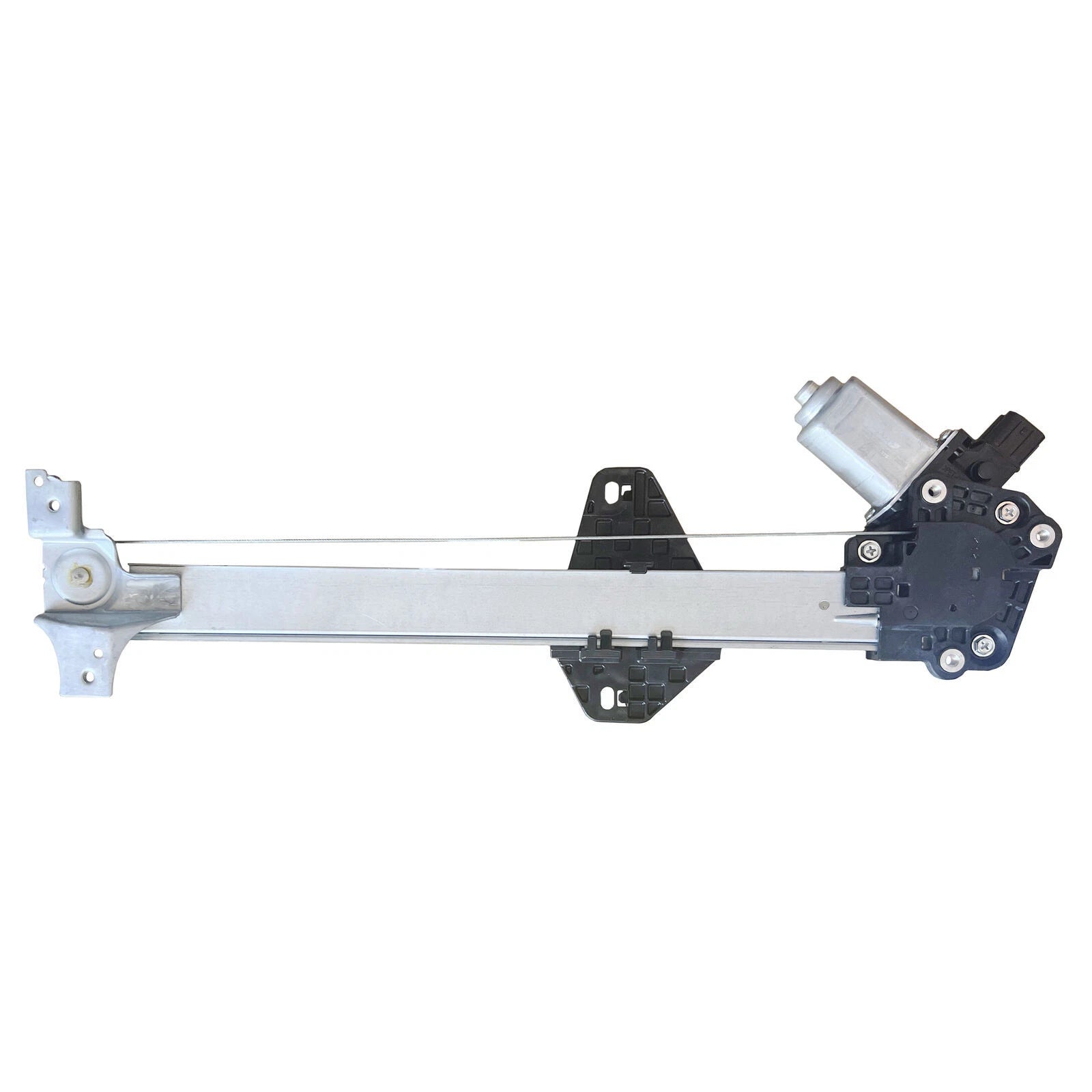

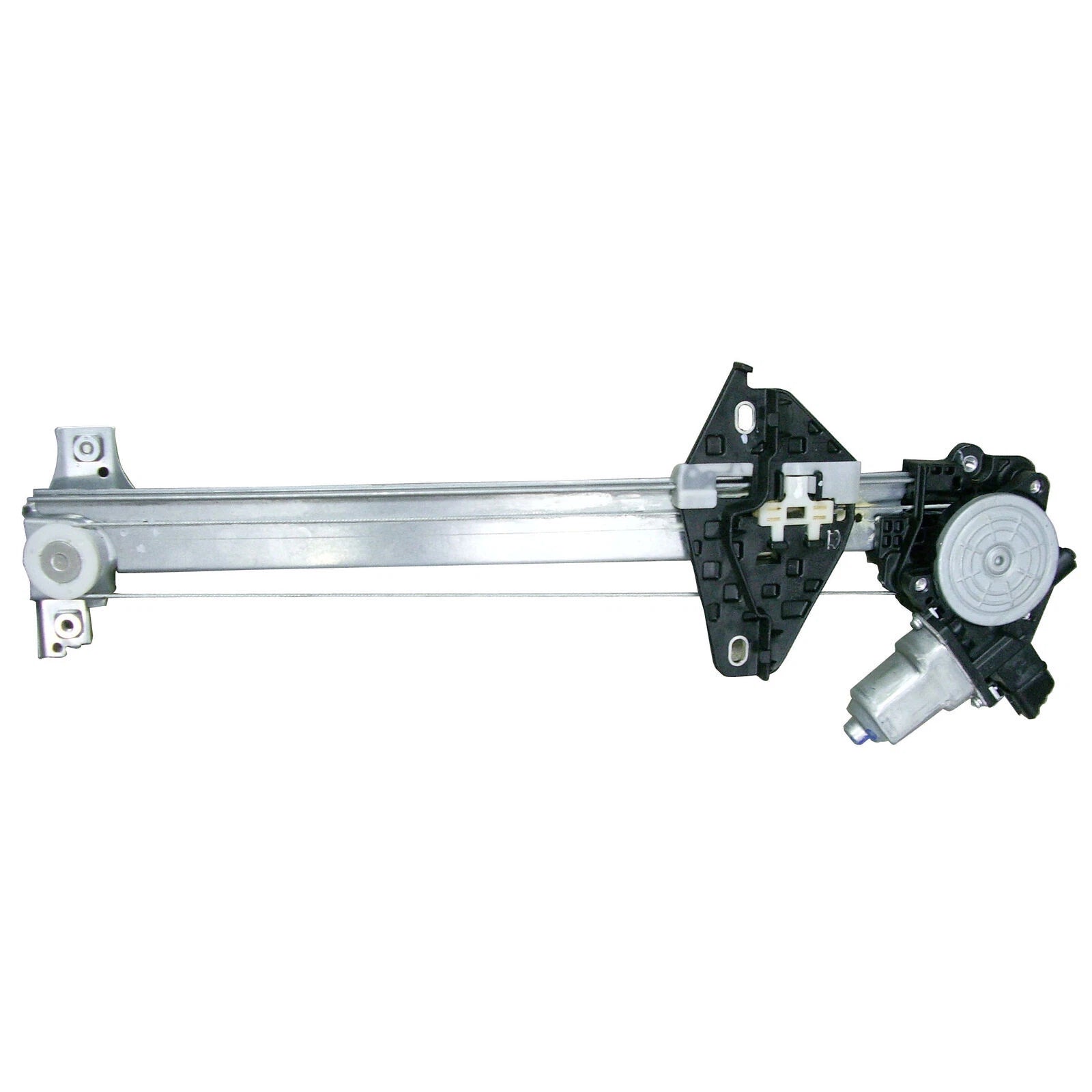

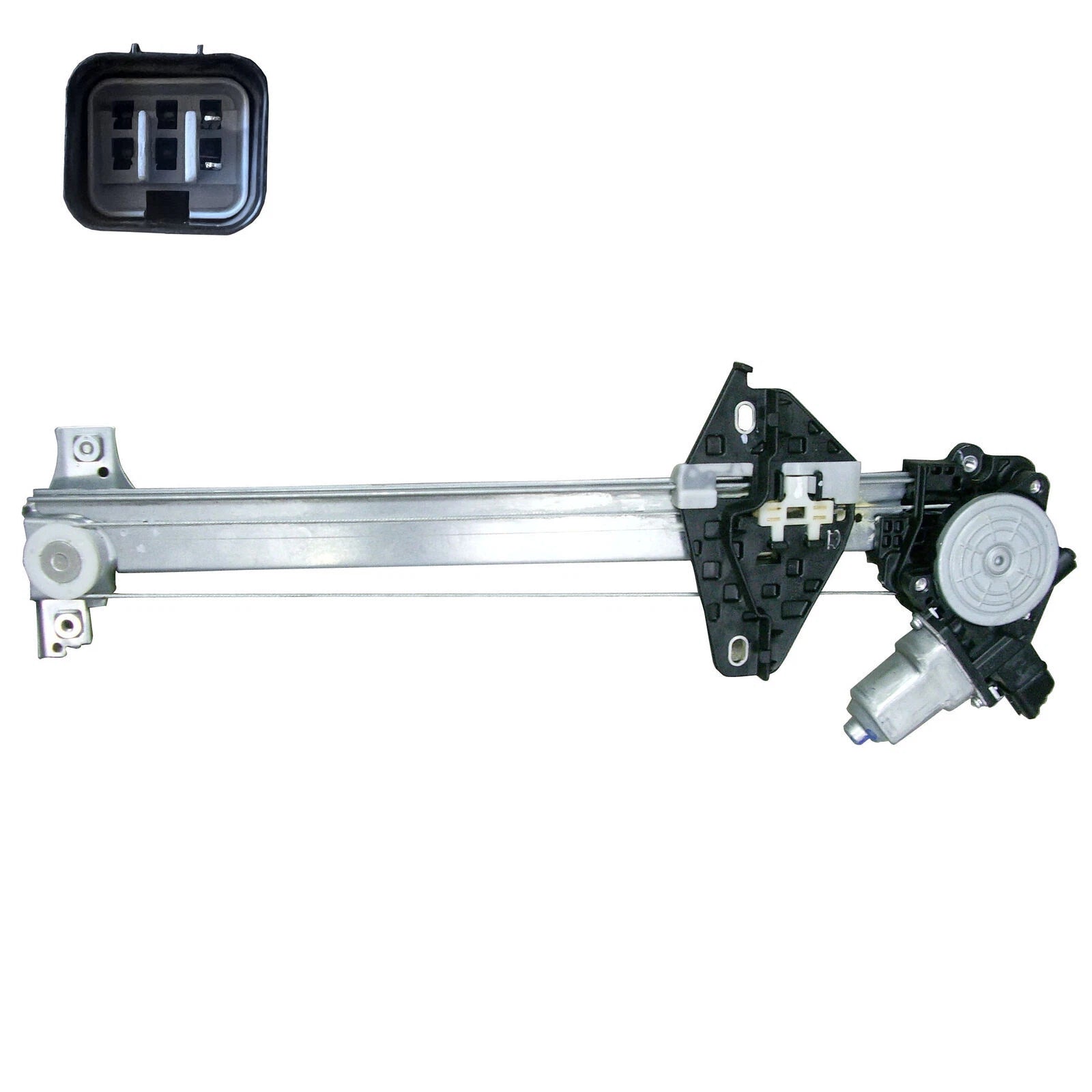

• Complete window regulator assembly with motor
• Electric operation for smooth window control

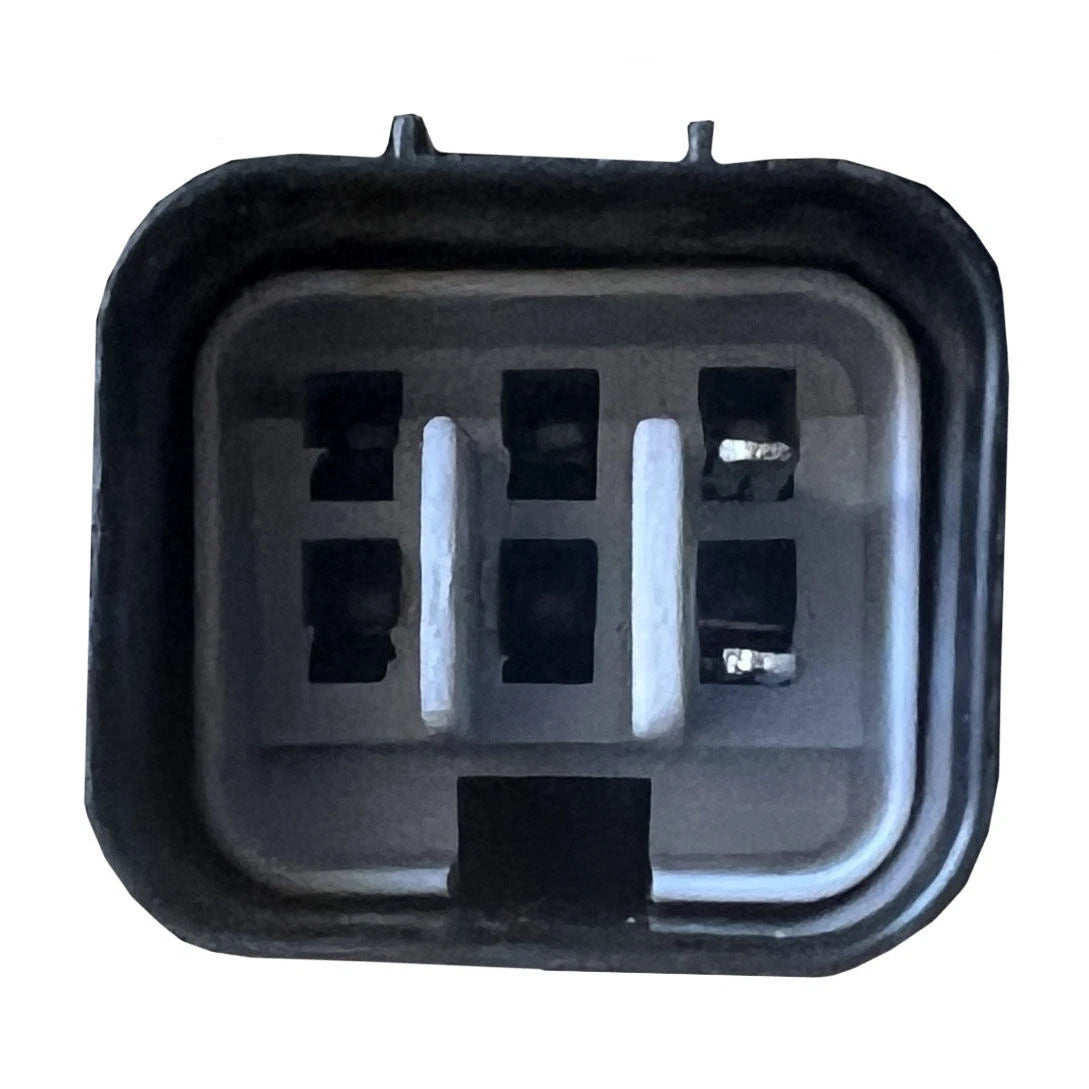

• 2-pin motor connector
• Direct-fit replacement for rear left (rear passenger side)
• High-quality aftermarket construction
• Brand new part supplied as a single piece

SPECIFICATIONS

FITMENT DETAILS

• Honda Civic FD 02/2006–01/2012 R18A1 1.8L Sedan (rear left door)

Always compare the part, connector type, and mounting points with your original regulator before purchase and installation.

ANTI-PINCH FUNCTION RESET (IF APPLICABLE)

Some electric window motors are equipped with an anti-pinch safety function. Incorrect handling before installation can cause this function to malfunction.

• Do not test the motor prior to installation in the door.
• Install the regulator and connect it to the one-touch window switch.
• Operate the switch to check if the window travels fully upward.
• If the window goes up and then drops slightly, reset the anti-pinch function.

Reset procedure:

• Step 1: Pull the window switch briefly to move the window fully to the top.
• Step 2: Hold the one-touch switch up for 3–5 seconds at the top.
• Step 3: Press the window switch briefly to move the window fully down.
• Step 4: Hold the one-touch switch down for 3–5 seconds at the bottom.
• Step 5: Pull the one-touch switch again to raise the window to the top and confirm it no longer drops.

If the window still drops after reaching the top, repeat the reset steps until the function is correctly set.

INSTALLATION & NOTES

• Professional installation by a qualified automotive mechanic is recommended.
• Intended for repair and replacement use only.
• Product images are for reference; colour or finish may vary slightly due to lighting and screen settings.
• Ensure all mounting points and electrical connectors match your original part before final fitment.
