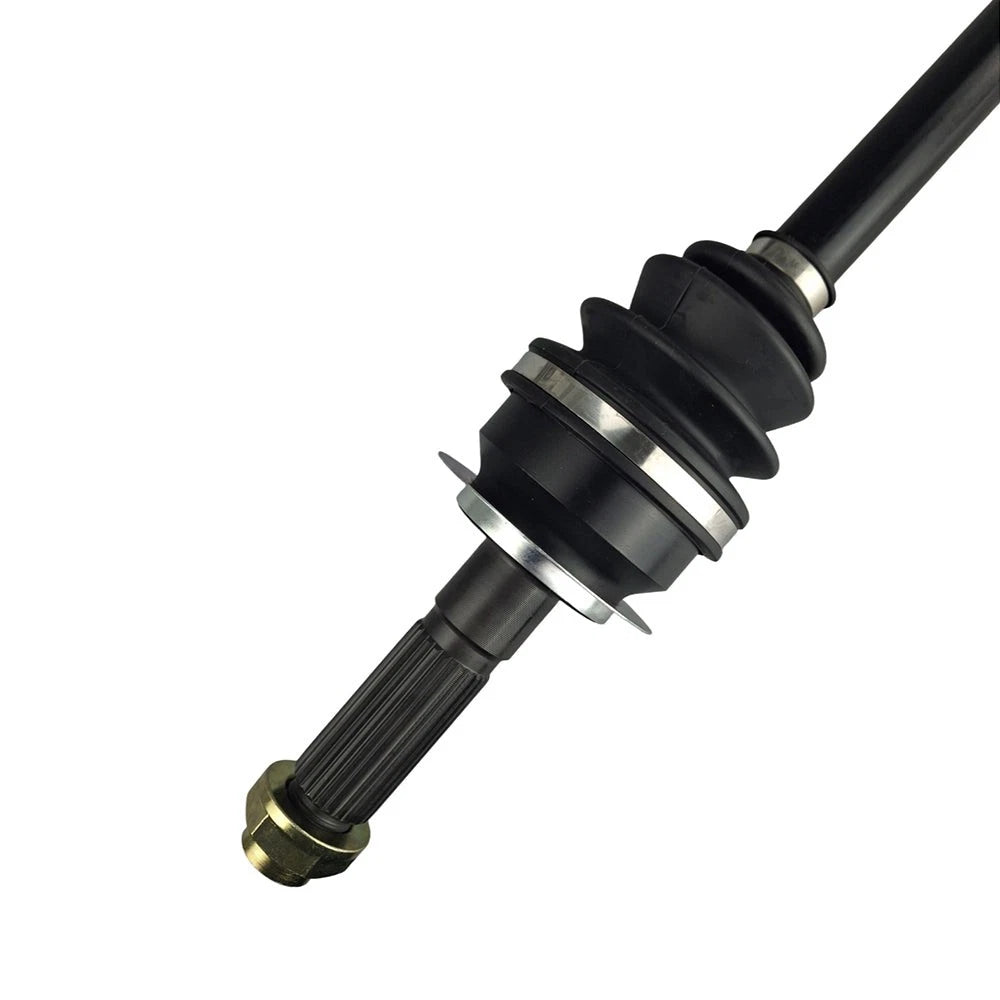

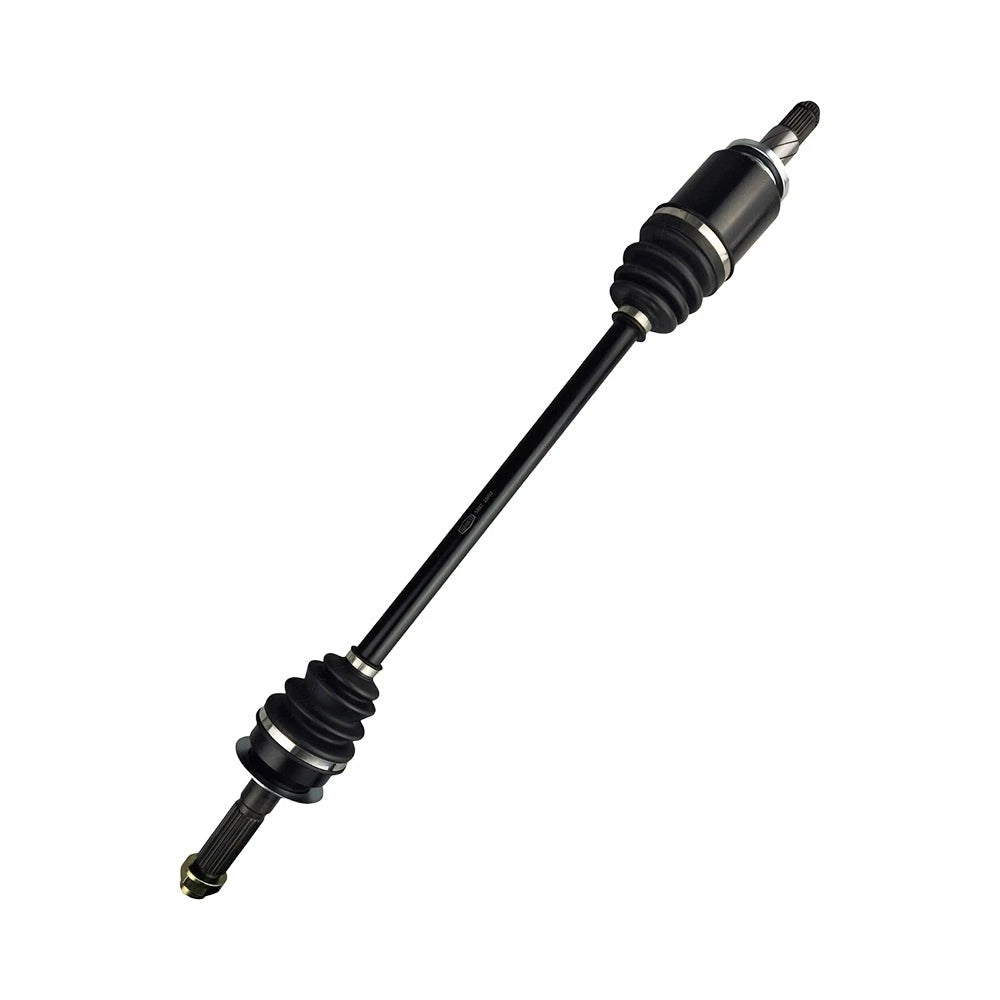

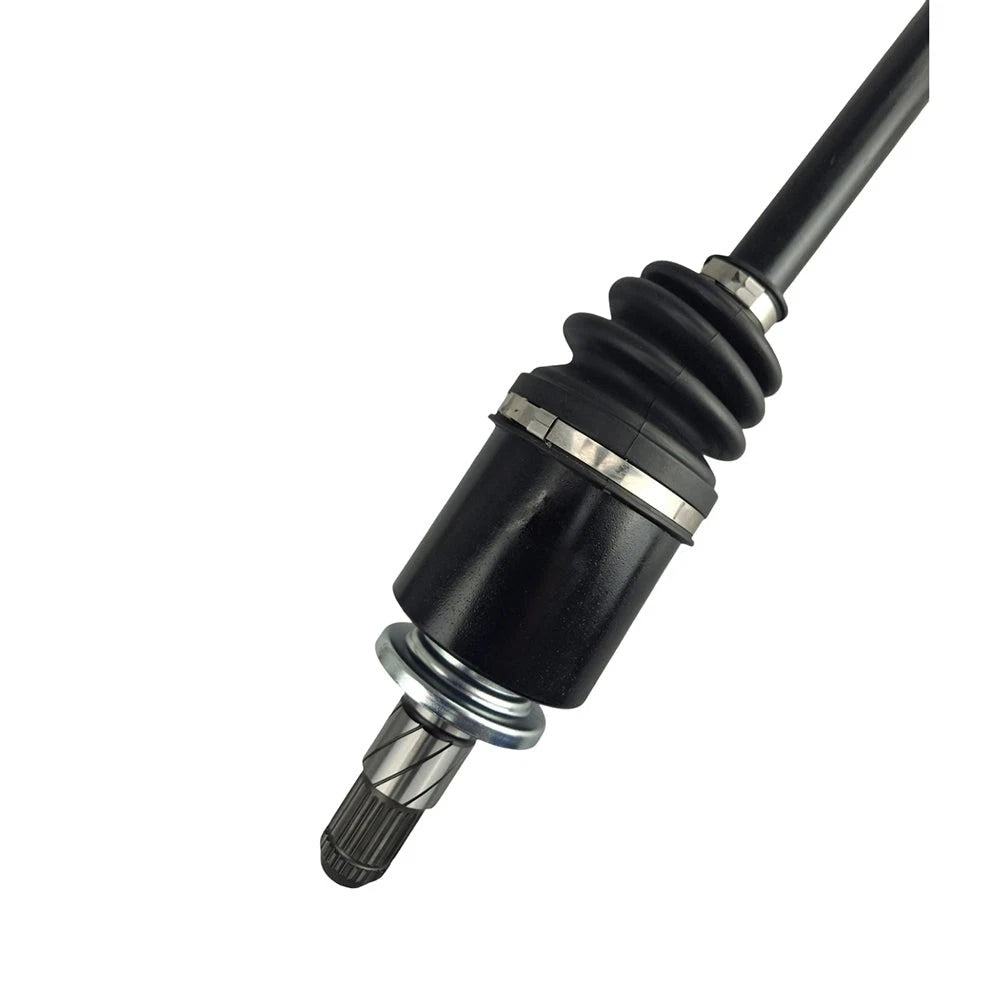

Rear Left CV Axle Shaft for Subaru Forester, XV, Impreza AWD

PRODUCT OVERVIEW

Rear left-hand CV axle drive shaft for CVT, automatic or manual AWD applications. Built to OEM specifications using heat-treated chrome steel for durability and long service life.

High-quality neoprene dust boots and stainless steel clamps help prevent contamination, while premium moly grease ensures smooth operation at varying angles, speeds and high revolutions.

KEY FEATURES

• Direct-fit rear LH CV axle for selected Subaru AWD models
• Heat-treated chrome steel construction for strength and longevity
• Neoprene dust boots with stainless steel clamps to resist contamination
• Moly grease for reduced friction at high RPM and operating angles
• Manufactured to OEM-style specifications for reliable performance

VEHICLE COMPATIBILITY

Confirm all specifications and OE part numbers against your existing component before purchase. This CV axle suits selected AWD variants of:

• Subaru Forester XT SH, S12 SH9 (12/2007–10/2012) 4 Door Wagon 2.5L EJ255 F4 16v DOHC VVT I/C Turbo MPFI
• Subaru Forester X, XS SH, S12 SH9 (12/2007–11/2010) 4 Door Wagon 2.5L EJ253 F4 16v SOHC VVT MPFI
• Subaru Forester 2.0D SH, S12 SHH (01/2003–03/2011) 4 Door Wagon 2.0L EE20 F4 16v DOHC I/C Turbo CRD
• Subaru Forester 2.0D SH, S12 SHN (08/2010–10/2012) 4 Door Wagon 2.0L EE20 F4 16v DOHC I/C Turbo CRD
• Subaru Forester X, XS SH, S12 SHM (08/2010–10/2012) 4 Door Wagon 2.5L FB25A F4 16v DOHC VVT MPFI
• Subaru Forester 2.0D SJ, S13 SJD (08/2012–07/2018) 4 Door Wagon 2.0L EE20 F4 16v DOHC I/C Turbo CRD
• Subaru Forester HYBRID SK, S14 SKE (05/2019–2025) 4 Door Wagon 2.0L FB20W F4 16v DOHC VVT MPFI
• Subaru Impreza GT, G14 GT7 2.0i / 2.0-L / 2.0-S (09/2016–10/2023) 4 Door Hatchback 2.0L FB20C F4 16v DOHC VVT MPFI (115kW)
• Subaru XV HYBRID GP, G23 GPE (03/2013–04/2017) 4 Door Hatchback 2.0L FB20W F4 16v DOHC VVT MPFI
• Subaru XV GP, G33 GP7 (08/2011–08/2017) 4 Door Wagon 2.0L FB20A F4 16v DOHC VVT MPFI

TECHNICAL SPECIFICATIONS

• Position: Rear left (LH)
• Length (compressed): 794mm
• Spline count – outer/wheel side: 27T
• Spline count – inner/diff side: 25T
• Inboard joint type: Tripod
• Outboard joint type: Ball
• Inner/diff side shaft length from dust shield: 72mm
• Inner/diff side shaft – dust shield to circlip: 62mm
• Outer/wheel side shaft length: 120.5mm from dust shield lip to end
• Outer/wheel side shaft length: 94.5mm from dust shield lip to end of splines
• Hub nut style: M22 x 1.5

WHAT'S INCLUDED

• 1 x complete CV axle shaft (rear left)

WARRANTY INFORMATION

• 12 month / 20,000 km warranty on CV driveshaft assembly
• CV boots warranted for 3 months from date of purchase

Ensure all measurements, spline counts and joint types match your original part before installation.
