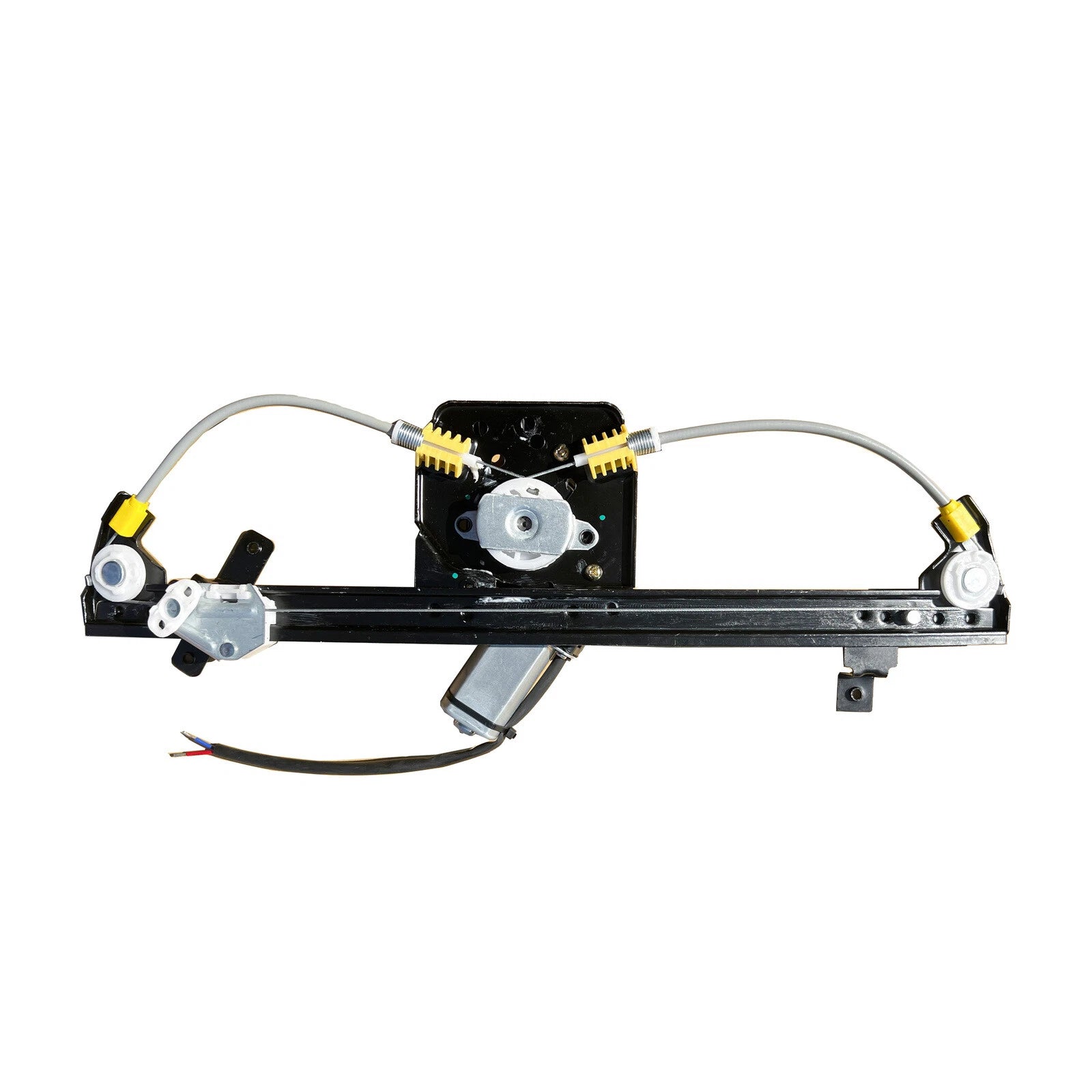

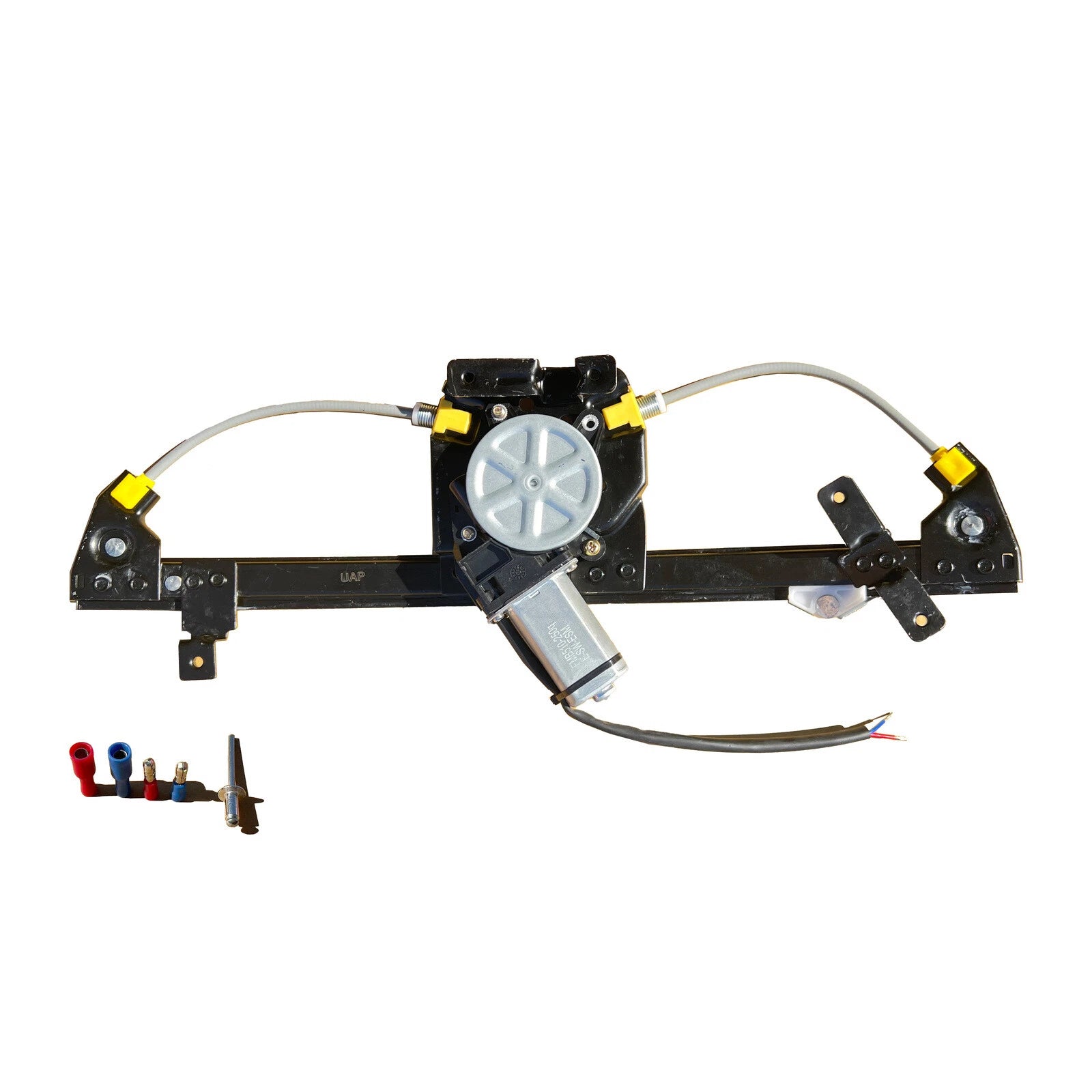

Rear Right Power Window Regulator with Motor 2-Pin for Holden Commodore VT–VZ

PRODUCT OVERVIEW

This rear right electric window regulator with integrated 2-pin motor is a high-quality aftermarket replacement, designed to restore smooth and reliable window operation.

KEY FEATURES

• Complete assembly with electric motor (2-pin connector)
• Placement: Rear right (rear driver side)
• Direct replacement for the original window regulator
• High quality aftermarket construction
• Supplied as 1 piece

SPECIFICATIONS

• Product: Window regulator
• Operating mode: Electric
• Placement on vehicle: Rear right (rear driver side)
• Motor: 2-pin
• Condition: Brand new
• Part specs: High quality aftermarket
• MPN / Item No.: 100660D
• Manufacturer warranty: 1 year (part only)
• Quantity supplied: 1 piece

VEHICLE COMPATIBILITY

Suitable for selected Holden models (rear right door):

• Holden Commodore VT 09/1997 – 10/2000
• Holden Commodore VX / VU 10/2000 – 08/2002
• Holden Commodore VY 09/2002 – 08/2004
• Holden Commodore VZ 08/2004 – 2007
• Holden Statesman WH 06/1999 – 05/2003
• Holden Statesman WK 05/2003 – 08/2004
• Holden Statesman WL 08/2004 – 09/2006
• Holden Caprice WH 06/1999 – 04/2003
• Holden Caprice WK 05/2003 – 07/2004
• Holden Caprice WL 08/2004 – 07/2006
• Holden Crewman VY 09/2003 – 10/2004
• Holden Crewman VZ 08/2004 – 09/2007

Always compare the images and specifications with your original part to confirm compatibility before purchase.

ANTI-PINCH FUNCTION RESET (IF APPLICABLE)

For regulators with motors that include an anti-pinch function, the motor must be set correctly after installation.

• Do not test the motor before it is installed in the door, or the anti-pinch function may fail.
• Install the motor, connect the one-touch window switch and operate the window fully up.
• If the window drops after reaching the top, perform the reset procedure below.

ANTI-PINCH RESET STEPS

• Step 1: Pull the window switch briefly so the window moves slightly up to the top.
• Step 2: Hold the one-touch switch up for 3–5 seconds at the top position.
• Step 3: Press the window switch briefly so the window moves slightly down to the bottom.
• Step 4: Hold the one-touch switch down for 3–5 seconds at the bottom position.
• Step 5: Pull the one-touch switch to move the window fully up.

The reset is complete if the window no longer drops after reaching the top. If it still drops, repeat the above steps until successful.

IMPORTANT NOTES

• For best results and to maintain warranty coverage, installation by a qualified automotive mechanic is recommended.
• Colours may appear slightly different due to screen settings and lighting.
• Images are of the actual product supplied; use them to visually match your original part.
