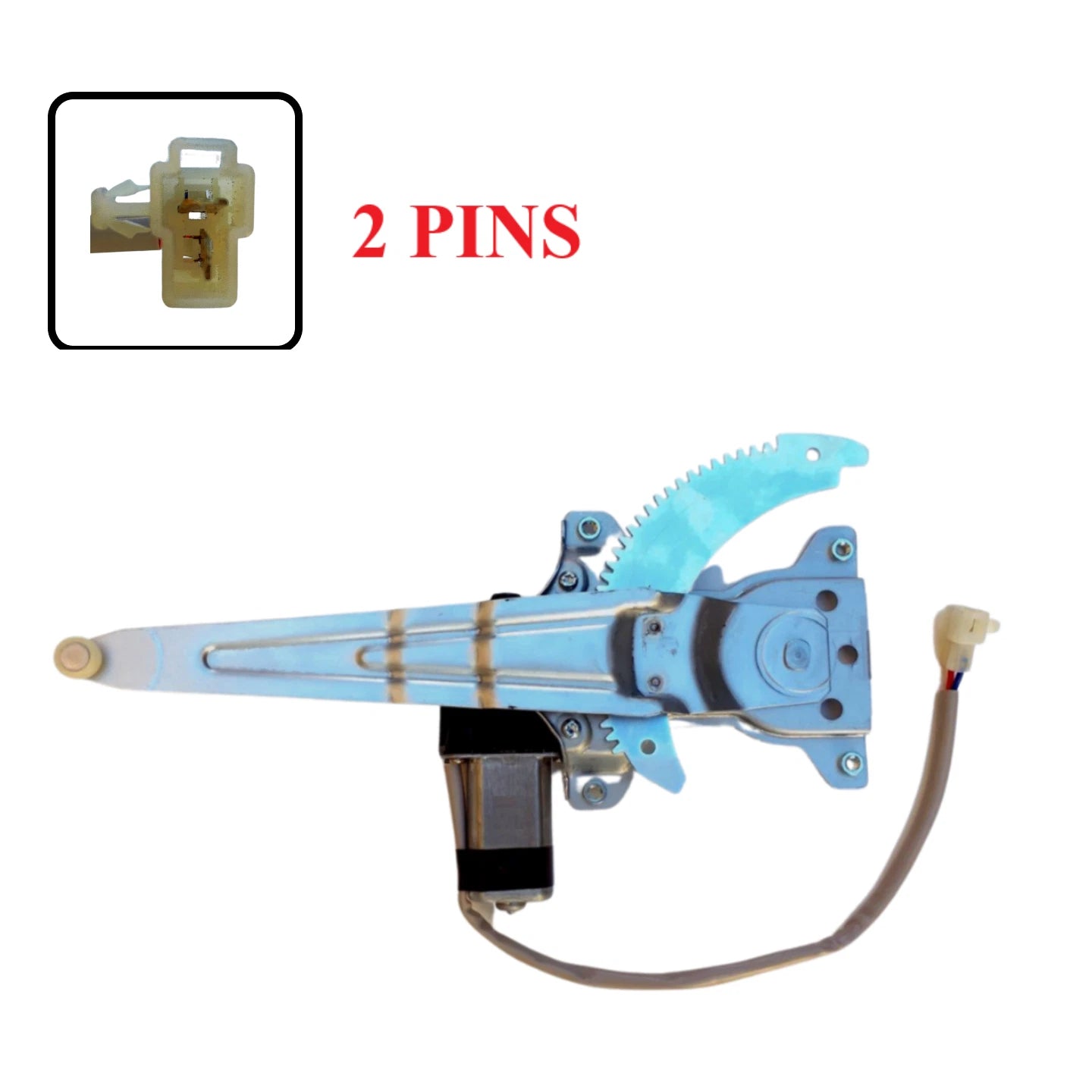

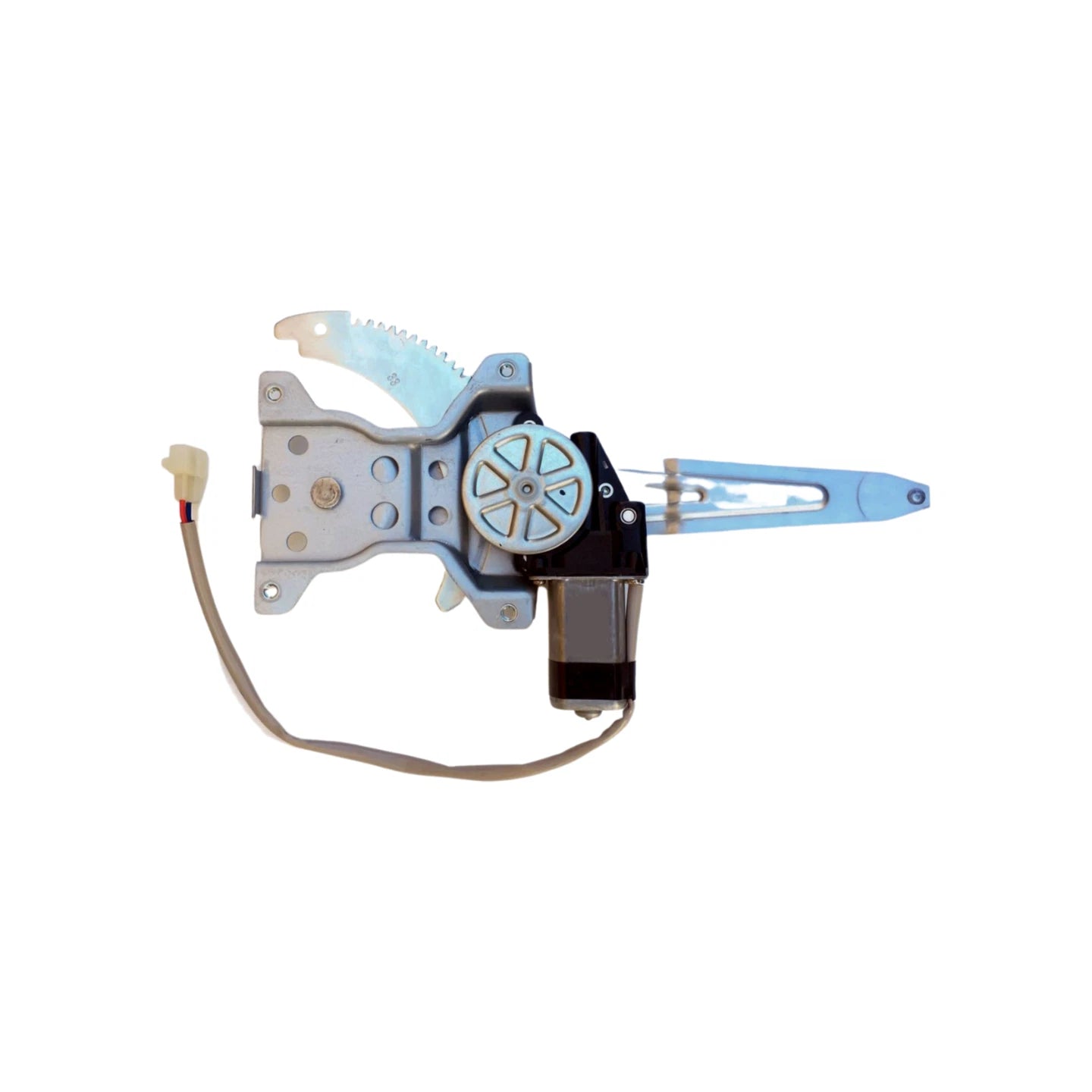

Rear Right Electric Window Regulator w/ Motor for Toyota LandCruiser J80

PRODUCT OVERVIEW

This rear right electric window regulator with motor is a high-quality aftermarket replacement designed for Toyota LandCruiser J80 models from 05/1990 to 03/1998. Supplied as a complete assembly with a 2-pin motor, it is ideal for restoring smooth and reliable window operation.

KEY FEATURES

• Direct-fit rear right (rear driver side) window regulator assembly
• Integrated 2-pin electric motor
• High-quality aftermarket construction
• Supplied brand new, complete and ready to install
• Includes 1-year manufacturer warranty (part only)

SPECIFICATIONS

• Product: Window regulator
• Operating mode: Electric
• Placement on vehicle: Rear right (rear driver side)

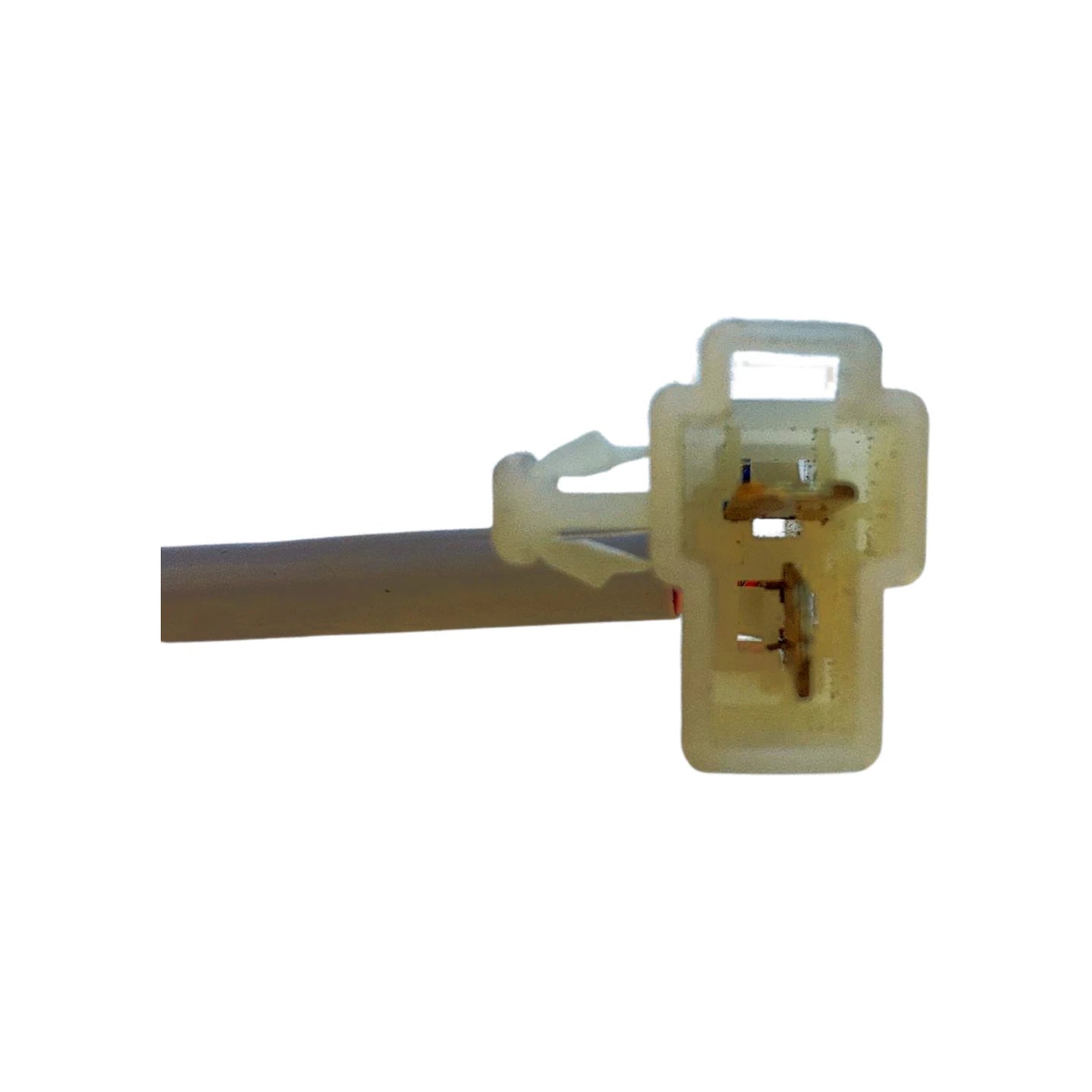

• Motor connection: 2 pins
• Part type: High-quality aftermarket
• Condition: Brand new
• MPN / Item No.: 101524
• Manufacturer warranty: 1 year (part only)
• Quantity supplied: 1 piece

VEHICLE FITMENT

• Toyota LandCruiser J80 05/1990 - 03/1998

Always compare this part and connector style with your original regulator and motor before purchase to ensure correct fitment.

ANTI-PINCH FUNCTION SETUP (IF APPLICABLE)

For window motors with an anti-pinch safety function, the feature may need to be reset after installation. Do not operate or test the motor before it is mounted in the door, as this can cause the anti-pinch function to malfunction.

ANTI-PINCH RESET PROCEDURE

• Step 1: With the regulator installed and connected, pull the window switch briefly to move the glass slightly up to the top position.
• Step 2: Hold the one-touch up switch for 3–5 seconds when the window reaches the top.
• Step 3: Press the window switch briefly to move the glass slightly down to the bottom position.
• Step 4: Hold the one-touch down switch for 3–5 seconds at the bottom.
• Step 5: Pull the one-touch switch again to move the window fully up and confirm it stays at the top.

If the window drops after reaching the top, repeat the reset steps until the anti-pinch function is set correctly.

INSTALLATION & WARRANTY NOTES

• Professional installation by a qualified automotive technician is strongly recommended.
• The warranty covers replacement of the defective part only and does not include labour or consequential damage.
• Parts must not be modified, tampered with, or incorrectly installed, or warranty may be void.
• Electrical components may use tamper-evident seals; do not remove these unless instructed, as this may affect return eligibility.

The product images are for reference; minor appearance differences may occur due to lighting and screen settings. Always match the part to your original before final installation.
