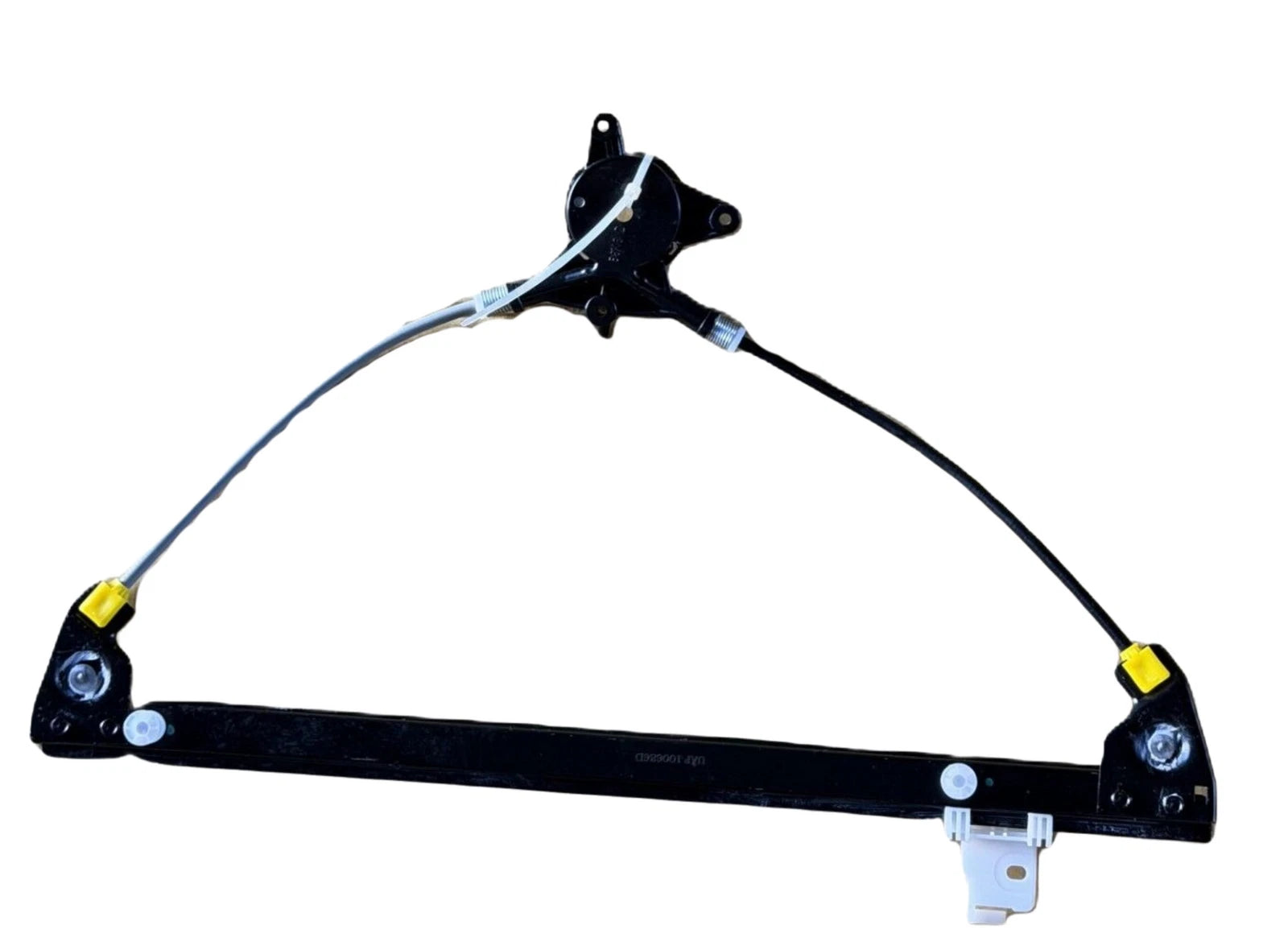

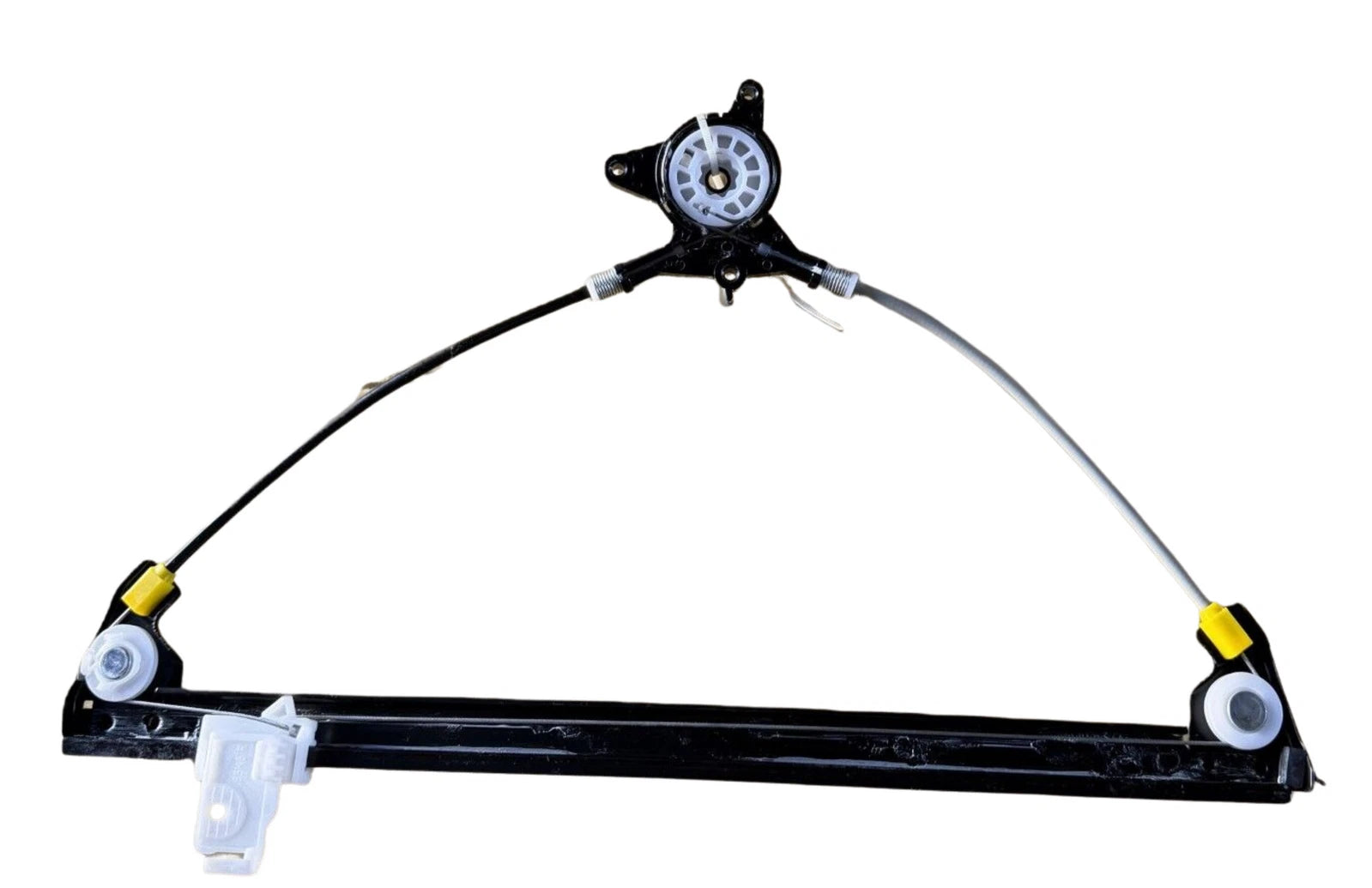

Rear Right Electric Window Regulator (No Motor) for Mazda CX-7 ER 06-12

PRODUCT OVERVIEW

This rear right electric window regulator is a high-quality aftermarket replacement designed for Mazda CX-7 ER models. It restores smooth window operation without the cost of a complete OEM assembly.

KEY FEATURES

• Electric window regulator assembly
• Placement: Rear right (rear driver side)
• Supplied without motor (regulator only)
• Brand new, high-quality aftermarket unit
• Direct replacement for the original part
• Item No. / MPN: 100686D
• Supplied as: 1 piece

SPECIFICATIONS

• Product type: Window regulator
• Operating mode: Electric
• Condition: Brand new
• Warranty: 12 months (part only)

VEHICLE COMPATIBILITY

• Mazda CX-7 ER 09/2006 – 12/2012 (rear right door)

Always compare the product images and part number to your original regulator to confirm compatibility before purchase.

IMPORTANT INSTALLATION NOTES

This regulator is designed to work with the existing electric motor (not included). For motors with anti-pinch and one-touch functions, correct setup is essential to avoid malfunction.

ANTI-PINCH FUNCTION RESET (GENERAL GUIDELINES)

• Do not power-test the motor before it is installed in the door.
• Install the motor to the regulator and connect to the one-touch window switch.
• Operate the window fully up. If it drops after reaching the top, the anti-pinch function must be reset.

Reset procedure (typical sequence):

• Step 1: Pull the window switch briefly to move the glass fully to the top.
• Step 2: Hold the switch up for 3–5 seconds at the top position.
• Step 3: Press the switch briefly to move the glass fully to the bottom.
• Step 4: Hold the switch down for 3–5 seconds at the bottom position.
• Step 5: Operate the one-touch up function and confirm the glass stays at the top.

If the window still drops after reaching the top, repeat the steps until the anti-pinch function is correctly stored. Always follow the specific procedure in the vehicle service manual where available.

ADDITIONAL INFORMATION

• Intended for repair and replacement of a faulty original regulator.
• Product images are for reference; colour or finish may vary slightly due to lighting and screen settings.
• Professional installation by a qualified automotive technician is recommended to maintain warranty coverage.
