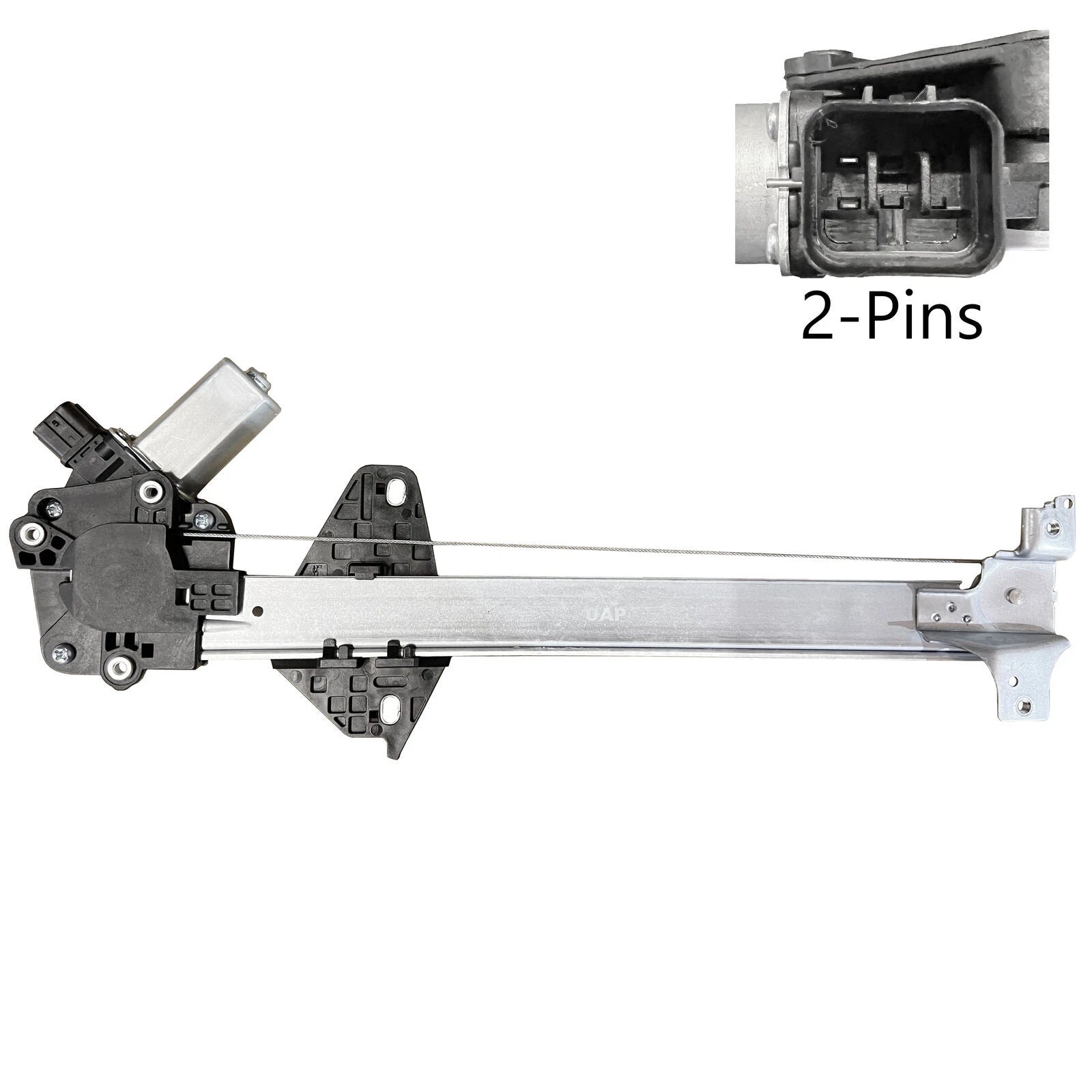

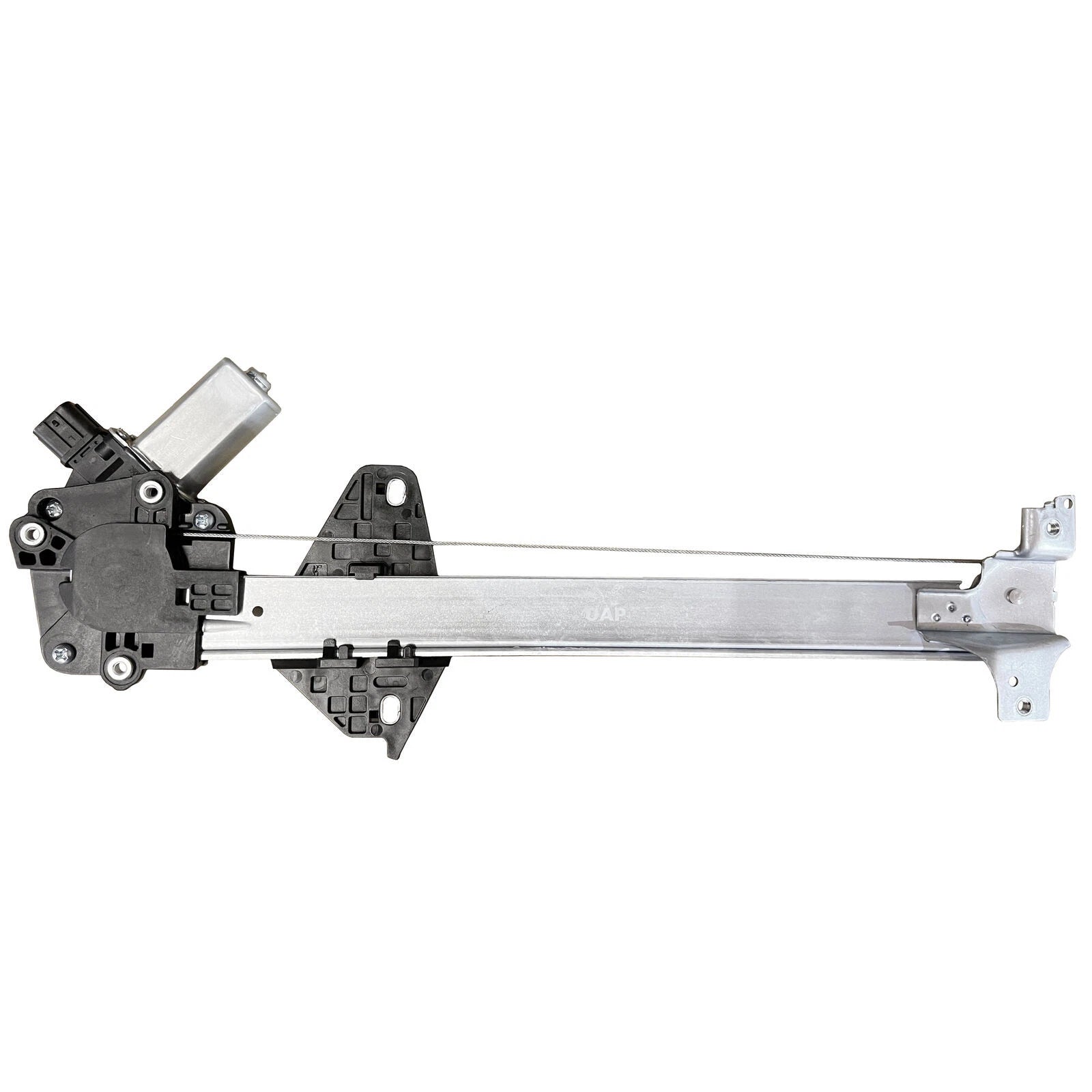

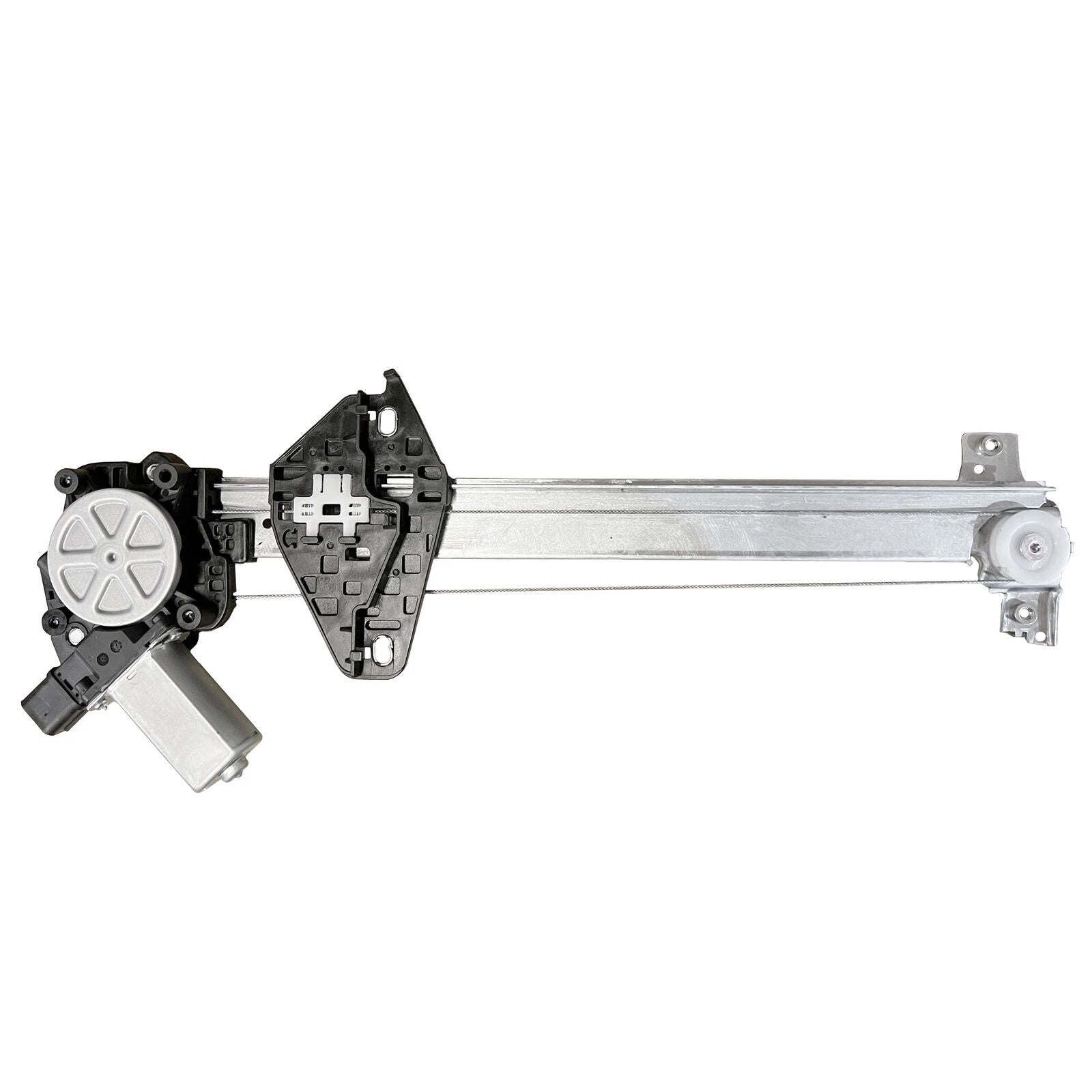

Rear Right Electric Window Regulator with Motor 2-Pin for Honda Civic FD 06-12

PRODUCT OVERVIEW

This rear right electric window regulator with 2-pin motor is a high quality aftermarket replacement designed for Honda Civic FD models from 02/2006 to 01/2012 R18A1 1.8L sedan. Supplied as a complete assembly, it is ideal for restoring smooth and reliable window operation.

KEY FEATURES

• Complete electric window regulator with integrated motor
• Rear right (rear driver side) door position

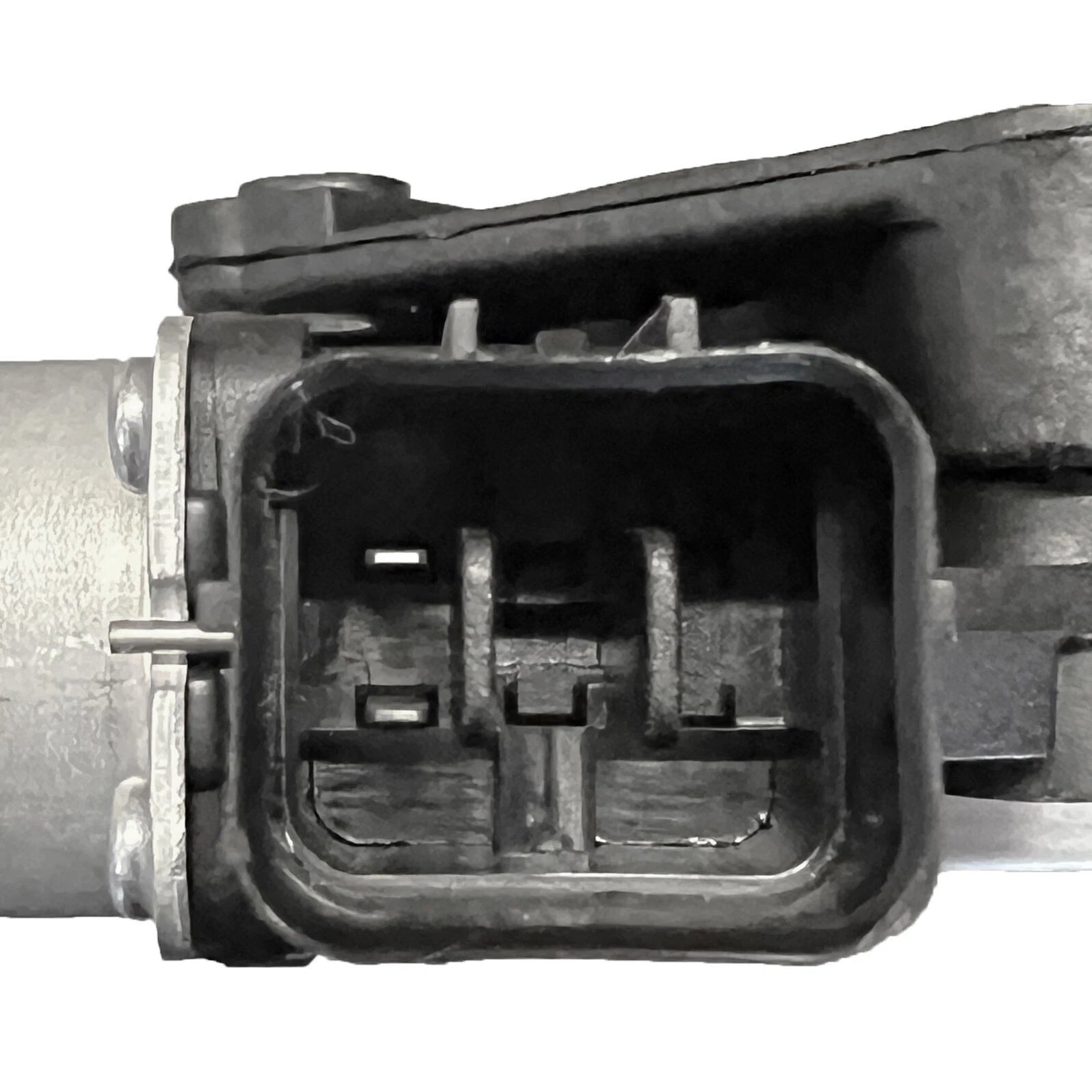

• 2-pin motor connection for direct plug-in
• High quality aftermarket construction
• Brand new component, supplied as 1 piece
• 12-month manufacturer warranty (part only)

SPECIFICATIONS

• Product: Window regulator
• Operating mode: Electric
• Placement on vehicle: Rear right (rear driver side)
• Motor: 2 pins
• Part specs: High quality aftermarket
• Condition: Brand new
• MPN / Item No.: 101316E
• Manufacturer warranty: 1 year (part only)
• Quantity supplied: 1 piece

VEHICLE FITMENT

• Honda Civic FD 02/2006–01/2012 R18A1 1.8L sedan

Always match the product images, mounting points, and plug type with your original part before purchase to confirm compatibility.

ANTI-PINCH FUNCTION SETUP (IF APPLICABLE)

For regulators with anti-pinch motors, the function may need to be initialised after installation. Do not power-test the motor before it is mounted in the door.

• Install the regulator and connect it to the one-touch window switch.
• Operate the window up; if it drops after reaching the top, a reset is required.

Reset procedure:

• Step 1: Pull the window switch briefly to move the glass fully to the top.
• Step 2: Hold the switch up for 3–5 seconds at the top position.
• Step 3: Press the switch briefly to move the glass fully to the bottom.
• Step 4: Hold the switch down for 3–5 seconds at the bottom position.
• Step 5: Use the one-touch function to move the window to the top and check that it no longer drops.

If the glass still drops after reaching the top, repeat the reset steps until the anti-pinch function is correctly set.

INSTALLATION & WARRANTY NOTES

• Professional installation by a qualified automotive mechanic is strongly recommended.
• Warranty covers replacement of the defective part only and excludes labour or consequential damage.
• Do not modify or tamper with the regulator or motor, as this may void warranty and return eligibility.
• Colour or finish may vary slightly due to screen and lighting differences; refer to the actual product received.

This part is intended as a replacement component for repair and maintenance purposes and is not supplied by the vehicle manufacturer.
