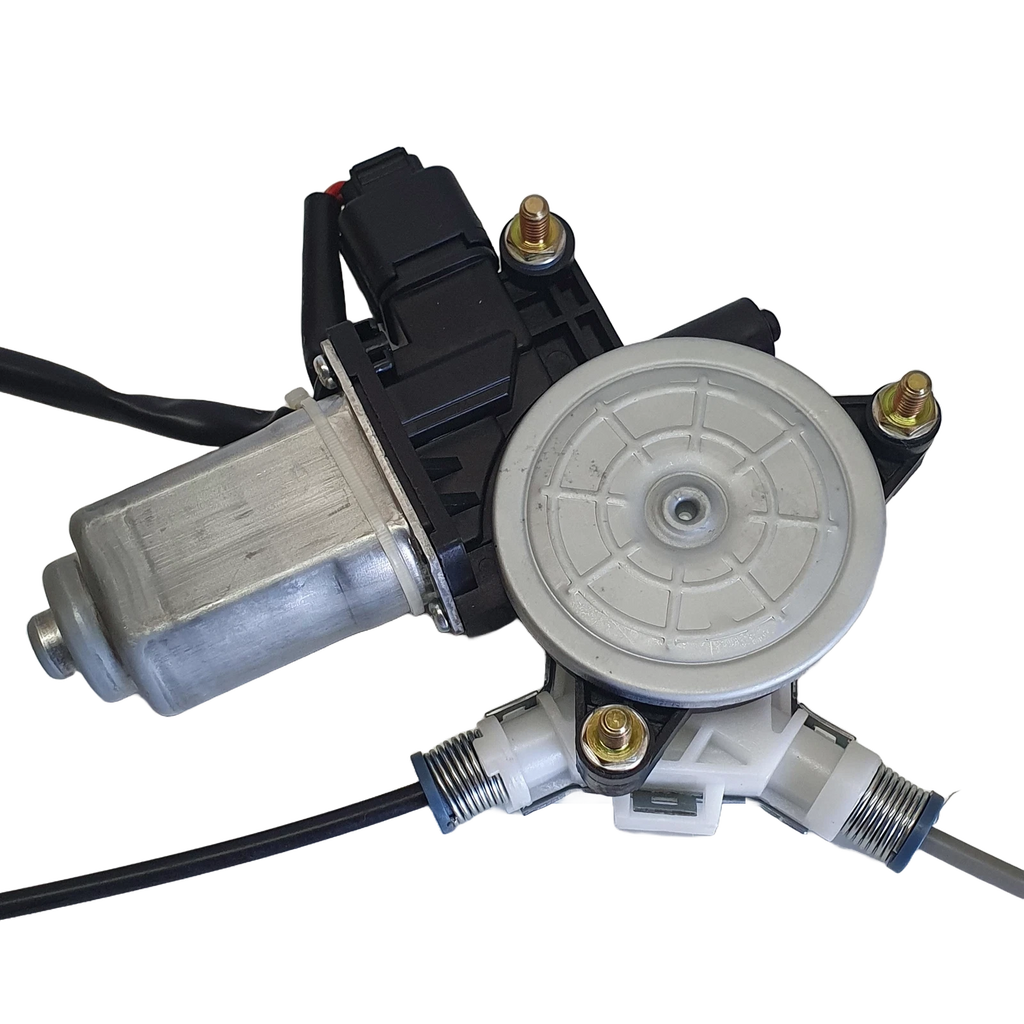

Rear Right Electric Window Regulator with Motor for Suzuki Grand Vitara SQ 1998-2005

PRODUCT OVERVIEW

This rear right electric window regulator is designed as a high-quality aftermarket replacement for Suzuki Grand Vitara SQ models produced between 03/1998 and 12/2005. It comes complete with a 2-pin motor, ready for installation.

KEY FEATURES

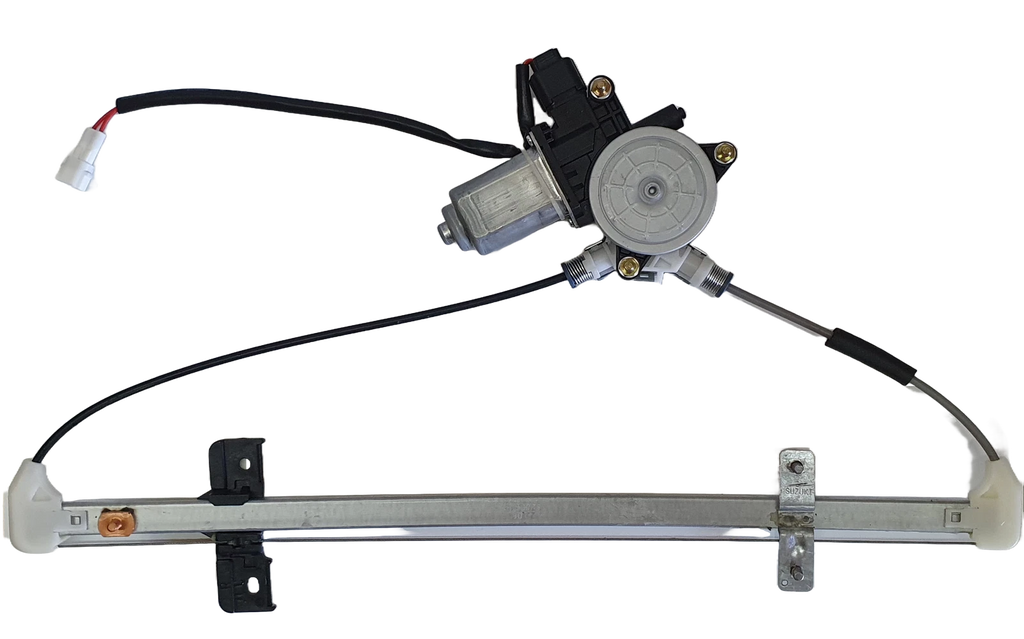

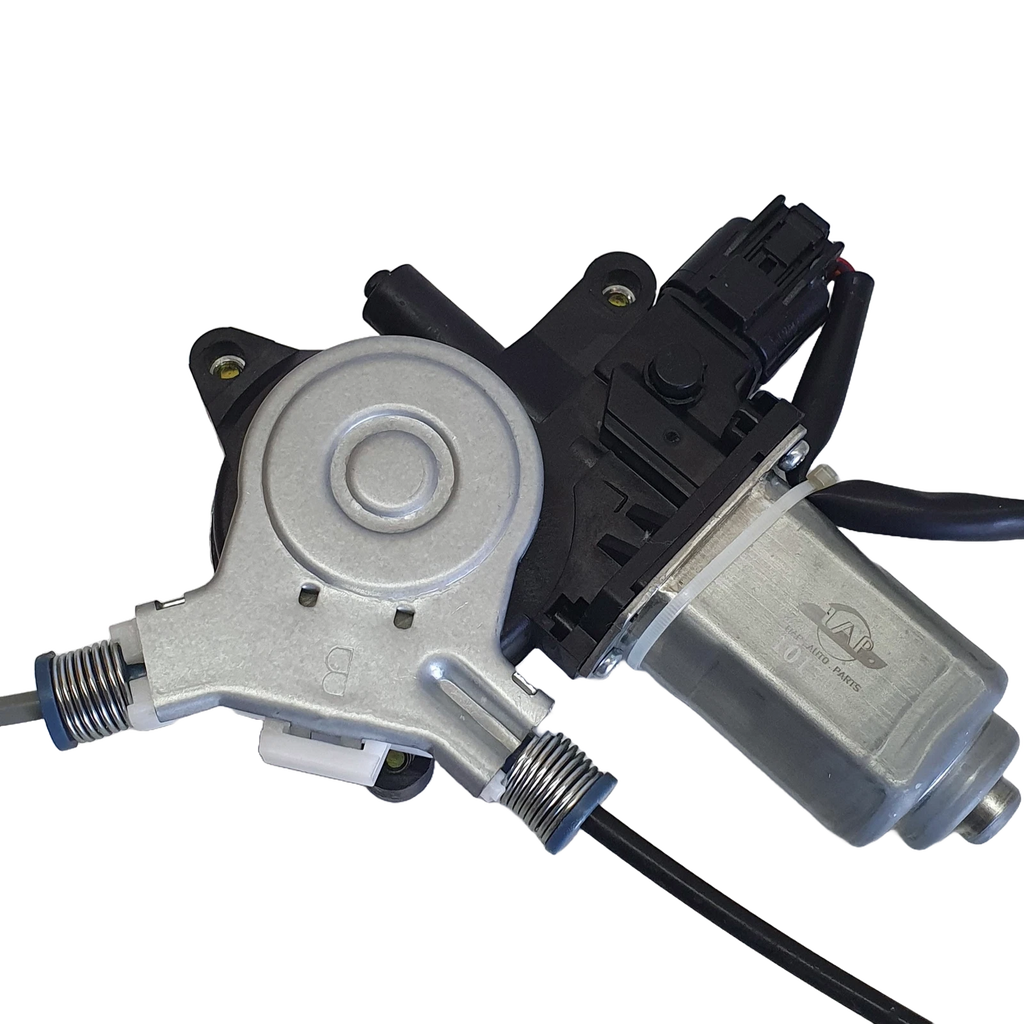

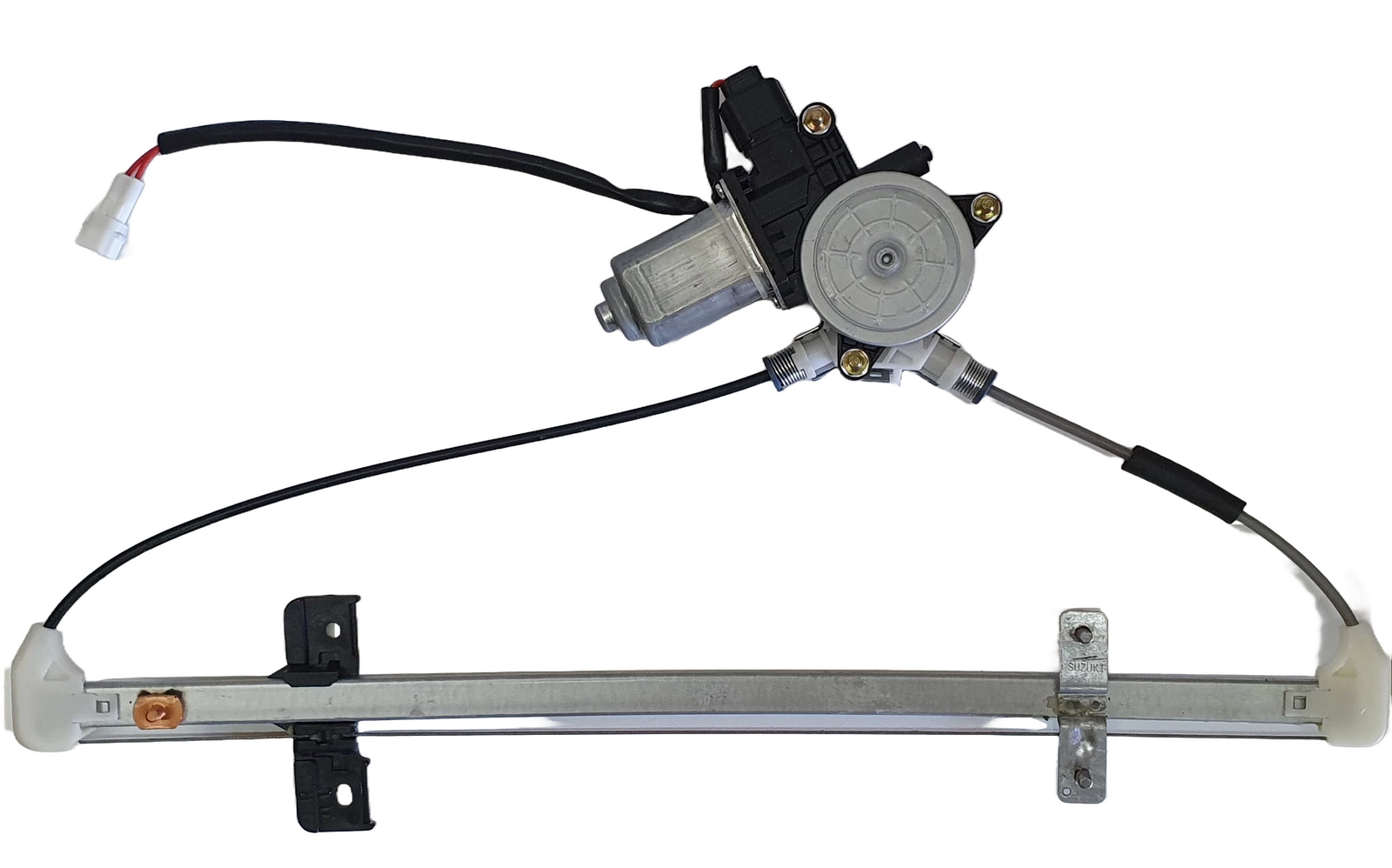

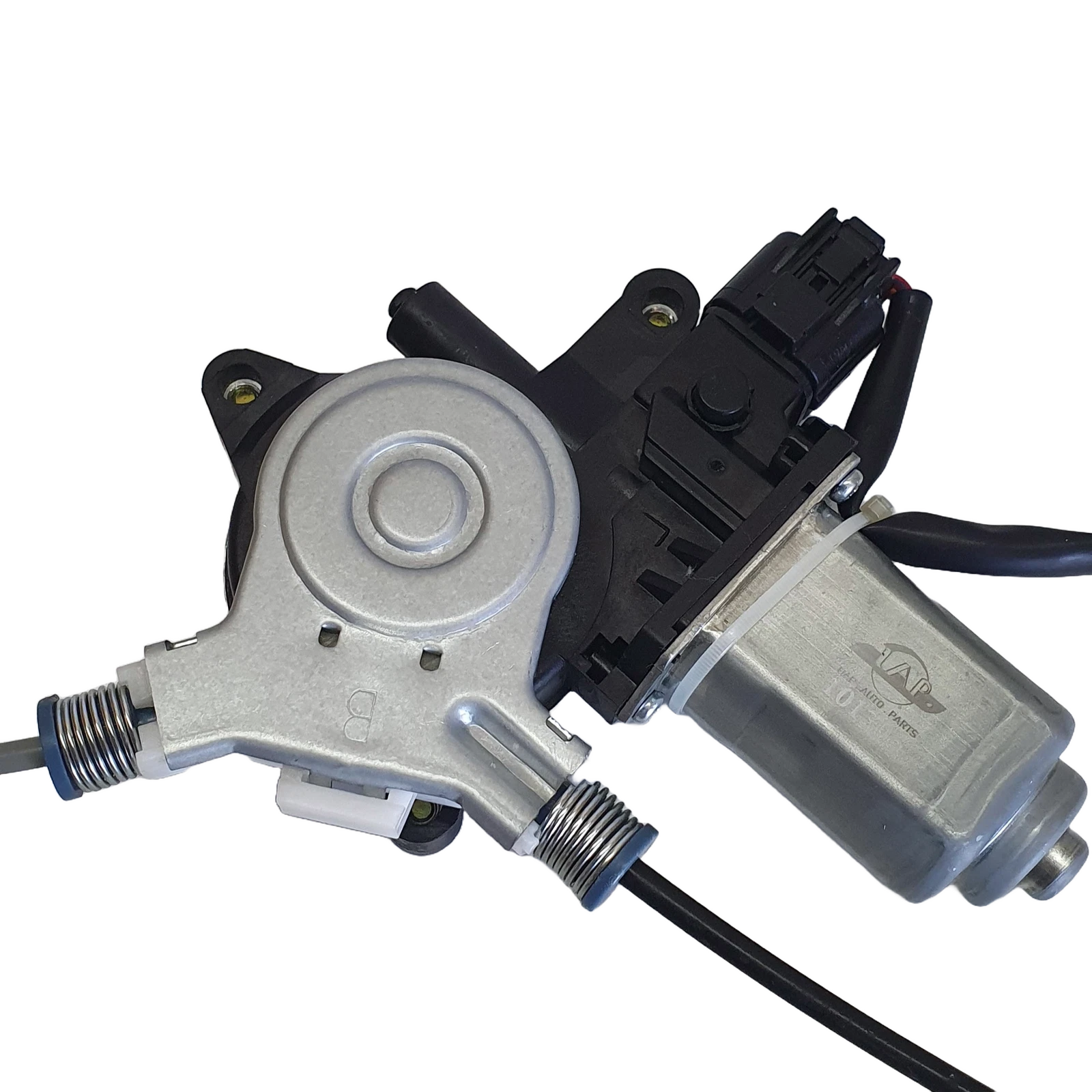

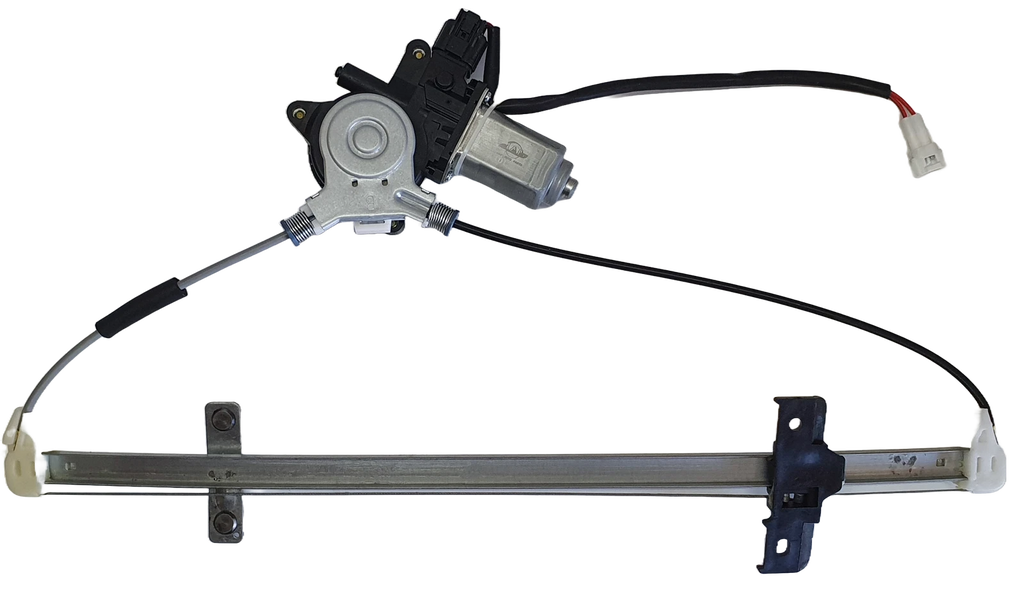

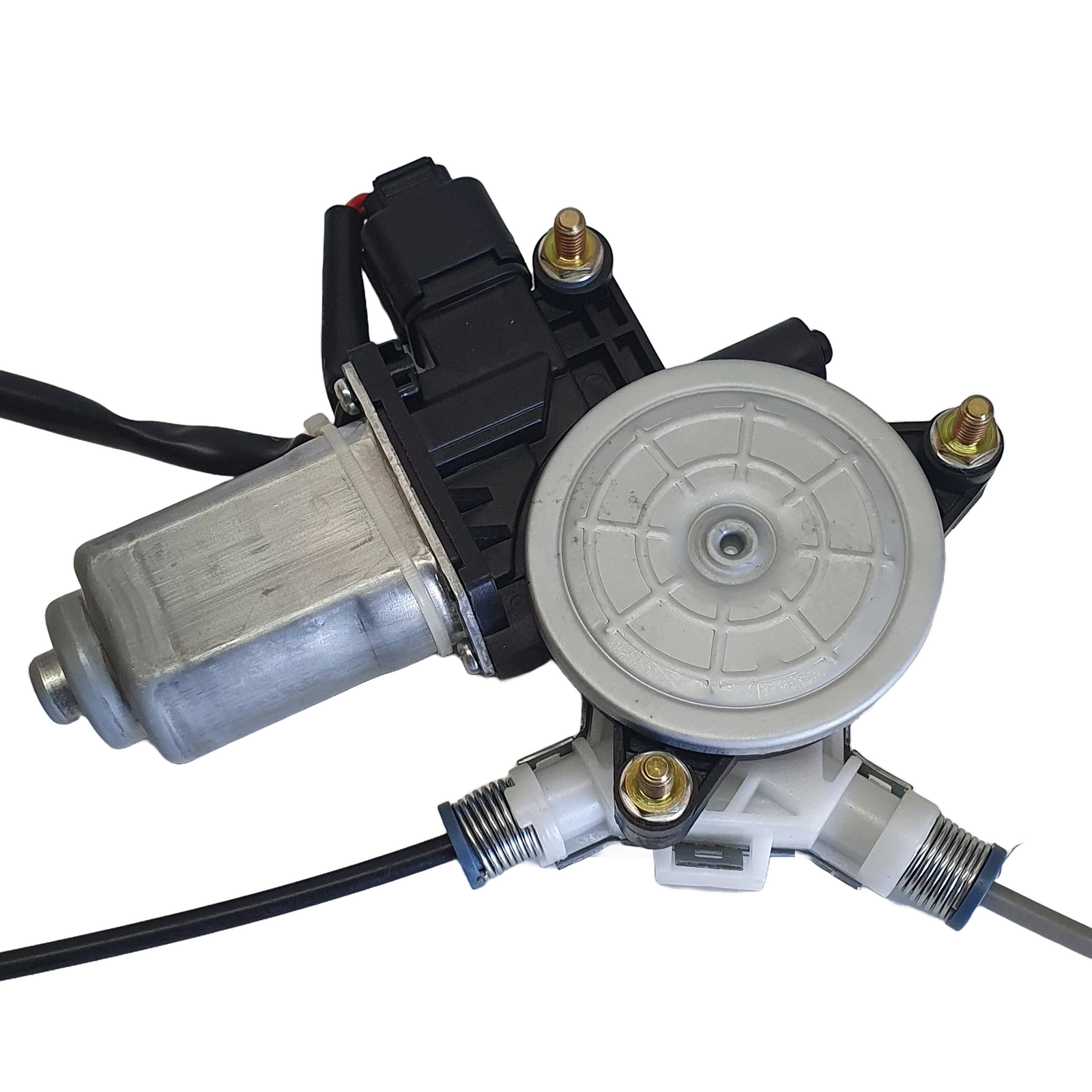

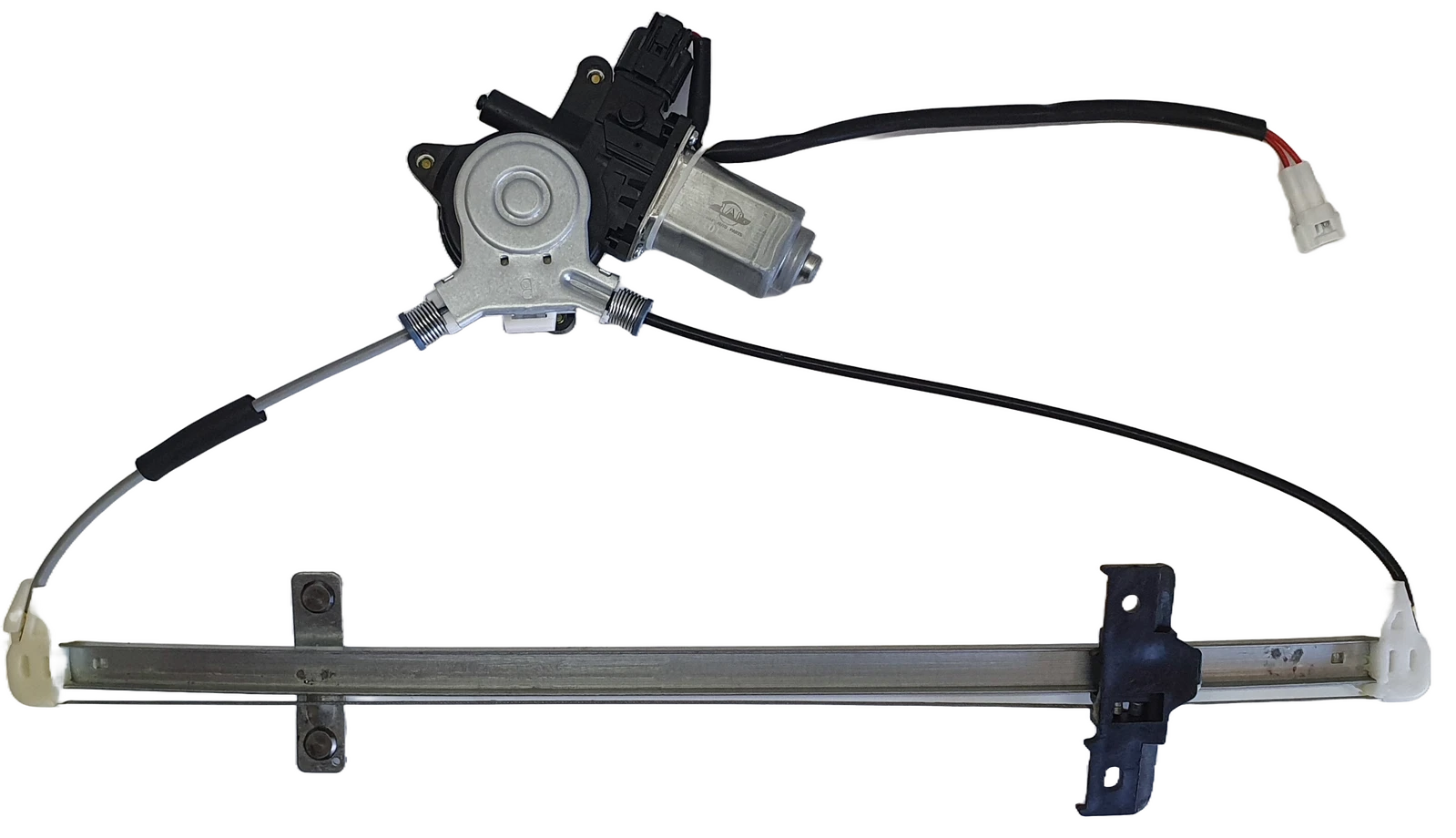

• Complete window regulator assembly with motor
• Electric operation for smooth window control
• Placement: rear right (rear driver side)

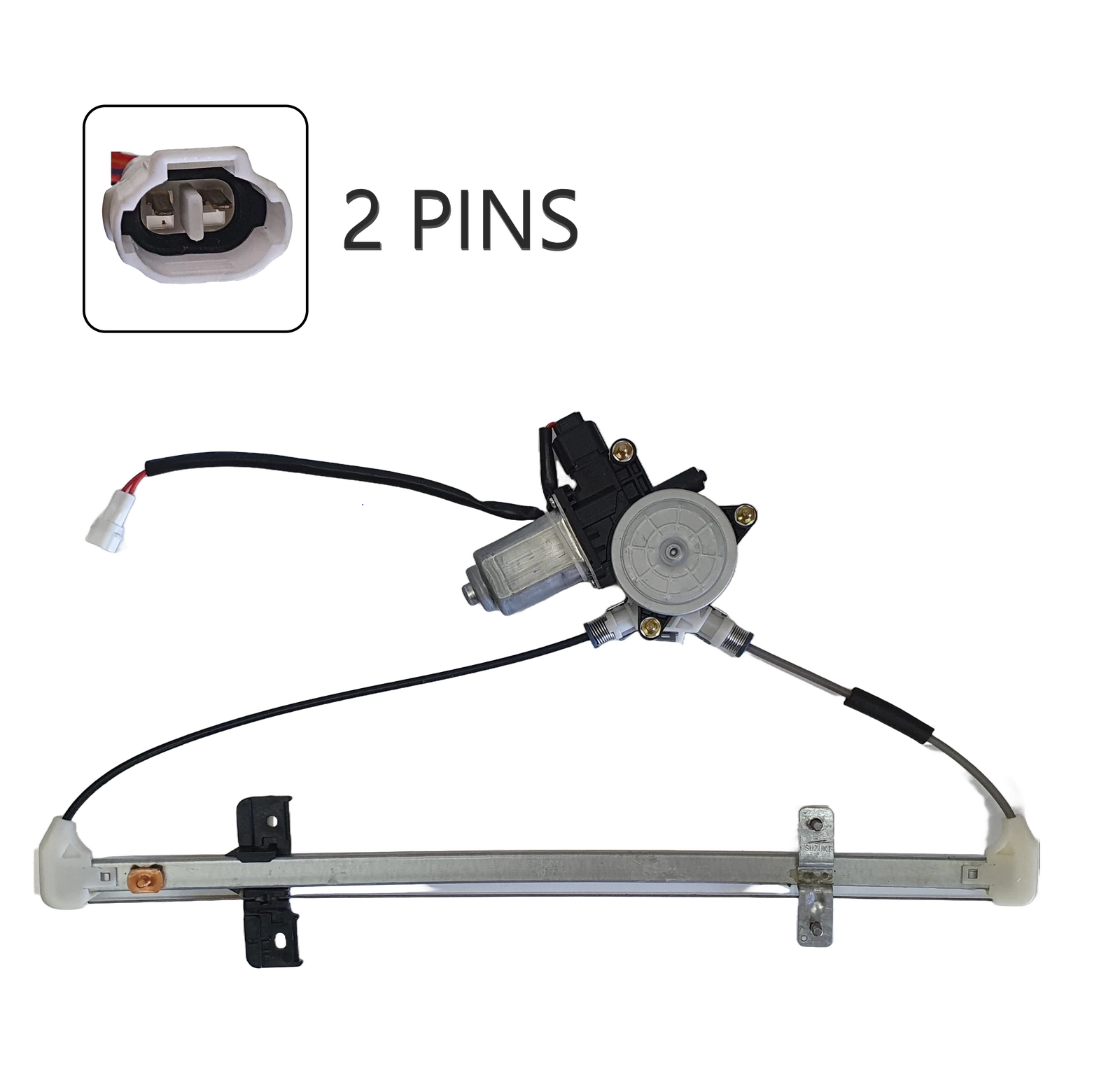

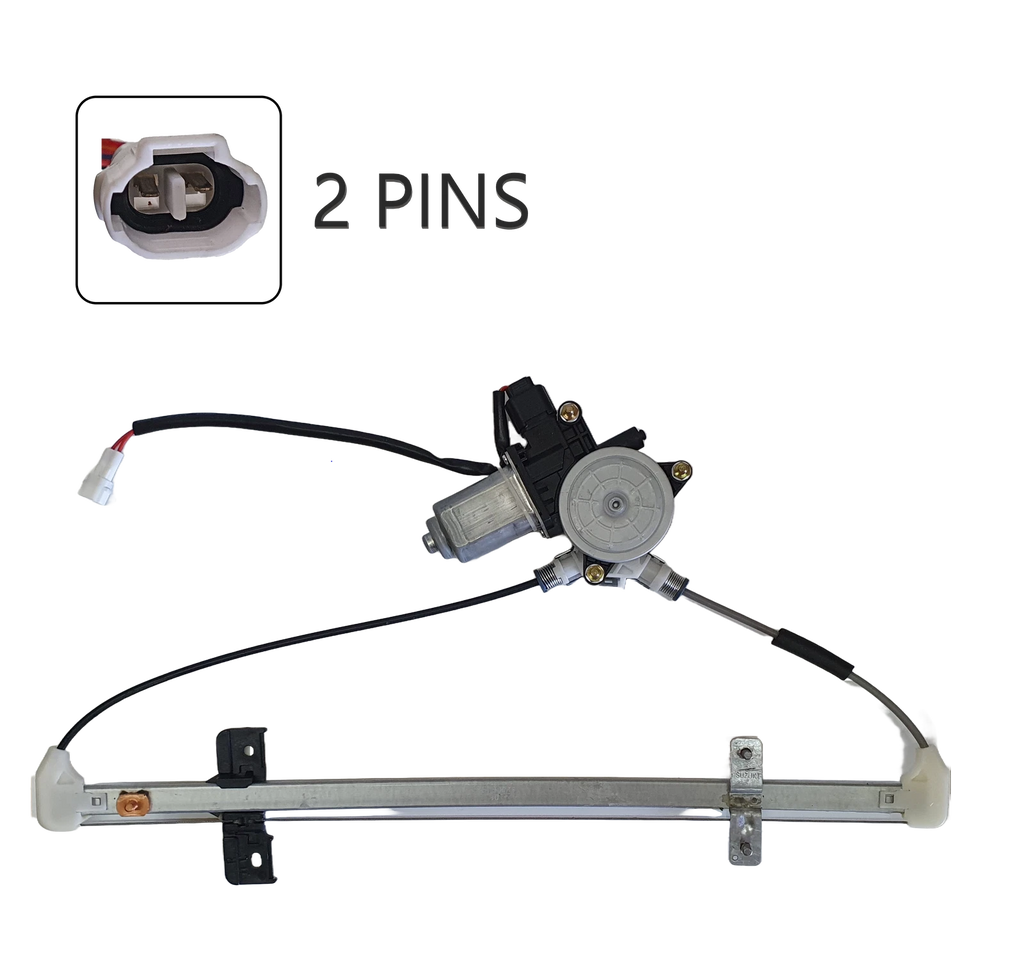

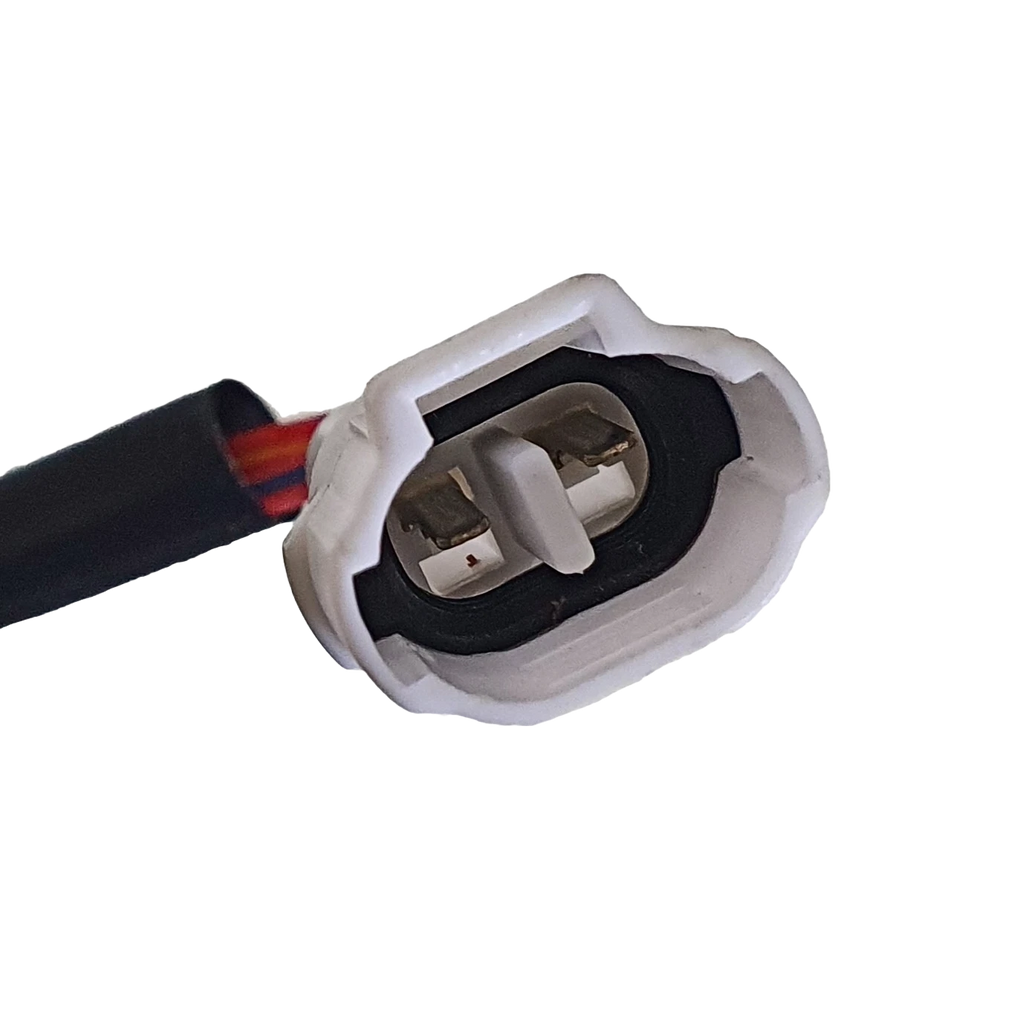

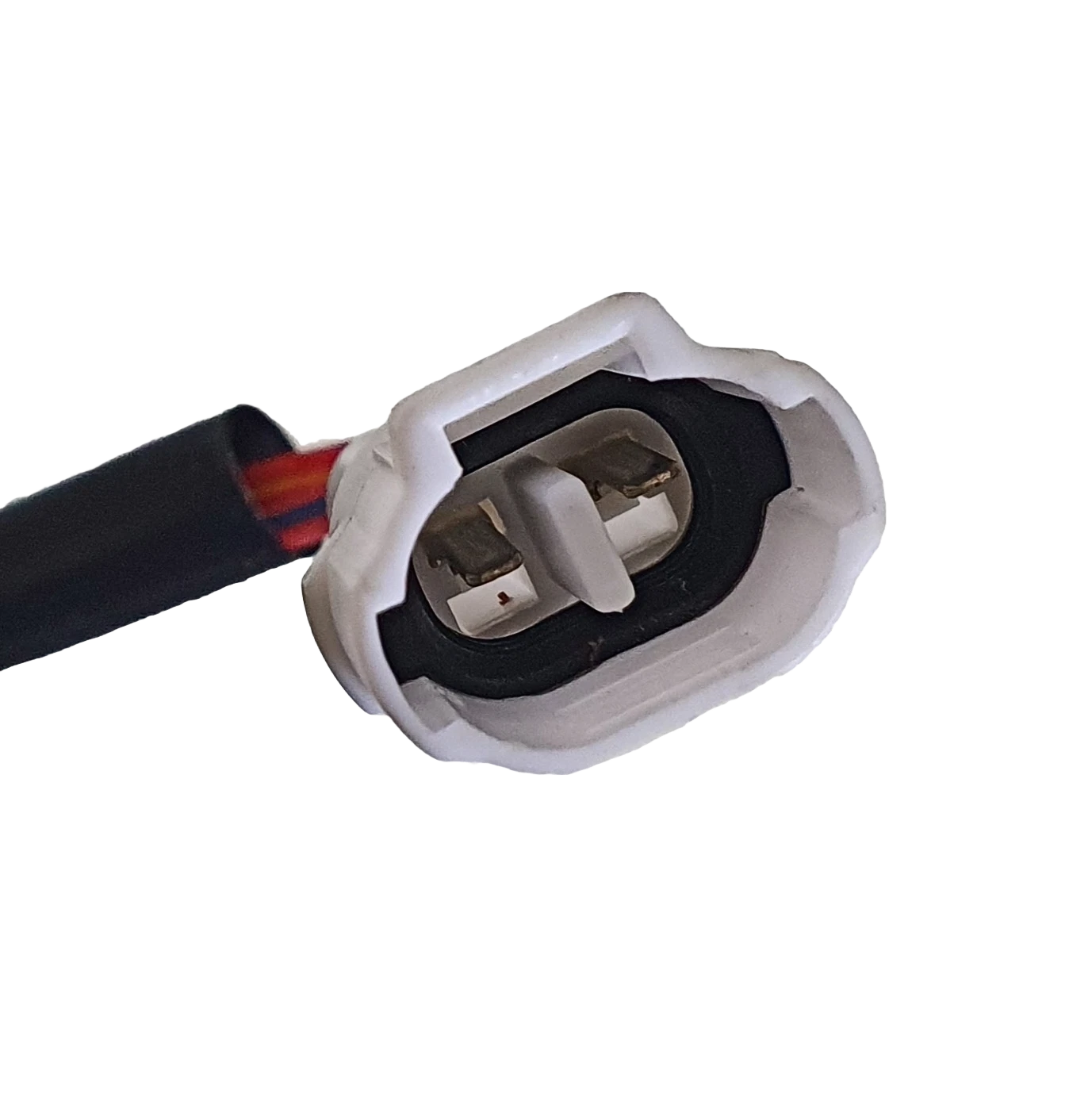

• 2-pin motor connection
• High-quality aftermarket construction
• Brand new part, supplied as 1 piece
• 12-month manufacturer warranty (part only)
• MPN/Item No.: 101306

FITMENT

• Suzuki Grand Vitara SQ 03/1998 – 12/2005

Always compare this part and connector style with your original regulator and motor before purchase to confirm compatibility.

ANTI-PINCH FUNCTION NOTICE

Some electric window motors are equipped with an anti-pinch safety function. Incorrect testing or installation can cause this function to fail and require resetting.

• Do not test the motor before it is installed in the door.
• Install the regulator and motor, then connect the one-touch window switch.
• Pull the switch up to raise the window; it should move fully to the top.
• If the window drops down after reaching the top, reset the anti-pinch function.

ANTI-PINCH RESET PROCEDURE

• Step 1: Pull the window switch briefly to move the window slightly up to the top position.
• Step 2: Hold the one-touch switch up for 3–5 seconds at the top.
• Step 3: Press the switch briefly to move the window slightly down to the bottom position.
• Step 4: Hold the one-touch switch down for 3–5 seconds at the bottom.
• Step 5: Pull the one-touch switch to raise the window fully to the top and confirm it no longer drops.

If the window still drops after reaching the top, repeat the reset steps until the function is correctly set.

ADDITIONAL INFORMATION

• Part is intended for repair and replacement use.
• Product images are for reference; colour or finish may vary slightly due to lighting and screen settings.
• Installation by a qualified automotive technician is recommended to maintain warranty and ensure correct operation.
