Rear Power Window Switch 7-Pin for Hyundai Accent RB 2011-2019

PRODUCT OVERVIEW

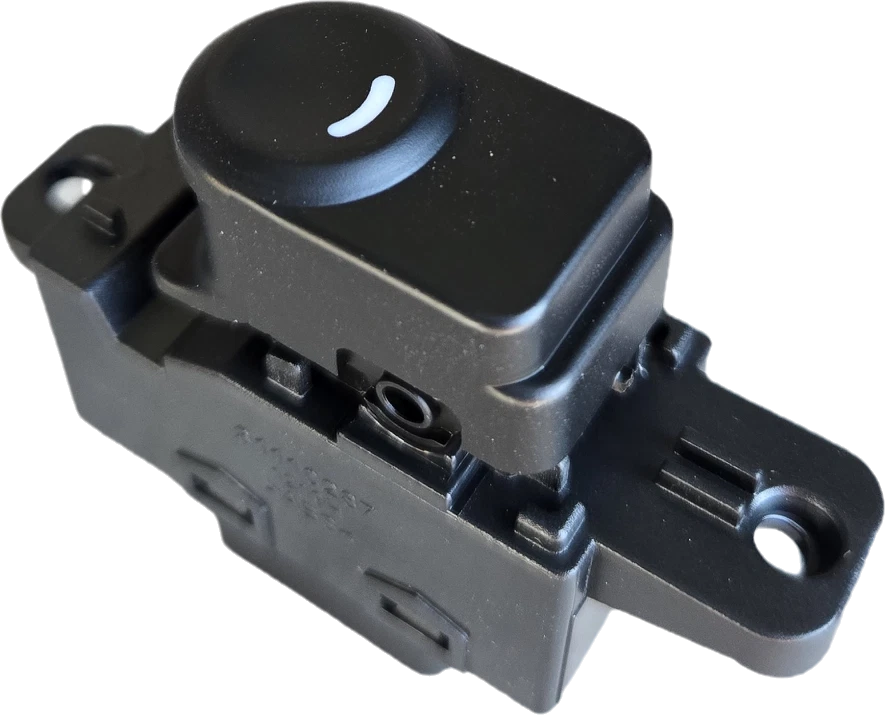

This rear power window switch is a high-quality aftermarket replacement designed for Hyundai Accent RB models produced from 03/2011 to 12/2019. It operates the electric window mechanism on either the rear left or rear right door.

KEY FEATURES

• Electric power window switch
• Suitable for rear left or rear right door

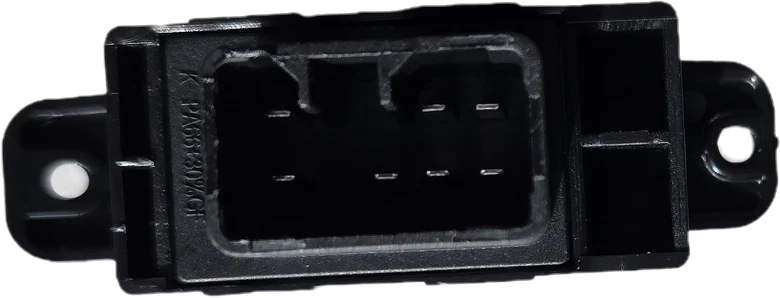

• 7-pin connector for correct electrical interface
• High-quality aftermarket construction
• Brand new component supplied as a single piece

SPECIFICATIONS

• Product: Window switch
• Operating mode: Electric
• Placement on vehicle: Rear left = rear right
• Connector: 7 pins
• Condition: Brand new
• Part specs: High-quality aftermarket
• MPN / Item No.: 102609H
• Reference OEM number: 935811R001
• Quantity supplied: 1 piece
• Manufacturer warranty (switch): 3 months (part only)

VEHICLE COMPATIBILITY

• Hyundai Accent RB: 03/2011 – 12/2019

Always match the images, connector type, and OEM reference number (935811R001) with your original part before purchase.

INSTALLATION & ANTI-PINCH FUNCTION NOTE

For vehicles equipped with a window regulator motor that has an anti-pinch function, the motor must be correctly set up after installation to ensure proper one-touch operation.

• Do not test the motor before it is installed in the door, otherwise the anti-pinch function may fail and require reset.
• Install the motor, connect it to the one-touch window switch, then pull the switch up to check the window travels fully to the top.
• If the window drops after reaching the top, perform the reset procedure below.

ANTI-PINCH RESET PROCEDURE

• Step 1: Pull the window switch briefly so the window moves slightly up to the top position.
• Step 2: Hold the one-touch switch up for 3–5 seconds at the top.
• Step 3: Press the window switch briefly so the window moves slightly down to the bottom position.
• Step 4: Hold the one-touch switch down for 3–5 seconds at the bottom.
• Step 5: Pull the one-touch switch to move the window back up to the top and confirm it no longer drops.

If the window still drops after reaching the top, repeat the reset steps until the anti-pinch function is correctly set.

PRODUCT NOTES

• Intended for use as a replacement part for repair purposes.
• Colour and finish may appear slightly different due to screen settings and lighting.
• Images are of the actual style of product supplied; please compare with your original switch.
• Professional installation by a qualified automotive technician is recommended.
