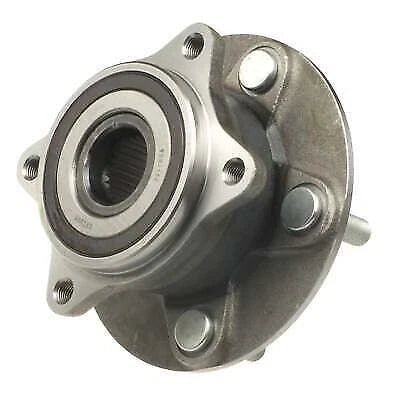

Rear Wheel Bearing Hub Assembly for Suzuki Grand Vitara & Kizashi 4WD

PRODUCT OVERVIEW

Premium rear wheel bearing hub assembly engineered to OEM specifications for Suzuki Grand Vitara and Suzuki Kizashi 4WD applications. Manufactured from high-grade steel with heavy-duty seals and integrated ABS sensor for quiet, smooth operation and long service life.

KEY FEATURES

• Complete rear hub assembly for direct replacement
• Precision machined bearing surfaces for smooth rotation
• Integrated ABS sensor for reliable braking performance
• Heavy-duty seals for improved contamination and moisture resistance
• OEM-style fitment for straightforward installation

SPECIFICATIONS

• Spline quantity: 28 teeth
• Wheel flange outer diameter: 140 mm
• Stud pattern (PCD): 5 x 114.3 mm
• Brake pilot diameter: 62 mm
• Flange offset: 53.5 mm
• Hub mounting: 4-bolt, M10 x 1.25
• Hub pilot diameter: 84 mm
• Integrated ABS: Yes

VEHICLE APPLICATION DETAILS

This rear wheel bearing hub assembly is suitable for selected Suzuki Kizashi 2.4L AWD (2010–2016) and Suzuki Grand Vitara 4WD (2005–2019) models, including various sub-models and trim levels as listed in the specification table above. Always confirm dimensions, spline count, and mounting details against your original part before purchase.

WHAT'S INCLUDED

• 1 x complete rear wheel bearing hub assembly

WARRANTY & QUALITY

Precisely machined to deliver a smoother roll and extended bearing life. Supplied with a 12 month / 20,000 km warranty, subject to correct installation and normal operating conditions.
