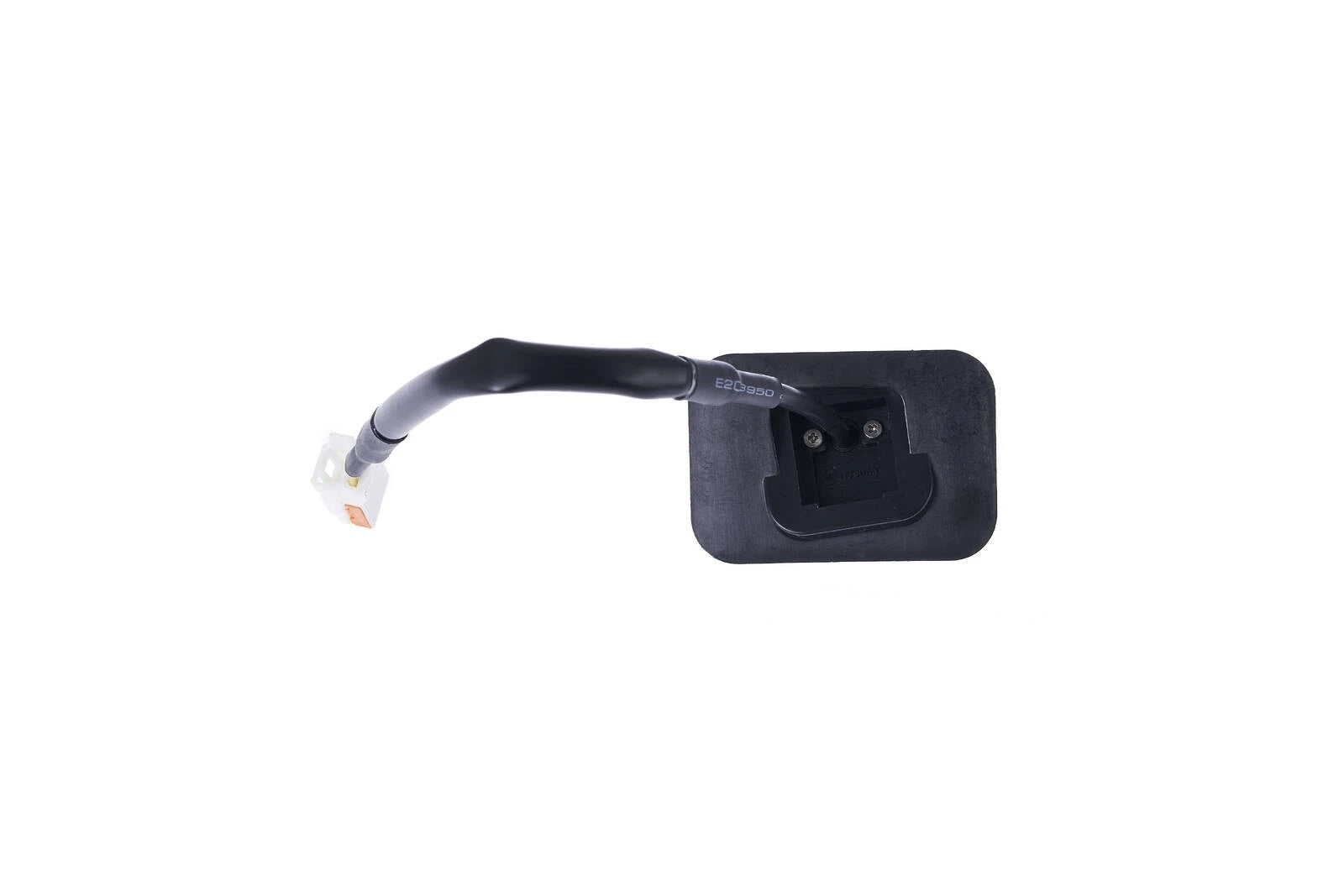

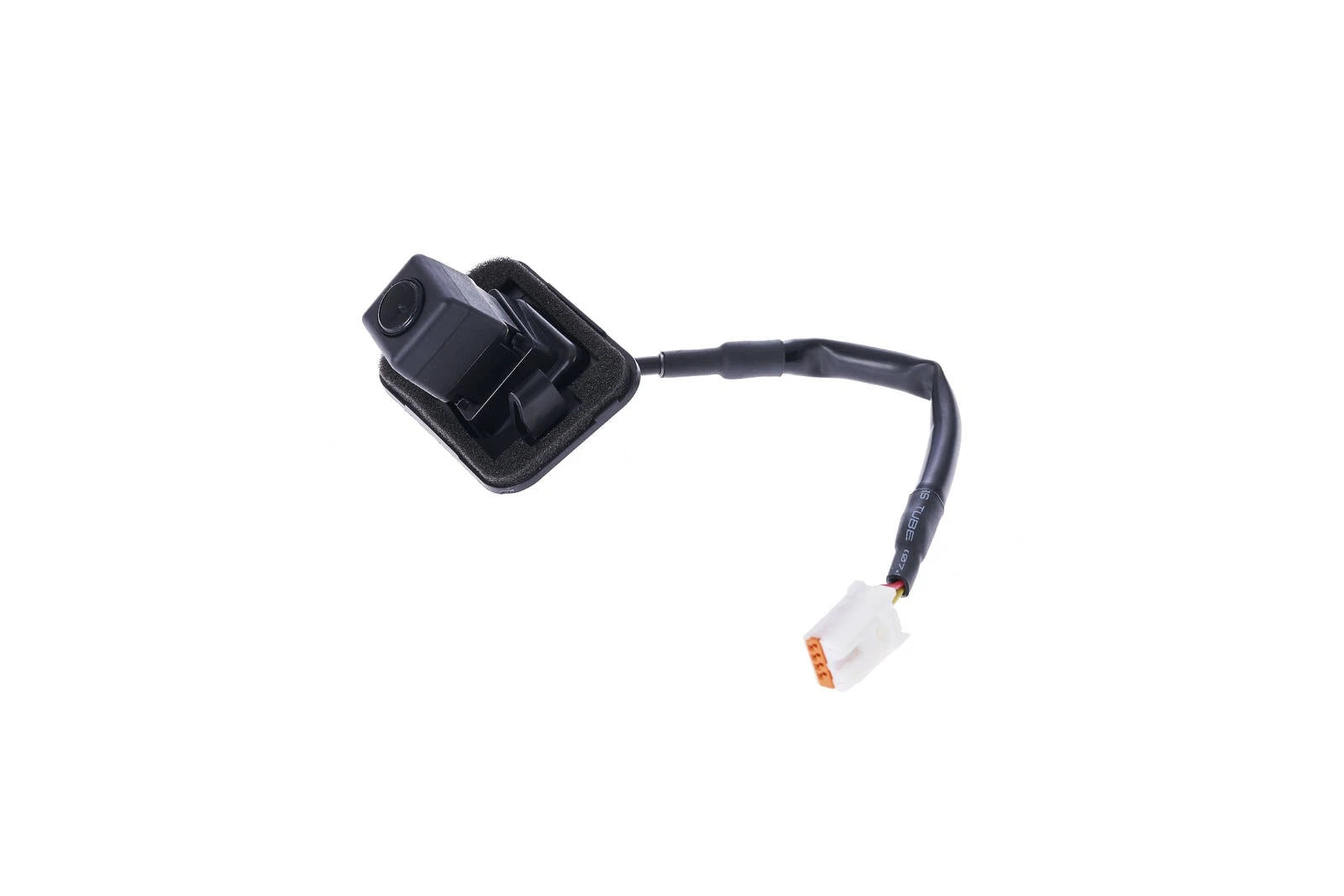

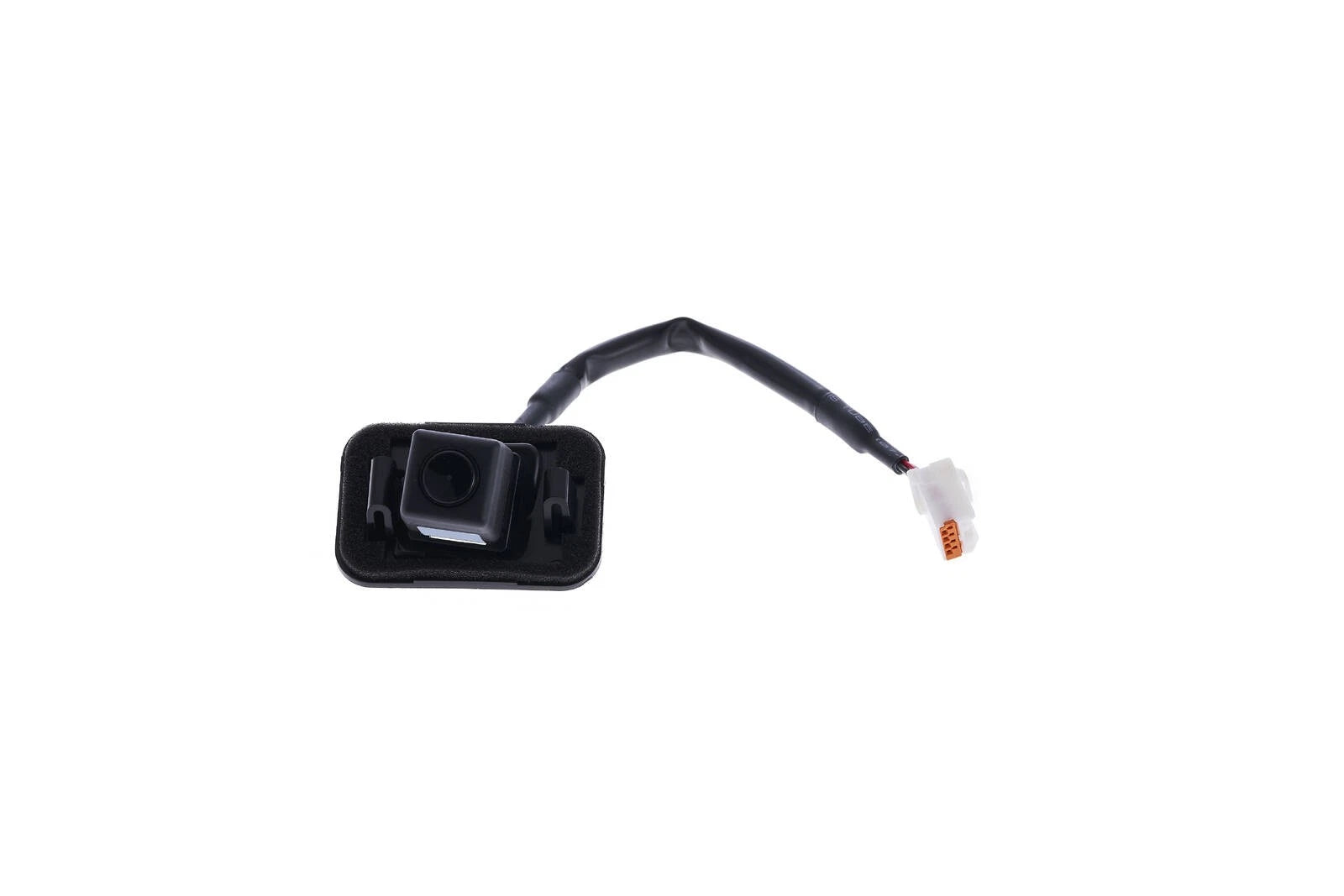

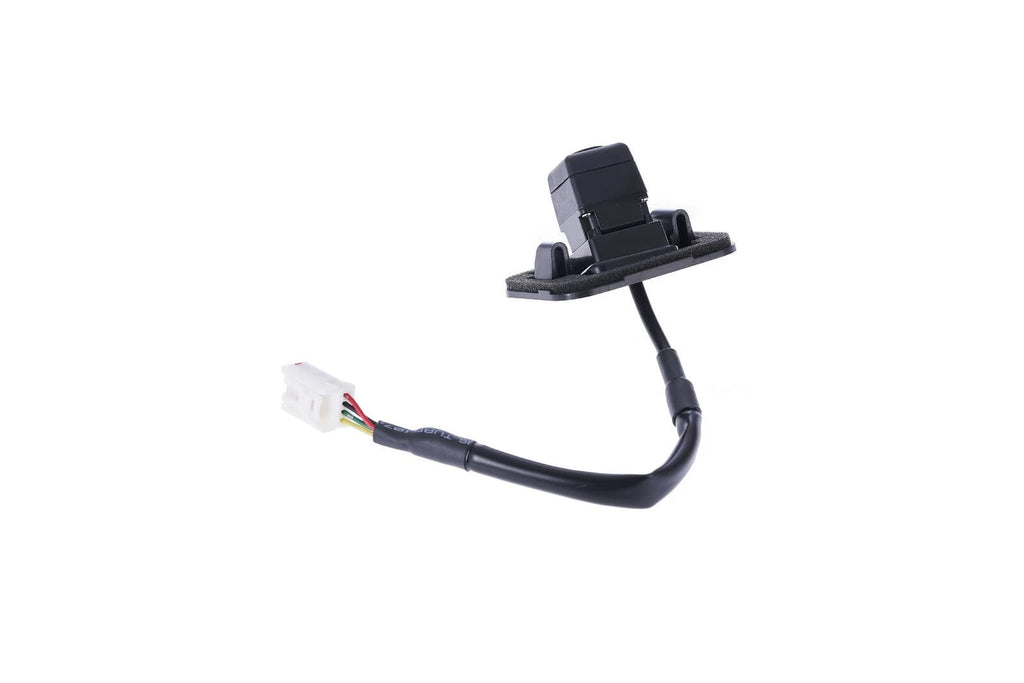

Rear View Reverse Camera OE Connector for Mazda CX-7 ER 2009-2012

PRODUCT OVERVIEW

This rear view reverse camera is designed with an OE-style connector for direct integration with compatible Mazda CX-7 ER models. It mounts on the tailgate and provides clear, wide-angle visibility to assist with reversing and parking.

KEY FEATURES

• Application-specific rear view camera for Mazda CX-7 ER
• OE-style connector for straightforward plug-in installation
• Tailgate-mounted design for optimal reversing visibility
• High quality aftermarket construction, brand new unit
• Durable plastic housing with glass lens
• 4-pin camera plug type
• Supplied as 1 piece

FITMENT

• Mazda CX-7 ER 09/2006 – 12/2012 (tailgate mounted reverse camera position)

Always compare the images, connector type, and mounting points with your original camera before purchase.

PRODUCT SPECIFICATIONS

• Product: Rear View Camera
• Type: OE Connector
• Placement on vehicle: Tailgate
• Material: Plastic housing, glass lens
• Camera plug type: 4 pins
• Part specs: High quality aftermarket
• Condition: Brand new
• MPN / Item No.: 101996
• Warranty: 1 year (part only)
• Quantity supplied: 1 piece

CAMERA PERFORMANCE DETAILS

• Image sensor type: CMOS
• Sensor model: PIXELPLUS PCB030K
• Resolution: 640 × 480
• Video format: NTSC
• Video output: Full colour, 1.0 Vp-p at 75 Ω load
• Minimum illumination: 0.1 lux
• Working voltage: 9 – 18 V
• Operating temperature: -20 °C to +70 °C
• Storage temperature: -40 °C to +85 °C
• Waterproof rating: IP69K

LENS & FIELD OF VIEW

• High quality multi-element plastic lens (5 elements)
• F-number: 2.0
• Iris: Fixed
• Diagonal field of view: 186.5°
• Horizontal field of view: 149.3°
• Vertical field of view: 111.8°
• Lens coating: Hard coating with IR-cut coating

INSTALLATION & NOTES

• Professional installation by a qualified automotive technician is recommended.
• Ensure compatibility with your existing wiring and display unit before installation.
• Colour of the actual product may vary slightly from images due to lighting and screen settings.

This camera is intended as a replacement unit to assist with reversing visibility and parking safety when correctly installed and used with a compatible display system.
