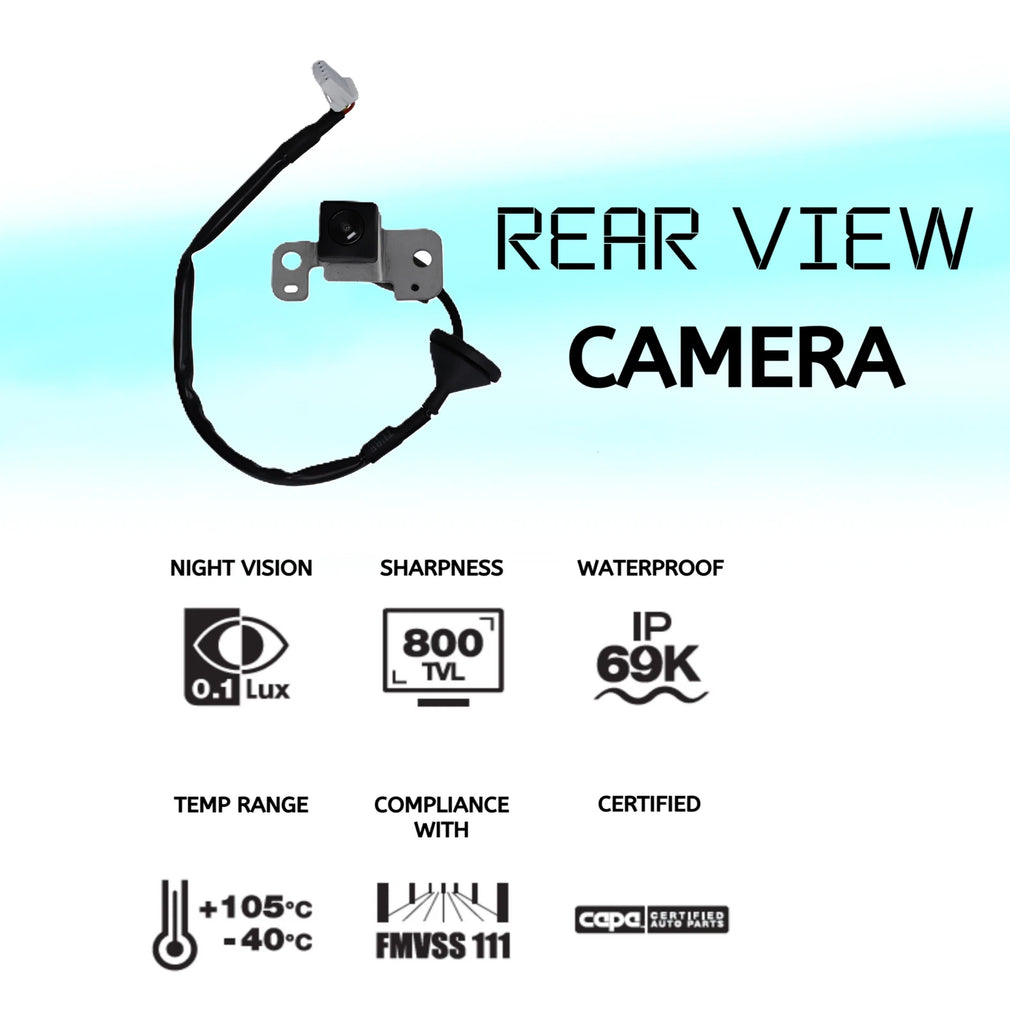

Reverse Camera OE Connector for Mazda CX-9 TB 2007-2016 Tailgate

Product Overview

This high-quality aftermarket rear view camera is designed as an OE-connector replacement for the tailgate of Mazda CX-9 TB models. It provides clear reversing visibility while integrating with factory-style wiring via a 4-pin plug.

Key Features

• Direct-fit OE connector design for Mazda CX-9 TB
• Tailgate-mounted rear view camera to assist reversing and parking
• Durable plastic and glass construction
• 4-pin camera plug for secure electrical connection
• High-quality aftermarket replacement part, brand new
• Supplied as a single piece (1 x camera)
• Backed by a 1-year parts warranty

Fitment

• Mazda CX-9 TB 11/2007 - 05/2016

Before purchasing, visually match this camera and connector to your original part to confirm compatibility.

Part Details

• Product: Rear view camera
• Type: OE connector replacement
• Placement on vehicle: Tailgate
• Material: Plastic, glass
• Camera plug type: 4 pins
• Part specification: High-quality aftermarket
• Condition: Brand new
• MPN/Item No.: 101998
• Manufacturer warranty: 1 year (part only)
• Quantity supplied: 1 piece

Camera Specifications

• CMOS sensor: PIXELPLUS PCB030K
• Image sensor resolution: 640 x 480
• Lens: F2.0, fixed iris, plastic lens with 5 elements
• Field of view: 186.5° diagonal / 149.3° horizontal / 111.8° vertical
• Lens coating: Hard coating, IR-cut coating
• Video format: NTSC
• Video output: Full colour, 1.0 Vp-p at 75 Ω load
• Minimum illumination: 0.1 lux
• Working voltage: 9–18 V
• Operating temperature: -20 °C to +70 °C
• Storage temperature: -40 °C to +85 °C
• Waterproof rating: IP69K

Installation & Notes

• Professional installation by a qualified automotive technician is recommended.
• Intended as a replacement part for repair of existing systems.
• Product colour and finish may appear slightly different on various screens.
• Images are representative of the actual product supplied.

Warranty Summary

• 12-month manufacturer warranty on the part only.
• Warranty covers replacement of the defective part; labour and consequential costs are excluded.
• Part must be installed correctly and used as intended to maintain warranty coverage.
• Customer is responsible for return shipping where a replacement is issued, unless otherwise required by law.

For warranty or return enquiries, please retain your proof of purchase and follow the seller’s return and assessment process as outlined at checkout or in your order documentation.
