RH Front CV Axle Shaft for Hyundai Santa Fe & Kia Sorento 2.2L Diesel Auto

PRODUCT OVERVIEW

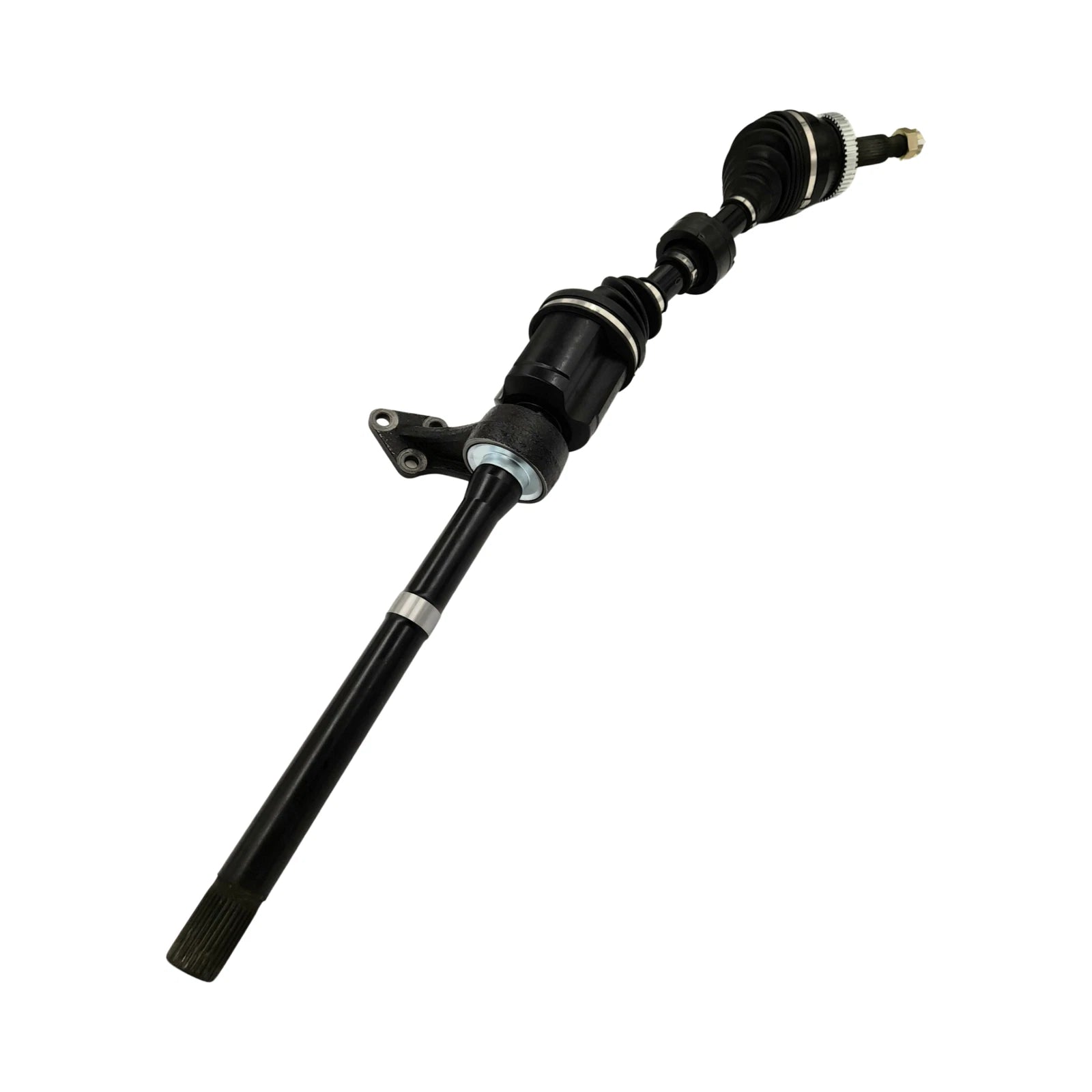

Right-hand (RH) front CV axle shaft for automatic transmission 2.2L diesel Hyundai Santa Fe and Kia Sorento applications. Built to OEM specifications for reliable driveline performance.

INCLUDED

• 1 x complete RH front CV axle shaft assembly

Note: Purchaser must check extension shaft mount. If different, order CVA1590 instead.

FEATURES & BENEFITS

• Manufactured to OEM specifications using heat-treated chrome steel for maximum service life
• High-quality neoprene dust boots with stainless steel clamps to minimise contamination
• Filled with high-performance moly grease for smooth operation at varying angles and speeds
• Designed for consistent performance in high-revolution driveline applications

VEHICLE COMPATIBILITY

• Hyundai Santa Fe CM 2.2L D4HB (2009–2012) – including Elite, Highlander CRDi, SLX CRDi, Trail CRDi
• Hyundai Santa Fe TM 2.2L D4HB (2018–2020) – including Elite, Highlander
• Kia Sorento XM 2.2L D4HB (2009–2015) – including Platinum, Platinum Global Circuit, Si, SLi, SLi Global Circuit
• Kia Sorento UM 2.2L D4HB (2015–2020) – including AO, Black Edition, GT-Line, Platinum, Si, Si Fleet, Si Sport

Fitment is specific to engine, body series and transmission. Always verify against your vehicle details before purchase. Check extension shaft mount as noted.

TECHNICAL SPECIFICATIONS

• Position: Front right (RH), driveshaft / CV axle
• Transmission: Automatic
• Engine: 2.2L diesel (D4HB)
• Length (compressed): 987.5 mm
• Spline count – outer / wheel side: 30 teeth
• Spline count – inner / diff side: 28 teeth
• ABS ring: 52 teeth
• Hub nut: M22 x 1.5

WARRANTY

• 12-month / 20,000 km warranty on CV driveshaft assembly
• CV boots warranted for 3 months from date of purchase

Warranty is subject to correct installation and normal operating conditions.
