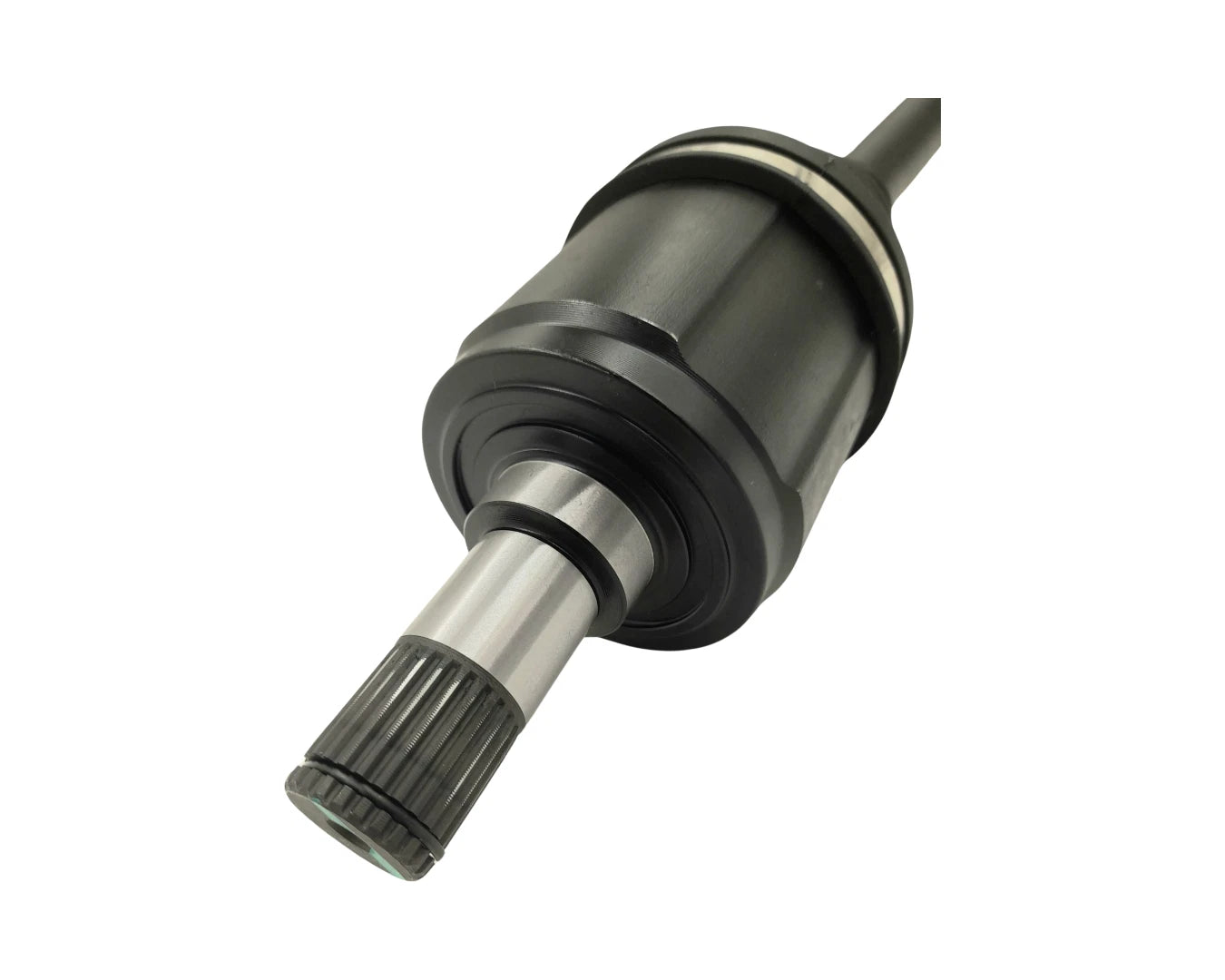

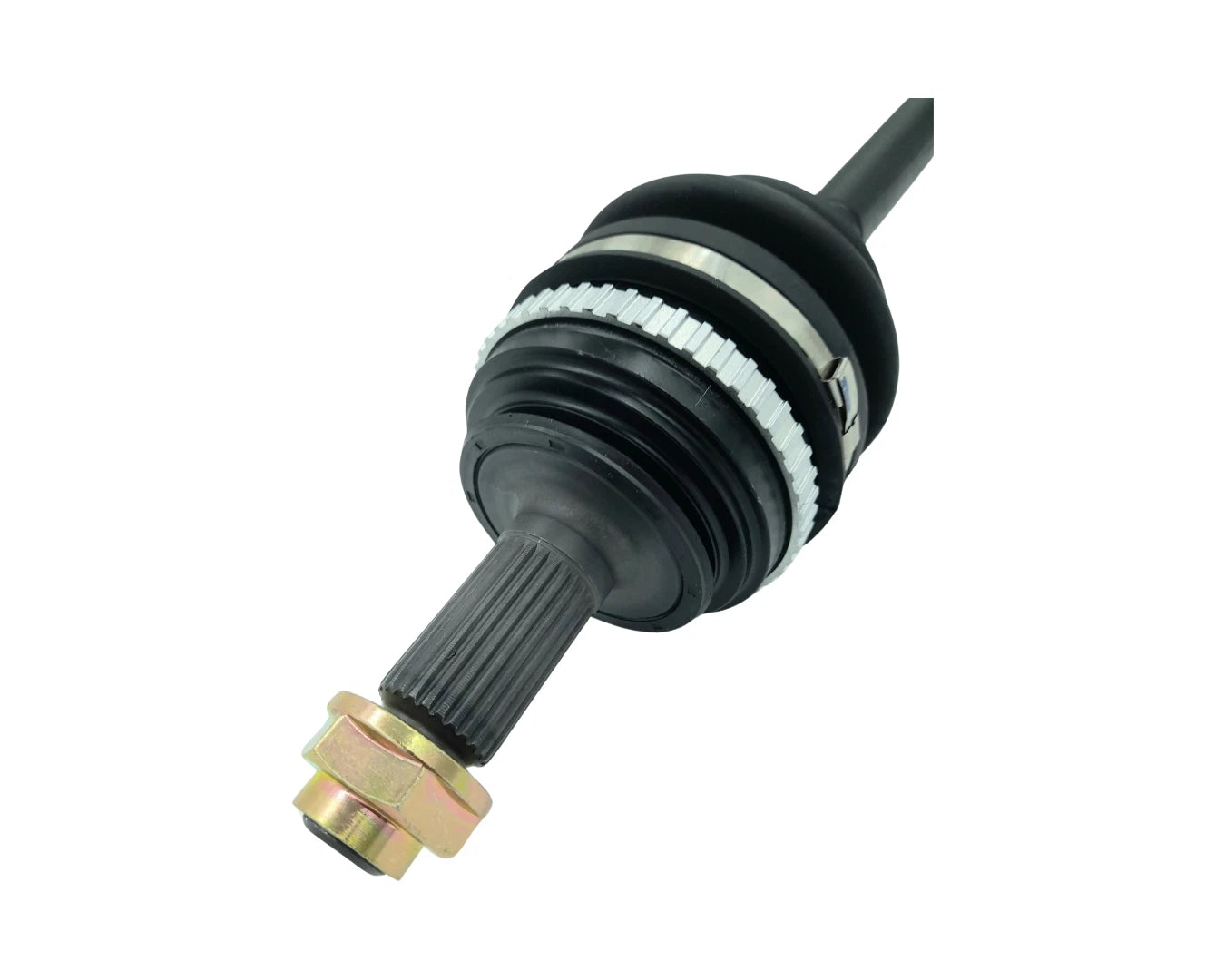

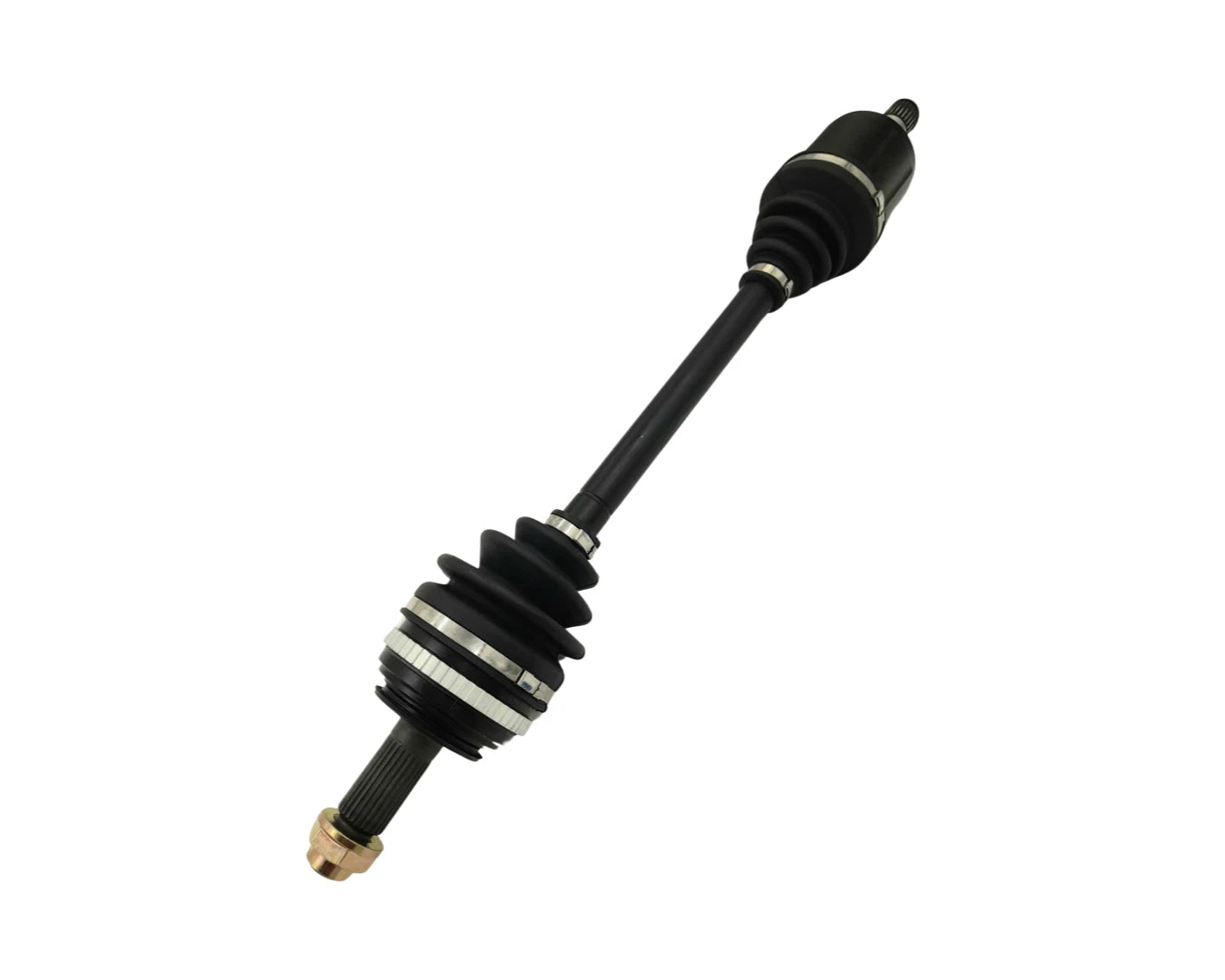

RH CV Joint Axle Drive Shaft for Honda Civic EG EK 1991–2000

PRODUCT OVERVIEW

Right-hand CV joint axle drive shaft for Honda Civic EG and EK series (1991–2000). Suits selected 2-door and 4-door models with automatic or manual transmission. Please confirm specifications and fitment before purchase.

ENGINE & MODEL APPLICATION NOTES

• EK1 1.6L D16Y4 & D16Y5 (10/1995–09/2000)
• EK4 1.6L B16A & B16A2 (10/1995–08/2000)
• EG4 1.5L D15B4, D15B7 & D15Z2 (1991–1996)
• EG8 1.5L D15B, D15B4, D15B7 & D15Z1 (1991–1996)
• EK2 1.3L D13B4 (09/1995–08/2000)
• EK3 1.5L D15B (09/1995–08/2000)
• EG3 1.3L D13B2 (10/1991–10/1993)
• EG7 1.3L D13B (09/1991–09/1995)

Sub-model coverage includes CXi, Indy Special, Sport, GLi, DX, LXI, VTi, EL, Breeze, Ferio, Mi, ML, VEi, VTi-R, Ri and SiR where fitted with the above engine and year ranges.

WHAT YOU GET

• 1 x complete right-hand CV shaft assembly

FEATURES & BENEFITS

• Manufactured to OEM specifications for fit and performance
• Heat-treated chrome steel construction for maximum service life
• High-quality neoprene dust boots with stainless steel clamps to resist contamination
• Premium moly CV grease for smooth operation at varying angles and speeds

The CV driveshaft range is designed for reliable performance in demanding driveline applications and is suitable for a wide range of passenger and 4WD vehicles on Australian roads.

SPECIFICATIONS

• Position: Right-hand side
• Body styles: 2-door & 4-door (where applicable)
• Transmission: Automatic & manual (where applicable)
• Compressed length: 622 mm
• Spline count (outer / wheel side): 26
• Spline count (inner / diff side): 25

WARRANTY

• CV driveshaft: 12 months / 20,000 km (whichever occurs first)
• CV boots: 3 months from date of purchase

Warranty applies to manufacturing defects only and is subject to correct installation and normal use.

FITMENT GUIDE

Use the above engine, year and model information as a guide only. Always verify spline counts, shaft length and transmission type against the original part before ordering.
