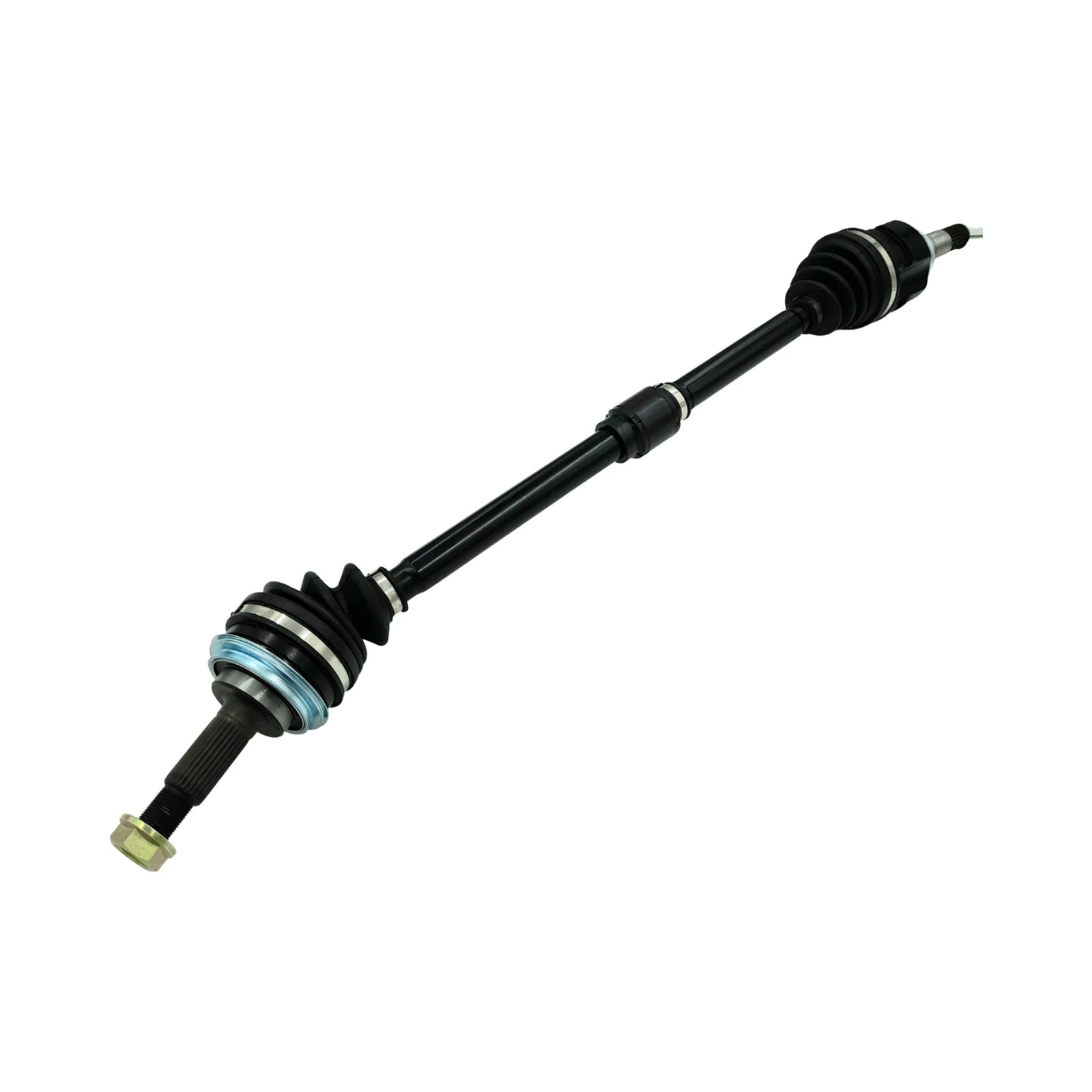

RH CV Axle Shaft for Toyota Corolla AE80 AE82 AE112 1983–2002 No ABS

PRODUCT OVERVIEW

Right hand front CV axle shaft designed for selected Toyota Corolla AE80, AE82 and AE112 applications without ABS. Built to OEM specifications for reliable driveline performance and durability.

KEY FEATURES

• Manufactured to OEM specifications for correct fit and function
• Heat-treated chrome steel construction for maximum service life
• High-quality neoprene dust boots with stainless steel clamps
• Molybdenum grease for smooth operation at varying angles and speeds
• Suitable for front right-hand side installations without ABS

SPECIFICATIONS

• Position: Front right-hand side
• ABS: Not compatible (without ABS)
• Length (compressed): 970.6 mm
• Spline count (outer / wheel side): 26
• Spline count (inner / diff side): 23
• Hub nut: M22 x 1.5

COMPATIBILITY NOTES

Intended for selected Toyota Corolla AE80, AE82 and AE112 models produced approximately between 1983 and 2002, where fitted with a non-ABS front right driveshaft. Always confirm spline counts, shaft length and hub nut size against the existing part before purchase.

PACKAGE CONTENTS

• 1 x Right hand front CV axle shaft (without ABS)

WARRANTY INFORMATION

CV driveshafts are typically supplied with a 12 month / 20,000 km warranty, excluding CV boots which may carry a shorter warranty period. Refer to your specific seller or invoice for exact warranty terms.
