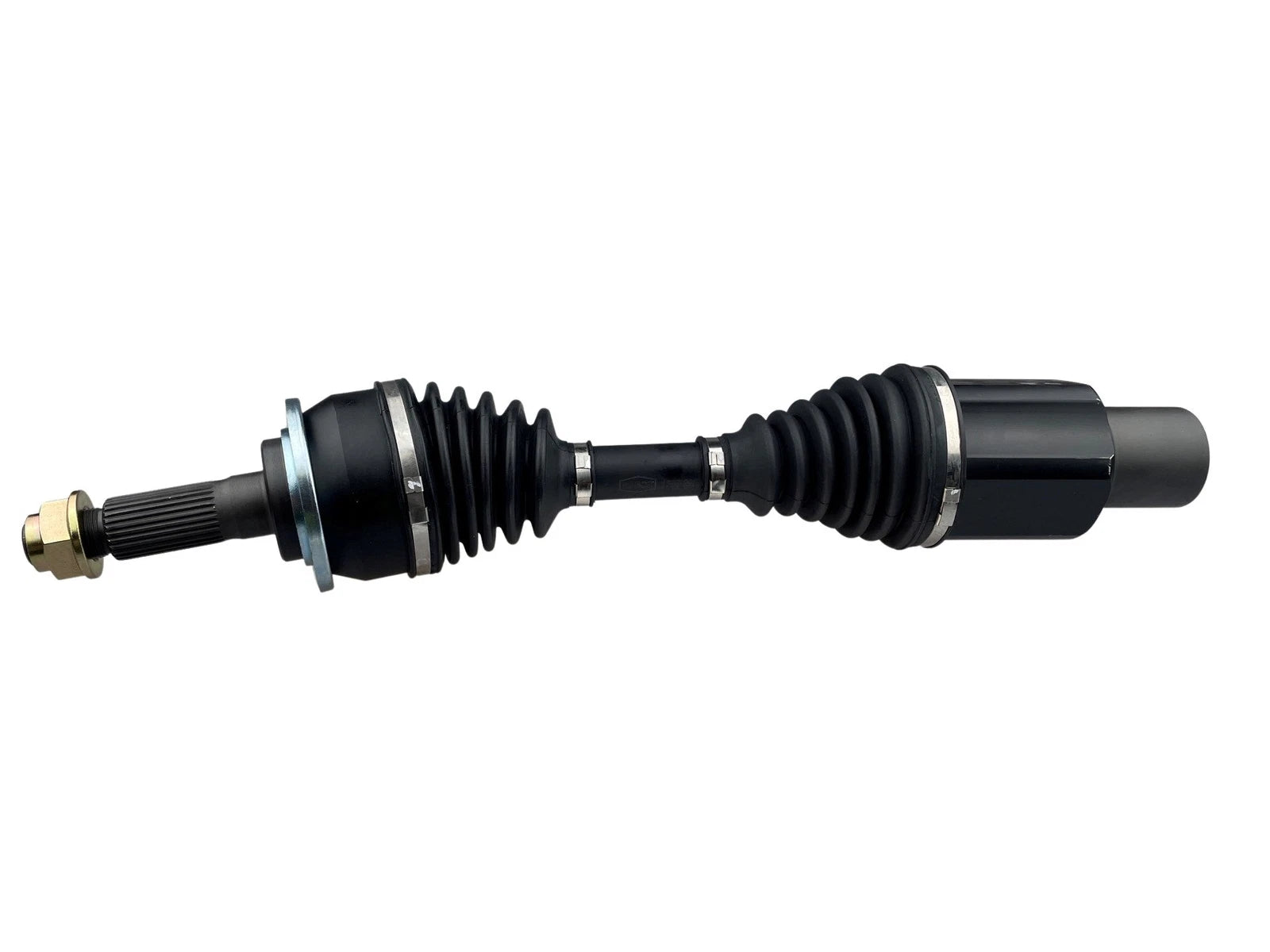

RH Front CV Drive Shaft for Ford Ranger PX & Mazda BT-50 UP/UR 4WD 40mm Lift

PRODUCT OVERVIEW

Right-hand front CV axle drive shaft for automatic or manual 4WD models, designed for vehicles raised up to 40mm. Features an additional 10mm of extended travel, with the inner joint engineered to accommodate extra suspension movement.

KEY FEATURES

• Raised spring compatibility: up to 40mm lift
• +10mm extended travel via inner joint design
• Built to OEM specifications using heat-treated chrome steel
• High-quality neoprene dust boots with stainless steel clamps
• Molybdenum disulphide (moly) grease for high-angle, high-speed operation

VEHICLE FITMENT

Ford Ranger

• PX1, PX2, PX3 2.0L Y2NS, 2.2L P4AT, 3.2L P5AT 4WD MAN / AUTO (09/2011–06/2022)
• Does not fit Raptor or Raptor X models
• Sub-models include: XL, XLS, XL PLUS, XLT, Wildtrak, Super Cab XL, Sport, FX4, Limited

Mazda BT-50

• BT-50 UP/UR 3.2L P5AT 4WD MAN / AUTO (11/2011–07/2020)
• Sub-models include: XT, GT, XTR, XT Freestyle Cab, XTR Freestyle Cab, Boss

Position: Front, Right-Hand Side (RH)

SPECIFICATIONS

• Spline (wheel end): 28
• Spline (diff side): 28 + 1 keyway (internal)
• Overall length: 565.0mm + 10mm extended travel
• Nut size: M24 x 1.5

WHAT'S INCLUDED

• 1 x complete right-hand front CV shaft assembly

ADDITIONAL INFORMATION

This CV driveshaft is part of a comprehensive aftermarket range engineered to meet or exceed OEM performance. It is suitable for a wide variety of passenger and 4WD applications and is designed for durability in demanding conditions.

Warranty: 12 months / 20,000 km on the CV driveshaft. CV boots are warranted for 3 months from date of purchase.
