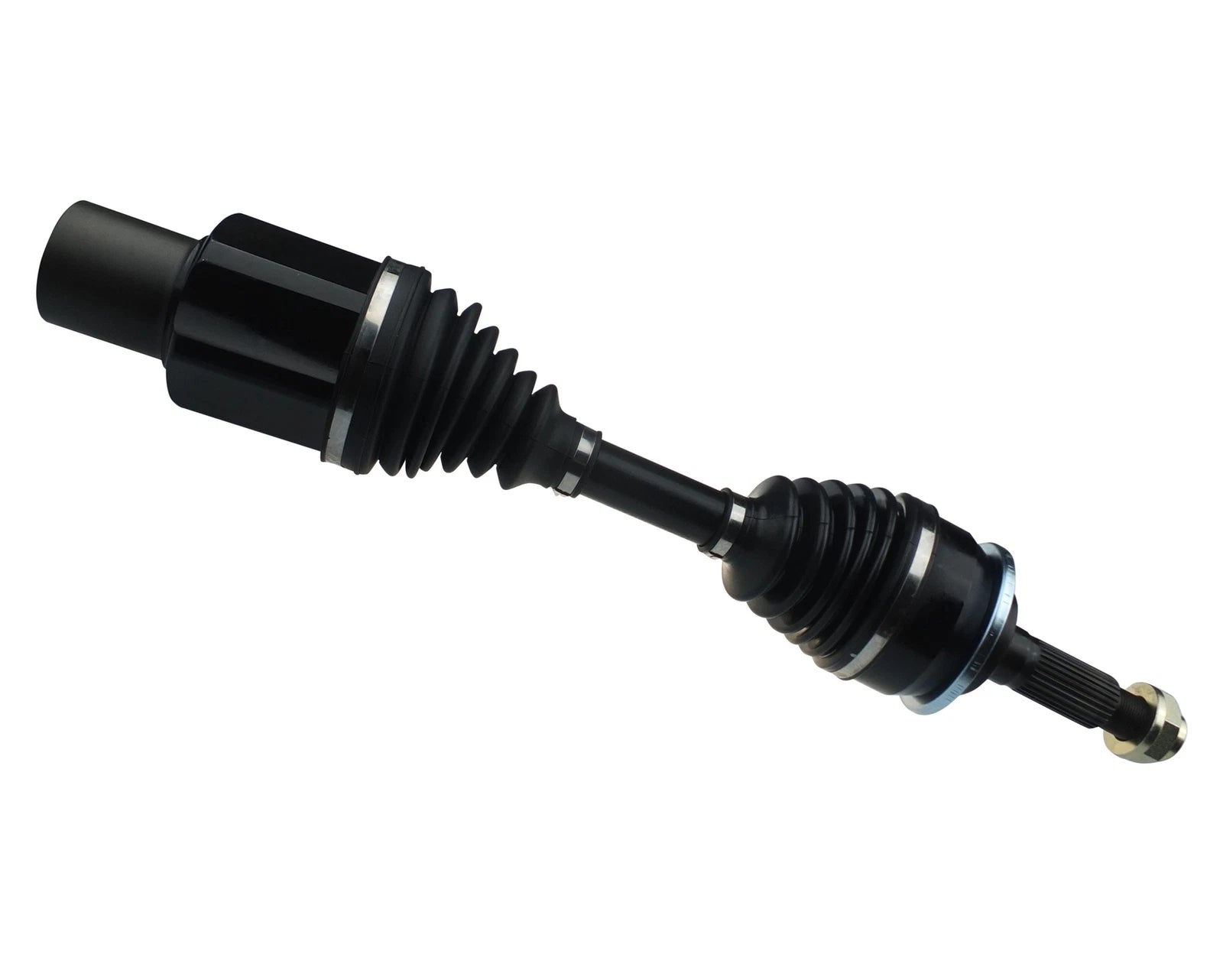

RH Front CV Axle Drive Shaft for Mazda BT-50 UP/UR & Ford Ranger PX

PRODUCT OVERVIEW

Right-hand front CV axle drive shaft suitable for automatic and manual 4WD applications. Designed as a direct replacement, built to OEM-level specifications for durability and smooth driveline performance. Does not fit Raptor or Raptor X models.

KEY FEATURES

• Heat-treated chrome steel construction for strength and long service life
• High-quality neoprene dust boots to protect against dirt and moisture
• Stainless steel clamps for secure boot retention and reduced contamination risk
• Molybdenum (moly) grease for low-friction operation at varying angles and speeds
• Engineered as an OEM-style replacement for reliable fit and performance

VEHICLE COMPATIBILITY

• Ford Ranger PX1, PX2, PX3 2.0L Y2NS, 2.2L P4AT, 3.2L P5AT 4WD, manual and automatic (09/2011–06/2022). Does not fit Raptor or Raptor X models. Sub-models include XL, XLS, XL PLUS, XLT, Wildtrak, Super Cab XL, Sport, FX4, Limited.
• Mazda BT-50 UP/UR 3.2L P5AT 4WD, manual and automatic (11/2011–07/2020). Sub-models include XT, GT, XTR, XT Freestyle Cab, XTR Freestyle Cab, Boss.

Always confirm spline counts and measurements against your original shaft before purchase.

SPECIFICATIONS

• Position: Front, right-hand (RH)
• Drivetrain: 4WD
• Overall length: 568.5 mm
• Spline count (wheel end): 28
• Spline (differential side): 28 + 1 keyway (internal)
• Nut thread: M24 x 1.5

WHAT'S INCLUDED

• 1 x complete CV axle drive shaft (RH front)

WARRANTY

• 12-month / 20,000 km warranty on CV driveshaft
• CV boots warranted for 3 months from date of purchase

Installation by a qualified technician is recommended to ensure correct fitment and optimal drivetrain performance.
