RH 6-Pin Window Lift Motor for Mazda 2, 3, 6, CX-5 (Front/Rear Right)

PRODUCT OVERVIEW

This right-hand electric window lift motor is a high-quality aftermarket replacement designed for selected Mazda 2, 3, 6 and CX-5 models. It is suitable for front right or rear right (driver side) applications where specified.

KEY FEATURES

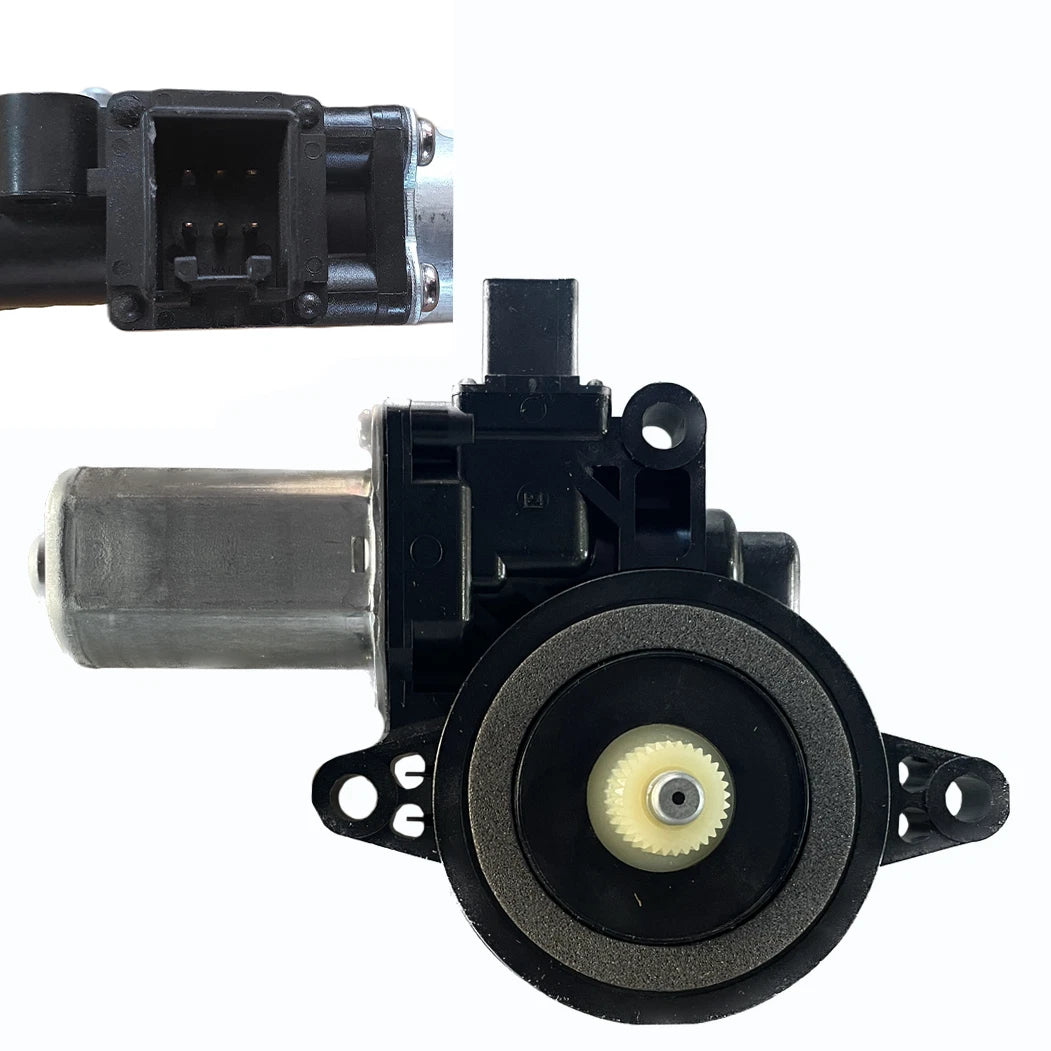

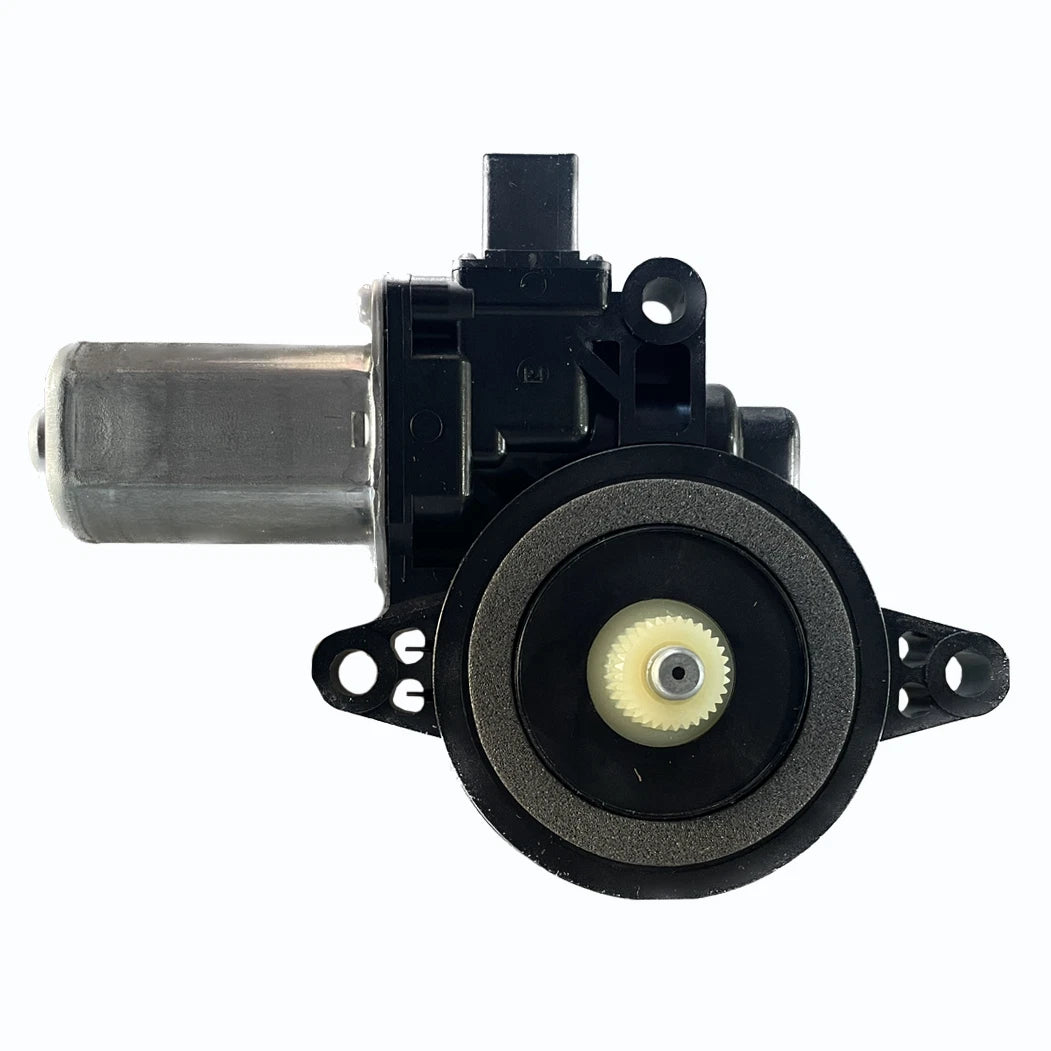

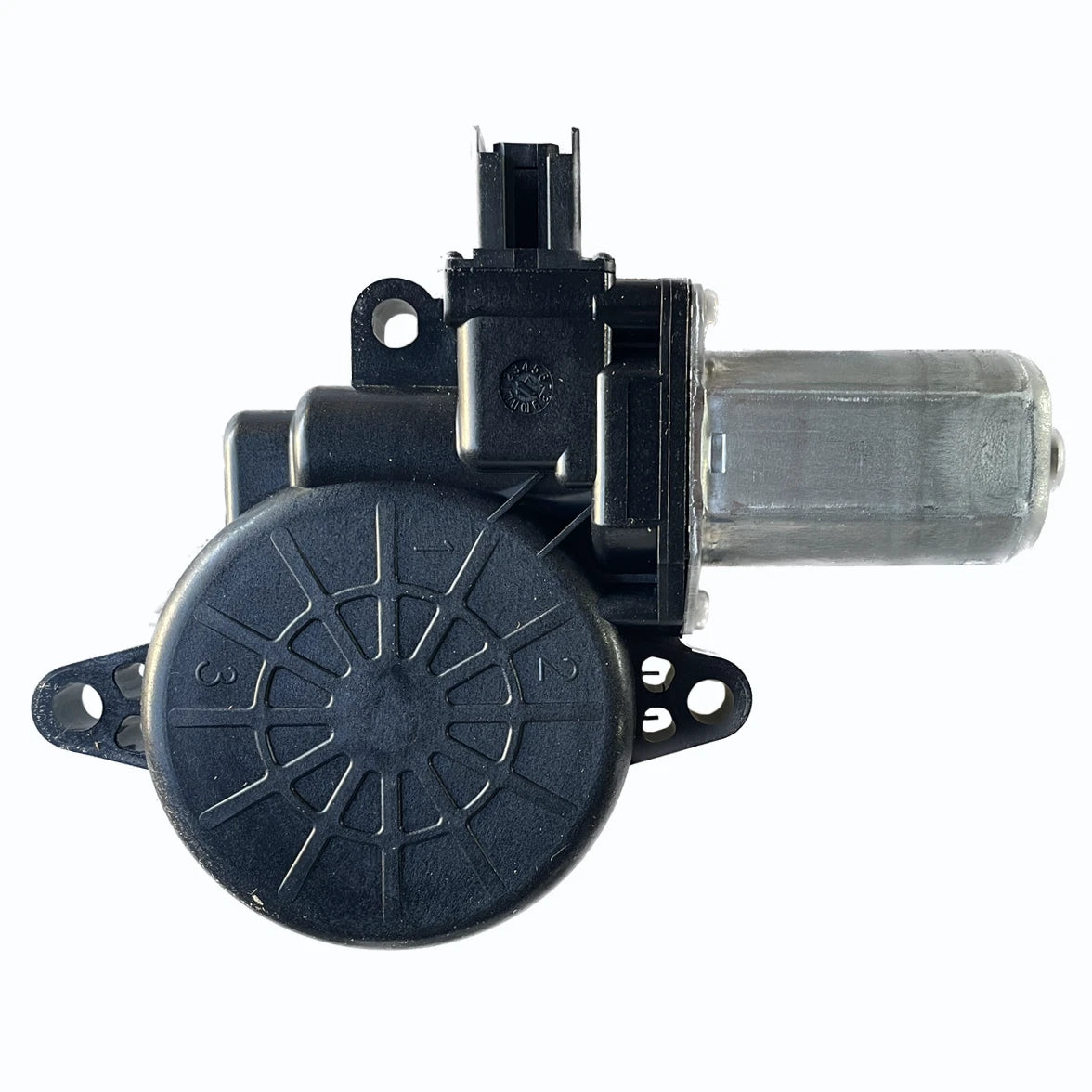

• Electric window lift motor assembly

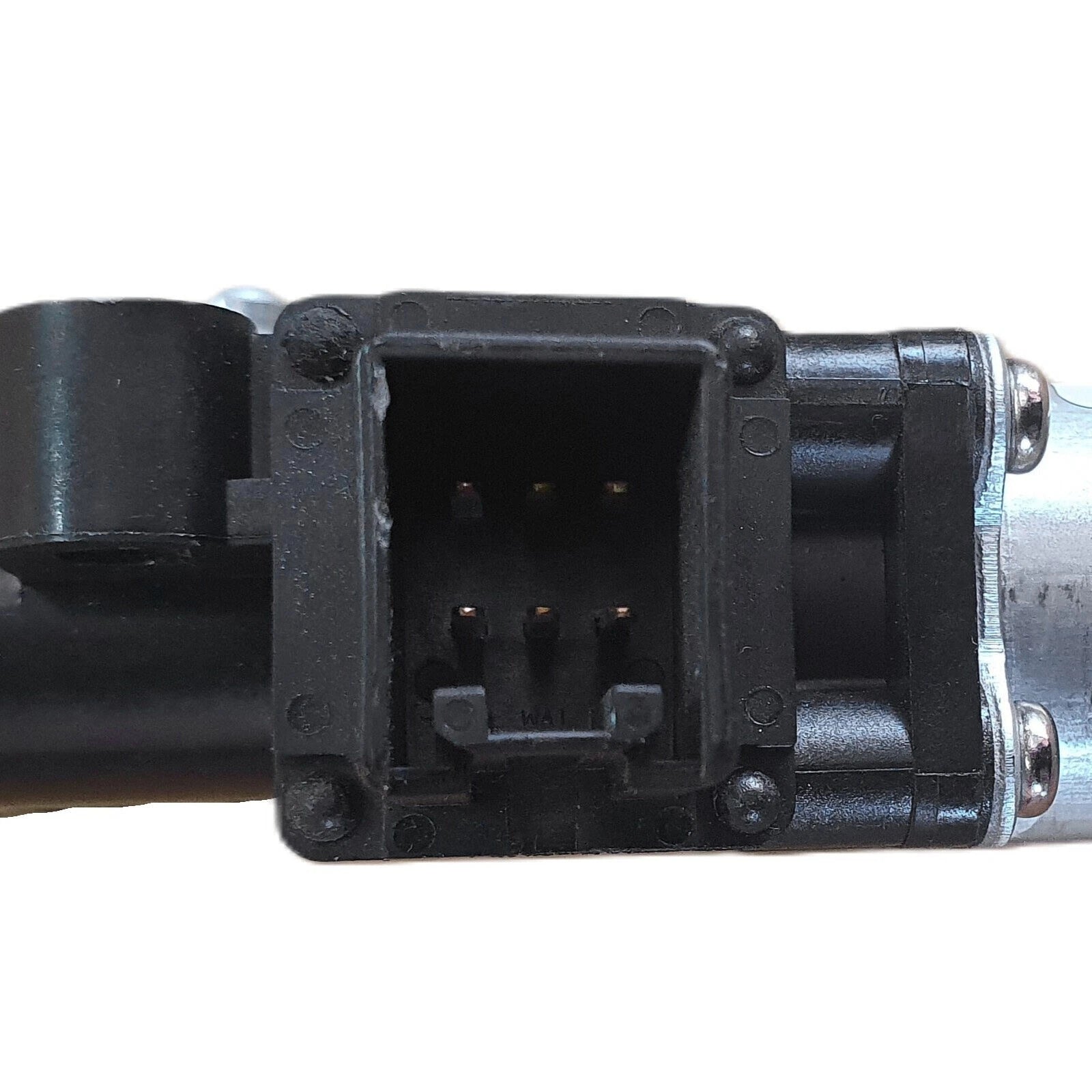

• 6-pin connector design
• Front right and/or rear right (driver side) fitment as specified
• High quality aftermarket construction
• Brand new component, supplied as 1 piece
• Covered by 12-month manufacturer part-only warranty

SPECIFICATIONS

• Product type: Window lift motor
• Operating mode: Electric
• Connector: 6 pins
• Placement on vehicle: Front right and/or rear right (driver side)
• Condition: Brand new
• Part specs: High quality aftermarket
• MPN / Item No.: 101405M6B
• Quantity supplied: 1 piece
• Warranty: 1 year (part only)

VEHICLE FITMENT

Intended for the following applications:

• Mazda 2 DE 07/2007 - 12/2014 (front right)
• Mazda 3 BL 01/2009 - 11/2013 (front right)
• Mazda 6 GH 09/2007 - 12/2012 (front right)
• Mazda 6 GJ/GL 10/2012 - on (front right or rear right)
• Mazda CX-5 KE 01/2012 - 02/2017 (rear right)

Fitment information is a guide only. Always compare the part number, connector type and images with your original component before purchase.

ANTI-PINCH FUNCTION SETUP

This motor may be used with window regulators that feature an anti-pinch (one-touch) safety function.

• Do not test the motor before it is installed in the door, otherwise the anti-pinch function may fail and require resetting.
• Install the motor and connect it to the one-touch window switch.
• Pull up the switch; the window should travel fully to the top. If the window drops after reaching the top, perform the reset procedure.

Reset procedure:

• Step 1: Pull the window switch briefly to move the window slightly up to the top position.
• Step 2: Hold the one-touch switch up for 3–5 seconds at the top.
• Step 3: Press the window switch briefly to move the window slightly down to the bottom position.
• Step 4: Hold the one-touch switch down for 3–5 seconds at the bottom.
• Step 5: Pull the one-touch switch to raise the window fully to the top.

The reset is complete if the window remains at the top. If it drops again, repeat the steps until successful.

INSTALLATION & WARRANTY NOTES

• For warranty validity, installation by a qualified automotive mechanic is recommended.
• This component is intended for repair and replacement of worn or faulty window lift motors.
• Images are for reference; actual product appearance may vary slightly due to lighting and screen settings.
• Warranty covers replacement of the defective part only and excludes labour, incorrect installation or misuse.

RETURN & HANDLING GUIDELINES

• Part must be returned in original, resalable condition unless faulty.
• Electrical items generally cannot be returned if tampered with or if security seals are removed.
• Return shipping is typically the buyer’s responsibility unless the wrong item was supplied.

Always check connector type, mounting points and part number against your original motor before ordering.
