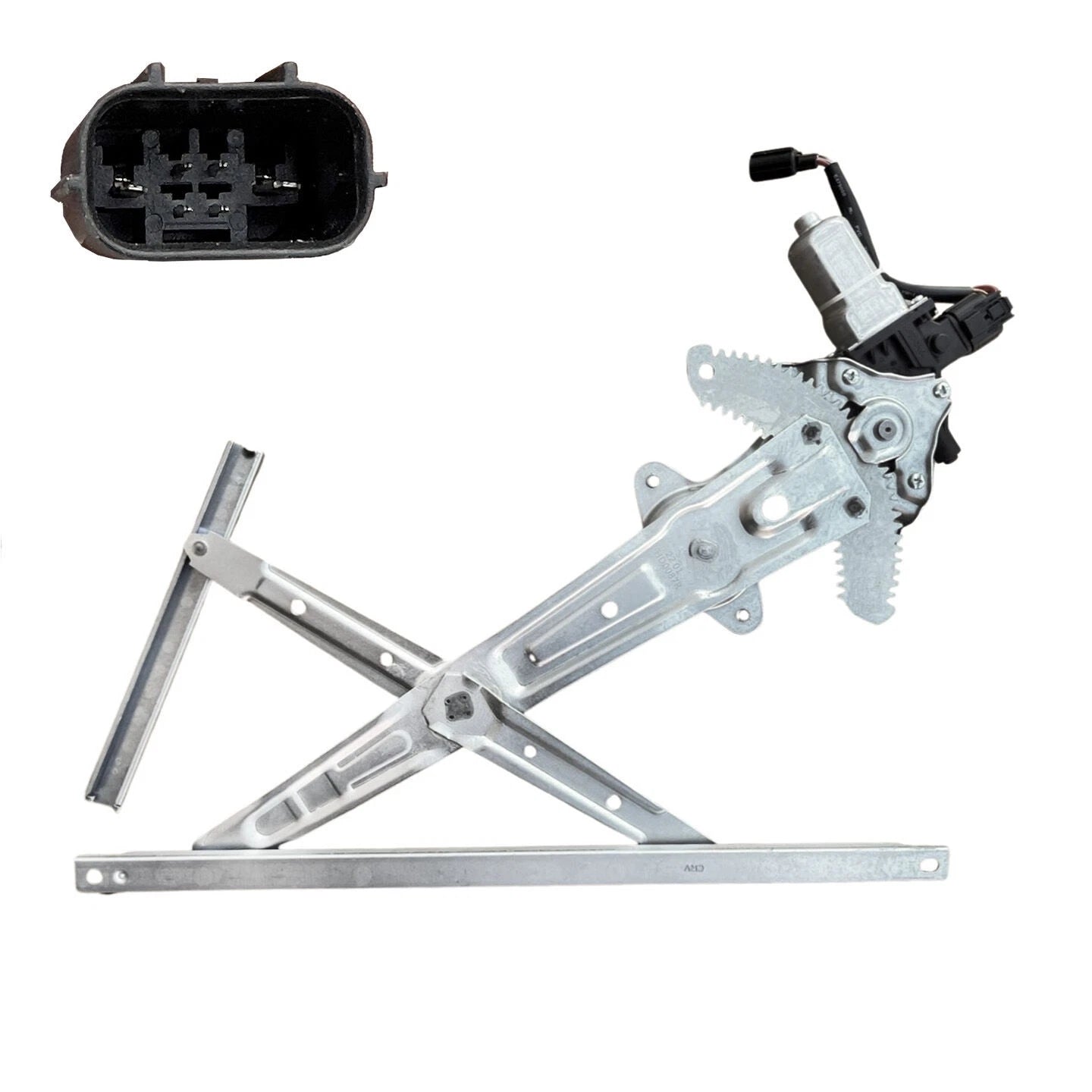

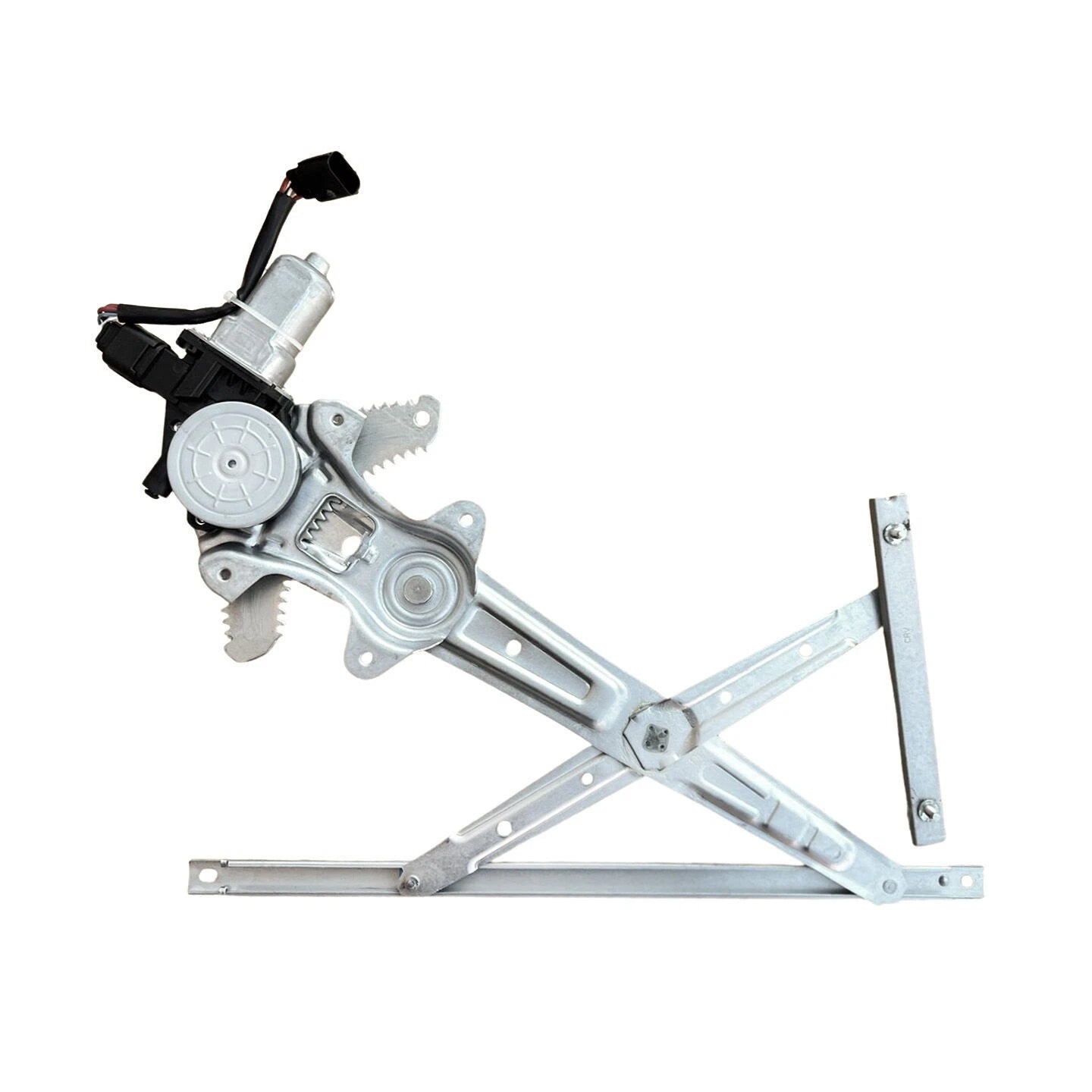

RHF Electric Window Regulator 6-Pin Motor for Honda CR‑V RM 2012-2017

PRODUCT OVERVIEW

This high quality aftermarket electric window regulator is designed for the front right (driver side) door and includes a 6-pin motor. Supplied as a brand new replacement part, it is suitable for repairing faulty or inoperative power windows.

KEY FEATURES

• Complete front right electric window regulator assembly
• Integrated 6-pin electric motor
• High quality aftermarket construction
• Direct repair solution for failed window operation
• Supplied as one piece (1 x window regulator with motor)

SPECIFICATIONS

• Product: Window regulator
• Operating mode: Electric
• Placement on vehicle: Front right (driver side)

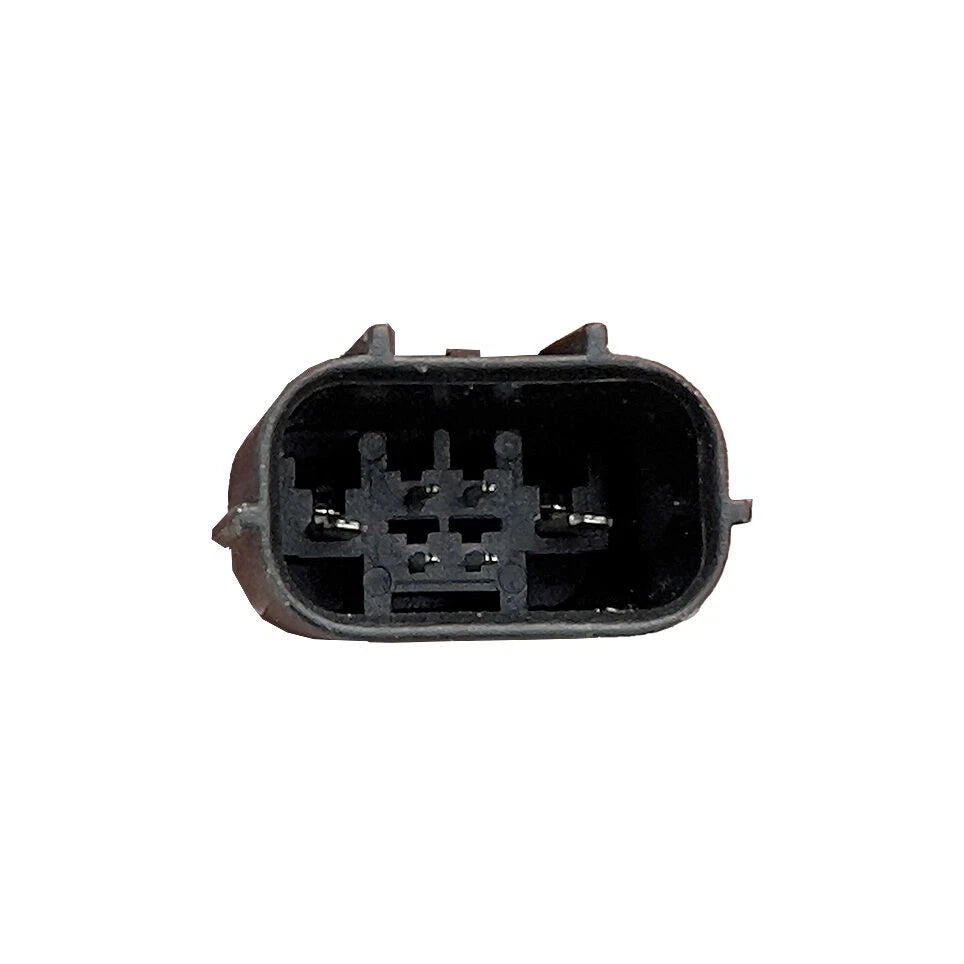

• Motor connector: 6 pins
• Condition: Brand new
• Part type: High quality aftermarket
• MPN / Item No.: 100690B
• Quantity supplied: 1 piece
• Warranty: 1 year (part only)

VEHICLE COMPATIBILITY

• Honda CR-V RM 10/2012 - 2017 K24Z9 2.4L SUV
• Honda CR-V RM 11/2012 - 06/2017 R20A5 2.0L SUV

Always compare the part number, connector type, and images with your original regulator to confirm compatibility before purchase.

ANTI-PINCH FUNCTION SETUP

Some electric window motors feature an anti-pinch safety function that must be correctly initialised after installation.

• Do not test the motor before it is installed in the door, or the anti-pinch function may fail and require resetting.
• Install the regulator and connect it to the one-touch window switch before operation.
• Pull the switch up to raise the window. If it reaches the top and then drops slightly, the anti-pinch function must be reset.

Reset procedure:

• Step 1: Pull the window switch briefly so the window moves slightly up to the top position.
• Step 2: Hold the one-touch switch up for 3–5 seconds at the top.
• Step 3: Press the window switch briefly so the window moves slightly down to the bottom position.
• Step 4: Hold the one-touch switch down for 3–5 seconds at the bottom.
• Step 5: Pull the one-touch switch to raise the window fully to the top and check it no longer drops.

If the window still drops after reaching the top, repeat the reset steps until the anti-pinch function operates correctly.

INSTALLATION & WARRANTY NOTES

• For safety and warranty purposes, installation by a qualified automotive technician is strongly recommended.
• Our parts are supplied for vehicle repair and replacement use.
• Product images are for reference; colour or finish may vary slightly due to lighting and display settings.
• Match the connector, mounting points, and overall design to your original part before fitting.
