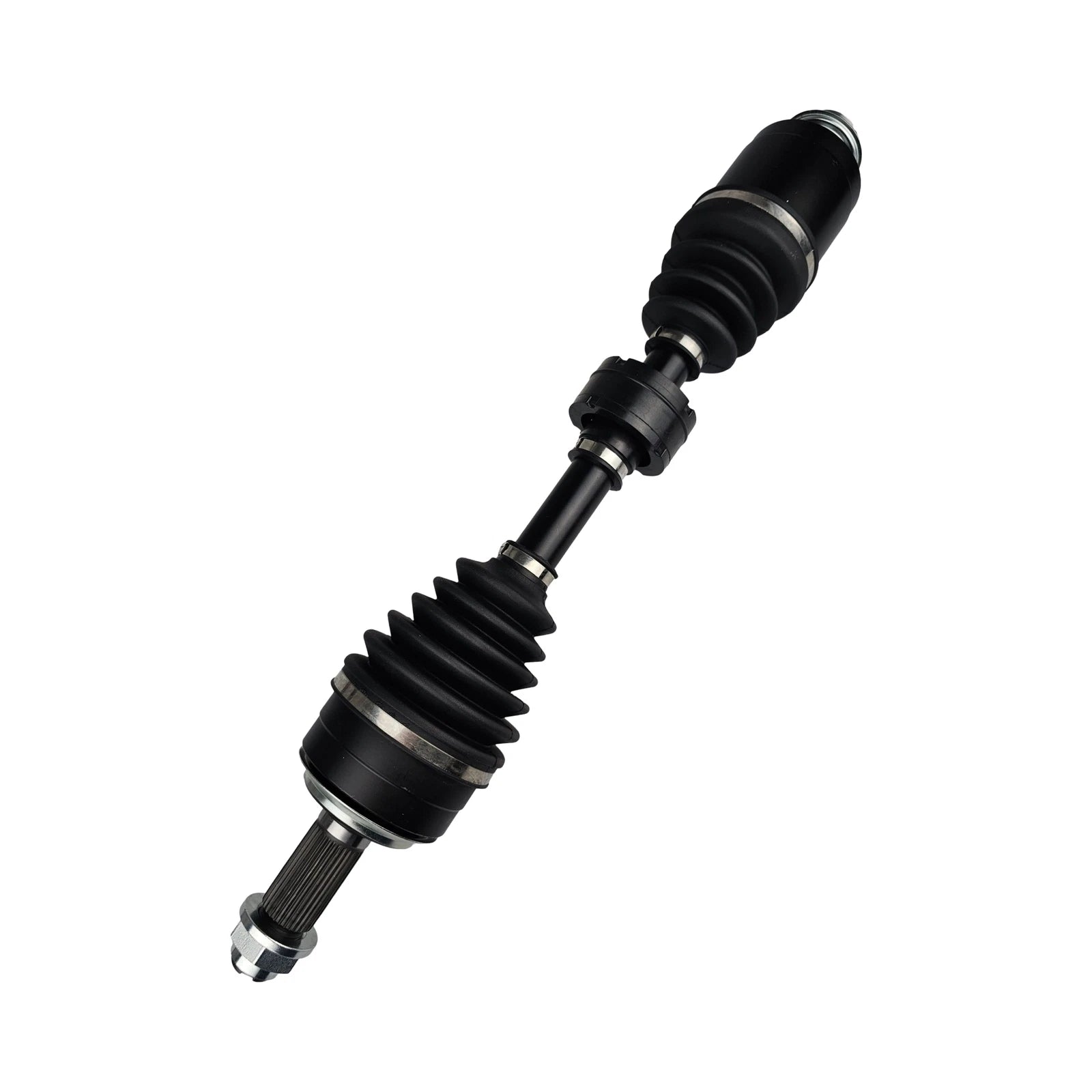

Right Front CV Axle Drive Shaft for Honda Accord CU CP CR 2.0L/2.4L FWD

PRODUCT OVERVIEW

Right-hand front CV axle drive shaft for Honda Accord CU, CU1, CU2, CP2 and CR2 models with 2.0L R20A3 or 2.4L K24Z2 / K24Z3 / K24W3 engines. Suits automatic and manual FWD applications where specified.

KEY FEATURES

• Built to OEM-style specifications for fit, performance and durability
• Heat-treated chrome steel components to maximise service life
• High-quality neoprene dust boots with stainless steel clamps to reduce contamination
• Molybdenum grease for smooth operation at varying angles, speeds and loads
• Designed for front-wheel-drive (FWD) applications, right-hand side

WHAT'S INCLUDED

• 1 x Complete right-hand CV axle shaft assembly

SPECIFICATIONS

• Position: Front, right-hand (RH)
• Drivetrain: FWD
• Length (compressed): 579 mm
• Spline count (outer / wheel side): 30 teeth
• Spline count (inner / diff side, female): 25 teeth + 2 blank teeth

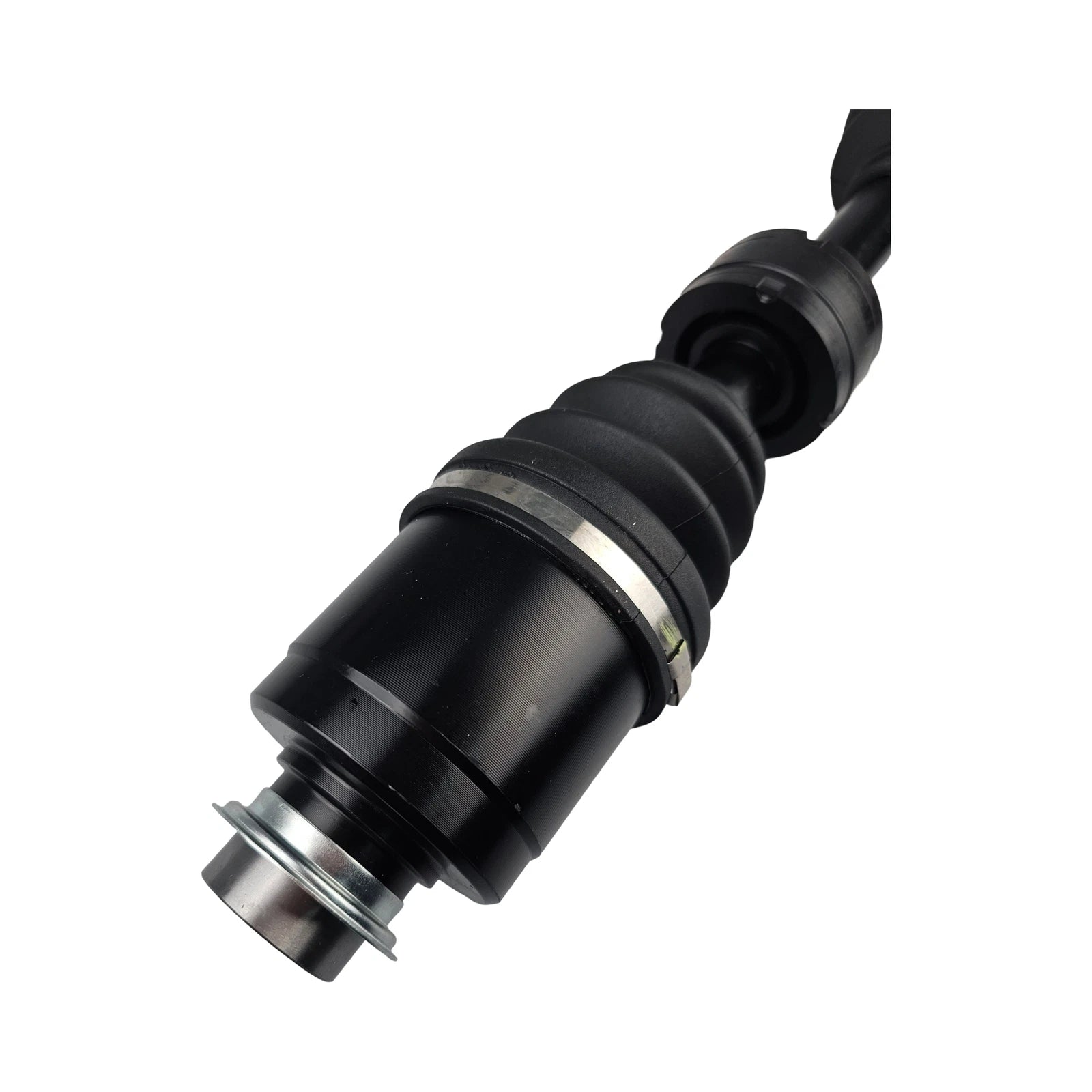

• Inboard joint type: Tripod

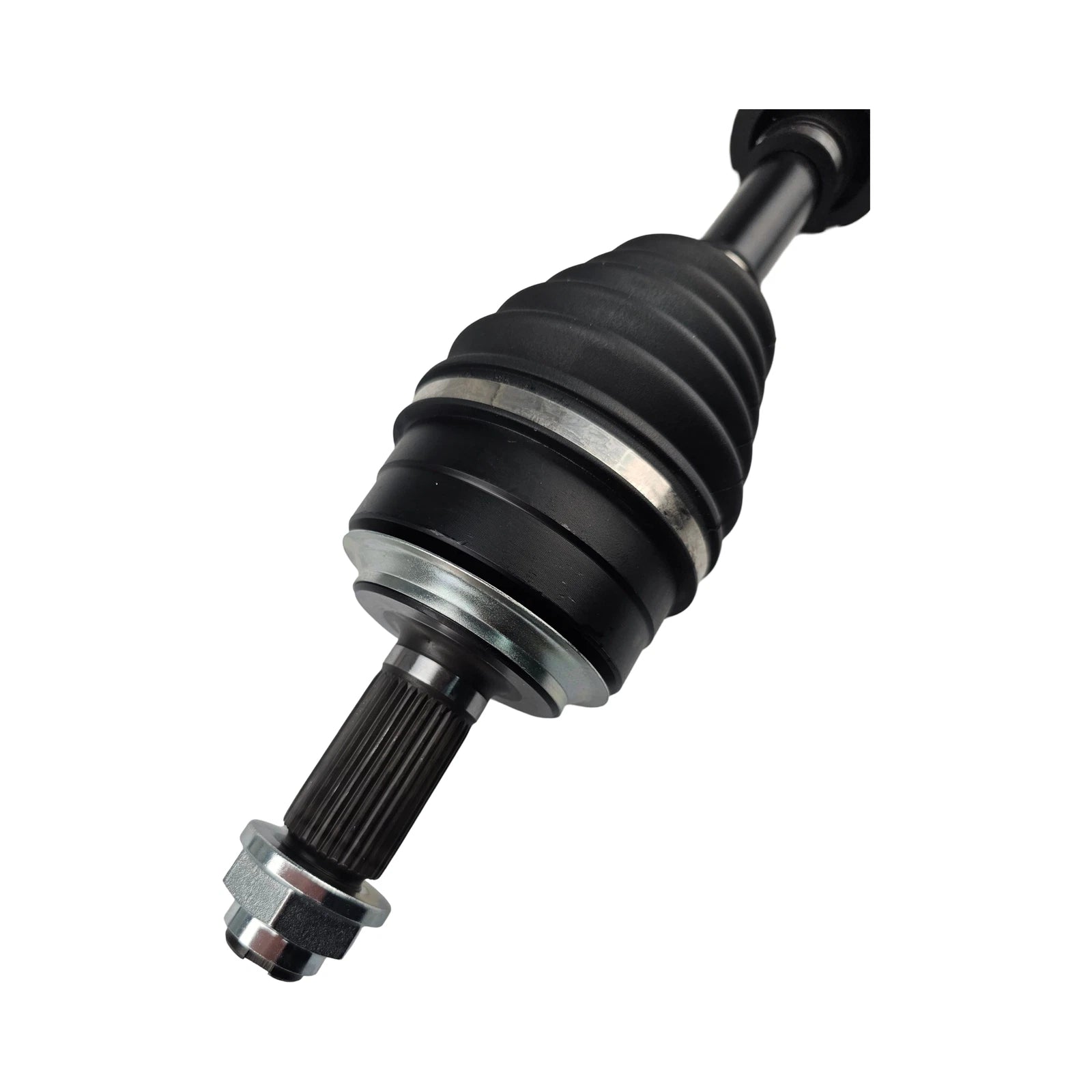

• Outboard joint type: Ball

VEHICLE COMPATIBILITY

• Honda Accord CU / CU2 2.4L K24Z3 I4 16V DOHC VTEC (06/2008–06/2015), automatic and manual, including Euro, Euro Luxury, Euro Luxury Navi
• Honda Accord CU / CU1 2.0L R20A3 I4 16V SOHC VTEC (12/2007–03/2013), automatic, including Euro, Euro Luxury, Euro Luxury Navi
• Honda Accord CP / CP2 2.4L K24Z2 I4 16V DOHC VTEC (02/2008–04/2013), automatic, including VTi, VTi LE, VTi Limited Edition, VTi Luxury, VTi-L
• Honda Accord CR / CR2 2.4L K24W3 I4 16V DOHC VTEC (05/2013–10/2019), automatic, including VTi, VTi-L, VTi-S

WARRANTY

• 12-month / 20,000 km warranty on CV driveshaft assembly
• CV boots warranted for 3 months from date of purchase

NOTES

• Confirm engine code, transmission type, and spline counts before ordering
• Designed as a replacement for the right-hand front axle only
