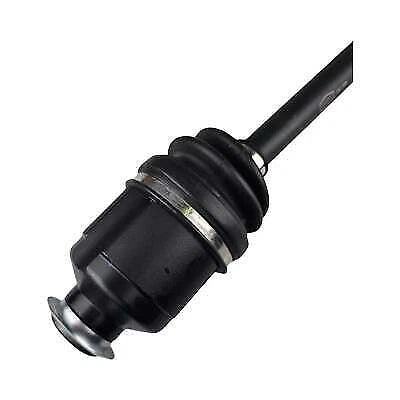

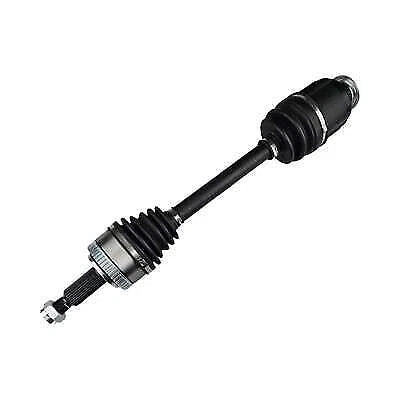

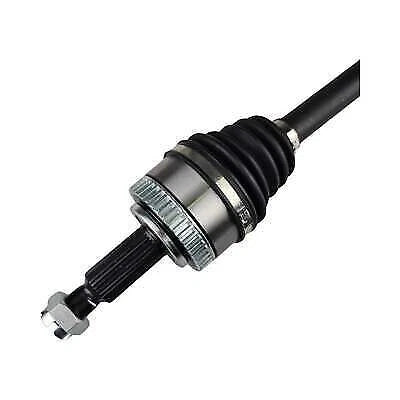

Right Front CV Axle Shaft for Hyundai ix35 LM & Kia Sportage SL QL AWD Auto

PRODUCT OVERVIEW

Right hand front CV axle drive shaft for AWD automatic models. Built to OEM specifications using heat-treated chrome steel for strength and durability. High-quality neoprene dust boots and stainless steel clamps help prevent contamination, while moly grease ensures smooth operation at varying angles and high rotational speeds.

KEY FEATURES

• Designed to meet or exceed OEM performance specifications
• Heat-treated chrome steel construction for long service life
• Neoprene dust boots with stainless steel clamps for improved sealing
• Molybdenum grease for reduced friction at high speeds and angles
• Supplied as a complete assembled CV shaft, ready to install

VEHICLE COMPATIBILITY

• Kia Sportage SL, QL 2.0L D4HA AWD (05/2010 - 09/2021)
  Includes sub models: Platinum, GT-Line, SX+, S, Si, SLi, LX, GT-Line Grey Leather, SLi AEB, AO Edition, Si AO Edition, Si Premium
• Hyundai ix35 JU81V LM 2.0L D4HA AWD Auto (02/2010 - 06/2015)
  Includes sub models: Elite, Highlander, Trophy, SE

Position: Front, right hand side (passenger side in RHD markets).
Drivetrain: AWD, automatic transmission.

SPECIFICATIONS

• Overall length: 585 mm
• Spline count – outer/wheel side: 30T
• Spline count – inner/diff side: 28T
• ABS ring teeth: 48
• Side: Right hand (RH)

WHAT'S INCLUDED

• 1 x complete CV axle shaft (right front)

WARRANTY

• 12 month / 20,000 km warranty on CV driveshaft
• CV boots warranted for 3 months from date of purchase

Check all specifications and vehicle details carefully before purchase to ensure correct fitment.
