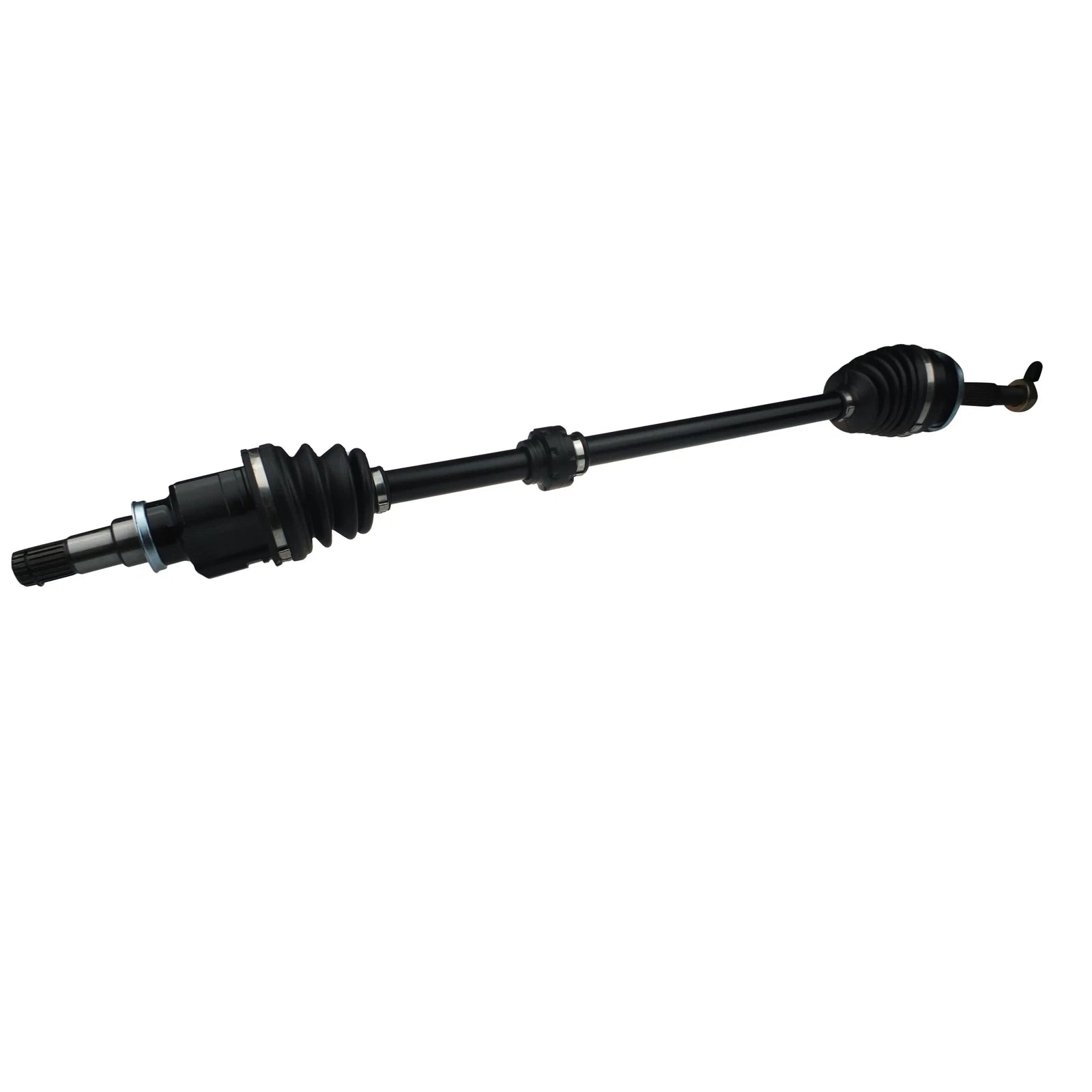

Right Front CV Axle Shaft for Toyota Corolla ZRE152 ZZE122 20T Inner

PRODUCT OVERVIEW

Right-hand front CV axle drive shaft for Toyota Corolla and Auris FWD applications. Suits manual, automatic and CVT transmissions where specified, with 20T inner spline and 26T outer spline.

KEY FEATURES

• Right side, front axle for FWD driveline
• Manual 6-speed, automatic and CVT applications where listed
• 20T inner (diff side) spline, 26T outer (wheel side) spline
• Built to OEM specifications using heat-treated chrome steel
• High-quality Neoprene dust boots with stainless steel clamps
• Molybdenum grease for smooth operation at varying angles and speeds

VEHICLE APPLICATIONS

Ensure all specifications match your original driveshaft before purchase. For manual 5-speed applications, use part number CVA1168 as referenced by the supplier.

• Toyota Auris ZRE152R 1.8L 2ZRFE, 2ZRFAE 16V DOHC VVT Manual / CVT FWD (10/2006 - 08/2012)
  Includes sub-models: 180G, RS
• Toyota Corolla ZZE122R 1.8L 1ZZFE 16V DOHC VVT Manual FWD (12/2001 - 04/2007) Manual 6-speed, inner joint 20 spline
  Includes sub-models: Ascent, Ascent Sport, Ascent SECA, Ascent Sport SECA, TTR LE, Ultima SECA, Conquest, Levin
• Toyota Corolla ZRE152R 1.8L 2ZRFE 16V DOHC VVT Manual / Automatic / CVT FWD (05/2007 - 12/2015)
  Includes sub-models: Conquest, Ultima, Ascent, Ascent Sport, Rumion, Levin SX, Levin ZR, RZ, SX, ZR

SPECIFICATIONS

• Position: Front, right-hand (passenger/driver side as per market)
• Drivetrain: FWD
• Length (compressed): 945 mm
• Spline count (outer / wheel side): 26T
• Spline count (inner / diff side): 20T
• Nut size: M22 x 1.5

WHAT'S INCLUDED

• 1 x complete front right CV axle shaft assembly

ADDITIONAL INFORMATION

• Manufactured to meet or exceed OEM performance standards
• Designed for long service life under normal driving conditions
• Warranty: 12 months / 20,000 km on CV driveshaft (CV boots covered for 3 months)
• Always compare length, spline counts and nut size with the original part before installation
