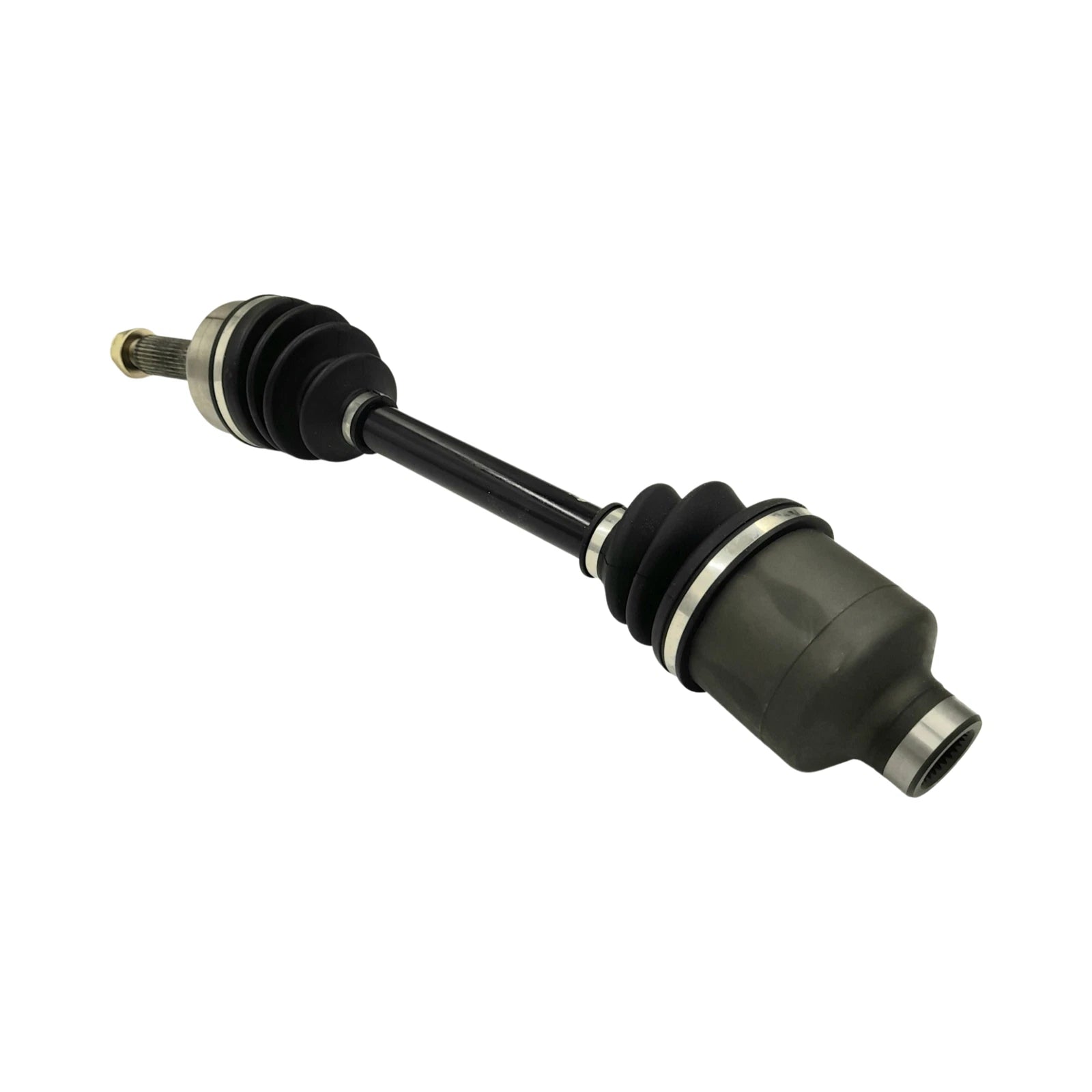

Right CV Drive Shaft for Mazda 3 BK BL 2.0L 2.3L 2.5L MT FWD Female Joint

PRODUCT OVERVIEW

Right-hand CV axle drive shaft for Mazda 3 BK and BL models with manual transmission and front-wheel drive, featuring a female differential joint and hub nut style outer joint. Does not fit vehicles with RF engine code.

KEY FEATURES

• Built to OEM specifications for fit and performance
• Heat-treated chrome steel components for durability and long service life
• High-quality Neoprene dust boots with stainless steel clamps for contamination protection
• Filled with high-performance moly grease for smooth operation at varying angles and speeds
• Supplied fully assembled and ready to install

VEHICLE COMPATIBILITY

Suitable for select Mazda 3 BK and BL applications with manual transmission and FWD (excluding RF engine code). Check all engine, body, and year details carefully before purchase.

• Mazda 3 BL 2.0L LFDE / PE-VPS I4 16V DOHC VVT (04/2009–01/2014) – models including MAXX, MAXX SPORT, NEO, SP20 SKYACTIV
• Mazda 3 BK 2.0L LFDE I4 16V DOHC VVT (2003–05/2006, 2005-onwards only) – models including MAXX, MAXX SPORT, NEO
• Mazda 3 BK 2.3L L3 I4 16V DOHC VVT (2003–03/2009, 2005-onwards only) – models including SP23
• Mazda 3 BK 2.3L L3VDT I4 16V DOHC VVT (05/2006–05/2009) – models including MPS, MPS LUXURY, MPS SPORTS PACK
• Mazda 3 BL 2.5L L5 I4 16V DOHC VVT (04/2009–01/2014) – models including SP25

Always confirm spline counts, joint type, and dimensions against the original part before installation.

SPECIFICATIONS

• Position: Right-hand (passenger) side
• Drivetrain: Front-wheel drive (FWD)
• Transmission: Manual
• Length (compressed): 596 mm
• Spline count – outer/wheel side: 28
• Spline count – inner/diff side: 28
• Inner/diff joint type: Female
• Outer joint: Hub nut style

WHAT'S INCLUDED

• 1 x complete right-hand CV drive shaft assembly

WARRANTY

• 12 month / 20,000 km warranty on CV driveshaft (whichever occurs first)
• CV boots warranted for 3 months from date of purchase

Installation by a qualified technician is recommended to ensure correct fitment and to maintain warranty coverage.
