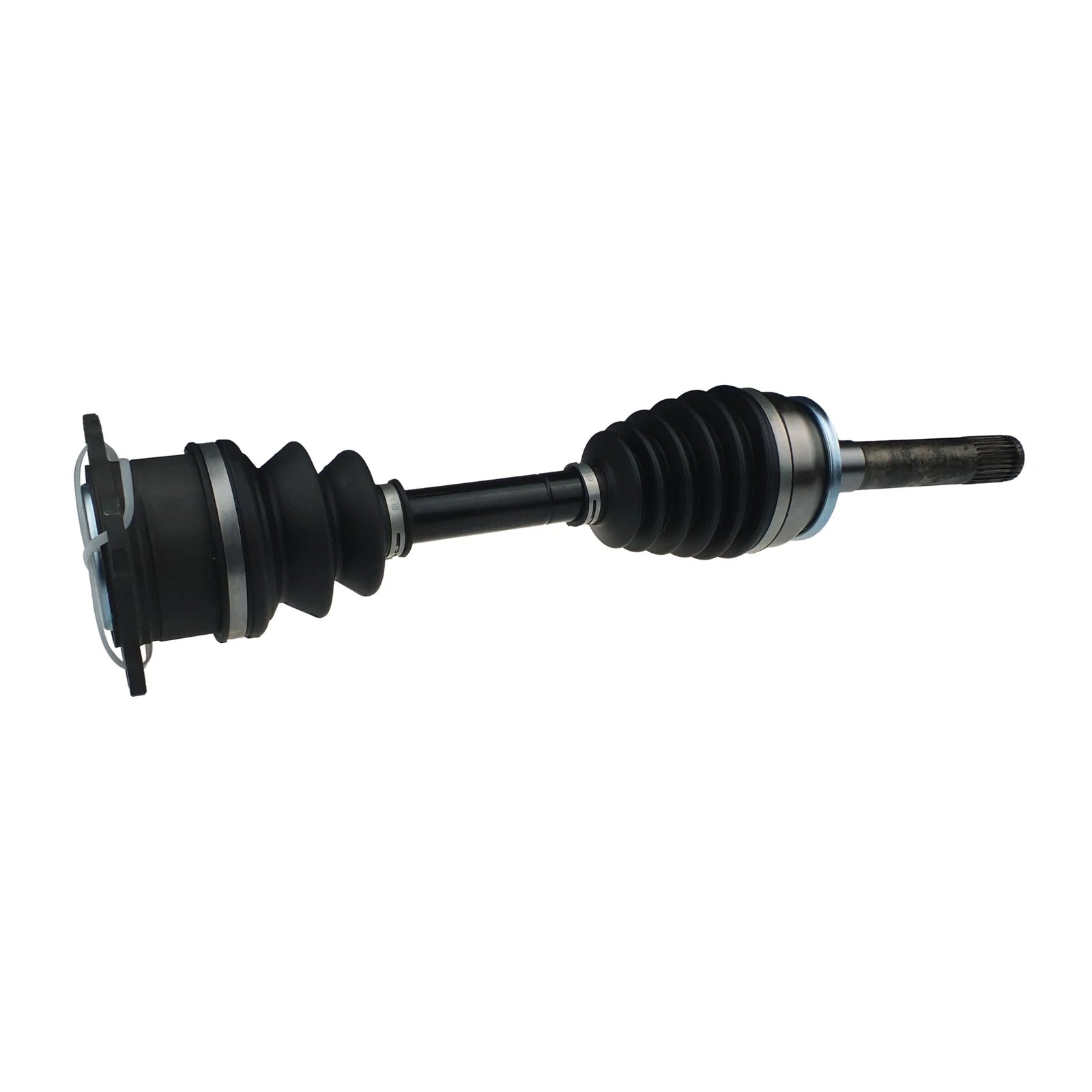

Right Front CV Drive Shaft 28T Spline for Mitsubishi 4WD Models

PRODUCT OVERVIEW

Right-hand front CV axle drive shaft for 4WD automatic and manual applications. Features a 28-spline outer joint with bolt-on inner joint to suit 110 mm and 114 mm PCD mounting patterns.

Manufactured to OEM specifications using heat-treated chrome steel for durability and long service life. High-quality neoprene dust boots with stainless steel clamps help prevent contamination, while moly grease ensures smooth operation at varying angles, speeds and high revolutions.

VEHICLE FITMENT

Important: Vehicles with 4M40 & 4M40T engines up to 08/2003 have two options for the left shaft: 25 spline (CVA1099) and 28 spline (CVA1068). Confirm spline count before ordering.

• Mitsubishi Triton MK 2.8L Diesel 4M40 & 4M40T 06/1996–08/2006 (check spline count) – GLX, GLXR, GLS
• Mitsubishi Triton MK 3.0L Petrol 6G72 06/1996–08/2006 – GLX, GLXR, GLS
• Mitsubishi Challenger PA K96 3.0L 6G72 4WD MT & AT 12/1997–03/2007 – GLX, GLXR, GLS
• Mitsubishi Pajero NJ NK NL 3.5L V6 Petrol 6G74 07/1993–06/2000 – GL, GLX, GLS
• Mitsubishi Pajero NH NJ 3.0L V6 Petrol 6G72 01/1991–05/1996 – GL, GLX, GLS
• Mitsubishi Pajero 2.8L Diesel 4M40T 09/1995–06/2000 (check spline count) – GL, GLX, GLS
• Mitsubishi Delica 2.8L Diesel 4M40T 05/1994–12/2006 (check spline count, manual only)
• Mitsubishi Delica 3.0L V6 Petrol 6G72 05/1994–12/2006

SIZING & SPECIFICATIONS

• Length (compressed): 537 mm
• Spline count (outer/wheel side): 28T
• PCD mounting bolt holes: 110.46 mm
• Mounting bolt centre to centre: 78 mm
• Mounting bolt hole diameter: 10.5 mm
• Inner joint type: Bolt-on
• Outboard joint type: Ball

WHAT'S INCLUDED

• 1 x CV drive shaft (front right)

ADDITIONAL INFORMATION

The CV driveshaft range is engineered for excellent performance and reliability across a wide variety of passenger and 4WD applications. All CV driveshafts are covered by a 12 month / 20,000 km warranty. CV boots are warranted for 3 months from date of purchase.
