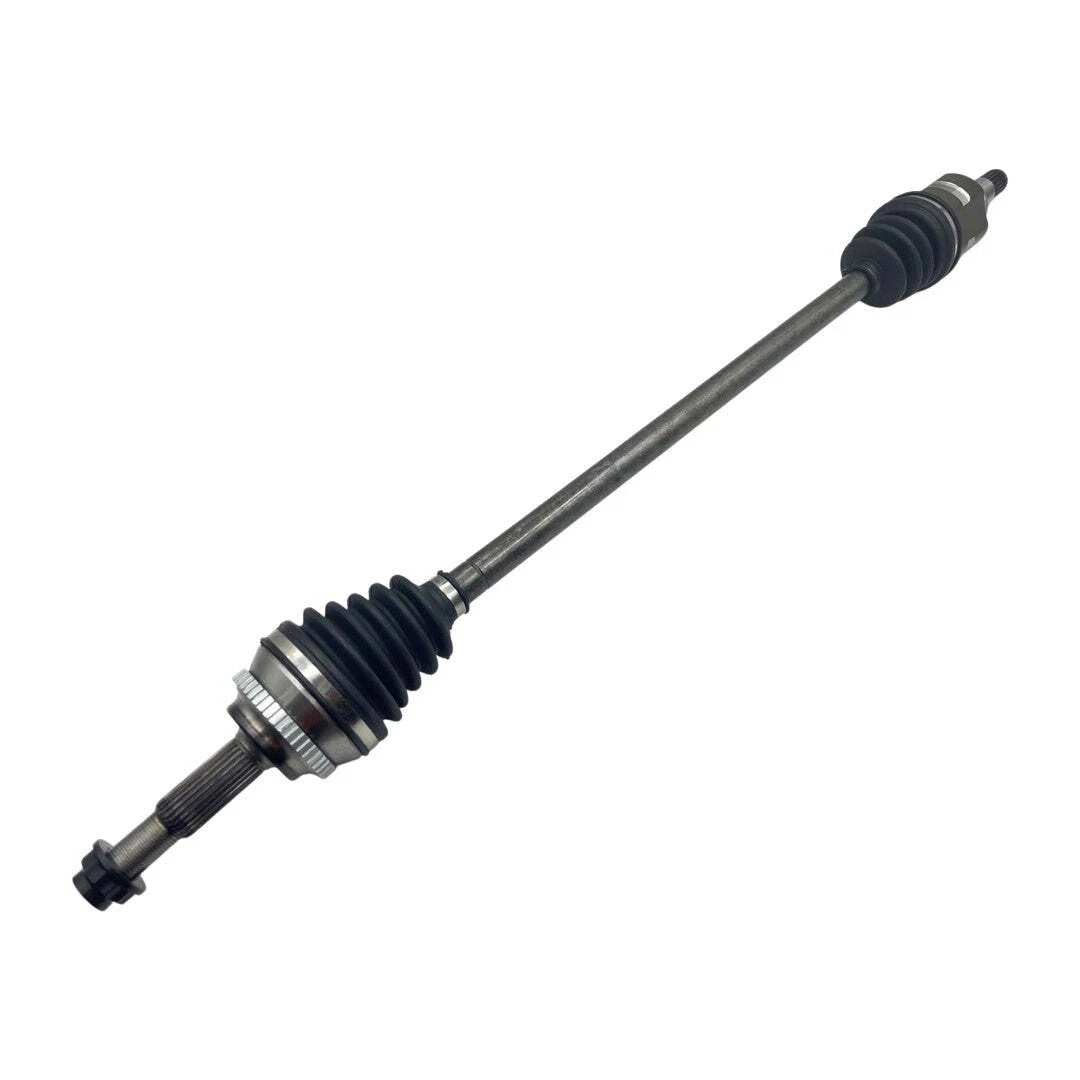

Right Front CV Drive Shaft for Toyota Corolla ZZE122 1.8L 2000-2007

PRODUCT OVERVIEW

Right-hand front CV axle drive shaft suitable for Toyota Corolla ZZE122 1.8L FWD models with 20-tooth inner spline. Designed for manual 5-speed applications and compatible with selected automatic New Zealand models. For manual 6-speed applications, use part number CVA1127.

KEY FEATURES

• Built to OEM specifications for fit, performance and durability
• Heat-treated chrome steel construction for extended service life
• High-quality Neoprene dust boots with stainless steel clamps
• Molybdenum grease for smooth operation at varying angles and speeds
• Includes ABS tone ring with 48 teeth

SPECIFICATIONS

• Position: Front right (passenger side in RHD vehicles)
• Drivetrain: FWD
• Transmission compatibility: Manual 5-speed; selected automatic (NZ models)
• Length (compressed): 923 mm
• Spline count outer / wheel side: 26T
• Spline count inner / diff side: 20T
• ABS: Yes, tone ring
• ABS ring teeth: 48T
• Nut size: M22 x 1.5

VEHICLE DETAILS (REFERENCE)

Suitable for selected Toyota Corolla ZZE122R 1.8L 1ZZ-FE 16V DOHC VVT FWD applications where a 20-tooth inner spline is required, including various Ascent, SECA, Conquest and Levin variants, and selected New Zealand RUNX, SPACIO, FIELDER and LUXEL models. Always confirm spline counts and dimensions before purchase.

WHAT'S INCLUDED

• 1 x Complete right-hand CV drive shaft assembly

WARRANTY

Supplied with a 12 month / 20,000 km warranty on the CV driveshaft assembly. CV boots are covered for 3 months from date of purchase.
