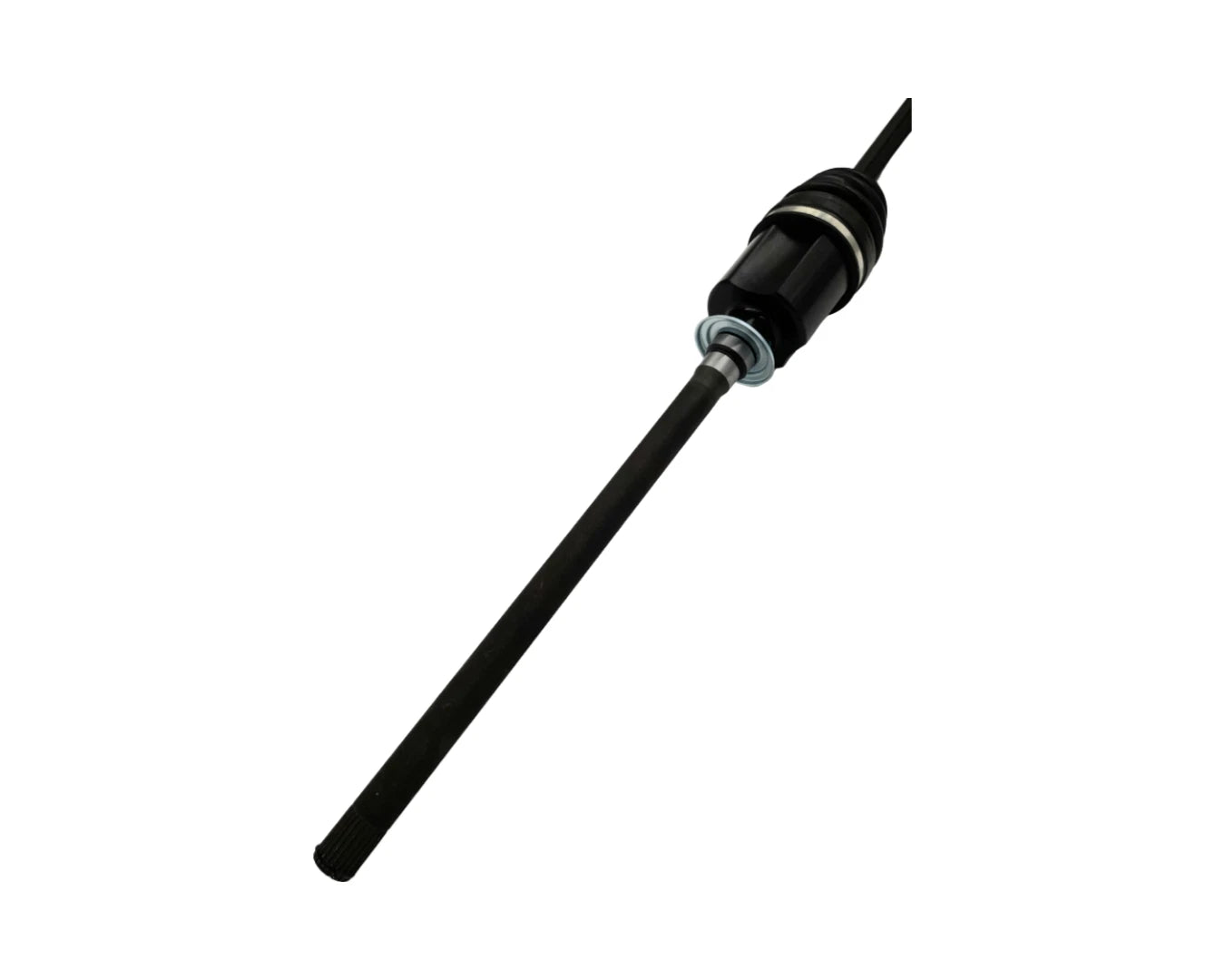

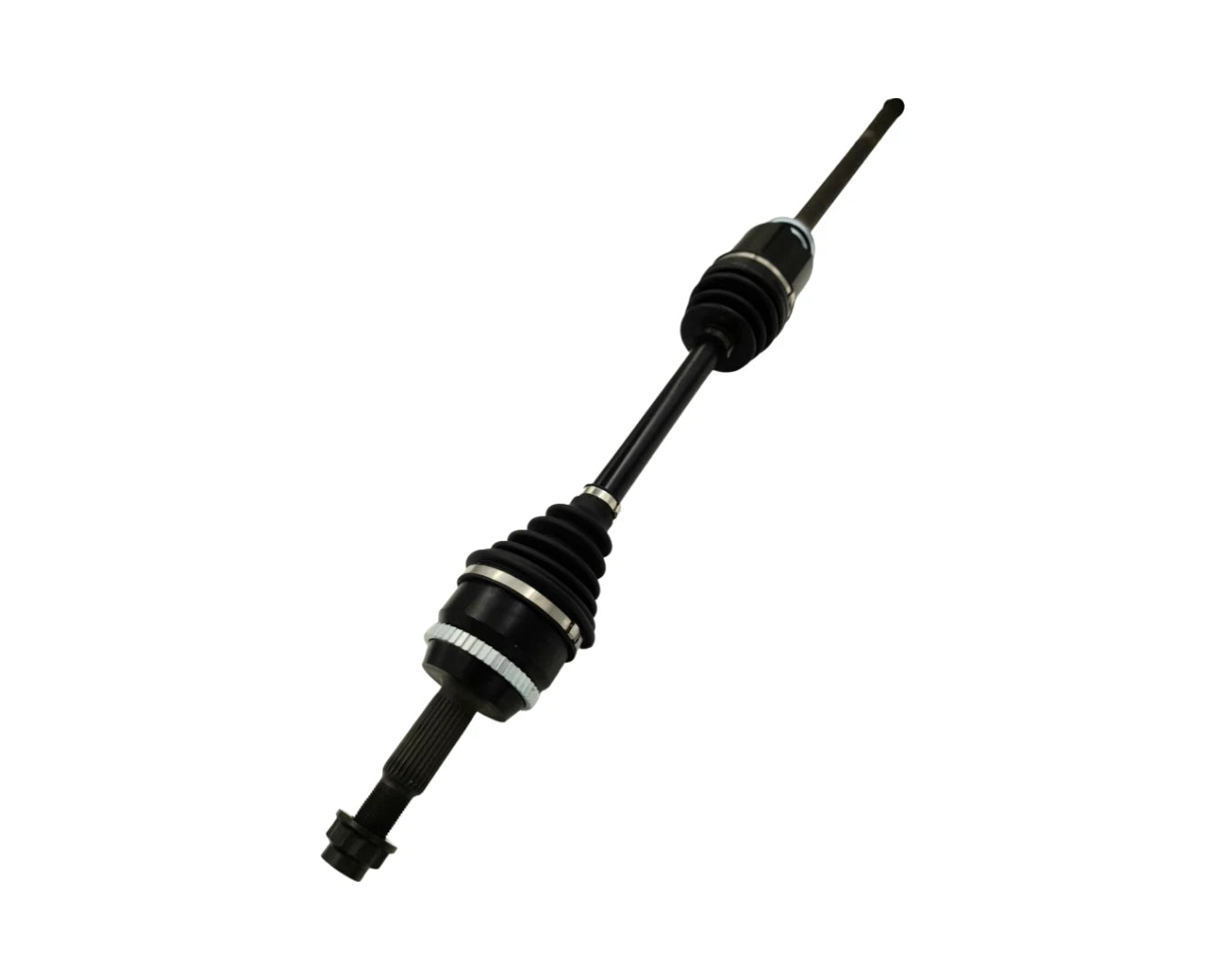

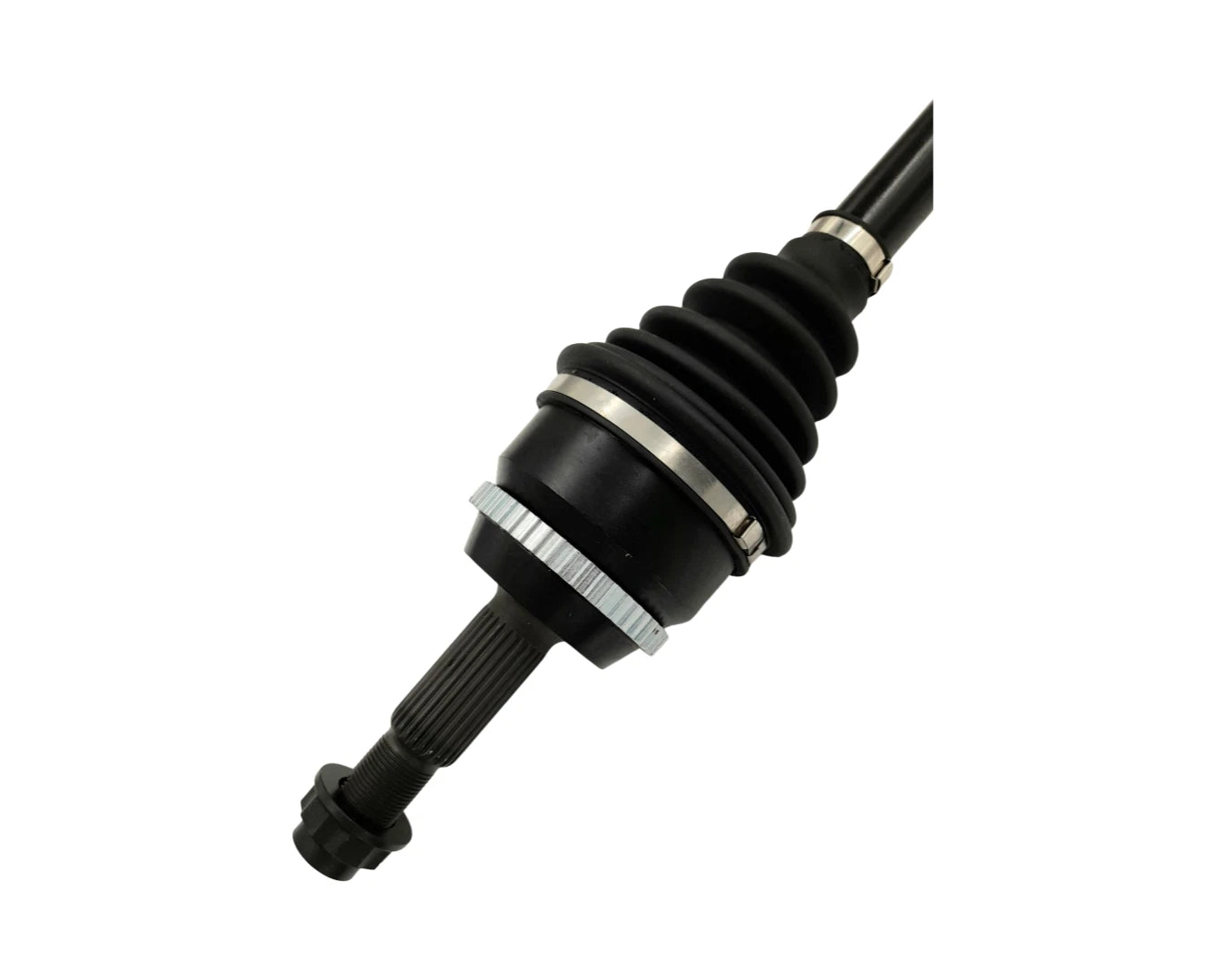

Right Front CV Drive Shaft for Toyota Kluger & Highlander GSU45 4WD 2007-2014

PRODUCT OVERVIEW

This right-hand front CV axle drive shaft is designed for automatic 4WD applications and built to OEM specifications for reliable driveline performance.

KEY FEATURES

• Manufactured to OEM specifications for fit and performance
• Heat-treated chrome steel components for strength and durability
• High-quality neoprene dust boots with stainless steel clamps to resist contamination
• Filled with moly grease for smooth operation at varying angles and speeds

VEHICLE COMPATIBILITY

Suitable for the following applications (front right, automatic 4WD):

• Toyota Kluger GSU45R 3.5L 2GR-FE 24V DOHC VVT, automatic 4WD (08/2007 - 02/2014), including Altitude, KX-R, KX-S, Grande
• Toyota Highlander GSU45R 3.5L 2GR-FE 24V DOHC VVT, automatic 4WD (08/2007 - 02/2014)

Always confirm specifications and spline counts against your original part before purchase.

SPECIFICATIONS

• Position: Front right (passenger side in RHD vehicles)
• Drivetrain: Automatic 4WD
• Engine: 3.5L 2GR-FE
• Length (compressed): 1025 mm
• Spline count – outer/wheel side: 26
• Spline count – inner/diff side: 23
• ABS ring teeth: 48
• Hub nut: M22 x 1.5

WHAT'S INCLUDED

• 1 x complete right front CV drive shaft assembly

WARRANTY

• 12-month / 20,000 km warranty on CV driveshaft assembly
• CV boots covered for 3 months from date of purchase

Installation by a qualified technician is recommended to ensure correct fitment and optimal performance.
