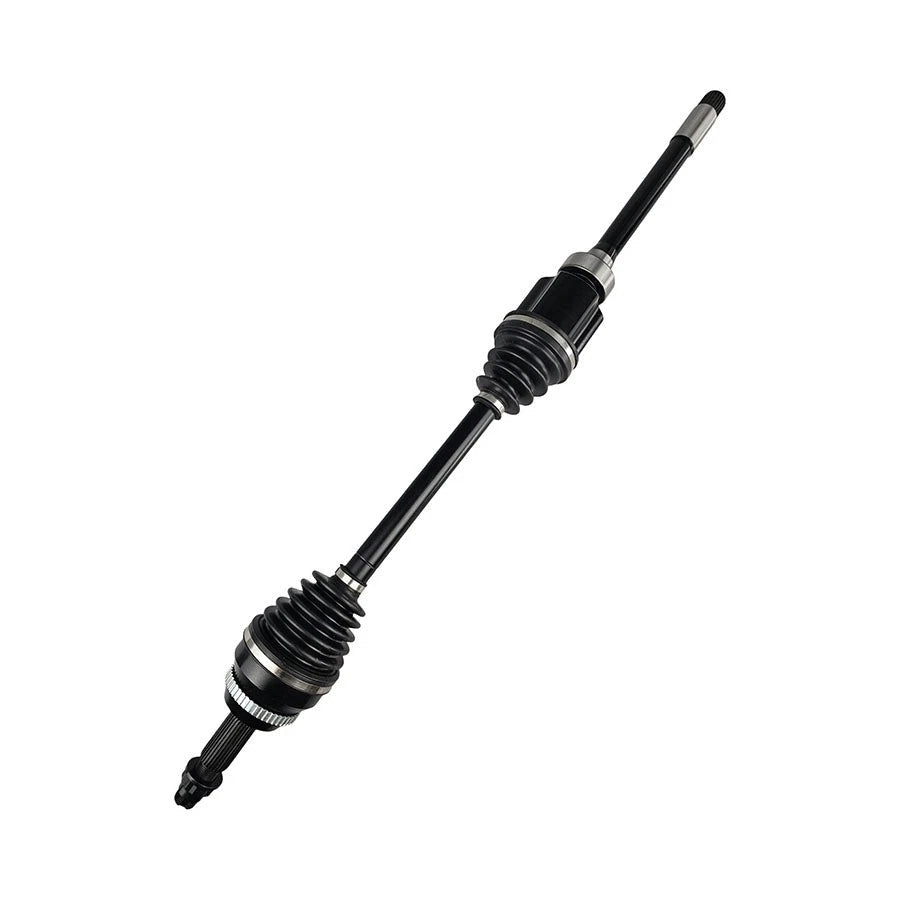

Right Front CV Drive Shaft for Toyota Kluger & Highlander GSU55 AWD 2017-2021

PRODUCT OVERVIEW

Right-hand front CV axle drive shaft for automatic AWD models. Designed to meet OEM specifications for durability, fitment and performance.

Fitment note: Front right-hand side, for VIN prefixes 5TDDZ3FH and 5TDBZ3FH only.

KEY FEATURES

• Built to OEM specification using heat-treated chrome steel for maximum service life
• High-quality neoprene dust boots with stainless steel clamps to reduce contamination
• Molybdenum grease for smooth operation at varying angles, speeds and high RPM
• Supplied as a complete, ready-to-install CV shaft assembly

VEHICLE APPLICATION

• Toyota Kluger GSU55R 3.5L 2GR-FKS AWD (02/2017 - 03/2021), right side, VIN prefixes 5TDDZ3FH, 5TDBZ3FH, including sub-models Grande, GX, GXL, Black Edition
• Toyota Highlander GSU55R 3.5L 2GR-FKS AWD (02/2017 - 03/2021), right side, VIN prefix 5TDBZ3FH, including sub-models GX, GXL

Important: Always check VIN and specifications before purchase to confirm compatibility with your vehicle.

TECHNICAL SPECIFICATIONS

• Position: Front right (passenger side in RHD vehicles)
• Drivetrain: Automatic AWD
• ABS ring: 48 teeth
• Length (compressed): 993.5 mm
• Spline count, outer / wheel side: 30 teeth
• Spline count, inner / diff side: 24 teeth
• Outboard joint type: Ball
• Inboard joint type: Tripod
• Extension shaft bearing OD: 67 mm
• Extension shaft bearing width: 23 mm
• Extension shaft length from outside of bearing: 348.5 mm
• Hub nut style: M22 x 1.5

WHAT'S INCLUDED

• 1 x complete right-hand CV drive shaft assembly

WARRANTY INFORMATION

• 12 month / 20,000 km warranty on CV driveshaft assembly
• CV boots warranted for 3 months from date of purchase

Engineered for reliability in passenger and SUV applications, this CV driveshaft matches OEM performance while delivering long service life when installed and maintained correctly.
